Model No: EDR series
EDR Switching Power Supply
The EDR series switch power supply same as Mingwei EDR series,Rail type switch power supply is a rail type industrial grade power supply product, designed with a metal shell and specifically customized for industrial automation control systems. Its core function is to convert AC input (90-264VAC/127-370VDC) into stable DC output (12V/24V/48V, etc.), with a power coverage of 75W to 150W, suitable for high-density installation scenarios.
Quantity :
Subscribe to our Newsletter
1. Rail type switch power supply Model classification
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in basic industrial power supply
EDR-75-24
Power/Voltage: 75W/24V DC output
Input range: 90-264VAC or 127-370VDC wide voltage adaptation
Input range: 90-264VAC or 127-370VDC wide voltage adaptation
Scenario: PLC control, power supply for small industrial equipment
EDR-75-12
Power/Voltage: 75W/12V DC output
Features: DIN rail installation, metal shell heat dissipation optimization
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in Medium to high power scenario models
EDR-120-24
Power/Voltage: 120W/24V output, supports 5A current
Installation design: Ultra thin card rail type, suitable for compact cabinet layout
Application: Visual inspection system, industrial distribution box main power supply
EDR-150-24
Power/Voltage: 150W/24V output (some suppliers indicate 240W expansion model)
Advantage: Mingwei original factory design, supports high load continuous operation
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in Multi voltage adaptation model
EDR-120-12/24
Power/Voltage: 120W Dual Output Configuration (12V/24V Flexible Switching)
Adaptation scenario: Automated production lines or instrument equipment that require multi voltage power supply
EDR-240W (Extended Model)
Power range: 240W high-power model, covering special industrial needs
Compatibility: Can replace similar products in the NDR series
2.Rail type switch power supply Structural characteristics
Rail type switch power supply metal shell: The all metal shell (such as aluminum alloy) enhances heat dissipation and electromagnetic shielding performance (EMC EN55022 Class A standard), suitable for harsh industrial environments.
Rail type switch power supply rail Installation: Compatible with DIN rail TS-35/7.5 or 15 standard rails, with an installation width of only 32-40mm, saving control cabinet space.
3. Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series Functional parameters
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series Parameter Category Technical Indicator Source Label
Input range 90-264VAC/127-370VDC (full range adaptive)
Output voltage 12V/24V/48V (customizable constant voltage or constant current mode)
Power range 75W/120W/150W (± 2% voltage accuracy)

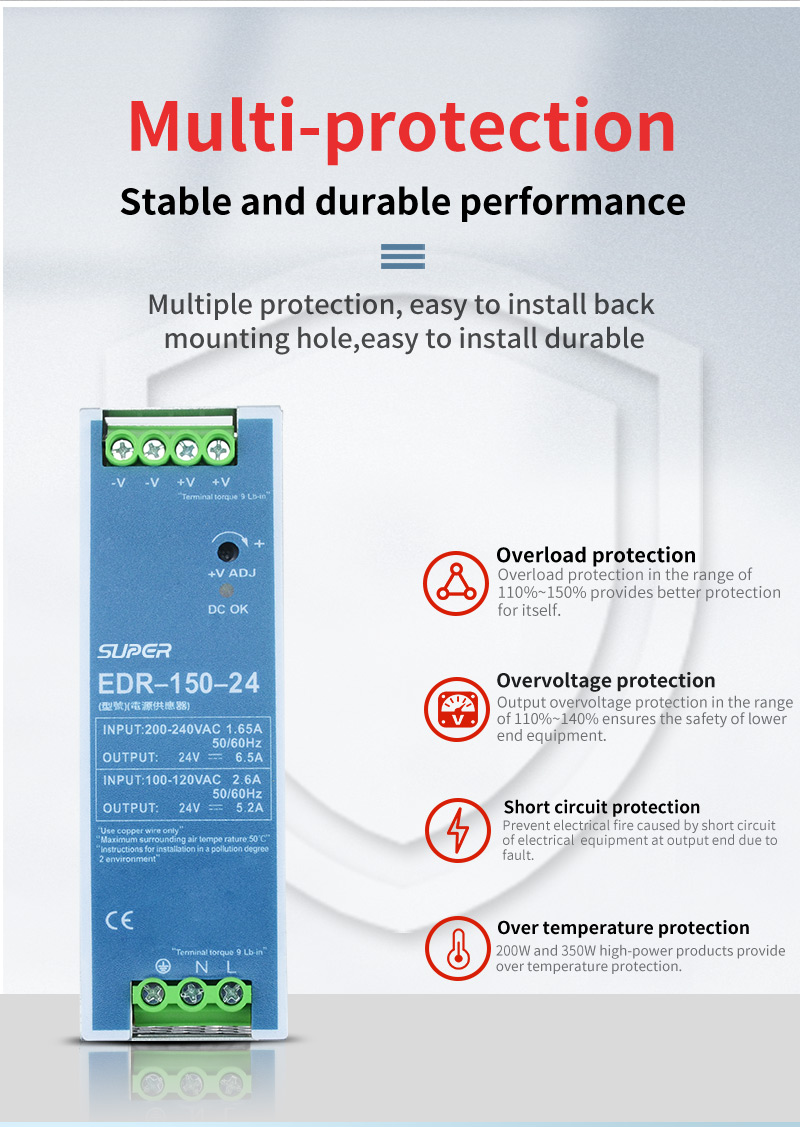

The protection level comes standard with overload/short circuit/over temperature protection, and some models have passed UL 508 certification
4. Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series Application Fields
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in industrial control: PLC, relay module, sensor power supply.
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in automation equipment: semiconductor manufacturing, factory production lines, electromechanical equipment drivers.
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in special scenario: Suitable for capacitive or inductive loads, supporting wide temperature operation from -20 ℃ to 60 ℃.
5. Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series Compare the characteristics of competitors
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series compared to other series of the same brand (such as HDR, MDR):
Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series in economy: Positioned as a cost-effective model, retaining basic protection functions and omitting expansion interfaces such as DC OK signals.
Heat dissipation advantage: The metal shell design improves the heat dissipation efficiency by 15% -20% compared to the plastic shell, making it suitable for continuous high load scenarios.
6.Rail type switch power supply,DC24V Switching Power Supply and Mingwei EDR series Switching Power Supply Industry certification
International standards: UL 508 (Industrial Control Equipment), EN61000-6-2 (Industrial Immunity).
Environmental regulations: Complies with EN61000-3-2 harmonic current standard
