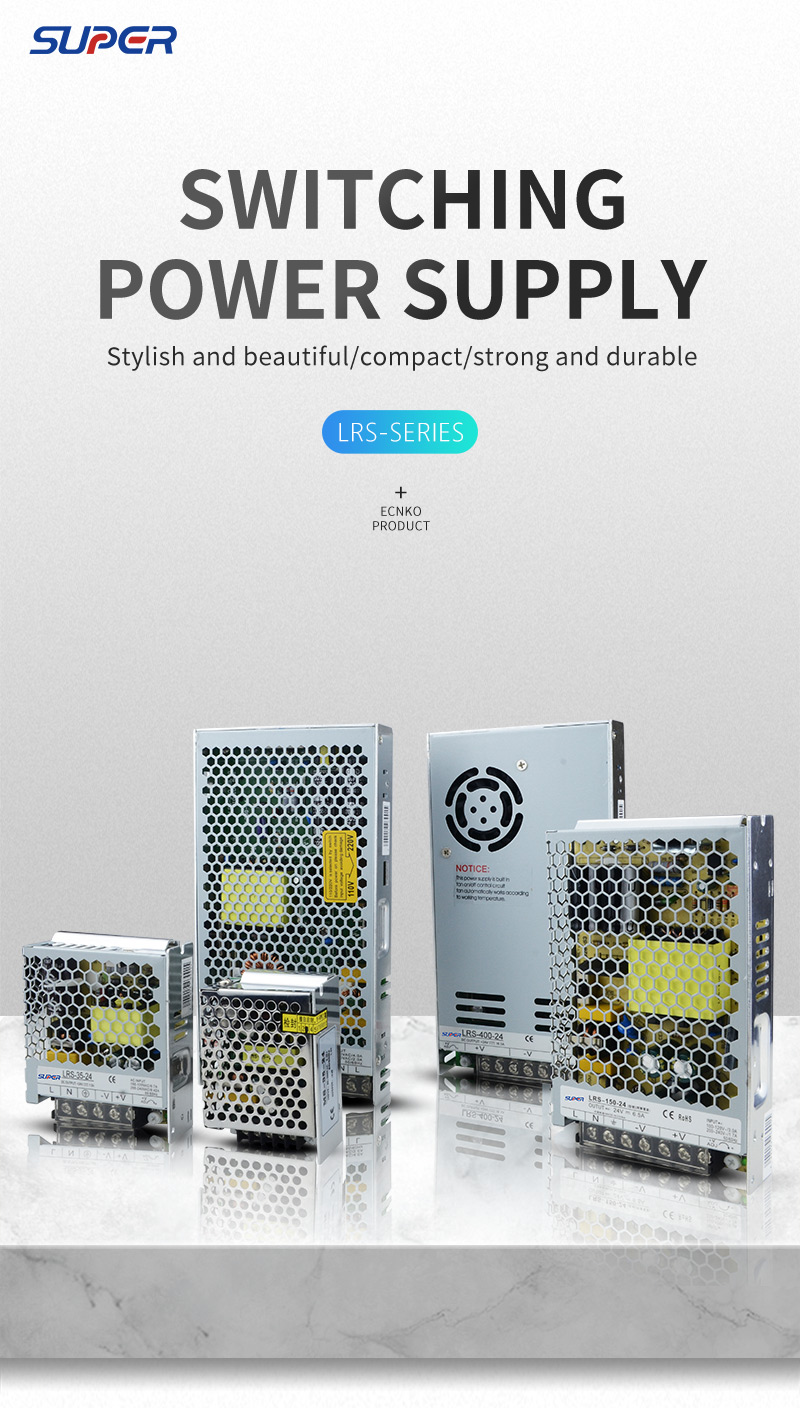

LRS Series Switching Power Supply
1、 LRS Flat Power Supply's Power and LRS Flat Power Supply's Model Classification
LRS flat power supply power range: covering 35W to 600W, typical models include LRS-35 (35W), LRS-200 (200W), LRS-350 (350W), etc.
LRS flat power supply output specifications: LRS flat power supply supports multiple voltage outputs such as 3.3V, 5V, 12V, 24V, 48V, etc., suitable for different device requirements.
2、LRS Flat Power Supply Core design features
LRS Flat Power Supply Structure and Heat Dissipation Optimization

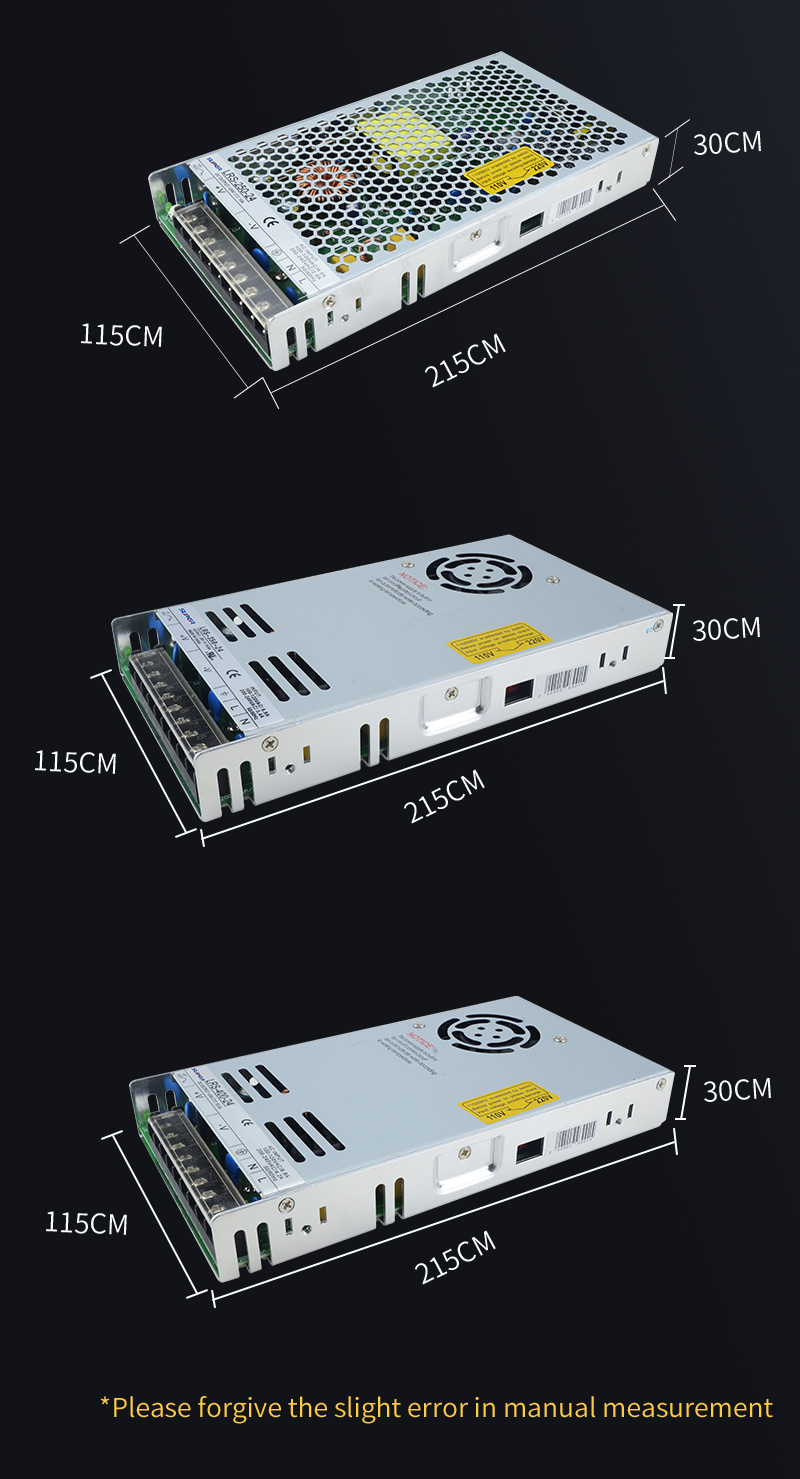

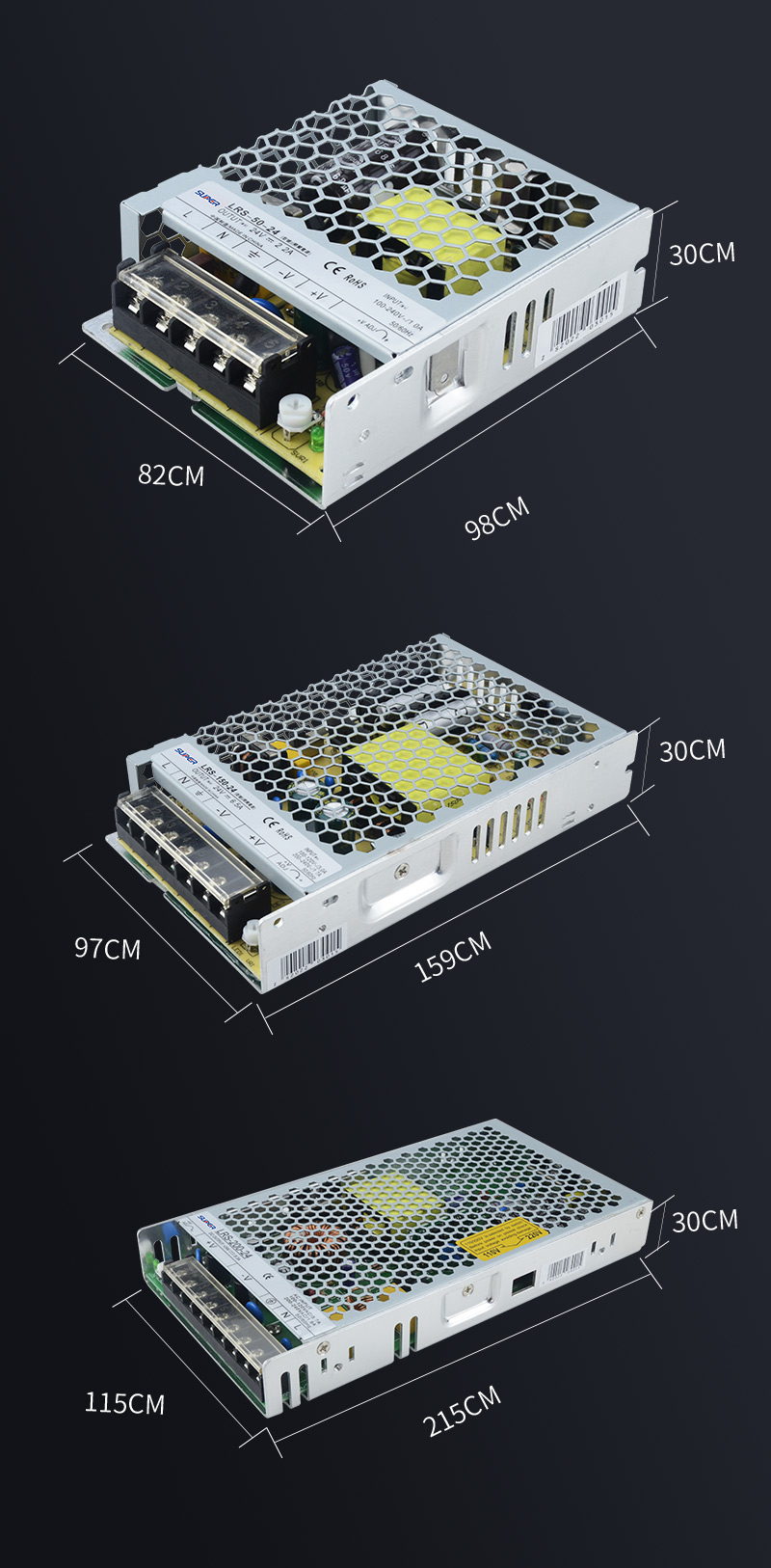

Ultra thin body: With a height of only 30mm (1U standard), it saves installation space and is suitable for compact industrial equipment.

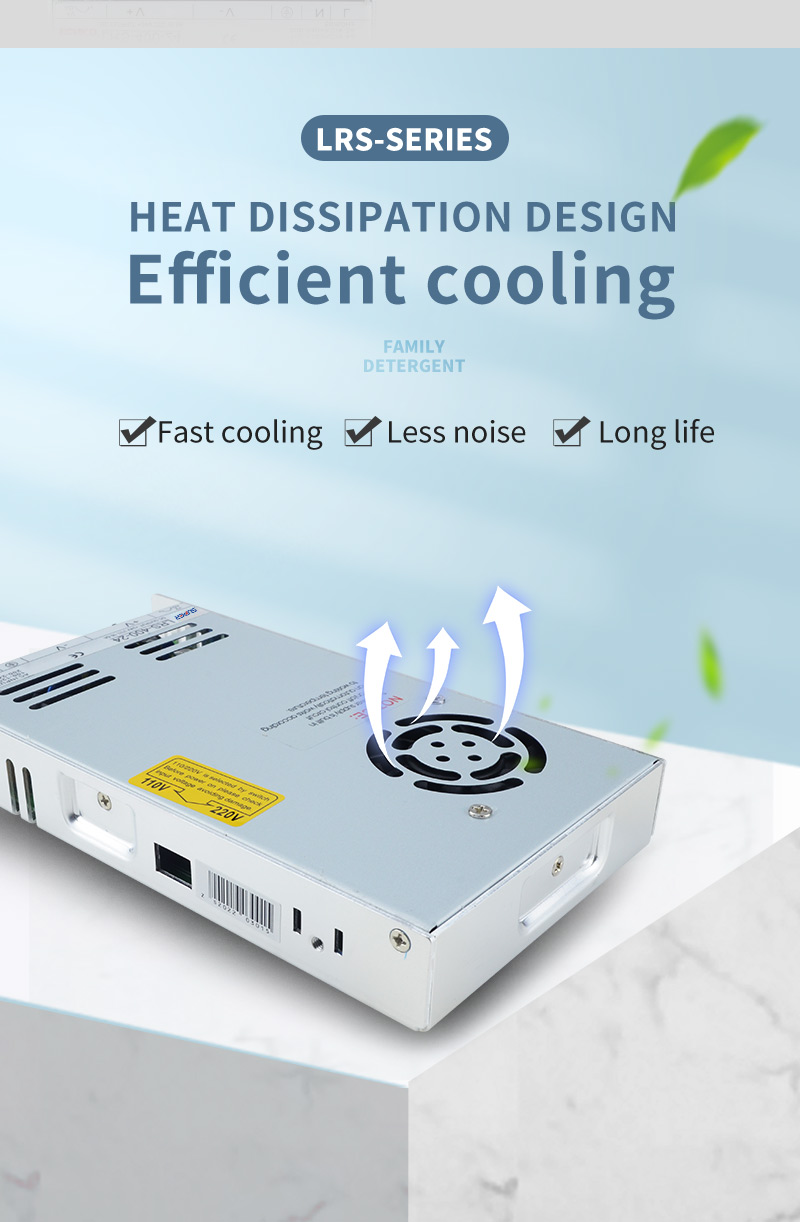

High temperature 70 ℃ industrial power supply cooling solution: LRS-200 and below models adopt fanless natural cooling, while LRS-350 and above models have built-in fans for forced cooling, ensuring stable operation in high temperature environments.
High temperature 70 ℃ industrial power supply's input/output performance
High temperature 70 ℃ industrial power supply and LRS flat power supply wide voltage input: High temperature 70 ℃ industrial power supply and LRS flat power supply supports AC 90-264V full range input,High temperature 70 ℃ industrial power supply and LRS flat power supply compatible with global grid standards, and can withstand instantaneous 300VAC impact.
High temperature 70 ℃ industrial power supply and LRS flat power supply efficient conversion: With an efficiency of up to 90% (such as LRS-350), the no-load power consumption is as low as 0.2-0.75W, and the energy-saving effect is significant.

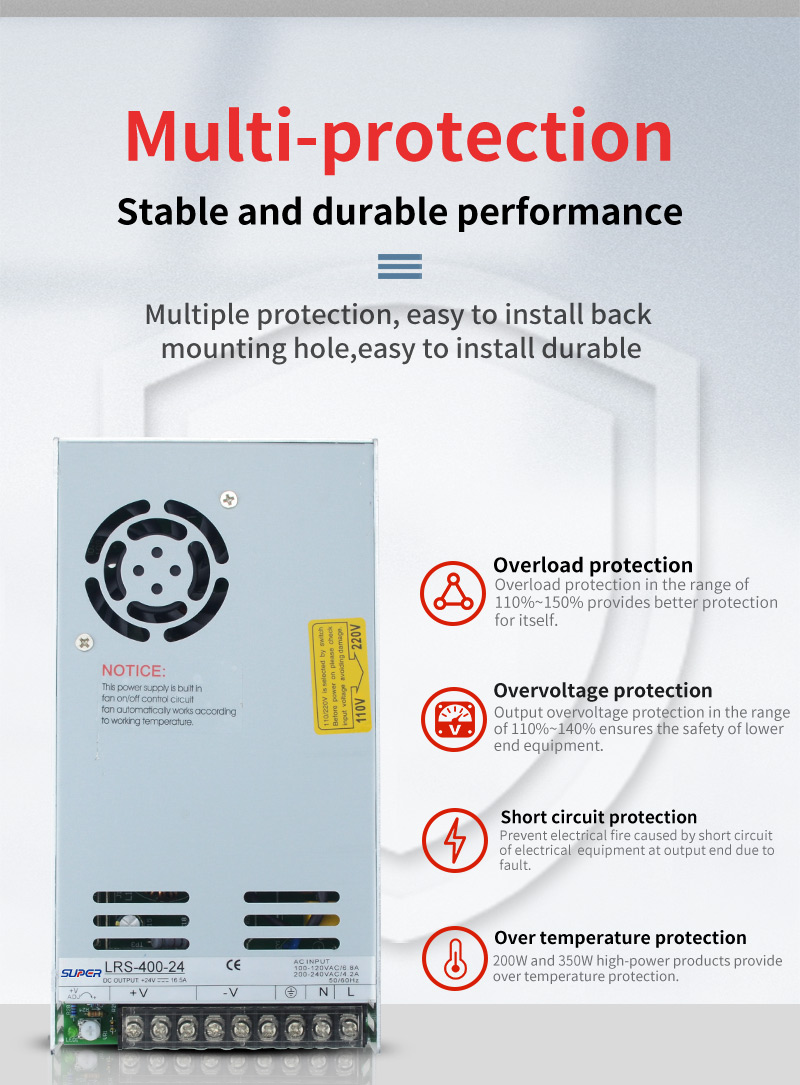

High temperature 70 ℃ industrial power supply protection function: integrated short circuit, overload, overvoltage, and over temperature protection to enhance equipment safety.
3、High temperature 70 ℃ industrial power supply's reliability certification and High temperature 70 ℃ industrial power supply's adaptability
LRS flat power supply environment tolerance: supports working temperatures from -30 ℃ to+70 ℃, 5G anti vibration design, suitable for harsh industrial environments.
High temperature 70 ℃ industrial power supply altitude adaptability: High temperature 70 ℃ industrial power supply can operate stably at an altitude of up to 5000 meters.
4、 Application scenarios of DC power supply scheme for electrical equipment
LRS flat power supply for industrial automation: supplying power to PLCs, sensors, and industrial control systems.
Mechanical and electrical equipment: Suitable for devices such as motor drivers, instruments, etc. that require efficient and stable power supply.
Network and Communication: Suitable for small servers, network switches, etc.
5、 Comparison and Selection Suggestions for DC Power Supply Scheme Models of Electrical Equipment
Model Power Cooling Method Output Voltage Range Applicable Scenarios
LRS-200-24 200W naturally air-cooled 21.6V~28.8V (adjustable) medium power industrial control equipment
LRS-350-24 350W built-in fan cooling 21.6V~28.8V (adjustable) high-power/high temperature environment equipment
LRS-600-48 600W Heavy duty electromechanical equipment with forced air cooling of 43.2V~57.6V (adjustable) and high current demand
6、 Derivatives and Upgrades of DC Power Supply Solutions for Electrical Equipment
LRS-150F: Optimized heat dissipation design for special requirements, suitable for high-frequency vibration scenarios.
LRS-450/600: Extended power limit up to 600W to meet larger load demands.
