MS Series Switching Power Supply
1、 Core parameters of MS series small volume power supply
MS series small volume power supply's input voltage: AC 100-264V (some models support AC 85-264V or AC/DC 120-370V input).MS series small volume power supply's output specifications:MS series small volume power supply's supports fixed voltages such as 5V, 12V, 24V, 36V, 48V, etc. Some MS series small volume power supply's models can adjust the output voltage through a potentiometer (within ± 10% range).
MS series small volume power supply's power span: MS series small volume power supply specialize in small to medium power,MS series small volume power supply's common models include MS-10W (10W), MS-35 series (35W), MS-200 (200W), and MS-1000W (1000W).
2、 Technical characteristics and design advantages of waterproof industrial power supply
1.Waterproof industrial power supply efficient and energy-saving design
Waterproof industrial power supply's conversion efficiency ≥ 85%, Waterproof industrial power supply no-load power consumption as low as 0.2W, Waterproof industrial power supply built-in EMI filter to reduce electromagnetic interference.Waterproof industrial power supply use pulse frequency modulation (PFM) technology to achieve low ripple noise (such as ripple<150mV at 24V output).

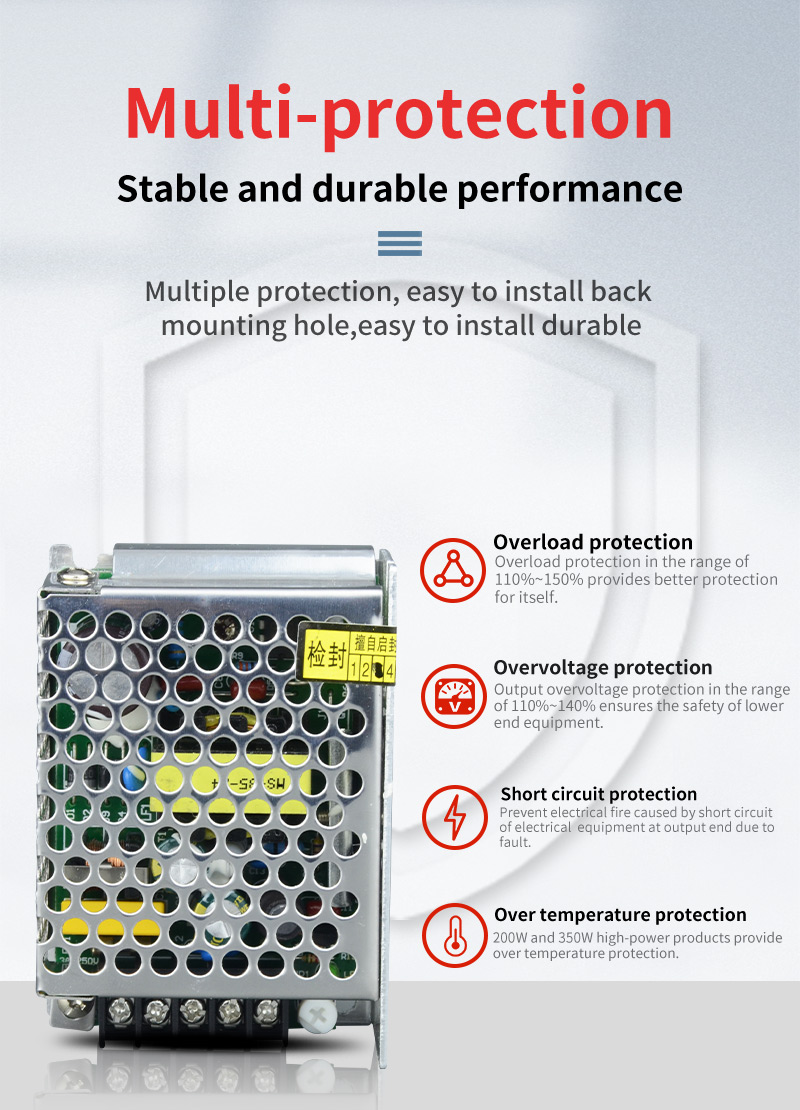

2. Waterproof industrial power supply safety and protection functionWaterproof industrial power supply have the standard of short-circuit protection (constant current output mode), overload protection (105% -150% load threshold), and over temperature protection.
IP67 waterproof switch power supply supports soft start function and IP67 waterproof switch power supply suppresses startup surge current (such as surge current ≤ 36A when 220VAC input).

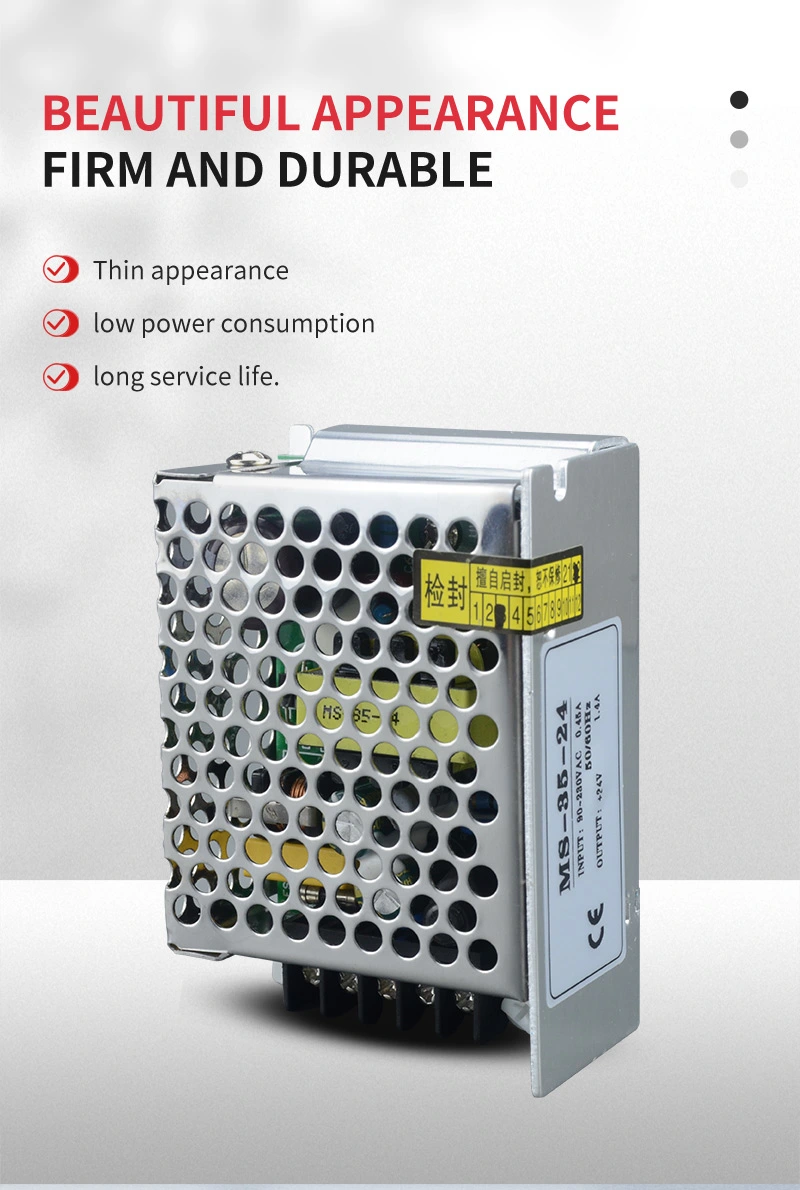

3. Compact structure design of MS series small volume power supply
Ultra thin body (such as MS-10W with a size of only 78 × 48 × 21mm),MS series small volume power supply suitable for space limited scenarios.
IP67 waterproof switch power supply models support IP67 waterproof or high and low temperature environments (working temperature -10 ℃ to+70 ℃).
3、 Waterproof industrial power supply application scenarios and Waterproof industrial power supply adaptation industries
Waterproof industrial power supply in industrial automation: providing stable DC power supply for PLC control systems, sensors, and directional valve motors.
Waterproof industrial power supply in LED devices: Suitable for advertising light boxes and LED display screens, supporting multiple low-voltage high current outputs.
Communication and Consumer Electronics: Suitable for network equipment and audio amplifiers (such as MS series amplifier models MS10.2, MS8.2).
Special environment: Plateau (altitude ≥ 5000 meters), high temperature (continuous operation at 70 ℃), and humid scenes.
4、 Comparison and selection of typical models of IP67 waterproof switch power supply, IP67 waterproof switch power supply power output voltage, IP67 waterproof switch power supply core characteristics
The typical models of IP67 waterproof switch power supply is MS-10W-24V10W24V ± 1% natural heat dissipation, this IP67 waterproof switch power supply's size is 78 × 48 × 21mm
he typical models of IP67 waterproof switch power supply is MS-200-24V200W24V adjustable ± 10% forced air cooling,this IP67 waterproof switch power supply is suitable for IP67 waterproof shellThe typical models of IP67 waterproof switch power supply is MS-1000W-48V1000W48V 20A high-power output,this IP67 waterproof switch power supply is suitable for heavy industrial equipment
5、 MS series small volume power supply industry certification and compatibility
Through UL60950 and CE/ROHS certification, MS series small volume power supply's input-output withstand voltage is 1.5KVAC, and the leakage current is less than 1mA.Compatible with global power grid standards, supports AC/DC dual-mode input (some models require manual switching of voltage levels)
