1、 Core structure of industrial toggle switch and working principle of industrial toggle switch
Automotive toggle switch action mechanism
Automotive toggle switch two stage operation: When pulling the knob handle, the first stage is to manually slowly push it to the vertical position and compress the internal compression spring; In the second stage, the compression spring releases energy and pushes the moving contact piece to quickly switch contacts (separation and connection time is only milliseconds).
Automotive toggle switch contact design: The dynamic contact plate and fixed contact foot quickly engage and disengage, with a much higher on/off speed than manual operation speed, ensuring instantaneous arc cutting.

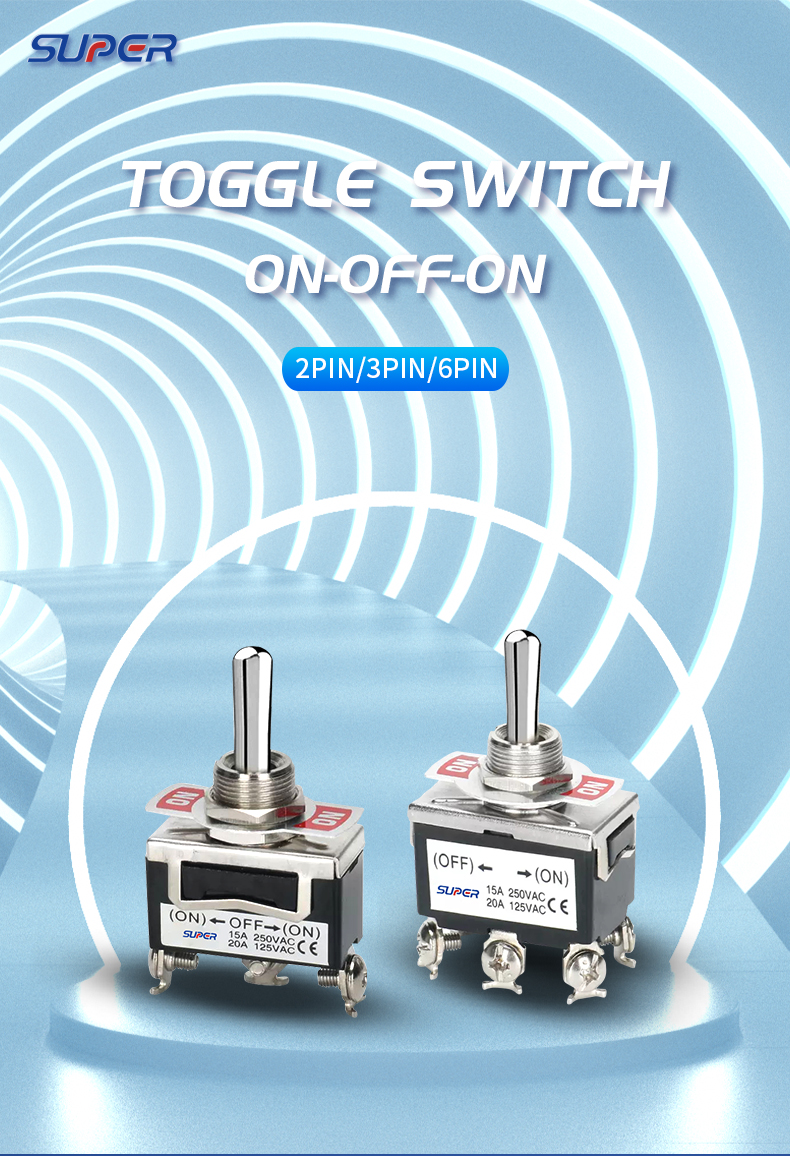

Water proof toggle automotive toggle switch structure typ
Water proof toggle switch type Characteristics Typical Applications
When the momentary action switch is pressed, it is turned on, and when it is released, it is turned off (spring reset). The handheld tool is started and stopped, and the counter is reset
After pressing the lock switch, it remains in the on/off state and needs to be operated again to switch the power switch and mode selection
Bipolar single pole/double pole switch single pole control single circuit on/off, dual pole can synchronously control dual circuit audio equipment dual channel switching

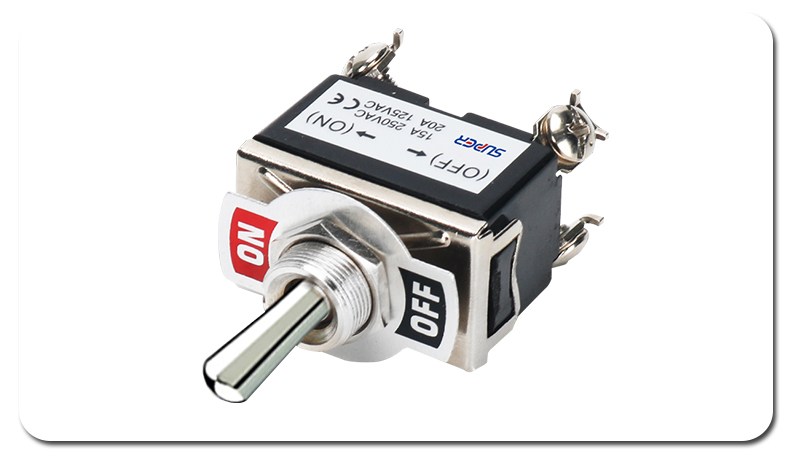

Automotive toggle switch and Water proof toggle switch Key components

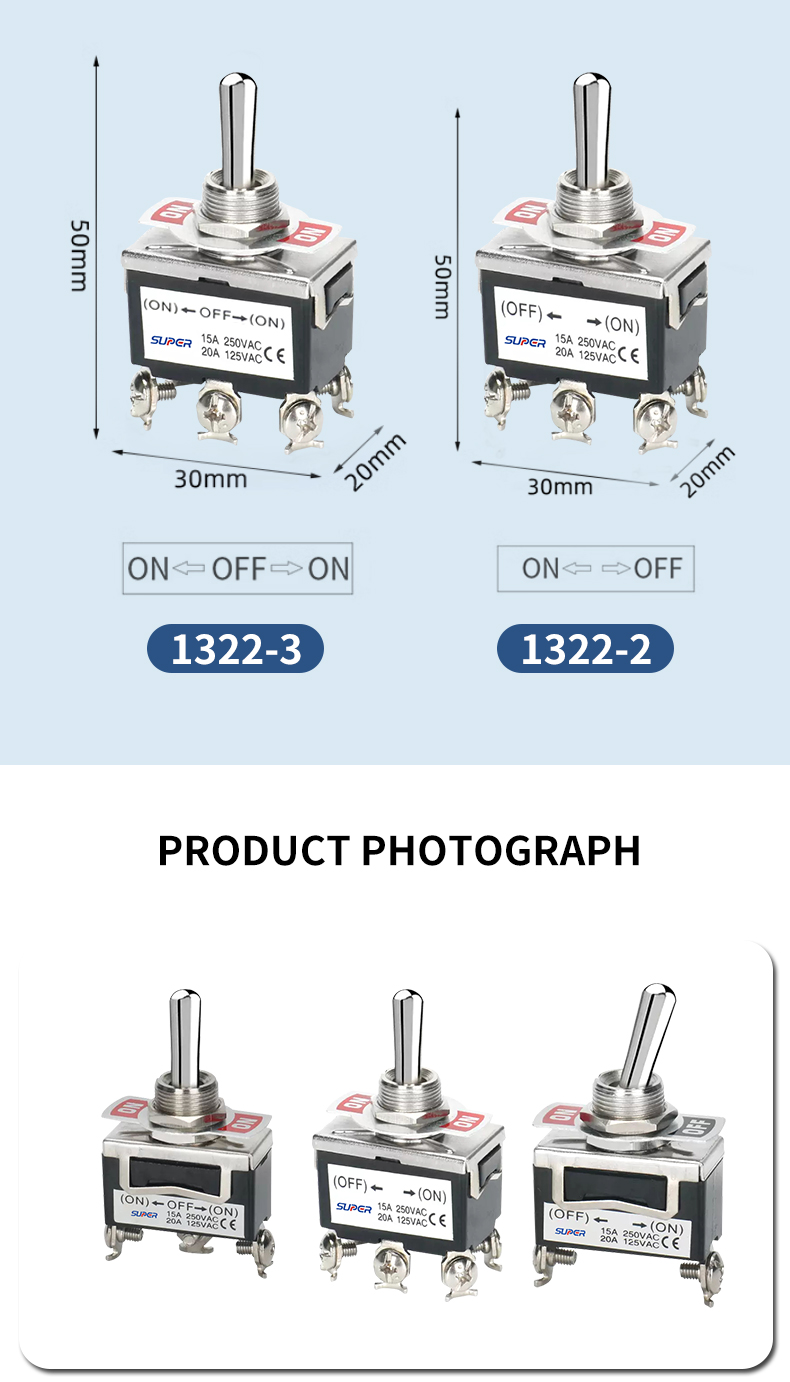

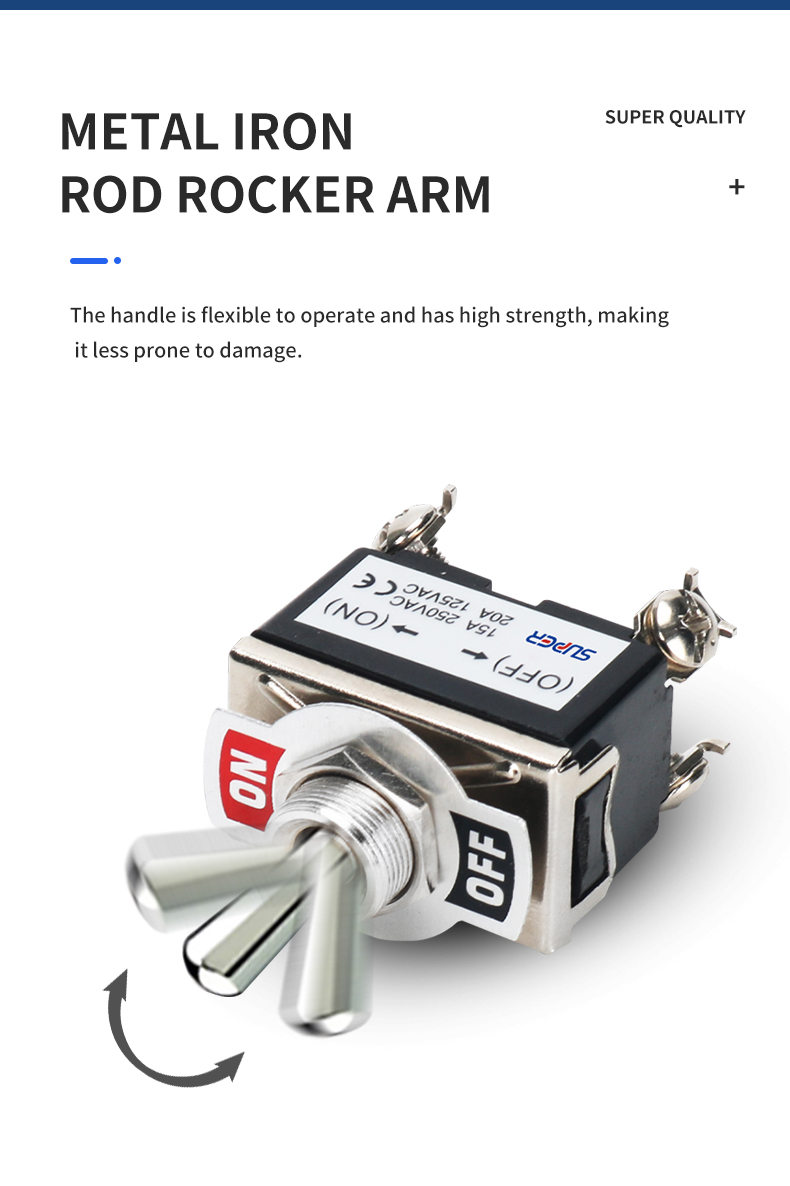

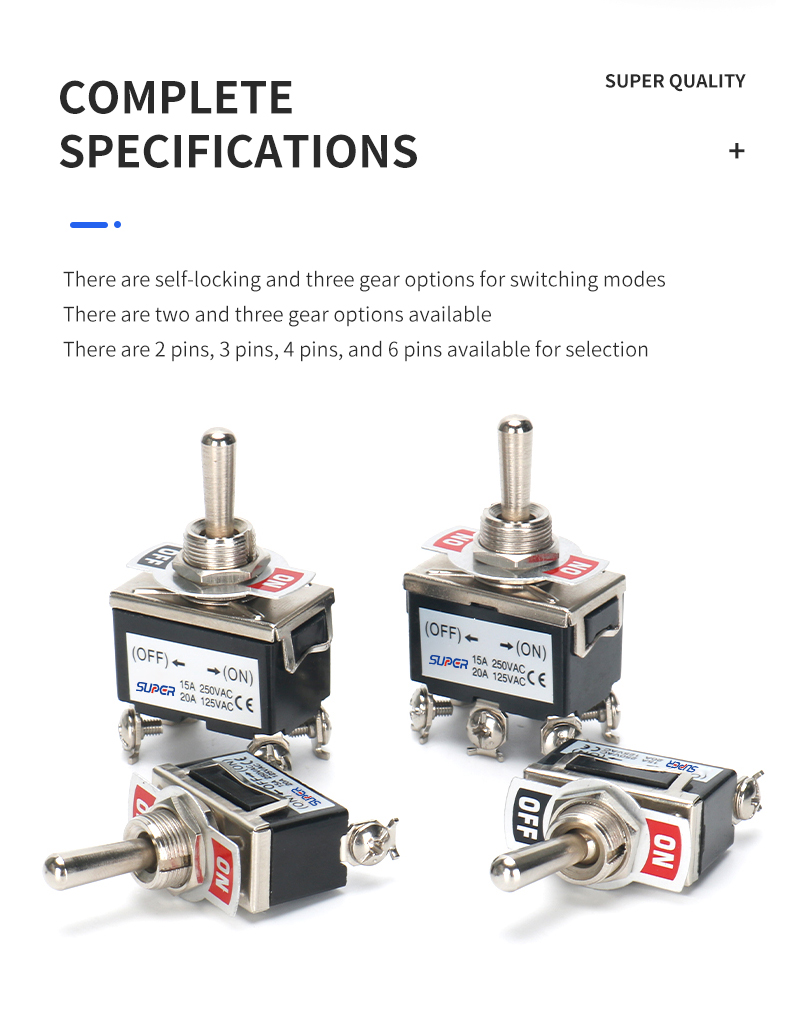

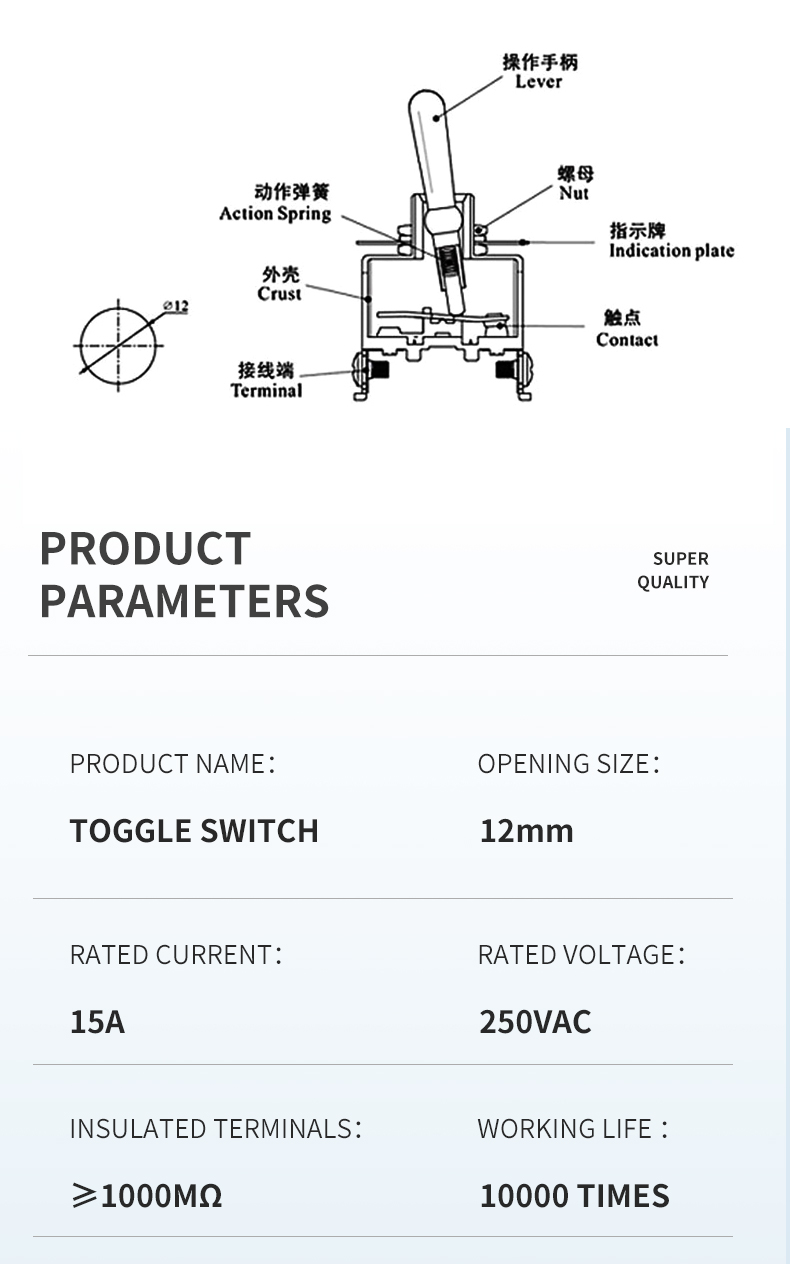

Water proof toggle switch handle: Water proof toggle switch handle's lever type operating rod,Water proof toggle switch handle divided into straight handle, crank and other shapes;

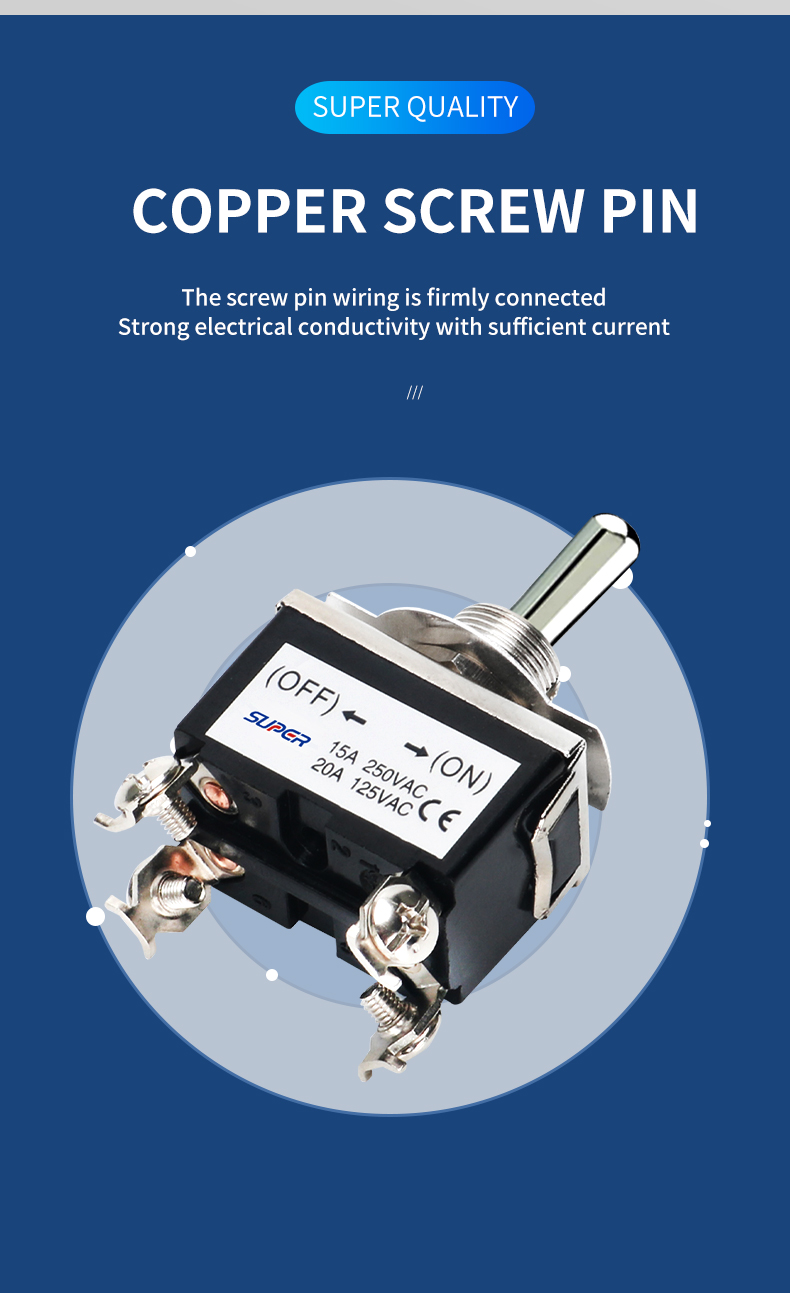

Automotive toggle switch contact material: silver alloy or gold-plated contacts to reduce contact resistance;
2、 Electrical characteristics of industrial toggle switch and selection parameters of industrial toggle switch

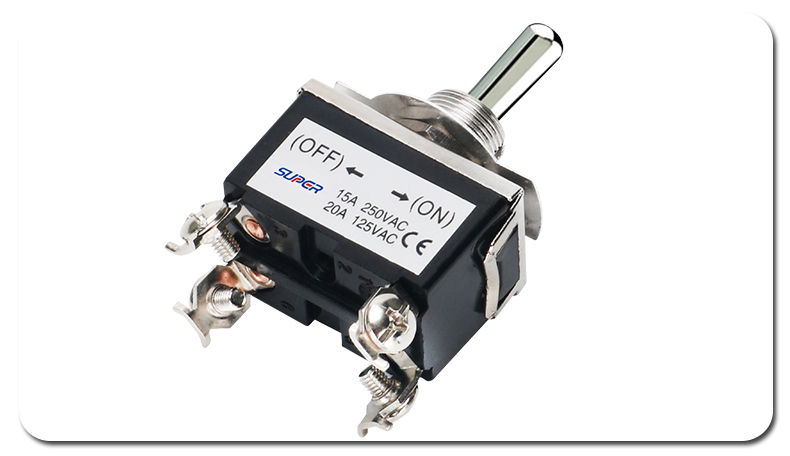

Industrial toggle switch/water proof toggle switch's electrical performance
Industrial toggle switch's voltage/current: Supports AC 250V/DC 30V, load current is usually ≤ 5A (industrial models can reach 15A
Industrial toggle switch's contact life: Mechanical life>100000 times, electrical life>10000 times (high load scenario).

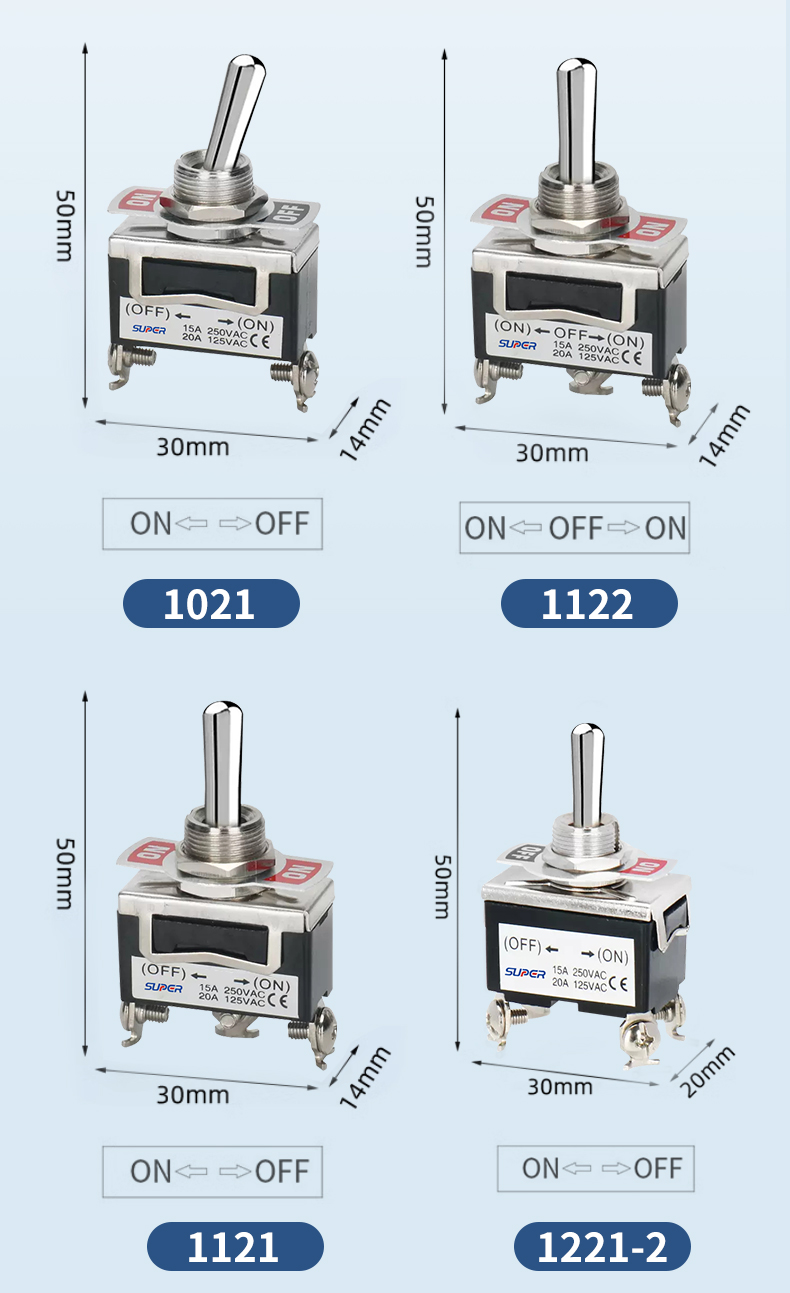

Industrial toggle switch's installation and Protection
Industrial toggle switch's panel opening: Suitable for standard aperture sizes such as 6mm, 16mm, and 22mm;

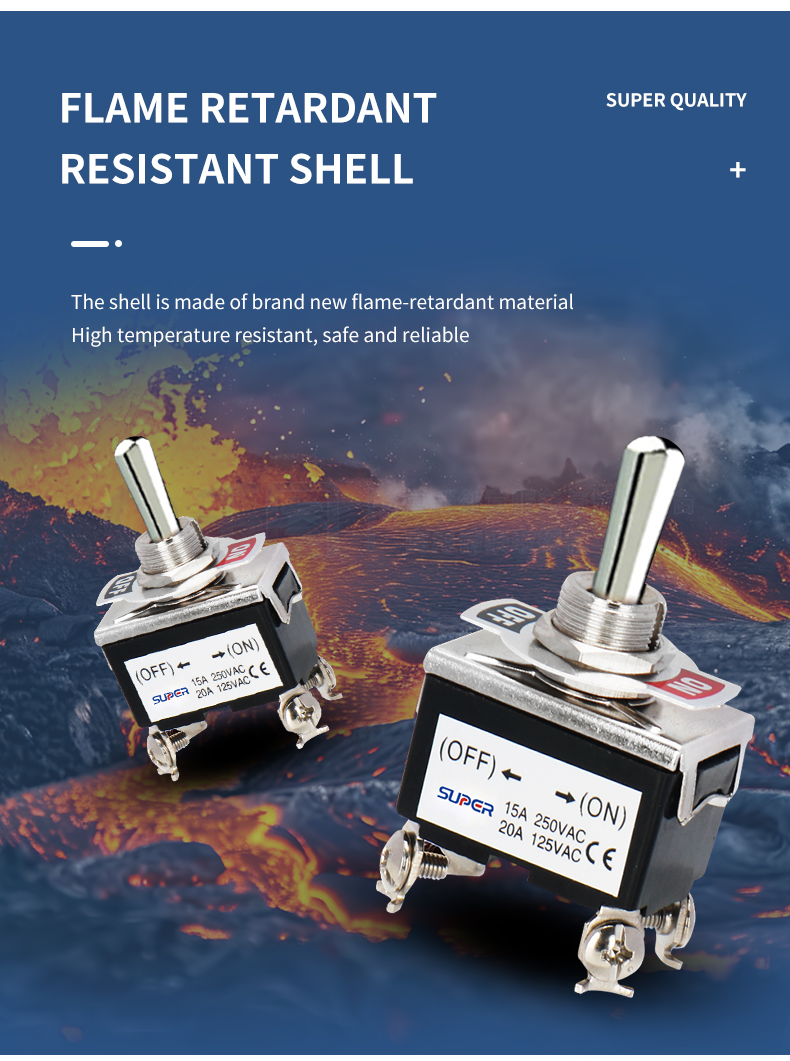

Industrial toggle switch's protection level: Industrial grade up to IP67 (dustproof and waterproof), special models resistant to high temperatures/explosion-proof.
3、 Application scenarios of automotive toggle switch and industry standards of automotive toggle switch
Automotive toggle switch in industrial control
Power cabinet: equipment start stop (green button), emergency stop (red mushroom head button);
Automated production line: mode switching (lock switch), signal triggering (momentary switch).
Automotive toggle switch in special fields
Car/Ship: 12-24V power control, paired with waterproof panel (RV, yacht modification);
Medical equipment: specialized sealed switch for disinfection environment, resistant to liquid corrosion;Aerospace: High reliability dual blade switch that meets extreme vibration and temperature requirements.
Industrial toggle switch security specification
Color coding for automotive toggle switch: red indicates stop/danger, green indicates start/safety, yellow indicates warning;
Water proof toggle switch emergency stop design: The water proof toggle switch must use a red mushroom head button and water proof toggle switch shuold equip with a metal protective retaining ring.4、 Industrial toggle switch and Water proof toggle switch technology trends
water proof toggle switch Miniaturization: Surface Mount Technology (SMT) toggle switches are compatible with mobile phones and wearable devices;
Automotive toggle switch: integrated status indicator light (LED) or communication interface (IoT device linkage);
Water proof toggle switch environment adaptability: flexible circuit board integrated switch, seismic design (for automotive/military scenarios).
