Model No: MTS -102.103.203 SMTS-102
MTS
The MTS series micro toggle switches are characterized by compact design, diverse contact configurations, and wide applicability, suitable for refined scenarios such as industrial control, consumer electronics, and automotive modification
Quantity :
Subscribe to our Newsletter
Micro toggle Switch Core models and Micro toggle Switch parameters

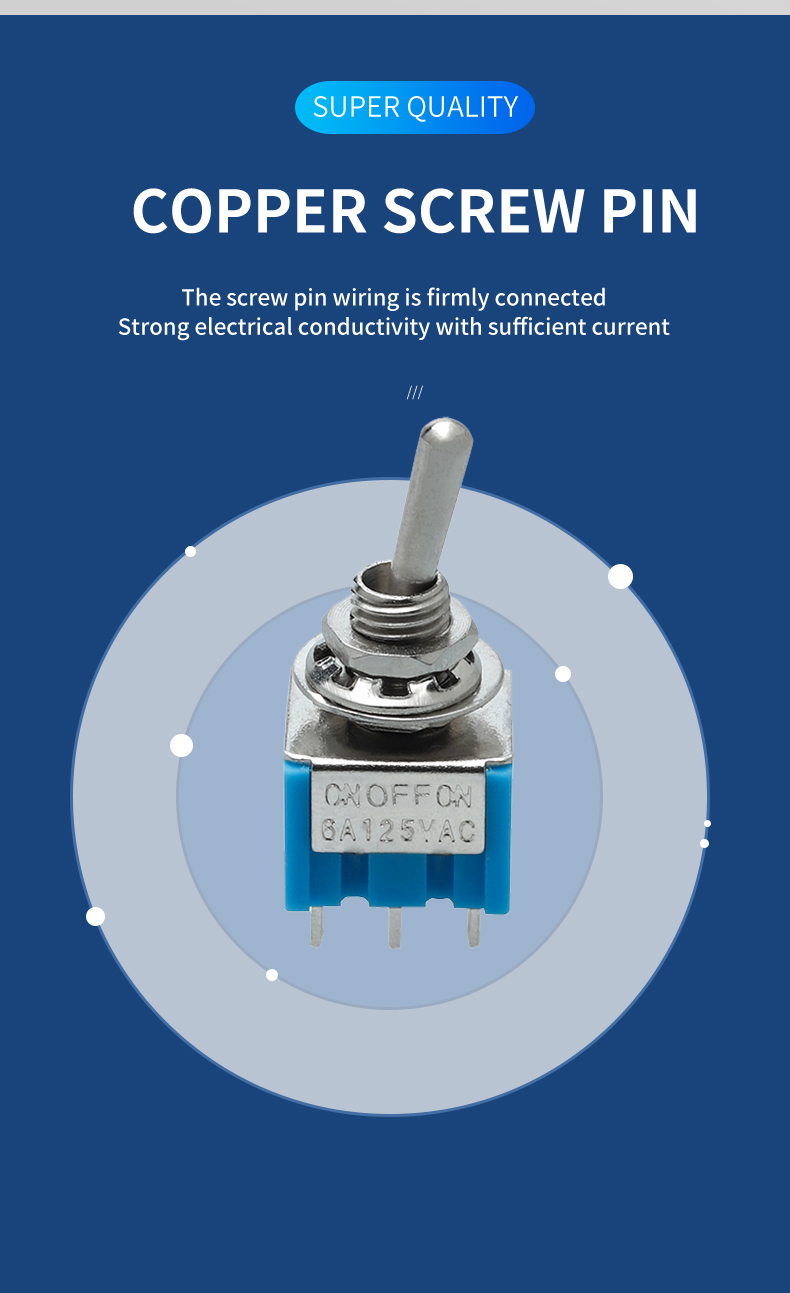

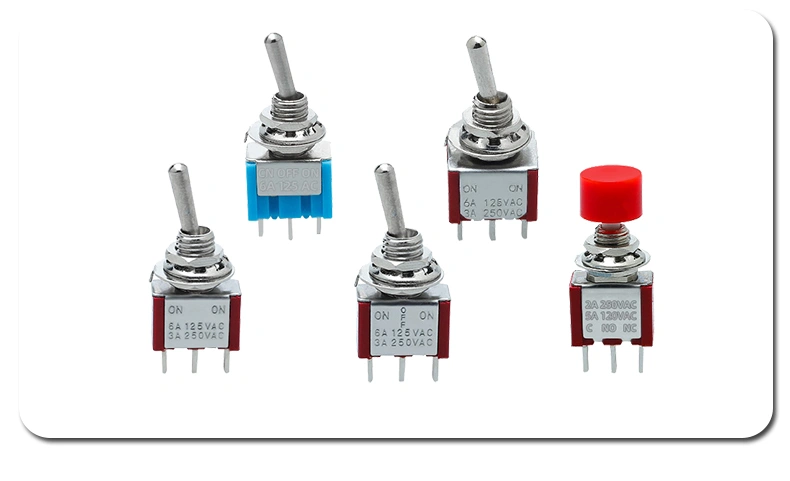

MTS-102 3-Pin 2-Step SPDT 6mm Panel Hole, Rated 250V/3A, Mechanical Life 10000 Times
MTS-103 3-legged 2-step single pole double throw (SPDT) swing arm operation, compatible with 6mm mounting hole
MTS-203 6-pin 3-speed double knife three throw (DP3T) multi gear switching with self reset function

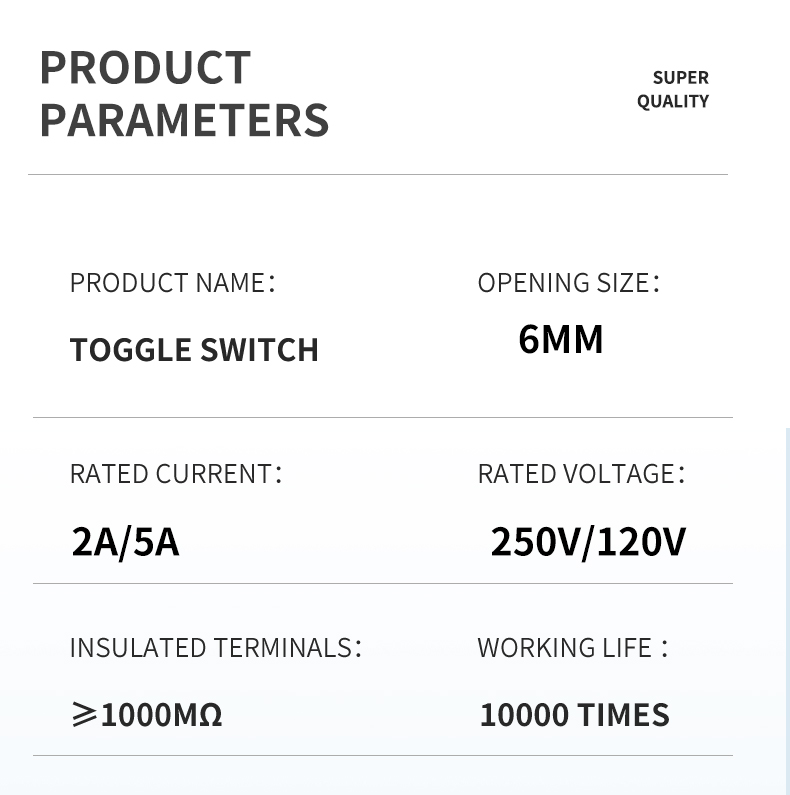

Micro toggle Switch Electrical characteristics
Micro toggle Switch rated load: Mainstream models support 250V AC/DC, 3A, and high current models (such as MTS-203) can reach 5A;
Contact material: Silver alloy or gold-plated contact, contact resistance ≤ 20m Ω 7.

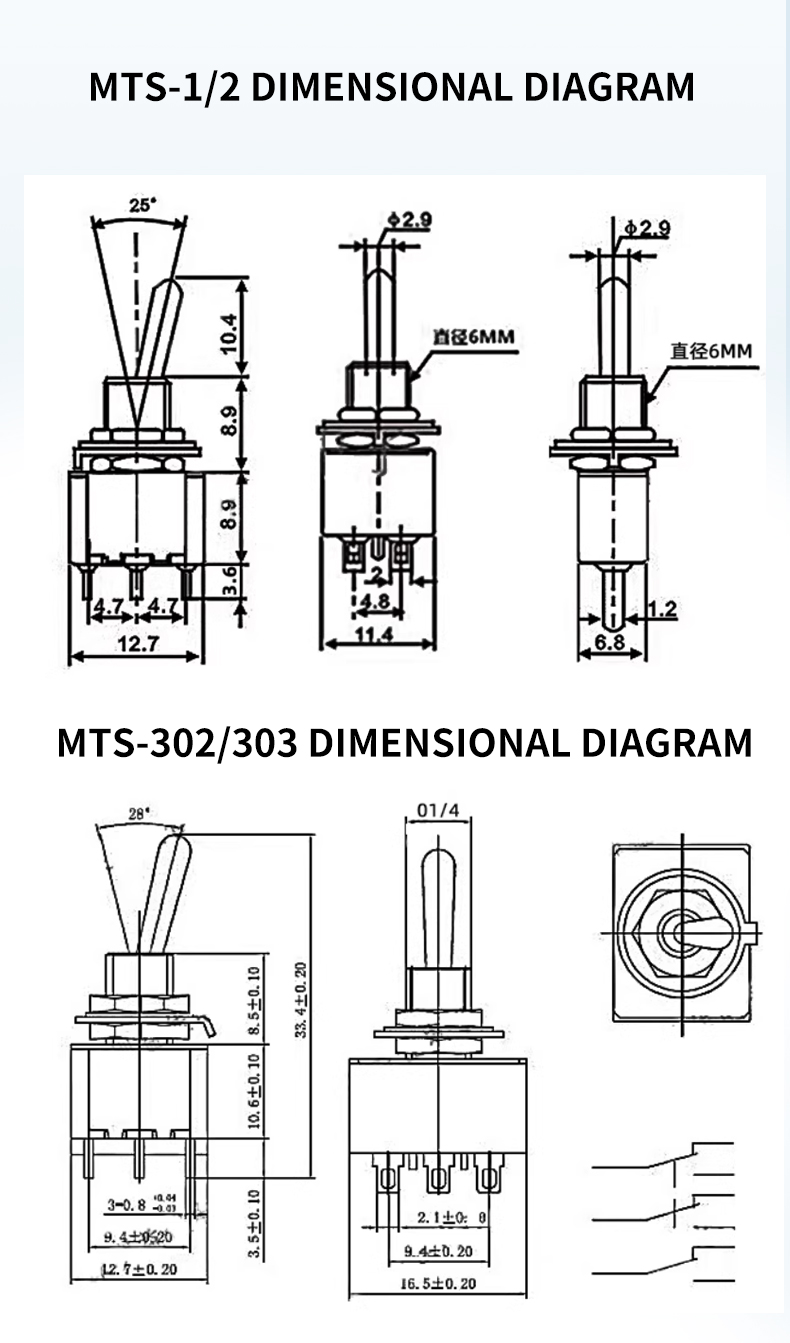

Micro toggle Switch,Elbow switch and Lever switch mechanical characteristics

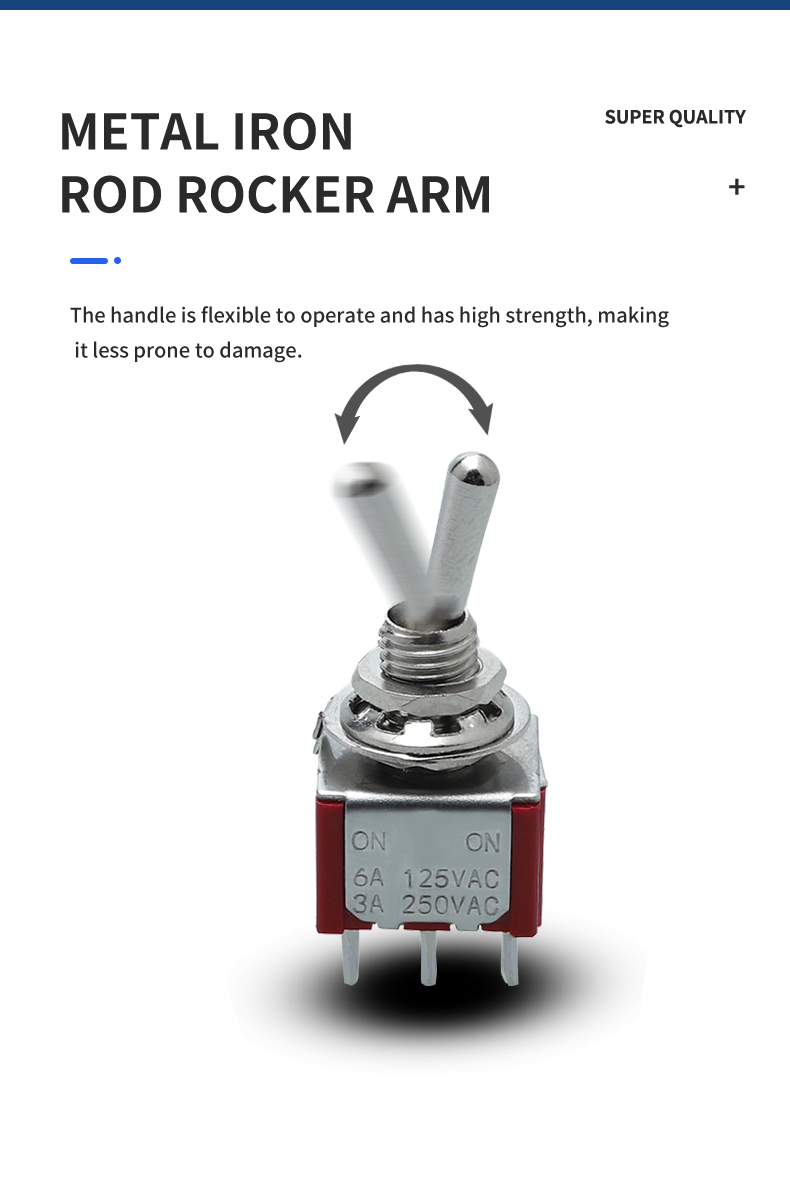

Operation mode: shaking arm type (MTS-103), lateral toggle type (SMTS-102);
Life cycle: Standard model ≥ 10000 cycles, industrial grade model (such as MTS-203) ≥ 50000 cycles.
Micro toggle Switch,Elbow switch and Lever switch Typical application scenarios
Consumer Electronics: Audio Equipment Gear Switching (MTS-102/103);
Industrial control: PLC signal switching (MTS-203);
Car modification: Instrument panel lighting control (SMTS-102);
Micro toggle Switch Selection Guide Load matching
Signal level circuit: Choose gold-plated contact models (such as SMTS-102) to reduce resistance;
Power load: Priority is given to 6-pin multi contact parallel models (such as MTS-203).
Elbow switch Environmental adaptability

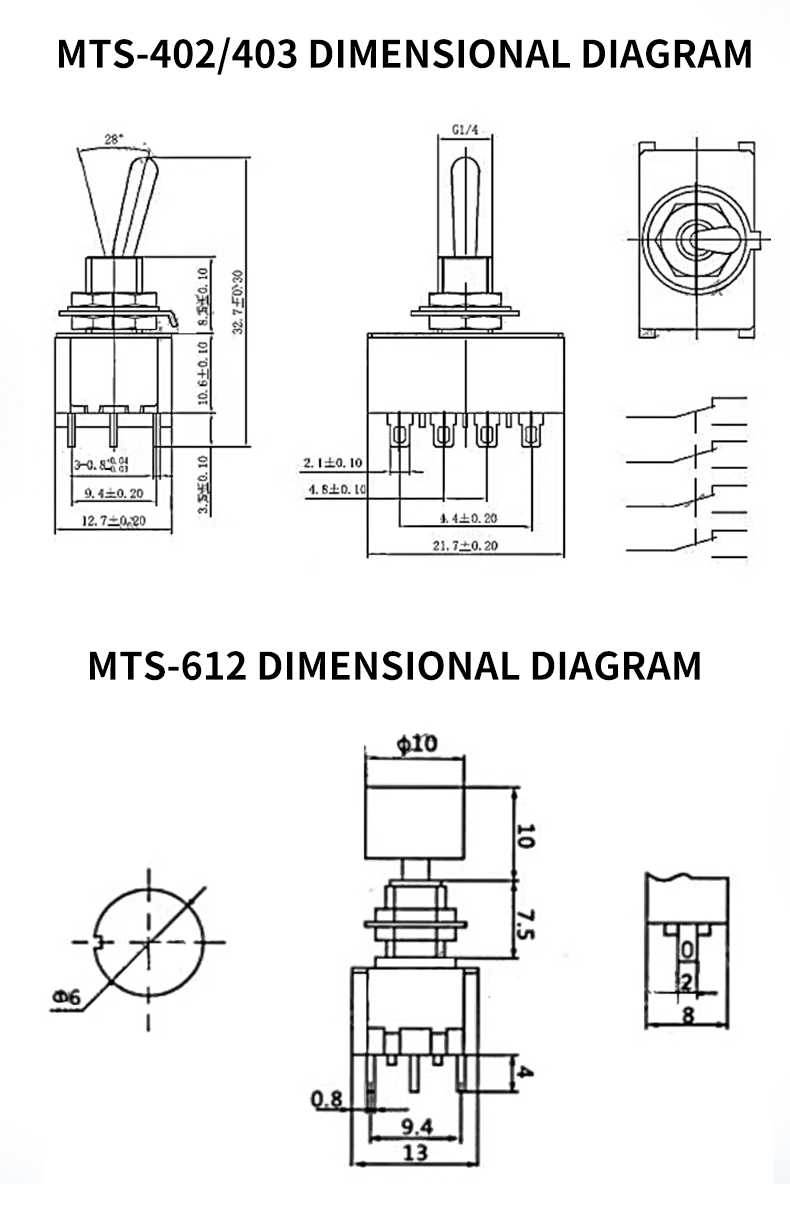

Lever switch Installation restrictions
Lever switch in compact Space: Micro Lateral Bent Foot Design (SMTS-102-C4-N0);

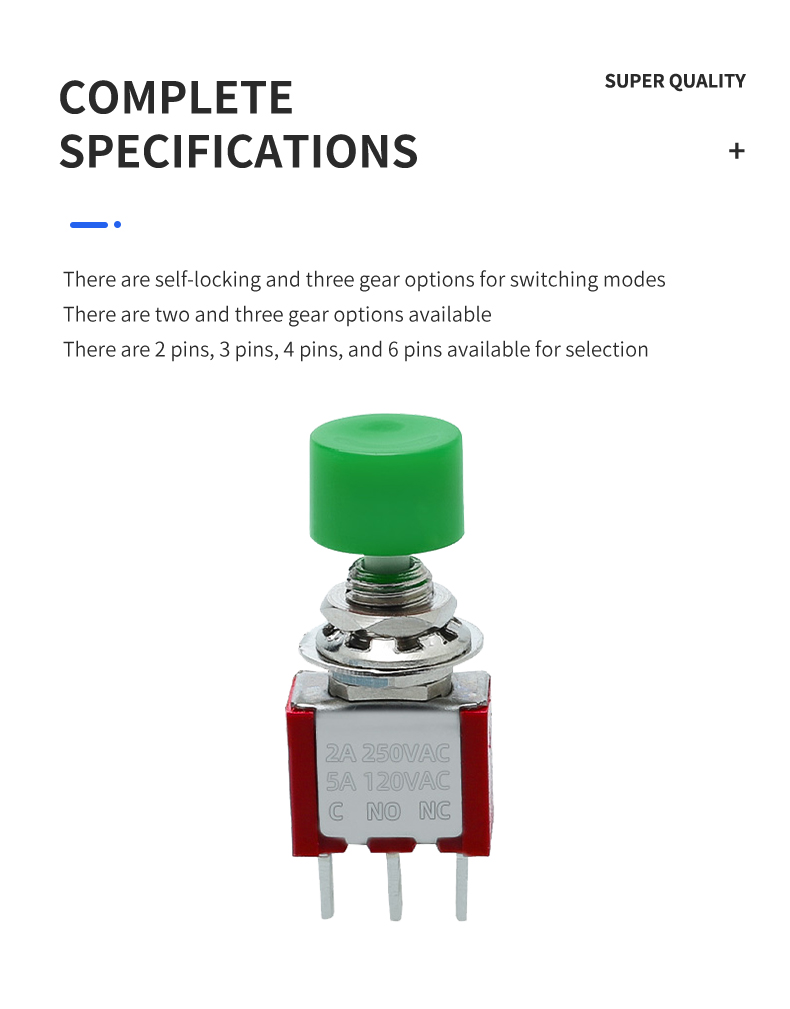

Lever switch in anti misoperation requirement: Lever switch is model with self resetting or locking structure (MTS-203)

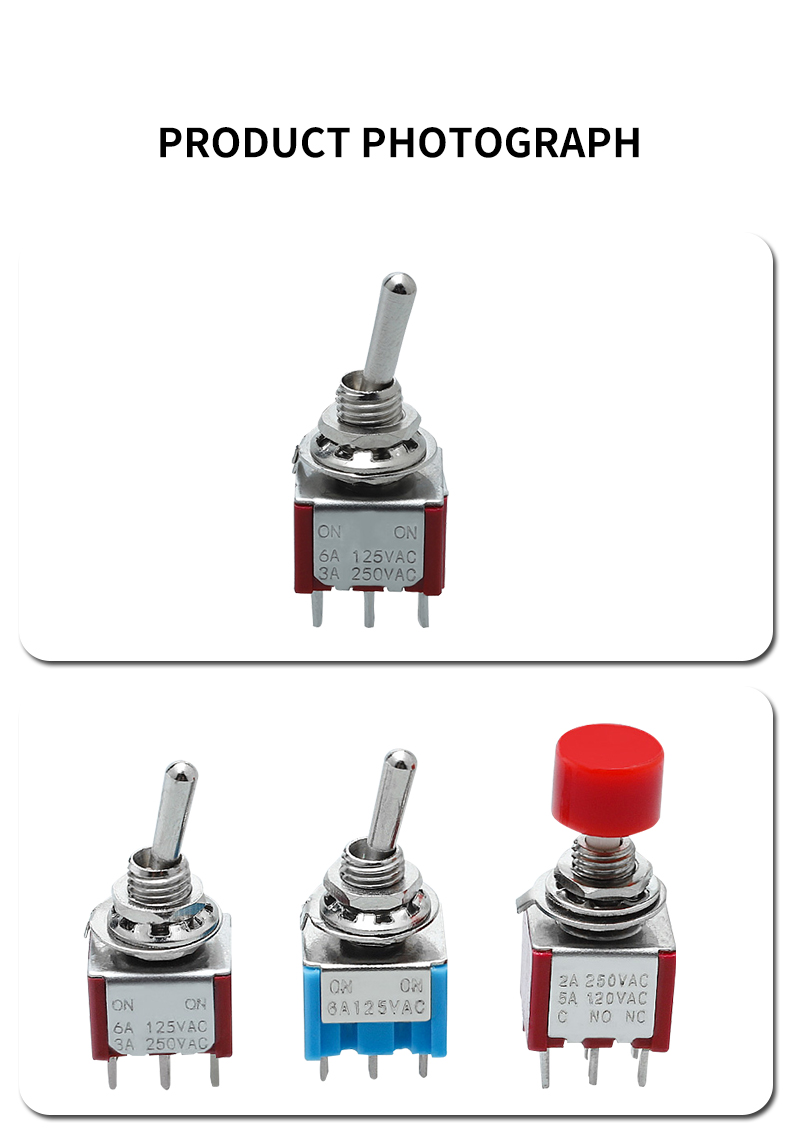

MTS-102 3-Pin 2-Step SPDT 6mm Panel Hole, Rated 250V/3A, Mechanical Life 10000 Times
MTS-103 3-legged 2-step single pole double throw (SPDT) swing arm operation, compatible with 6mm mounting hole
MTS-203 6-pin 3-speed double knife three throw (DP3T) multi gear switching with self reset function
SMTS-102 3-Foot 2-Step Single Knife Single Throw (SPST) Micro Lateral Bent Foot Design, High Temperature Resistant Spot Painting Process
Micro toggle Switch,Elbow switch and Lever switch Technical specification comparison
Micro toggle Switch,Elbow switch and Lever switch Technical specification comparison
Micro toggle Switch Electrical characteristics
Micro toggle Switch rated load: Mainstream models support 250V AC/DC, 3A, and high current models (such as MTS-203) can reach 5A;
Contact material: Silver alloy or gold-plated contact, contact resistance ≤ 20m Ω 7.
Micro toggle Switch,Elbow switch and Lever switch mechanical characteristics
Operation mode: shaking arm type (MTS-103), lateral toggle type (SMTS-102);
Life cycle: Standard model ≥ 10000 cycles, industrial grade model (such as MTS-203) ≥ 50000 cycles.
Micro toggle Switch,Elbow switch and Lever switch Typical application scenarios
Consumer Electronics: Audio Equipment Gear Switching (MTS-102/103);
Industrial control: PLC signal switching (MTS-203);
Car modification: Instrument panel lighting control (SMTS-102);
Micro toggle Switch Selection Guide Load matching
Signal level circuit: Choose gold-plated contact models (such as SMTS-102) to reduce resistance;
Power load: Priority is given to 6-pin multi contact parallel models (such as MTS-203).
Elbow switch Environmental adaptability
Elbow switch in high frequency operation scenario:Elbow switch select industrial grade models with a mechanical lifespan of ≥ 50000 cycles;
Elbow switch in wet environment:Elbow switch is paired with waterproof structure models (such as Yuanfeng TW waterproof series).
Elbow switch in wet environment:Elbow switch is paired with waterproof structure models (such as Yuanfeng TW waterproof series).
Lever switch Installation restrictions
Lever switch in compact Space: Micro Lateral Bent Foot Design (SMTS-102-C4-N0);
Lever switch in anti misoperation requirement: Lever switch is model with self resetting or locking structure (MTS-203)
