Model No: TC4 series
TC4 Temperature Controller
The TC4 temperature controller is a widely used temperature control instrument in the field of industrial automation. It is mainly used for precise measurement and control of the temperature of heating or cooling equipment.
Quantity :
Subscribe to our Newsletter

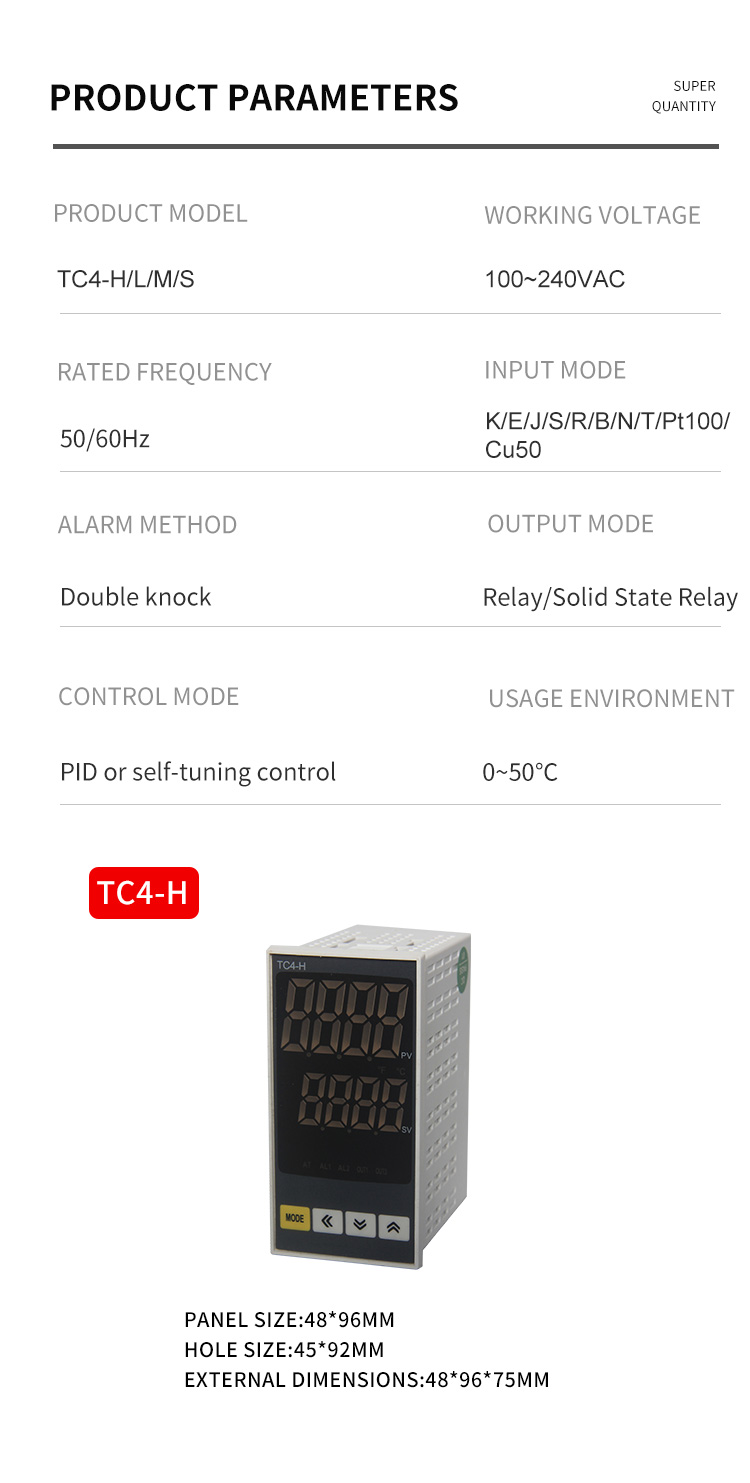

The TC4 PID controller is a high-precision digital temperature control instrument. The TC4 PID controller adopts advanced PID algorithm. The main technical indicators of the TC4 PID controller are:
TC4 PID controller measurement accuracy: ± 0.3% FS (full range) or ± 0.5 ℃ (whichever is greater)
TC4 PID controller control cycle: adjustable from 0.1-100 seconds (SSR output mode)
TC4 PID controller working environment: -10~55 ℃/20~85% RH (no condensation)
TC4 PID controller power supply voltage: AC/DC 100-240V (wide voltage design)
TC4 PID controller measurement accuracy: ± 0.3% FS (full range) or ± 0.5 ℃ (whichever is greater)
TC4 PID controller control cycle: adjustable from 0.1-100 seconds (SSR output mode)
TC4 PID controller working environment: -10~55 ℃/20~85% RH (no condensation)
TC4 PID controller power supply voltage: AC/DC 100-240V (wide voltage design)
Core functions of TC4 temperature controller
1. TC4 temperature controller input type
TC4 temperature controller Thermocouple input: supports K, J, E, T, S, R and other types (such as K type: 0-1300 ℃).
TC4 temperature controller Thermal resistance input: PT100, Cu50 (2-wire/3-wire system).
Analog input (some models): 4-20mA, 0-10V.
2. TC4 temperature controller control mode
PID control (proportional integral derivative regulation), capable of automatic tuning (AT).
ON/OFF control (switch type, adjustable hysteresis).
Program control (some models support multi segment temperature curve programming).
3. TC4 temperature controller output mode
Relay output (contact capacity typically 5A/250V AC).
SSR driver output (DC 12V/24V, used for solid-state relay control).
Analog output (4-20mA or 0-10V, used to regulate frequency converters/valves).
4. Additional functions of TC4 temperature controller
Alarm output (over temperature, disconnection, deviation alarm).
RS485 communication (supports Modbus RTU protocol, can connect PLC/HMI).
Data recording (supported by some high-end models).
Suggestions for selecting TC4 temperature control meter
Basic applications of TC4 temperature control meter (such as ovens, small heaters): TC4 temperature control meter choose the economical TC4 (relay output).
TC4 temperature control meter precision control (such as laboratory equipment): TC4 temperature control meter choose a model with PID self-tuning and RS485 communication.
TC4 Temperature Control Meter Industrial Automation: TC4 temperature control meter choose a version that supports Modbus and program control for easy integration into PLC systems.
Basic applications of TC4 temperature control meter (such as ovens, small heaters): TC4 temperature control meter choose the economical TC4 (relay output).
TC4 temperature control meter precision control (such as laboratory equipment): TC4 temperature control meter choose a model with PID self-tuning and RS485 communication.
TC4 Temperature Control Meter Industrial Automation: TC4 temperature control meter choose a version that supports Modbus and program control for easy integration into PLC systems.
