Model No: TC5H/L/M/S

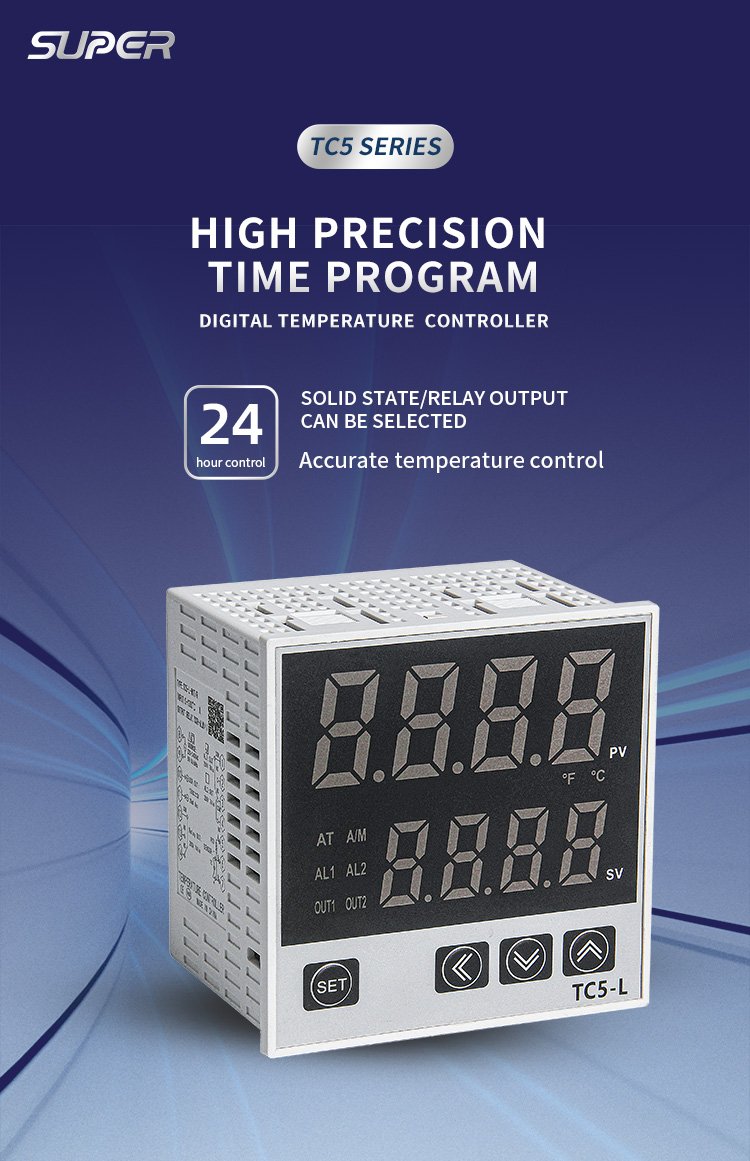

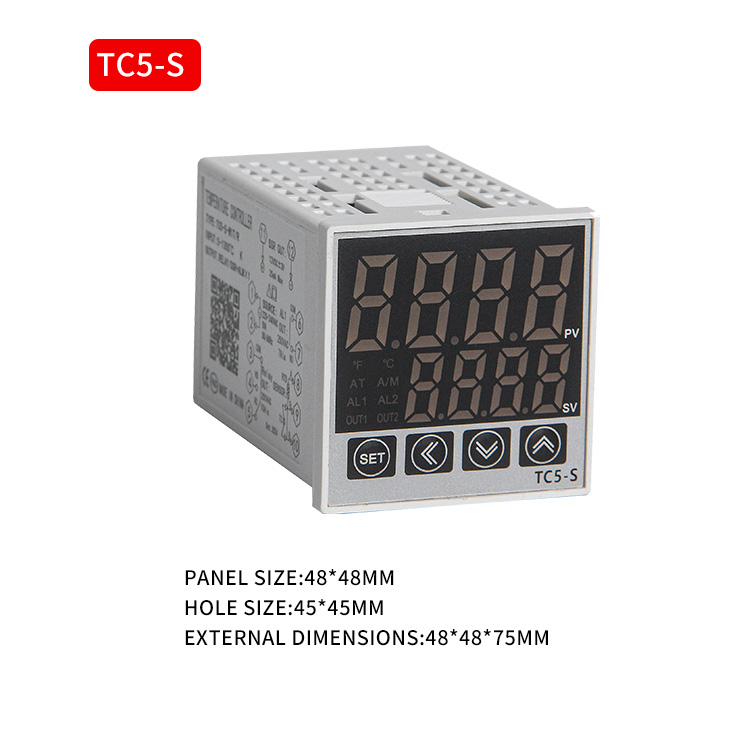

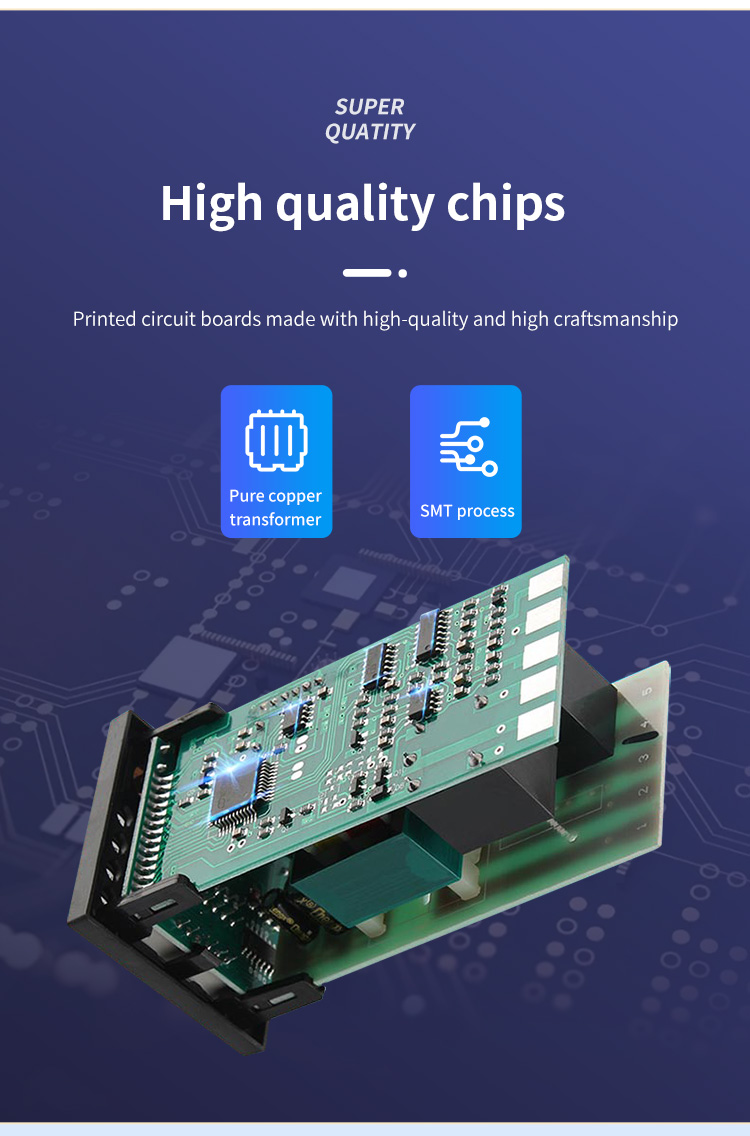

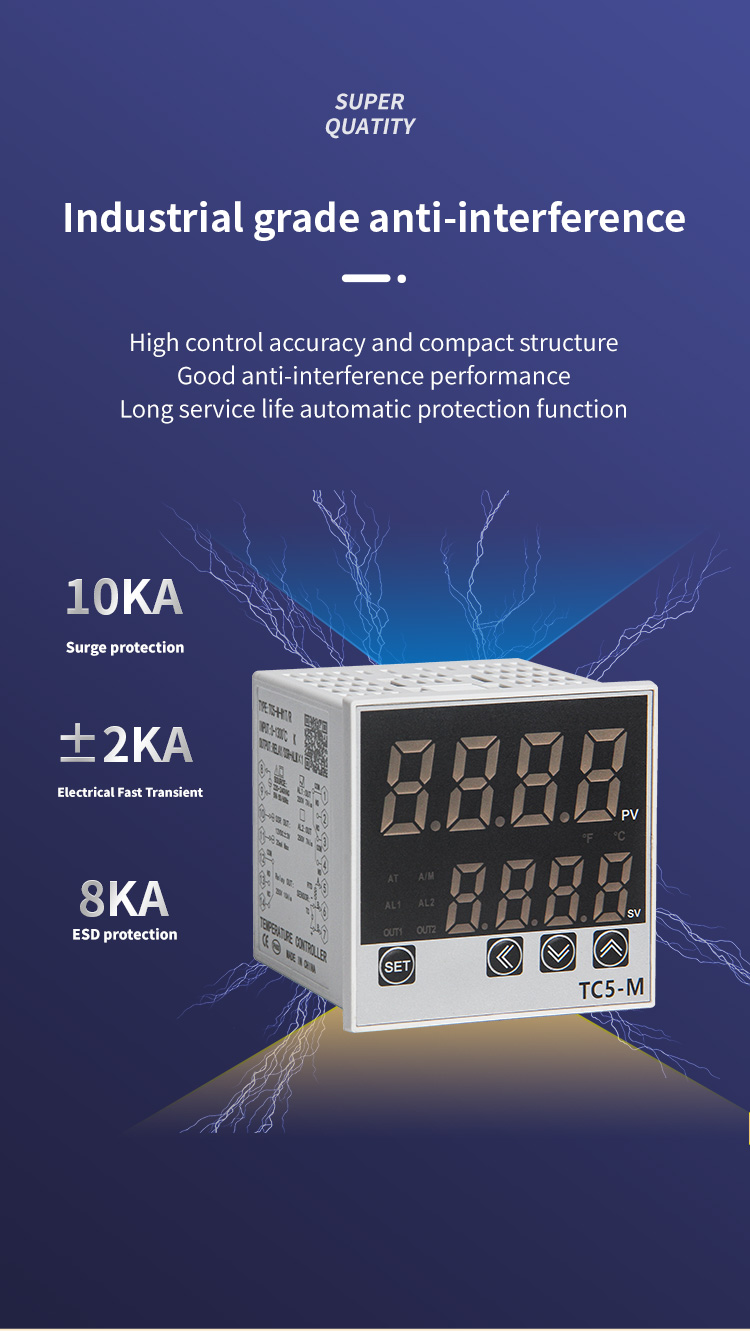

TC5H/L/M/S Temperature Controller
Temperature controller usually refers to an instrument used for temperature control, which may be used in industrial, laboratory or household scenarios.
Quantity :
Subscribe to our Newsletter
1. Common suffix meanings of TC5 temperature controller、digital temperature controller,and industrial temperature controller
Model suffix of TC5 temperature controller, possible meanings of TC5 temperature controller, and characteristics of TC5 temperature controller

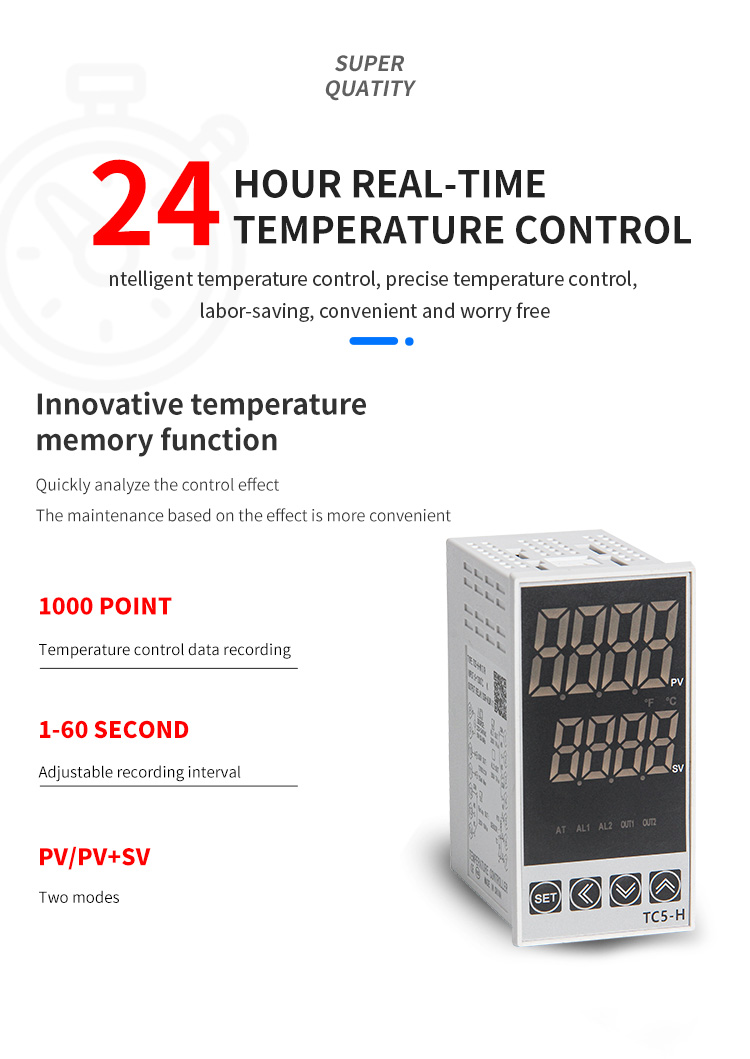

TC5H High Temperature supports a higher temperature range (such as 0~1200 ℃), suitable for electric furnaces, furnaces, etc

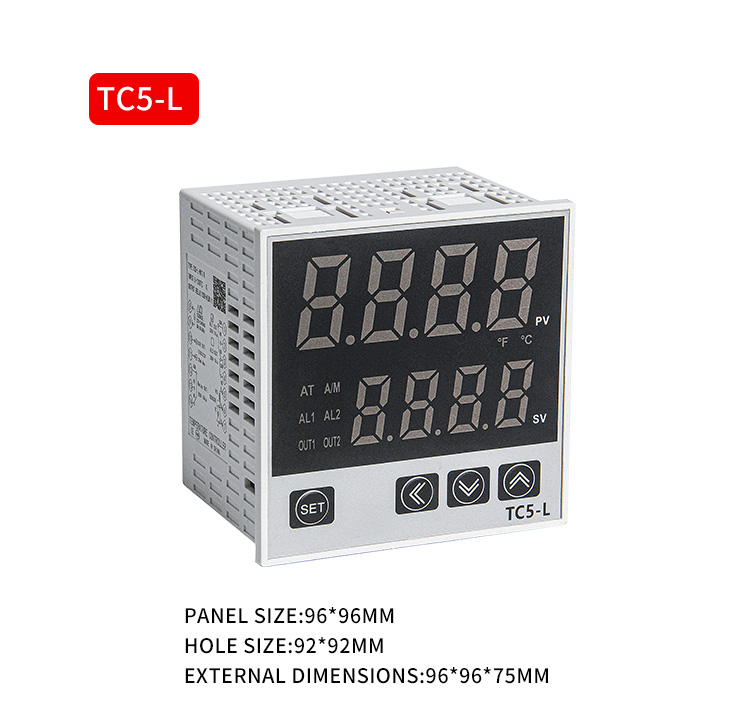

TC5L Low Temperature is suitable for low temperature control (such as -50~200 ℃), commonly used in cold chain and cold storage

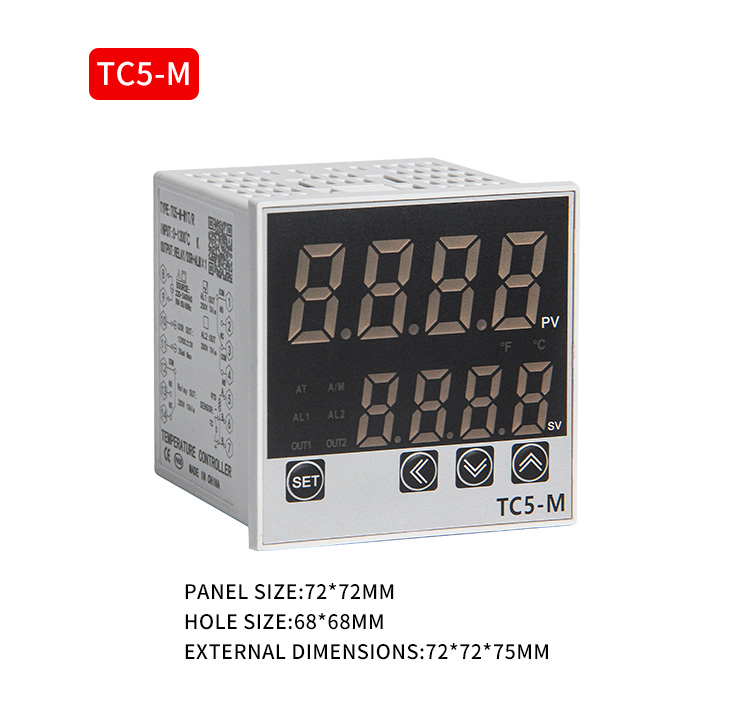

TC5M Mid range/Modbus (medium temperature/communication type) medium temperature range (such as 0~400 ℃) or with RS485/Modbus communication function
TC5S Standard/Simple basic function, economical, suitable for ordinary heating control

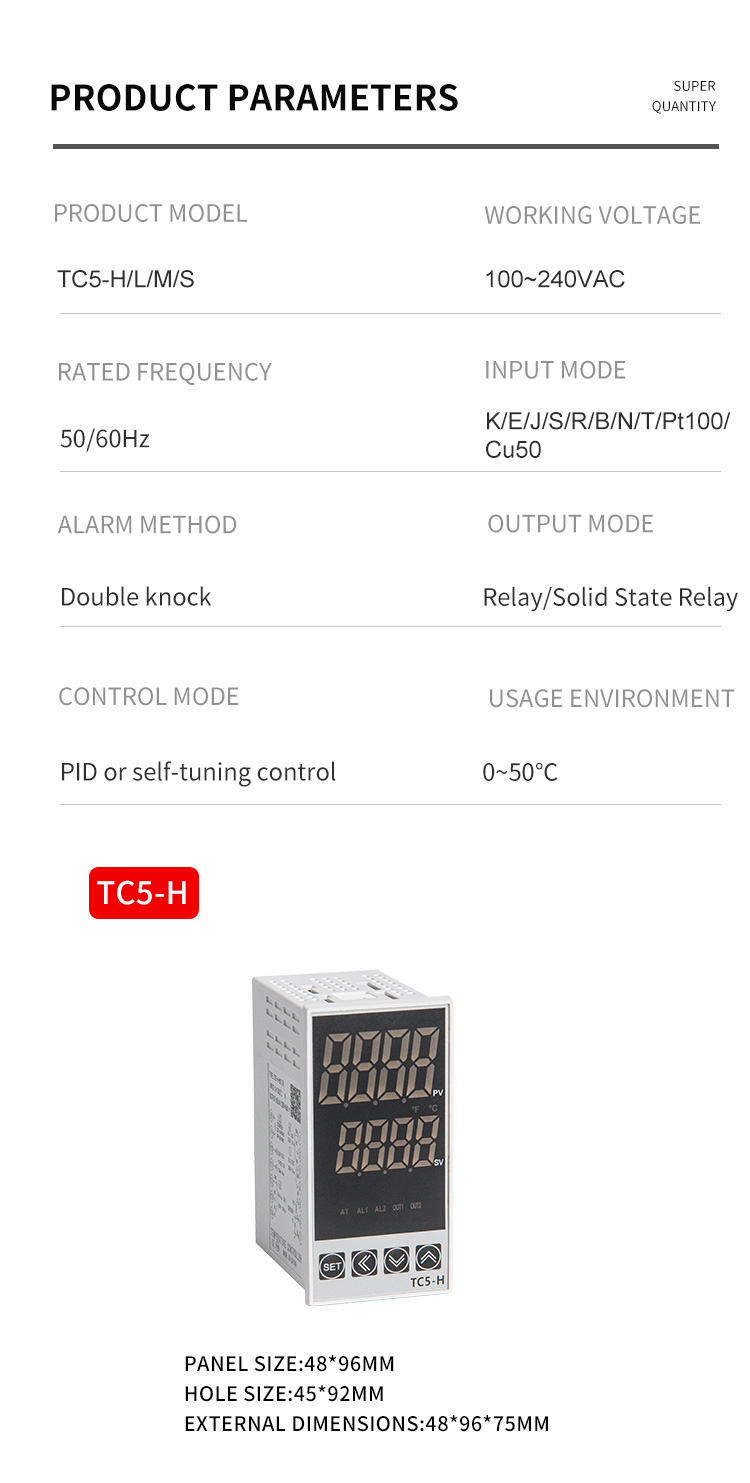

2. Comparison of TC5 temperature controller, digital temperature controller, and industrial temperature controller functions (example)
Function TC5H (high temperature) TC5L (low temperature) TC5M (communication type) TC5S (standard)
Temperature range: 0~1200 ℃ -50~200 ℃ 0~400 ℃ 0~400 ℃
Control accuracy ± 1 ℃± 0.5 ℃± 0.3 ℃± 1 ℃
Output mode relay/SSR relay/SSR relay+RS485 relay
Communication function none, Modbus RTU none
Applicable scenarios: Industrial electric furnace refrigeration equipment, intelligent control system, ordinary heating
Function TC5H (high temperature) TC5L (low temperature) TC5M (communication type) TC5S (standard)
Temperature range: 0~1200 ℃ -50~200 ℃ 0~400 ℃ 0~400 ℃
Control accuracy ± 1 ℃± 0.5 ℃± 0.3 ℃± 1 ℃
Output mode relay/SSR relay/SSR relay+RS485 relay
Communication function none, Modbus RTU none
Applicable scenarios: Industrial electric furnace refrigeration equipment, intelligent control system, ordinary heating
3. Wiring and usage precautions for TC5 temperature controller, digital temperature controller, and industrial temperature controller
TC5 temperature controller, digital temperature controller, industrial temperature controller universal wiring
Input: Thermocouple (K-type) or PT100 (matching according to model).
Output: Relay (control contactor) or SSR (solid-state relay).
TC5 temperature controller, digital temperature controller, industrial temperature controller power supply: AC 220V or DC 24V (depending on the model).
TC5 temperature controller, digital temperature controller, industrial temperature controller with special functions (such as TC5M)
RS485 interface: requires A/B terminals, supports Modbus protocol and PLC/upper computer communication.
TC5 temperature controller, digital temperature controller, industrial temperature controller alarm output: Some models support multiple alarms (AL1/AL2).
TC5 temperature controller, digital temperature controller, industrial temperature controller universal wiring
Input: Thermocouple (K-type) or PT100 (matching according to model).
Output: Relay (control contactor) or SSR (solid-state relay).
TC5 temperature controller, digital temperature controller, industrial temperature controller power supply: AC 220V or DC 24V (depending on the model).
TC5 temperature controller, digital temperature controller, industrial temperature controller with special functions (such as TC5M)
RS485 interface: requires A/B terminals, supports Modbus protocol and PLC/upper computer communication.
TC5 temperature controller, digital temperature controller, industrial temperature controller alarm output: Some models support multiple alarms (AL1/AL2).
4. Differences in parameter settings between TC5 temperature controller, digital temperature controller, and industrial temperature controller
The parameters of different suffix models of TC5 temperature controller, digital temperature controller, and industrial temperature controller may vary, for example:
TC5H: High temperature protection value needs to be set (e.g. AL1=1100 ℃).
TC5L: Negative temperature display needs to be enabled (set parameter Sn to PT100 or thermocouple type).
TC5M: Communication address (Addr), baud rate (bAud), etc. need to be configured.

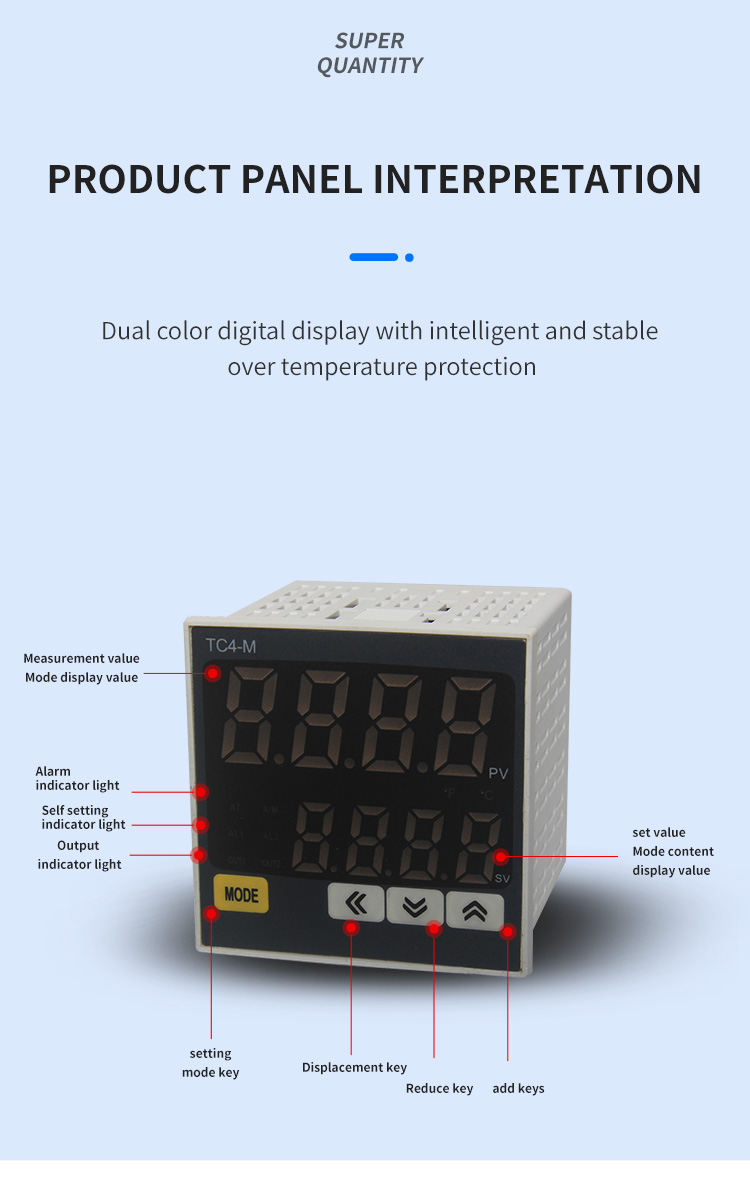

TC5 temperature controller, digital temperature controller, industrial temperature controller setting method:
Press and hold the SET key to enter the menu.
Select parameter codes (such as P=proportional band, AL1=alarm value).
Adjust with ▲/▼ and press SET to save.
The parameters of different suffix models of TC5 temperature controller, digital temperature controller, and industrial temperature controller may vary, for example:
TC5H: High temperature protection value needs to be set (e.g. AL1=1100 ℃).
TC5L: Negative temperature display needs to be enabled (set parameter Sn to PT100 or thermocouple type).
TC5M: Communication address (Addr), baud rate (bAud), etc. need to be configured.
TC5 temperature controller, digital temperature controller, industrial temperature controller setting method:
Press and hold the SET key to enter the menu.
Select parameter codes (such as P=proportional band, AL1=alarm value).
Adjust with ▲/▼ and press SET to save.
5. Common problems with TC5 temperature controller, digital temperature controller, and industrial temperature controller
Q1: How to distinguish between TC5H and TC5S?
Check the temperature range and output specifications on the label or instruction manual.
TC5H usually has higher temperature resistance, while TC5S has simpler functions.
Q2: What should I do if TC5M communication fails?
Check the wiring (whether the A/B terminals are reversed).
Confirm that the baud rate, address, and host are consistent.
Test communication using debugging software such as ModScan.
Q3: What is the problem with TC5L displaying"----"?
It may be due to sensor circuit failure or temperature exceeding the range (such as below -50 ℃).
Check the sensor wiring or replace the matching low-temperature sensor.
Q1: How to distinguish between TC5H and TC5S?
Check the temperature range and output specifications on the label or instruction manual.
TC5H usually has higher temperature resistance, while TC5S has simpler functions.
Q2: What should I do if TC5M communication fails?
Check the wiring (whether the A/B terminals are reversed).
Confirm that the baud rate, address, and host are consistent.
Test communication using debugging software such as ModScan.
Q3: What is the problem with TC5L displaying"----"?
It may be due to sensor circuit failure or temperature exceeding the range (such as below -50 ℃).
Check the sensor wiring or replace the matching low-temperature sensor.
6. Selection suggestions for TC5 temperature controller, digital temperature controller, and industrial temperature controller
High temperature scenario (>400 ℃) → Select TC5H.
Low temperature/cooling control → choose TC5L.
Need network monitoring → select TC5M (with RS485).
Simple heating control → Choose TC5S (high cost-effectiveness).
High temperature scenario (>400 ℃) → Select TC5H.
Low temperature/cooling control → choose TC5L.
Need network monitoring → select TC5M (with RS485).
Simple heating control → Choose TC5S (high cost-effectiveness).
