Medium and high voltage Ac motorsolid-state soft starter cabinets
Designed with multiple control functions to accommodate different load conditions, the SHMV-DN enables smooth motor acceleration while requiring minimal starting current. This effectively reduces power grid voltage drops during startup and significantly decreases both electrical current surges and mechanical stresses.
When soft stopping functionality is required, the system delivers a controlled, gradually decreasing voltage to the motor, ensuring smooth deceleration of the entire drive system. The SHMV-DN series combines intelligent control capabilities with reduced starting current impact, making it particularly suitable for industrial applications involving medium and high voltage motor operations.
Technical Specifications for MV/HV Soft Starter Systems
The MV/HV soft starter utilizes a digital microprocessor control system designed specifically for 3 phase motor soft starter applications. This advanced soft starter incorporates signal grading and isolation technologies to deliver superior anti-interference performance.

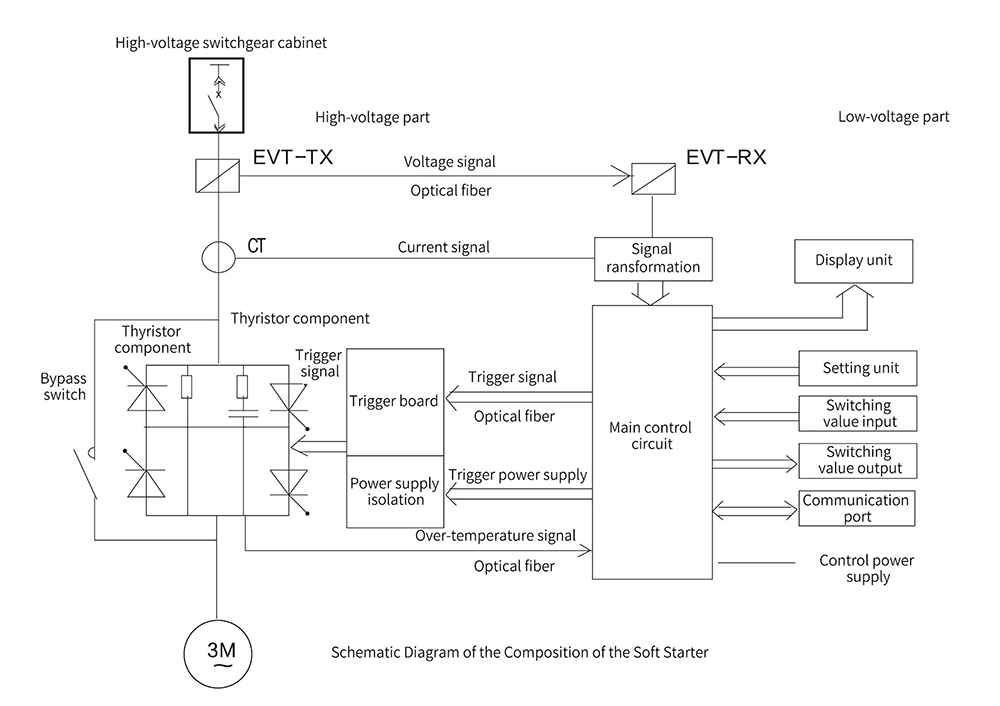

Fiber-optic triggering technology in the MV/HV soft starter ensures precise control of high-voltage thyristors, a critical feature for reliable 3 phase motor soft starter operation.
Complete electrical isolation between circuits makes this MV/HV soft starter one of the safest solutions available for 3 phase motor soft starter control applications.
The integrated high-frequency power supply in this soft starter provides clean, stable power for all MV/HV soft starter electronics.
Advanced RC network technology ensures proper voltage distribution in this 3 phase motor soft starter when operating under MV/HV soft starter conditions.
Electronic EVT technology gives the MV/HV soft starter interference-free voltage measurement capabilities essential for precise 3 phase motor soft starter control.
Custom starting curves allow this MV/HV soft starter to perfectly match the mechanical characteristics of any 3 phase motor soft starter application.
The programmable stopping curves in this soft starter prevent water hammer effects, particularly valuable in MV/HV soft starter pump control applications.
Pulse jump functionality gives this 3 phase motor soft starter exceptional starting torque for high-inertia loads in MV/HV soft starter systems.
Comprehensive protection features make this MV/HV soft starter exceptionally reliable for all 3 phase motor soft starter applications:
Over/under voltage
Multiple overload curves
Complete phase protection
Thyristor monitoring
The soft starter supports 380V simulation testing before MV/HV soft starter commissioning, ensuring safe 3 phase motor soft starter deployment.

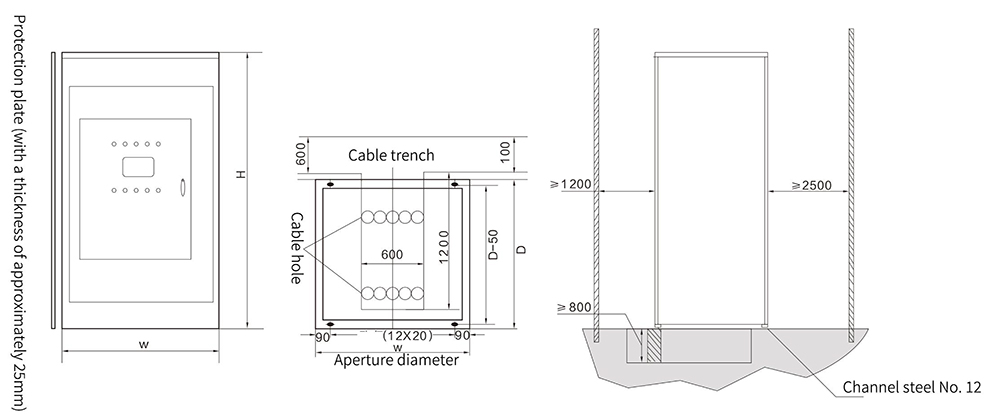

The KYN28A-12 cabinet design makes this MV/HV soft starter durable for industrial 3 phase motor soft starter installations.
Optional speed feedback enhances this soft starter's linear control capabilities in precise MV/HV soft starter applications.
Special generator-mode programming allows this 3 phase motor soft starter to handle unstable power conditions that challenge standard MV/HV soft starter units.
Dual parameter memory in this soft starter enables flexible configuration for complex MV/HV soft starter applications using:
Two-speed motors
Grid/generator switching
One-drives-two systems
The MV/HV soft starter features programmable terminals for selecting between preset 3 phase motor soft starter configurations.
User-friendly interface on this soft starter includes:
Multi-language LCD
Data logging
Optional touchscreen
Standard RS485 with Modbus/Profibus options makes this MV/HV soft starter ideal for networked 3 phase motor soft starter systems.
Technical Parameters
Control Modes:
Voltage ramp (standard in this MV/HV soft starter)
Current limit
Torque control
Speed control (for advanced 3 phase motor soft starter applications)
Starting Methods:
Soft start (primary MV/HV soft starter function)
Direct start
Soft stop
Protection Features:
Complete electrical protection (standard in this 3 phase motor soft starter)
Thermal monitoring
System diagnostics
Environmental Specifications
Temperature: -10°C to +50°C (operating range for MV/HV soft starter)
Humidity: ≤95% @50°C
Altitude: ≤1000m (4000m for special 3 phase motor soft starter versions)
Product Details
