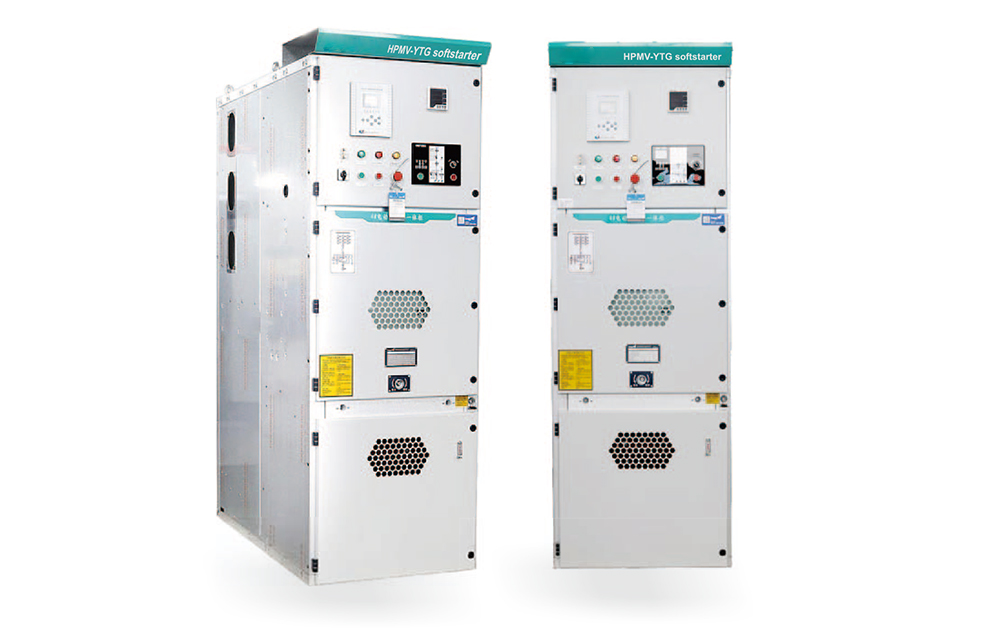

SHMV-YTG Medium voltagesoft starter Integratedcabinet

1. Product Overview
The soft starter is a state-of-the-art motor control device that combines advanced power electronics with intelligent microprocessor technology. This Soft starter with overload protection system features a reliable Built-in bypass mechanism, making it ideal for medium-voltage applications from 3.3kV to 10kV. The soft starter provides smooth motor acceleration while the Built-in bypass ensures energy-efficient operation. With comprehensive Soft starter with overload protection features, this solution guarantees maximum equipment safety.

2. Technical Specifications
2.1 Power System:

• The soft starter uses high-voltage thyristors rated for operation

• Each phase of the soft starter includes voltage balancing circuits

• The Built-in bypass employs vacuum contactors rated for 100,000 operations

• All Soft starter with overload protection current sensors maintain 1% accuracy

2.2 Control System:

• 32-bit DSP processes all Soft starter with overload protection algorithms

• The soft starter features precise firing control

• Built-in bypass switching is controlled by redundant logic

• The Soft starter with overload protection monitors multiple parameters

3. Performance Data
3.1 Starting Control:

• The soft starter offers:

  • Voltage ramp (10-80% adjustable)

  • Current limit (100-500% FLA)

• Built-in bypass engages at 95% speed

• Soft starter with overload protection tracks starting duration

3.2 Protection Features:
The Soft starter with overload protection includes:

• Overcurrent (850% FLA)

• Thermal overload

• Phase imbalance
  The soft starter adds:

• Ground fault detection

• SCR monitoring

• Built-in bypass diagnostics

4. Mechanical Design
4.1 Enclosure:

• The soft starter cabinet features:

  • 2mm steel construction

  • IP42 protection

• The Built-in bypass compartment has:

  • Status indicators

  • Safety interlocks

4.2 Components:

• Power module (soft starter)

• Control unit (Soft starter with overload protection)

• Built-in bypass assembly

5. Electrical Parameters
5.1 Power:

• Input:  3KV(±10%),6KV(±10%),10KV(±10%)

• Control: 110-230VAC

• Soft starter with overload protection uses <800VA

5.2 Performance:

• Start time: 1-90s

• Built-in bypass switch time: <10ms

• The soft starter is 98% efficient in bypass

6. Applications
6.1 Motor Types:
The soft starter controls:

• Induction motors

• Synchronous motors
  The Soft starter with overload protection handles:

• High inertia loads

• Frequent starts
  The Built-in bypass ensures continuous operation

6.2 Industries:

• Mining: The soft starter for crushers

• Water: Built-in bypass for pumps

• Oil/Gas: Soft starter with overload protection in harsh areas

7. Installation
7.1 Space:

• The soft starter needs:

  • 1000×1500×2300mm

  • 800mm clearance

• The Built-in bypass requires access

7.2 Commissioning:

1. Check soft starter insulation

2. Set Soft starter with overload protection

3. Test Built-in bypass operation

8. Maintenance
8.1 Routine:

• Inspect soft starter annually

• Check Built-in bypass contacts

• Verify Soft starter with overload protection settings

8.2 Diagnostics:

• The soft starter provides:

  • Component health data

  • Built-in bypass status

• Soft starter with overload protection logs faults

9. Comparison

10. Ordering

• Base: soft starter with Built-in bypass

• Options:

  • Enhanced Soft starter with overload protection

  • Remote monitoring

• Ratings: 400A/800A/1200A

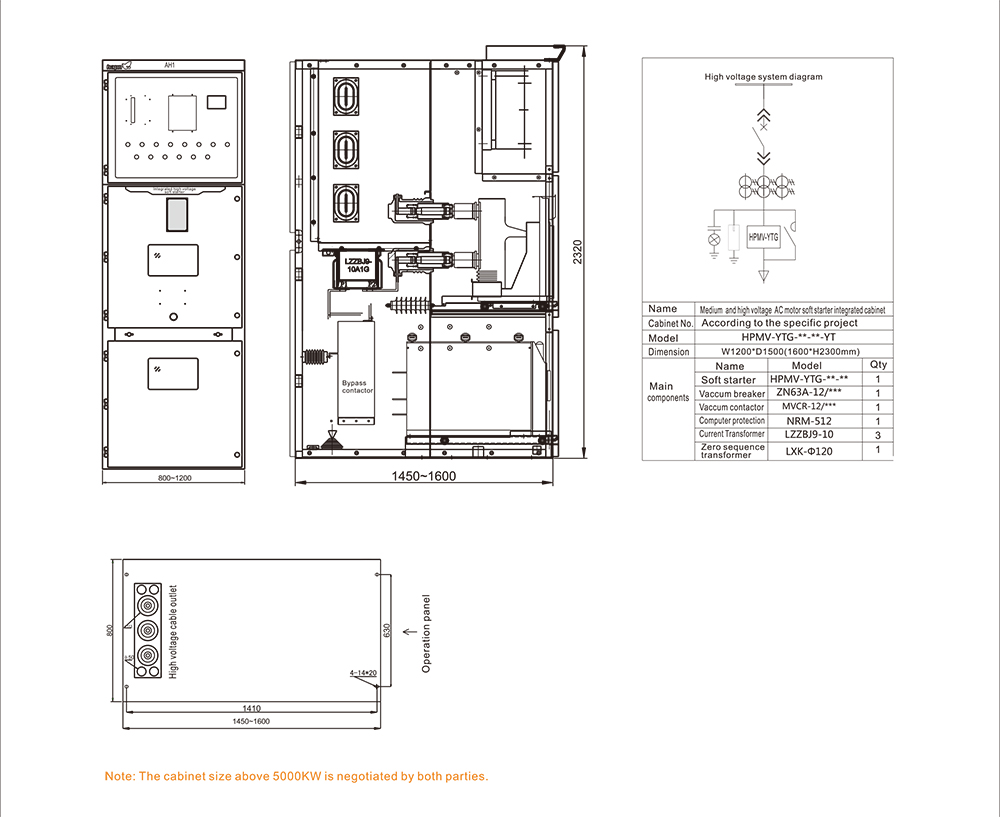

High Voltage Soft Starter Integrated Cabinet System Diagram And Appearance



Product Selection & Size
