YDT1-200 Foot Switch
Industrial grade foot pedal control switch, YDT1 series industrial foot switch is designed for bidirectional circuit control (forward/reverse), with built-in mechanical transmission components to achieve pedal triggering.
Core structure of anti slip industrial foot switch:
Anti slip industrial foot switch dual link dual step design: supports dual independent control (some models can operate two circuits synchronously) ;
YDT1 series industrial foot switch full cover protection: protective covers are installed on the side and top of the pedal to reduce the risk of accidental touch;

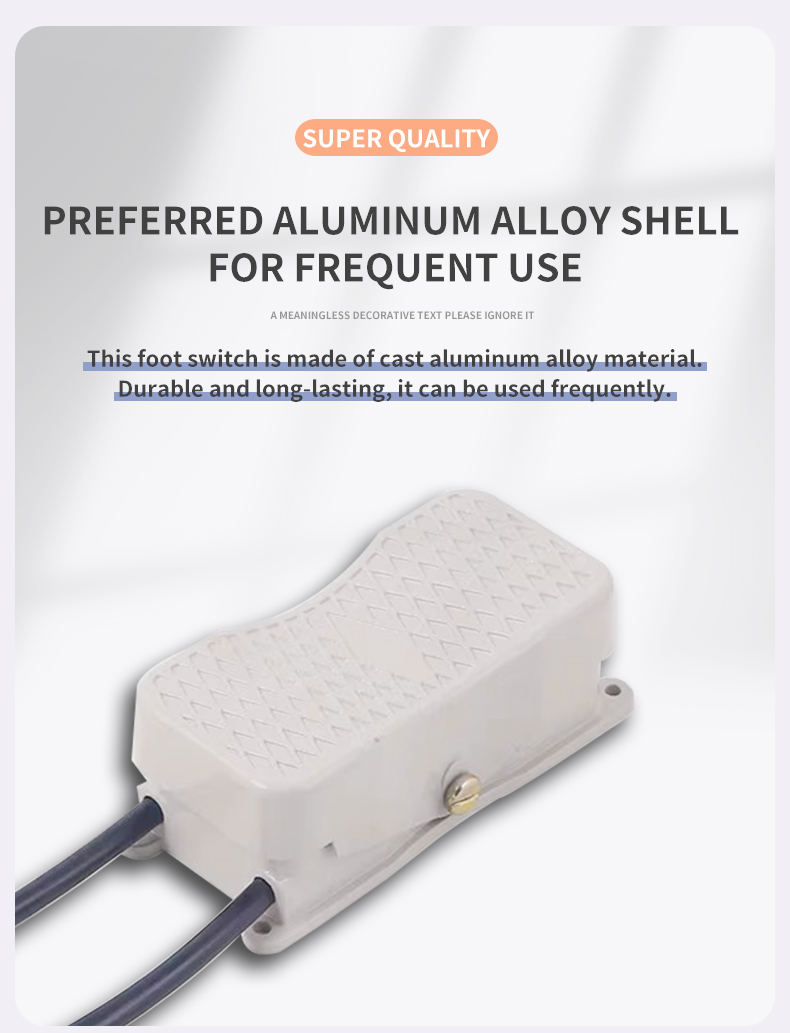

YDT1-200 foot switch material: cast aluminum alloy shell, balancing lightweight and corrosion resistance.

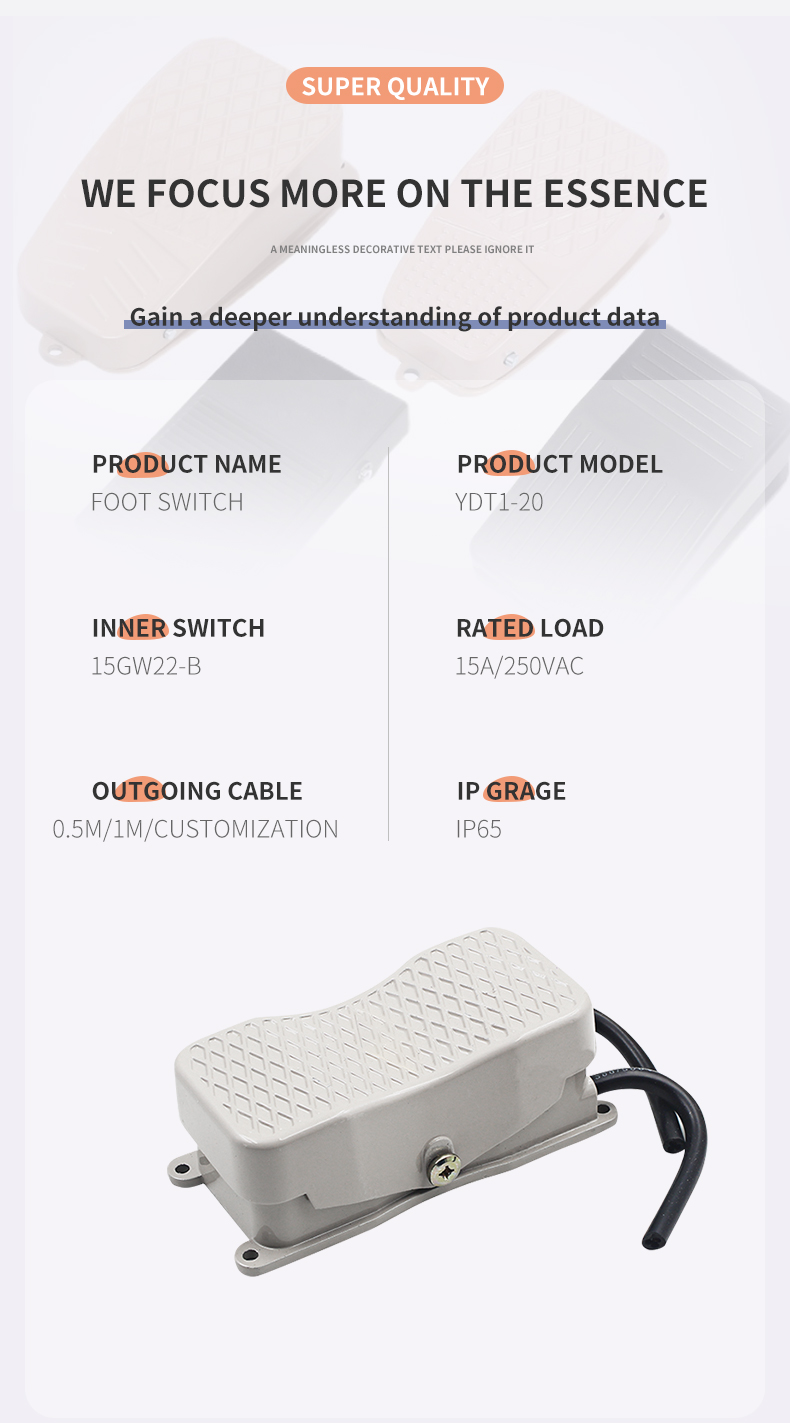

Electrical parameters of anti slip industrial foot switch,YDT1 series industrial foot switch and YDT1-200 foot switch
YDT1 series industrial foot switch rated load
YDT1-200 foot switch applicable circuit: AC 50Hz control circuit (typical voltage 380V)
Rated current: 5A (general control load)
Contact configuration of YDT1 series industrial foot switch,YDT1-200 foot switch,anti slip industrial foot switch
YDT1-200 foot switch supports bidirectional control (reverse/forward/reverse function)
YDT10-20 foot switch models offer dual link dual step structure (dual independent control)
Mechanical of YDT1 series industrial foot switch,YDT1-200 foot switch,anti slip industrial foot switch and structural characteristics of YDT1 series industrial foot switch,YDT1-200 foot switch,anti slip industrial foot switch
YDT1-200 foot switch operation mechanism
Compression spring reset design: automatically returns to initial position after pedal release

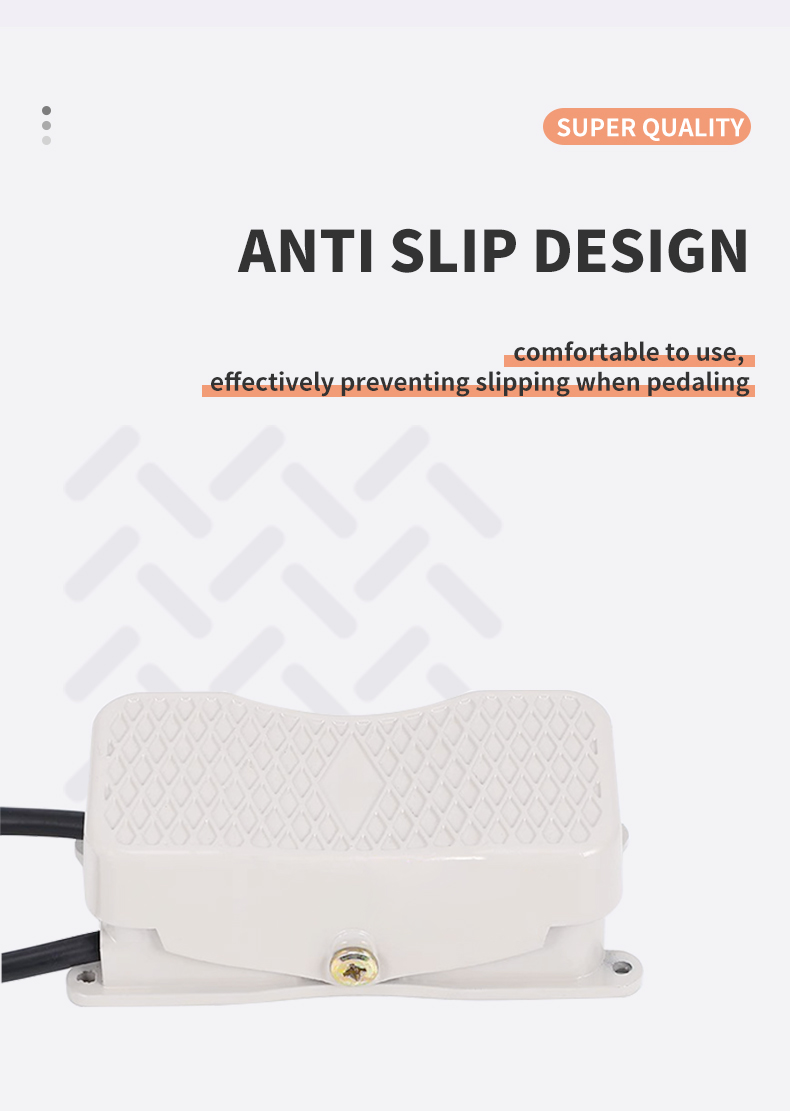

Anti slip industrial foot switch measures: The pedal surface adopts anti slip texture or material
YDT1-200 foot switch Protective design
The side and top of the pedal are equipped with protective devices (to prevent accidental contact)
Optional explosion-proof models (such as Yikesi brand)
YDT1-200 foot switch Material
Mainstream shell material: cast aluminum alloy (lightweight and corrosion-resistant)
YDT1-200 foot switch Core application scenarios
Industrial equipment control
Machine tool motor start stop/forward/reverse rotation (such as punch press, press machine)
Hydraulic system control pedal Installation and Accessories
Standard dual head connection cable (convenient for quick wiring)
Support replacement of old models (such as LT1 series)
