Model No: XCK-J

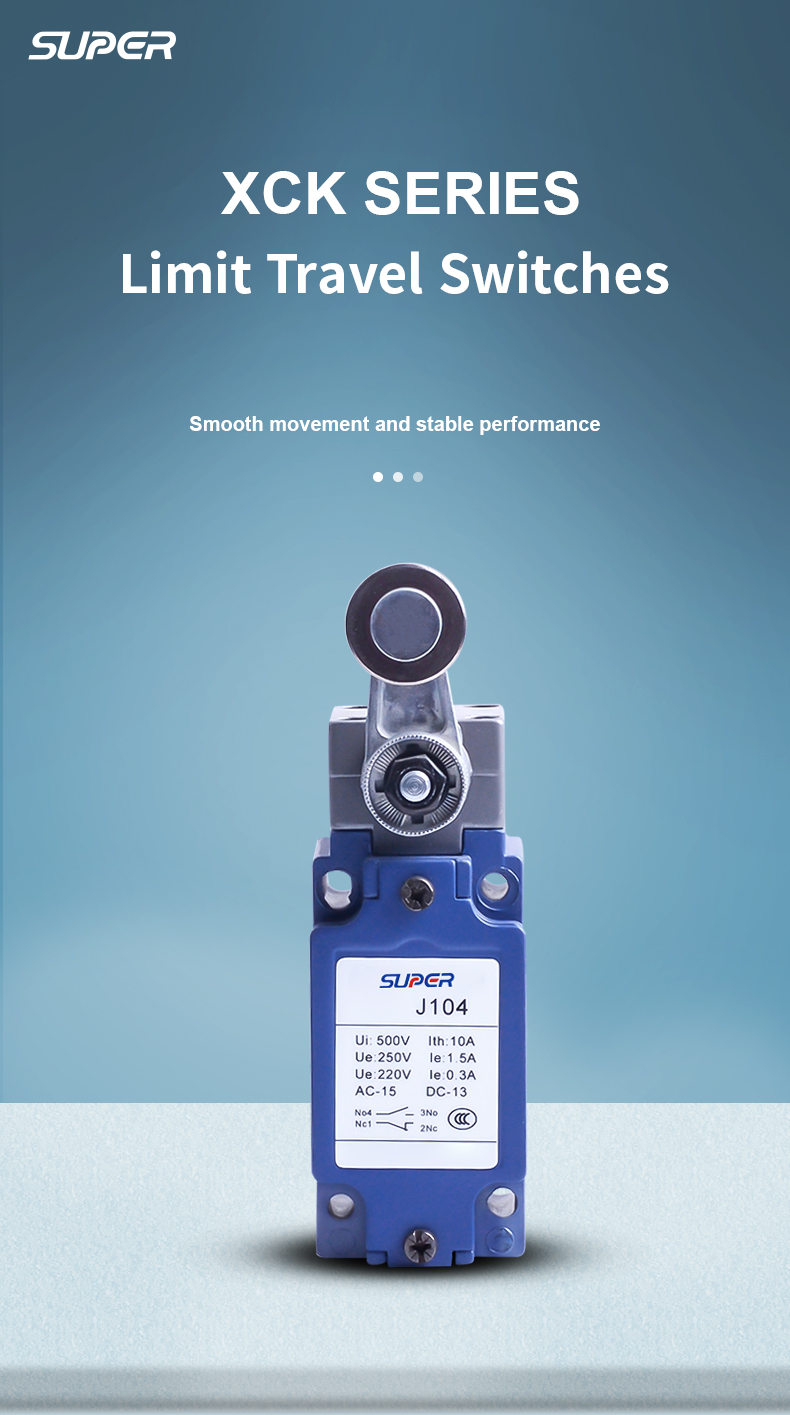

XCK-J Travel Switch

The XCK-J direct acting travel switch belongs to the mechanical limit switch, which is a position detection device based on collision contacts. It triggers the circuit on/off through direct contact of mechanical moving parts to achieve equipment travel control, safety limit or action switching. Its core function is to limit the range of mechanical motion and trigger interlocking protection, ensuring that the equipment stops or switches operating modes accurately at the preset position

Quantity :

add to cart

Contact Now

All Products

Subscribe to our Newsletter

1、 XCK-J travel switch,mechanical limit switch,direct action travel switch

Technical characteristics

XCK-J travel switch,mechanical limit switch,Direct action travel switch certification:

Compliant with IEC 337-1 international standard and Chinese national standard GB 14048.5-2001;

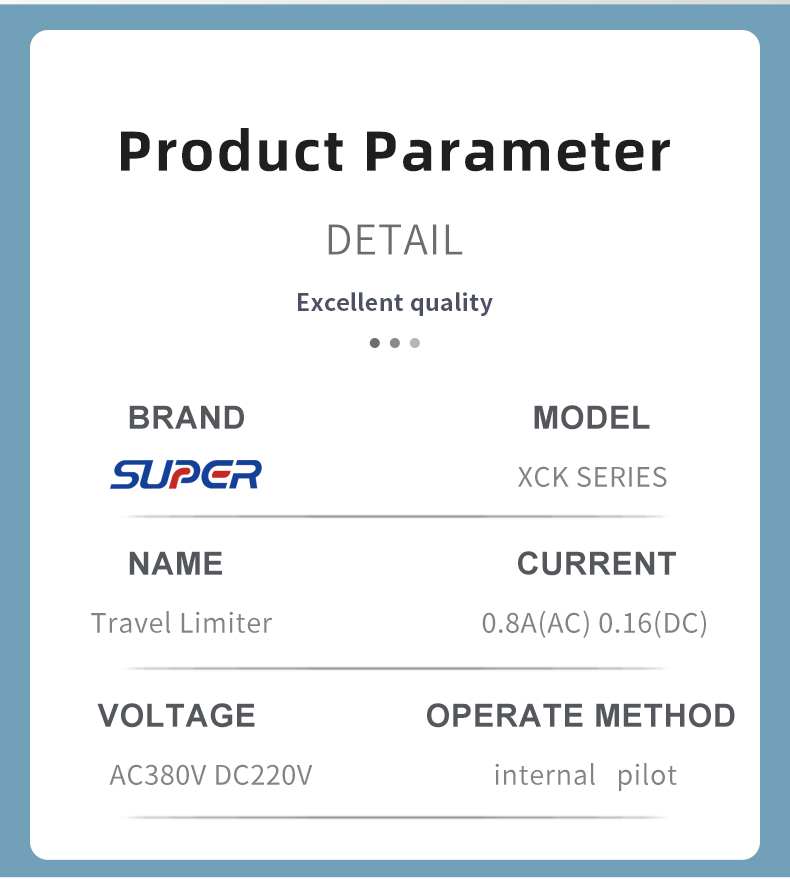

Applicable circuit: AC 50-60Hz/AC380V, DC 220V, rated current AC10A.

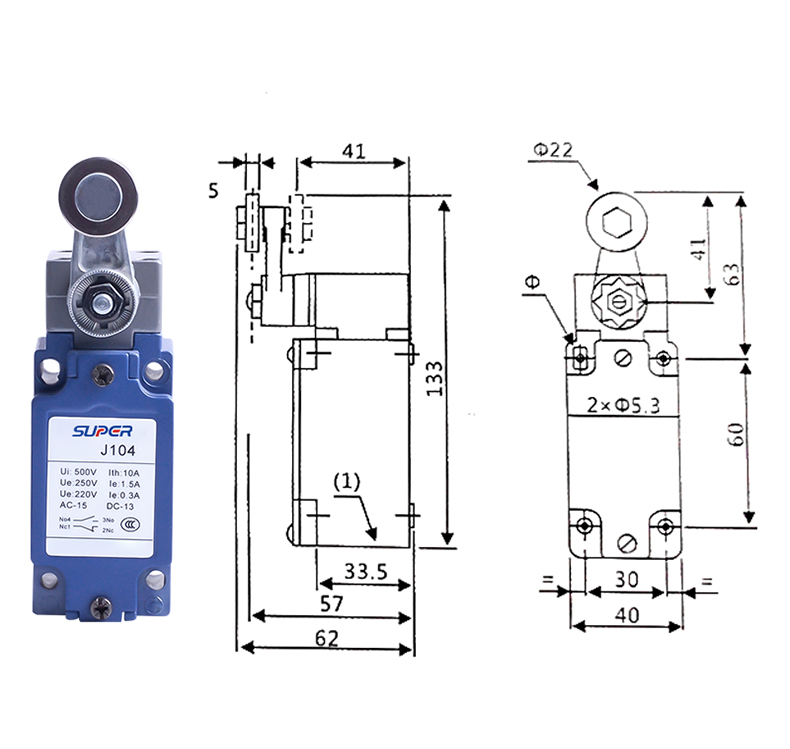

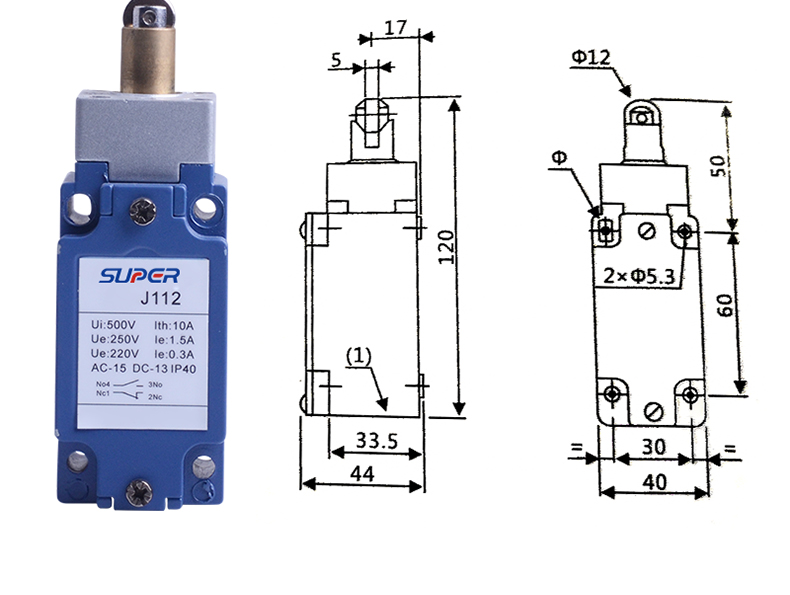

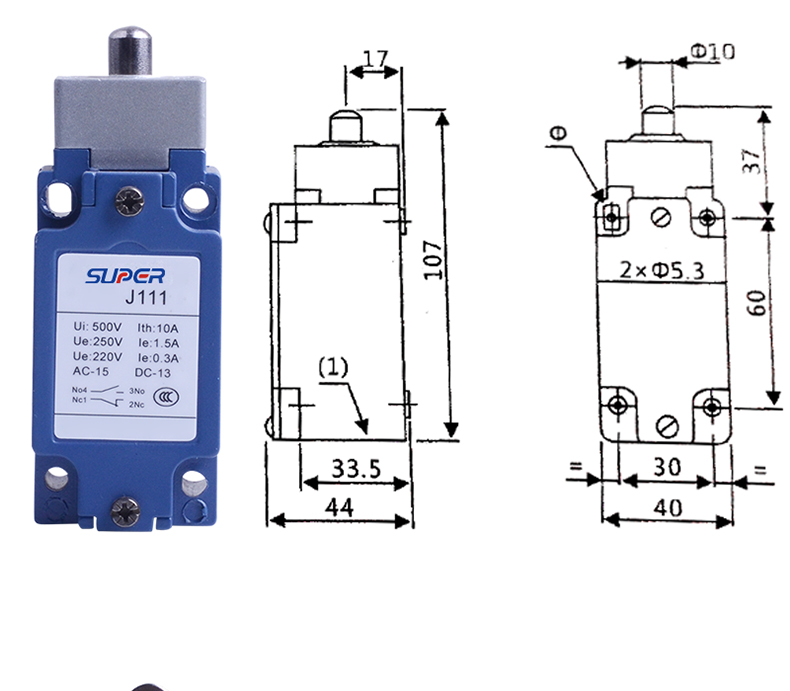

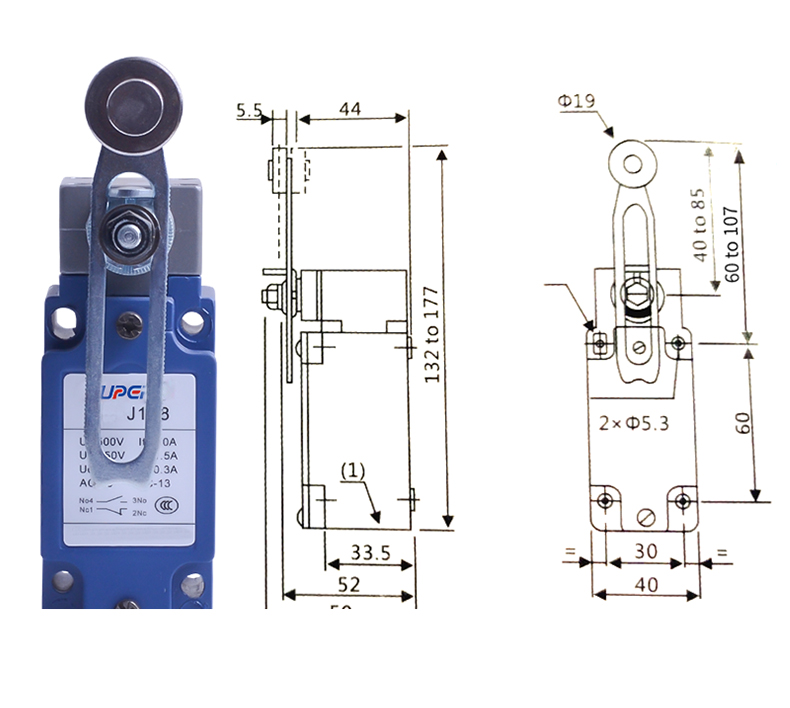

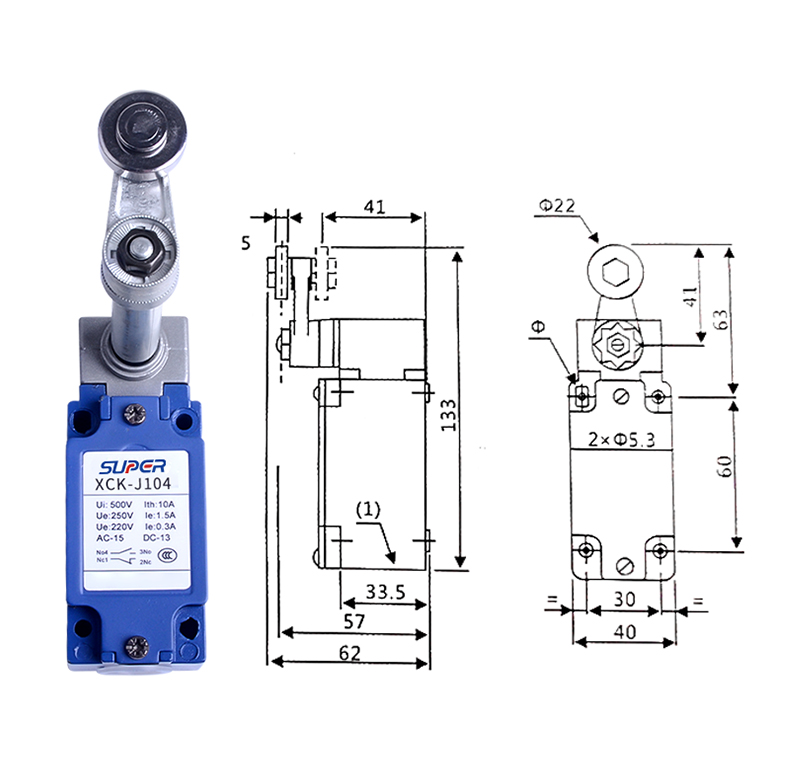

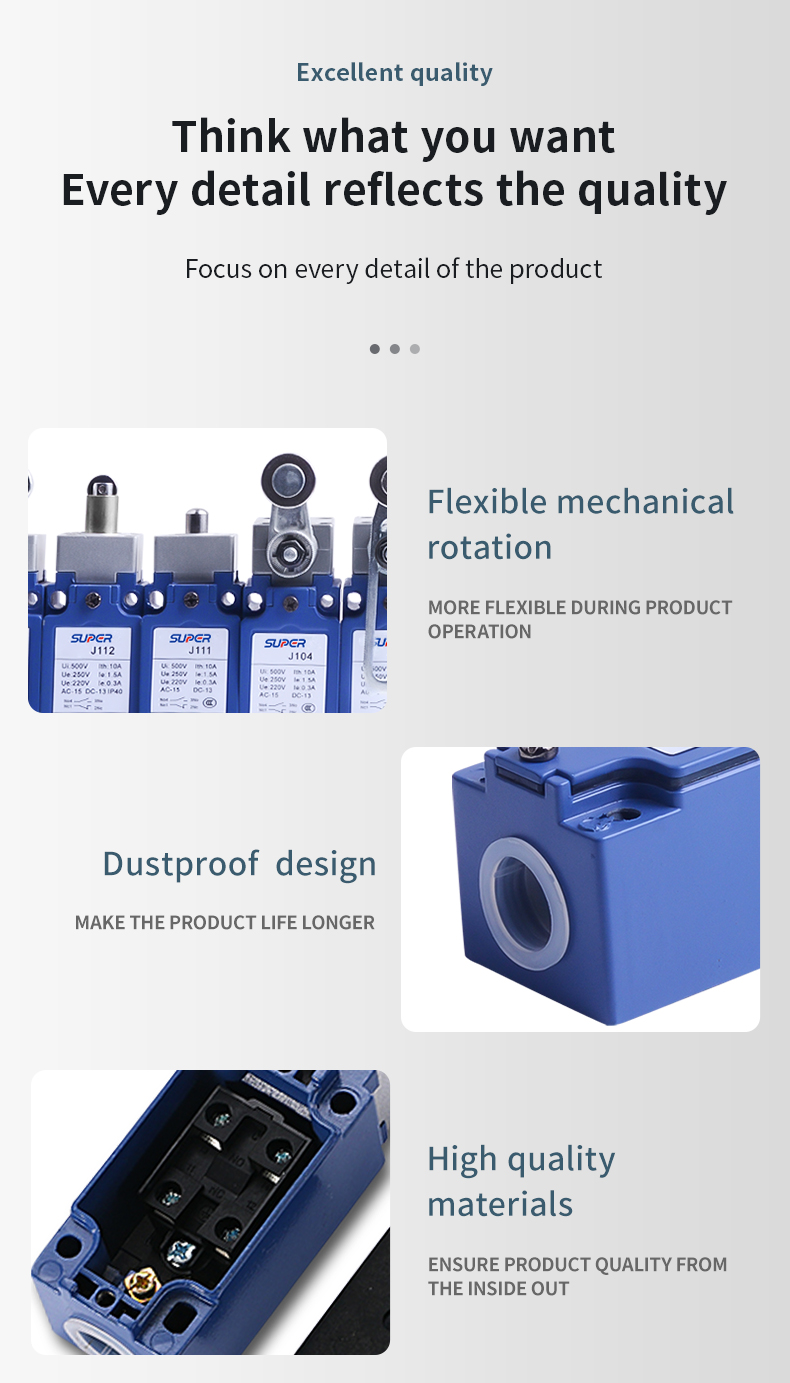

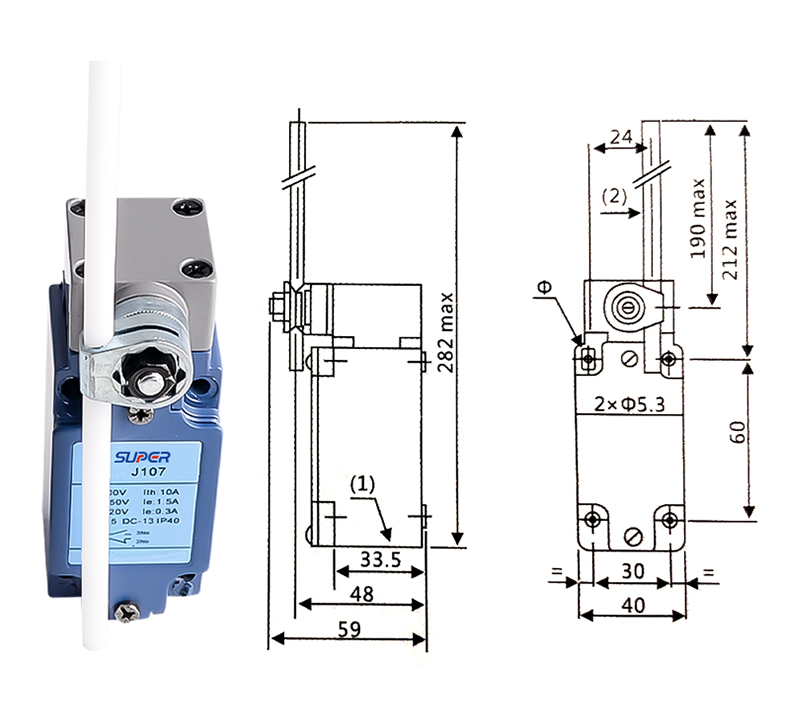

Structural design of direct action travel switch:

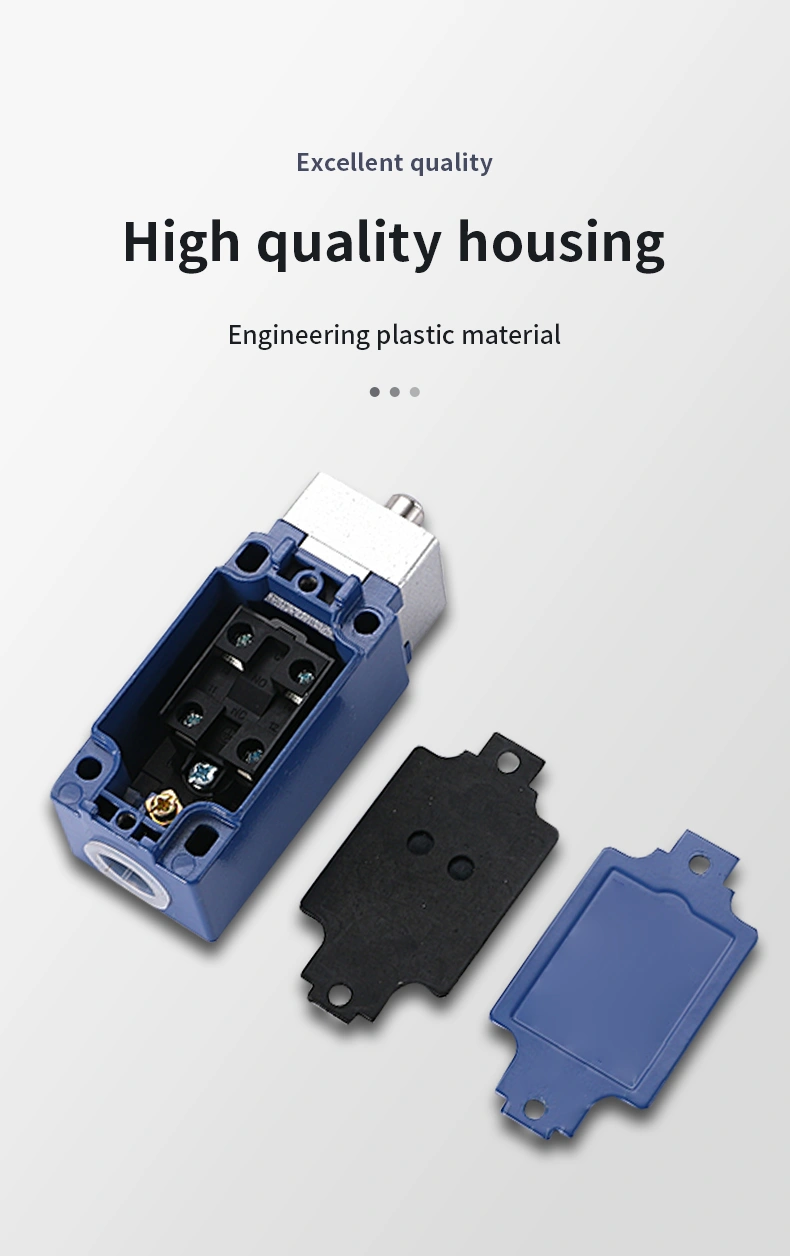

Direct action travel switch in shell material: Made of special alloy metal die-casting, with high strength, impact resistance and wear resistance;

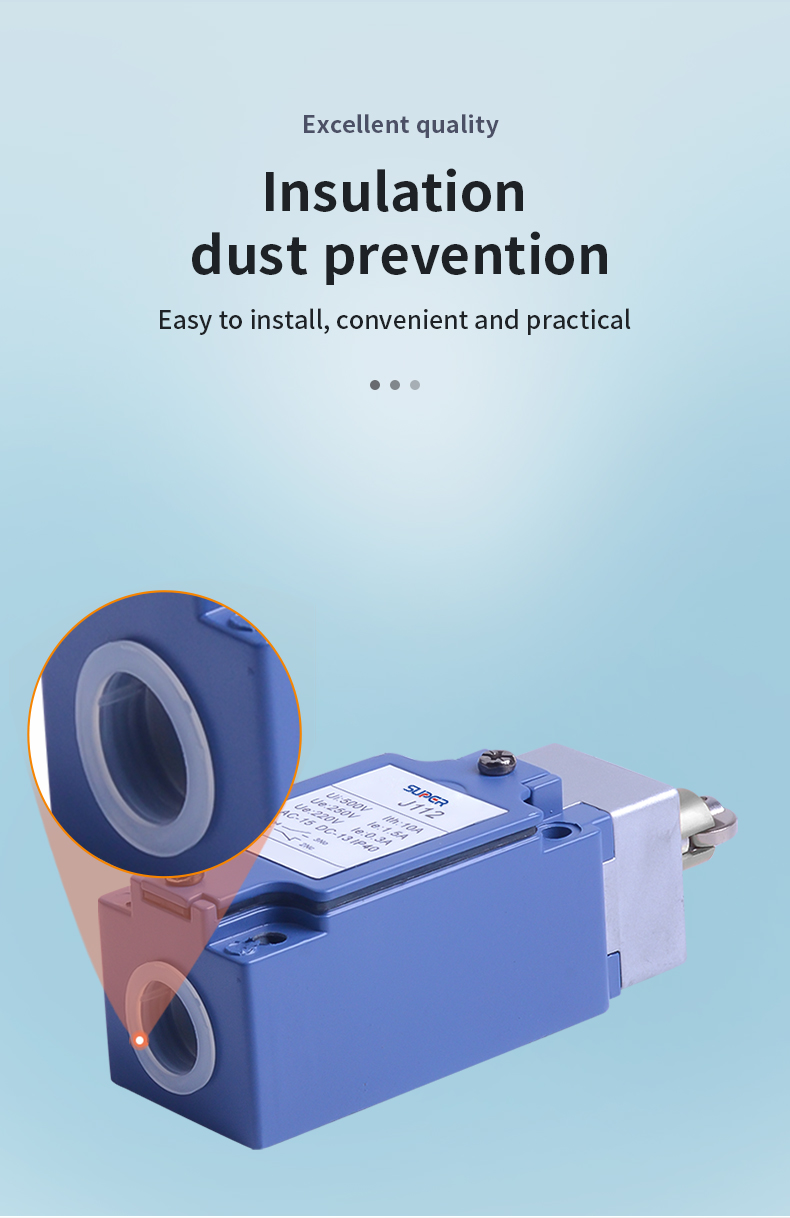

Direct action travel switch in protection level: IP65 dustproof and waterproof design, suitable for harsh industrial environments such as high temperature and oil pollution;

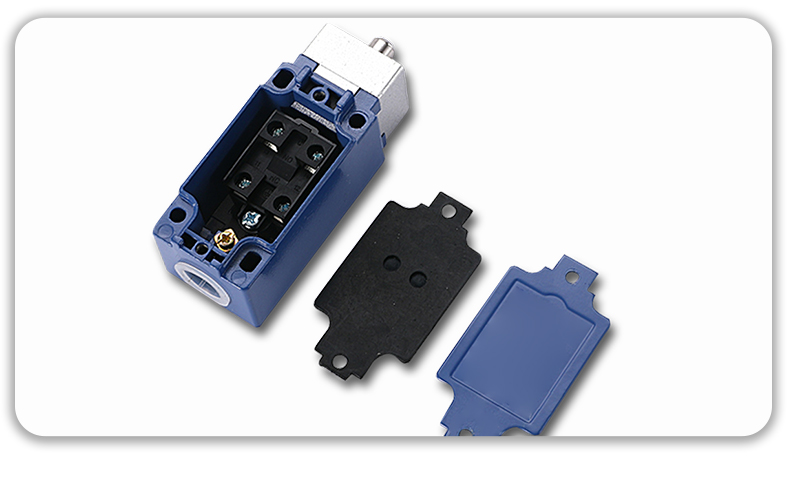

Direct action travel switch in operating mechanism: Provides a dual spring micro switch structure with a mechanical lifespan of up to one million cycles.

2、 XCK-J travel switch,mechanical limit switch

XCK-J travel switch,mechanical limit switch application scenarios

XCK-J travel switch,mechanical limit switch in Industrial automation:

Used for tool path limit protection and program control in machine tool processing;

Travel management and safety interlocking of lifting and walking mechanisms of lifting machinery.

Special equipment:

Front and rear limit position control of furnace soot blower (such as XCK-J.C model);

Accurate positioning of motion mechanisms in petroleum and medical equipment.

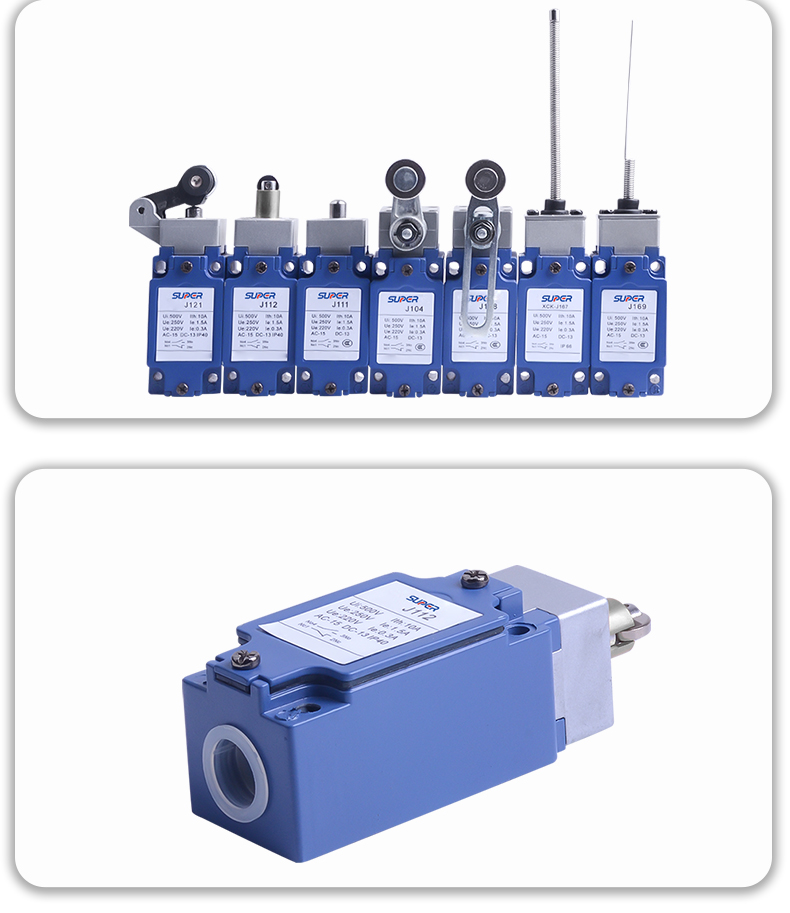

3、 XCK-J travel switch mechanical limit switchModel difference

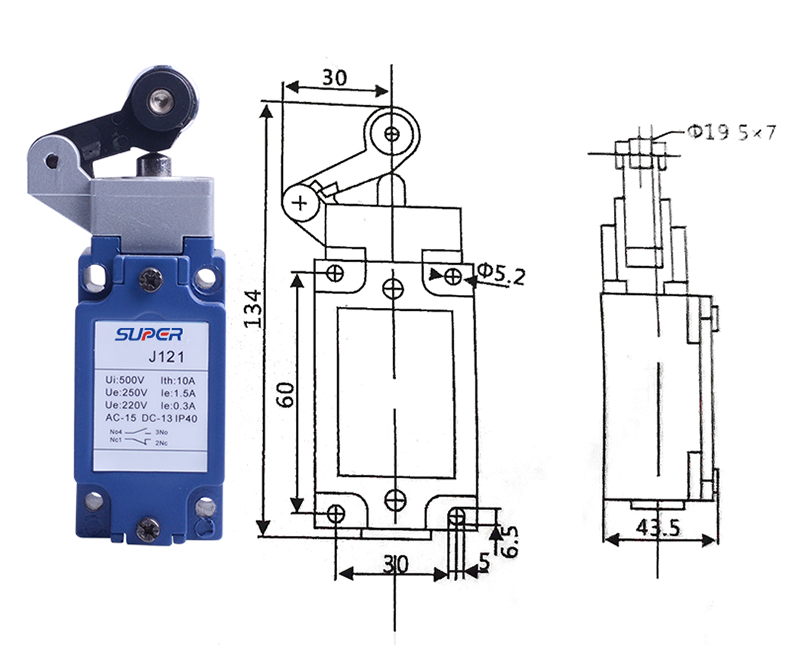

XCK-J121: Basic dual circuit limit switch, economically applicable to conventional industrial scenarios;

XCK-J.C: Specialized model for soot blowers, suitable for maximum position detection and valve control of threaded pipes;

XCK-J.H series: Heavy duty all metal structure, supporting high-frequency operation (such as Schneider Electric customized models).
