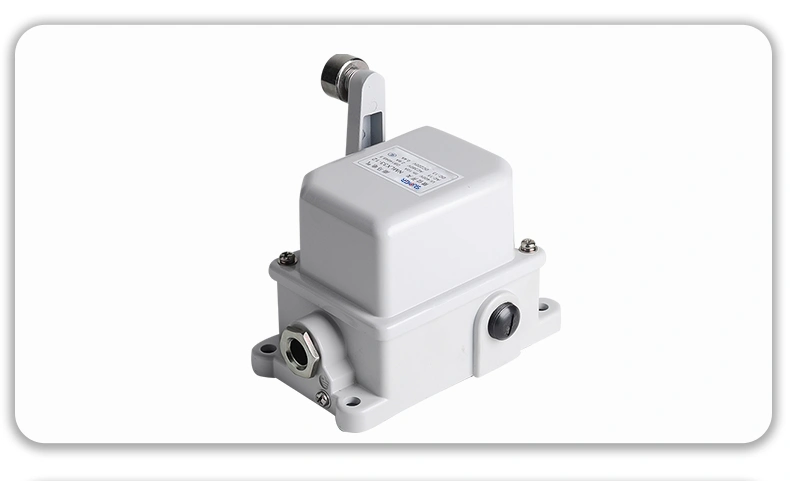

LX33 Travel Switch

The LX33 travel switch is designed specifically for cranes and the LX33 travel switch is designed specifically for heavy equipment, LX33 travel switch also known as the crane travel switch IP44 protection level. Crane travel switch IP44 protection level supports electrical environments with AC 50-60Hz and voltage up to AC380V/DC220V, crane travel switch IP44 protection level have a rated current coverage of 10A-20A load requirements of 25, and crane travel switch IP44 protection level achieves dust and splash prevention capabilities through IP44 protection level.

[1] Basic parameters LX33 travel switch and certification of LX33 travel switch

Electrical specifications of LX33-31 heavy hammer limit switch:

LX33-31 heavy hammer limit switch supports communication between 50-60Hz, LX33-31 heavy hammer limit switch voltage range AC380V/DC220V,LX33-31 heavy hammer limit switch load current 10A-20A28

LX33-31 heavy hammer limit switch applicable temperature range -5 ℃ to+40 ℃ (customized models required for extreme environments)

Crane travel switch IP44 protection level protection performance:

Crane travel switch IP44 protection level mechanical lifespan reaches 1 million operating cycles

Crane travel switch IP44 protection level protection level IP44 (dustproof and splash proof)

LX33-31 Heavy Hammer Limit Switch Certification Standard:

LX33-31 Heavy Hammer Limit Switch is compliant with GB14048.5-2001 and LX33-31 Heavy Hammer Limit Switch is compliant with IEC 60947-5-1 international standards.

[2] LX33 travel switch model classification and LX33 travel switch functional characteristics

LX33 travel switch typical application scenarios of model structure characteristics

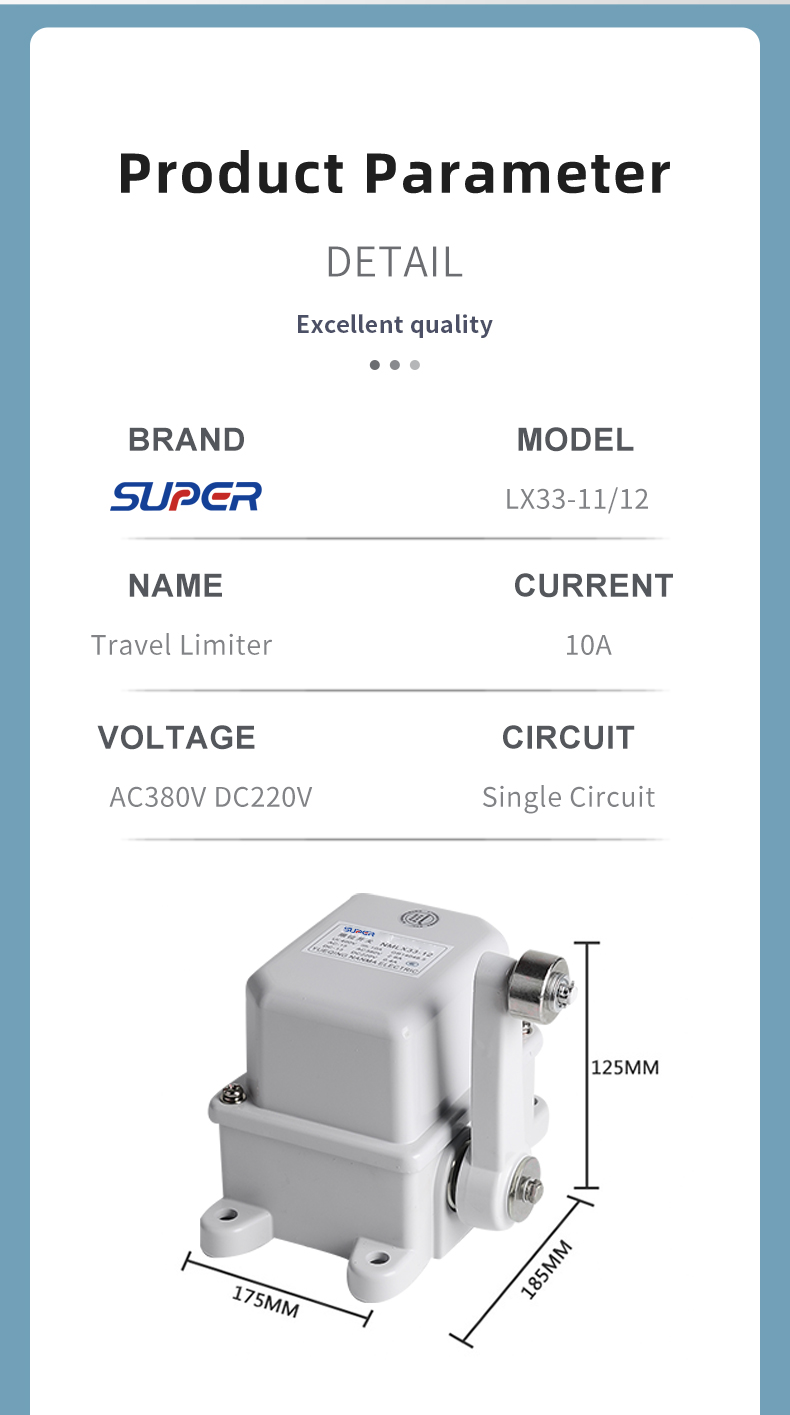

LX33-12 translation mechanism protection type, equipped with standard contact group (1 normally open+1 normally closed) bridge crane track limit

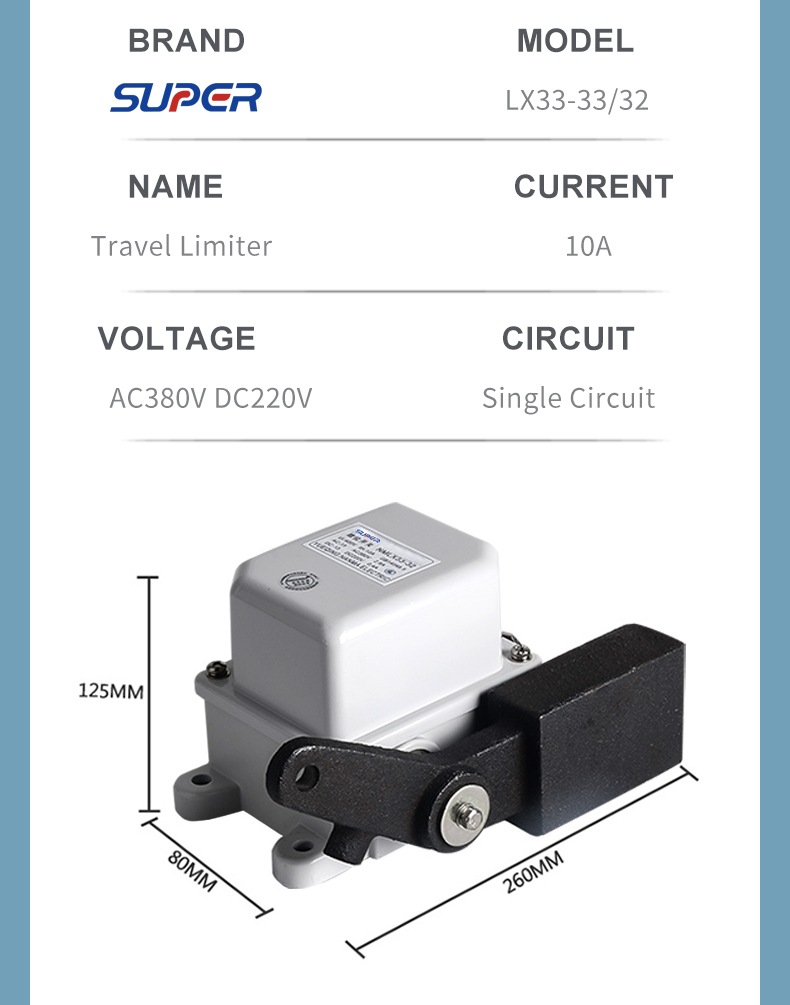

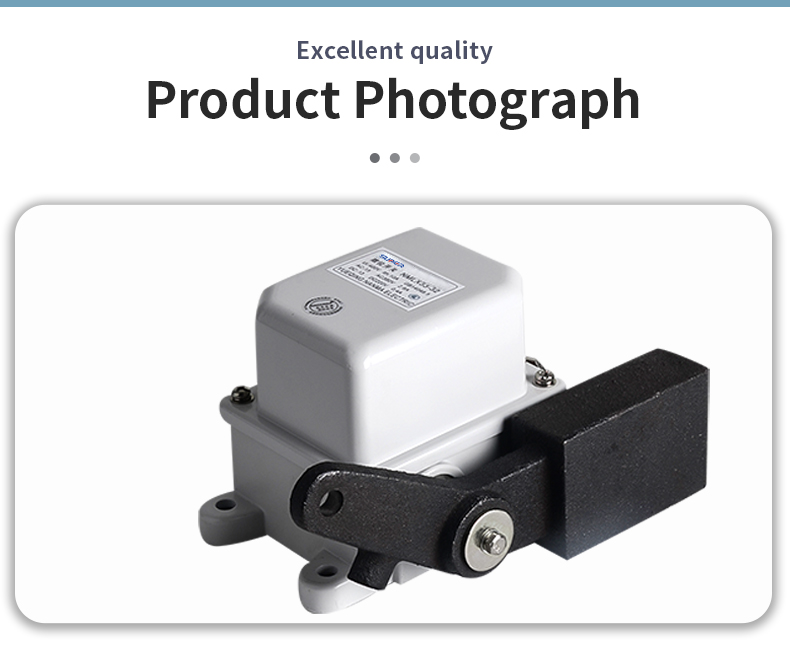

LX33-31/32 LX3 Heavy Hammer Limit Switch Heavy Hammer Design, Adjustable Cam Angle Control Contact Status Elevator Terminal Safety Protection

The LX33 series supports the installation of 2 sets of contact groups to achieve dual loop control and automatic production line position feedback

[3] LX33 travel switch core application scenarios

Crane travel switch IP44 protection level lifting machinery:

Travel limit and terminal protection of LX33-31 heavy hammer limit switch translation mechanism (such as track limit of bridge crane)

LX33-31 heavy hammer limit switch lifting mechanism height control (adjustable lift through screw nut)

LX33 travel switch industrial automation:

Crane travel switch IP44 protection level integrated into the transmission system for precise position detection

LX33-31 heavy hammer limit switch for high temperature workshop equipment linkage control (requires cooperation with high temperature resistant components)

[4] Key points for installation and maintenance of LX33 travel switch

LX33-31 heavy hammer limit switch contact adjustment:

By rotating the camshaft 30 °, the contact opening and closing status can be changed

The LX3 heavy hammer limit switch requires regular verification of the balance of the counterweight for the heavy hammer model

Crane travel switch IP44 protection level environmental adaptation:

The crane travel switch IP44 protection level can be directly used in areas with an altitude of ≤ 2000m

It is recommended to add a moisture-proof shell for environments with humidity exceeding 90%

Note: When selecting the LX33-31 heavy hammer limit switch, it is necessary to focus on checking the load type (resistance/motor load) and the required operating frequency
