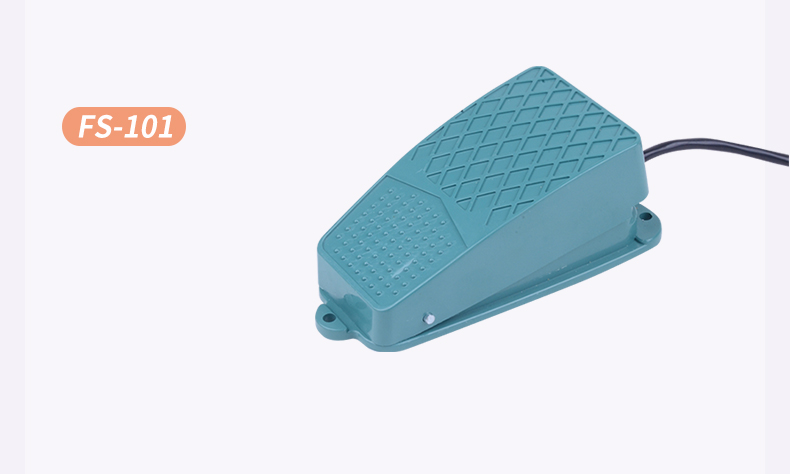

FS Series Foot Switch
1、 FS series foot switch basic industrial model
FS series foot switch's FS-1 series
Material: Plastic shell (with wire 10cm) or metal shell (painted steel plate)
Function: Standard self resetting, optional front hinge/self-locking/dual pedal design
Certification: UL/CSA/CE/CCC, protection level IP20
Load capacity: 10A/15A (125-250VAC), suitable for light and medium-sized equipment
FS series foot switch's FS-2 series
Structure: Iron shell, weight 290g
Heavy duty foot pedal IP65 electrical parameters:
Communication: 250V/15A, 380V/2A
DC: 110V/4A, 220V/0.4A
Lifespan: Mechanical lifespan of 10 million cycles
FS series foot switch's FS-3 series
Heavy duty foot pedal IP65 configuration: aluminum shell silver contacts, standard 10cm cable (extendable)
Associated model: TFS-3 (low-priced alternative, starting from ¥ 7.70 per unit)
2、 FS series foot switch enhanced and special application series
FS series foot switch's FS-81/91 series
Heavy duty foot pedal IP65 material: high-strength fiberglass or aluminum alloy shell
Performance: Supports 480VAC voltage, 25A load (1HP/125V)
Protection: Optional protective cover model (such as FS-81G-10)
FS series foot switch's FS-5 series (heavy-duty type)

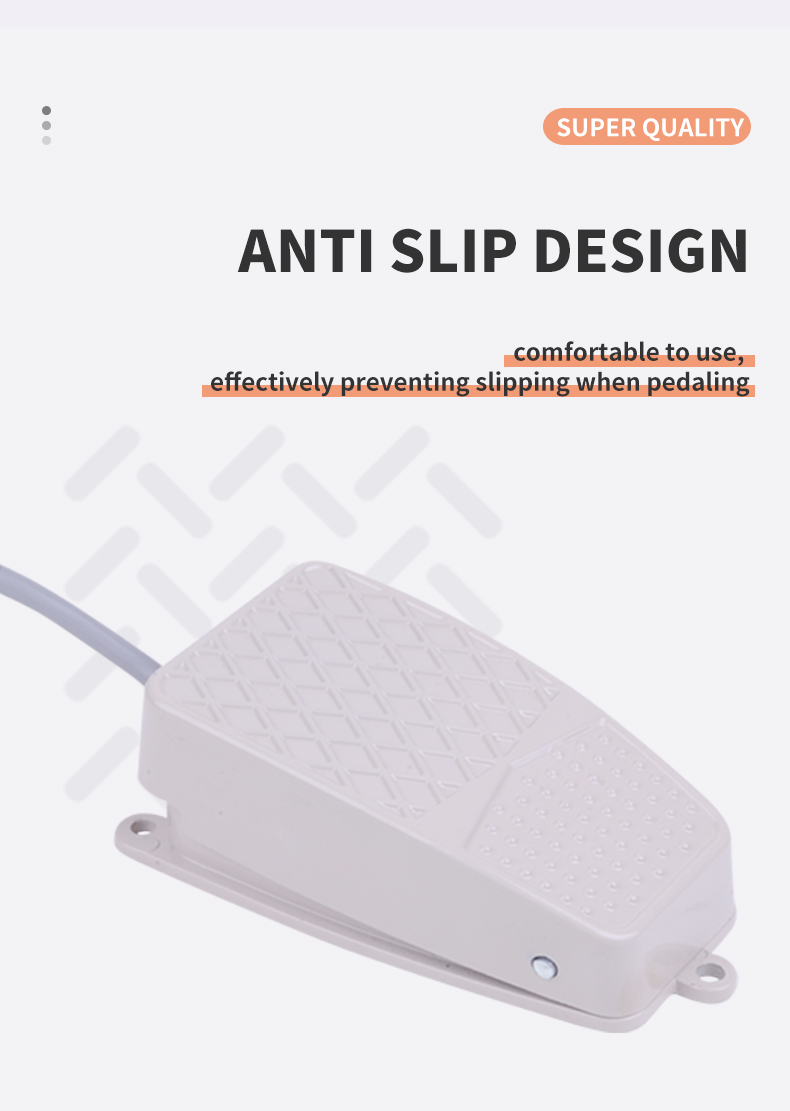

Heavy duty foot pedal IP65 structure: cast iron base+aluminum alloy pedal, anti slip design
Power: 20A/250VAC (2HP), IP65 protection
Heavy duty foot pedal IP65 safety design: two-level action/anti misoperation/double knife double throw and other variants
FS-6 series (safety emergency stop)
Heavy duty foot pedal IP65 core function: Two level pressure triggering, self-locking in case of emergency, power-off requires manual reset
Heavy duty foot pedal IP65 certification: compliant with EU safety standards, IP65/NEMA 4 protection
3、 FS series foot switch,Industrial foot pedal material and FS series foot switch,Industrial foot pedal material structural characteristics
Heavy duty foot pedal IP65 shell material: commonly used high-strength aluminum alloy die-casting or painted steel plate (such as FS-6 series) 36, medical models can choose plastic or metal shell (FS-9 series).

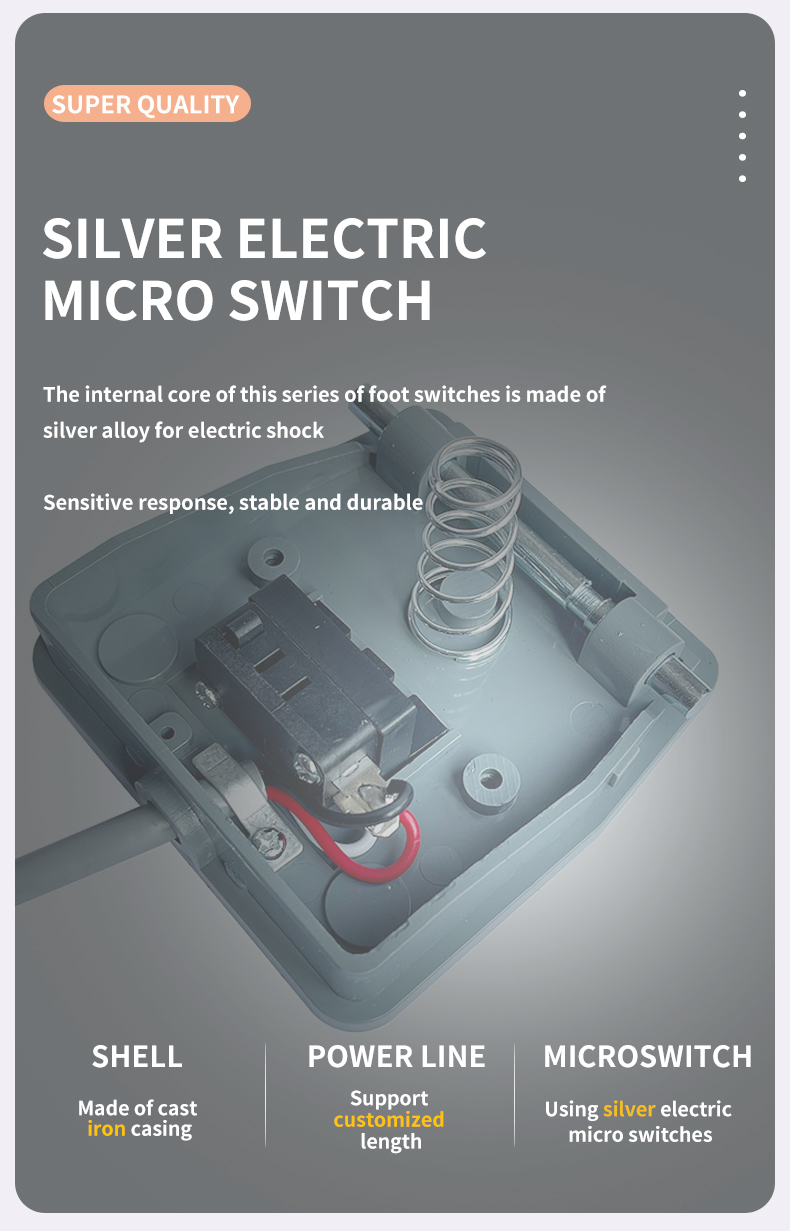

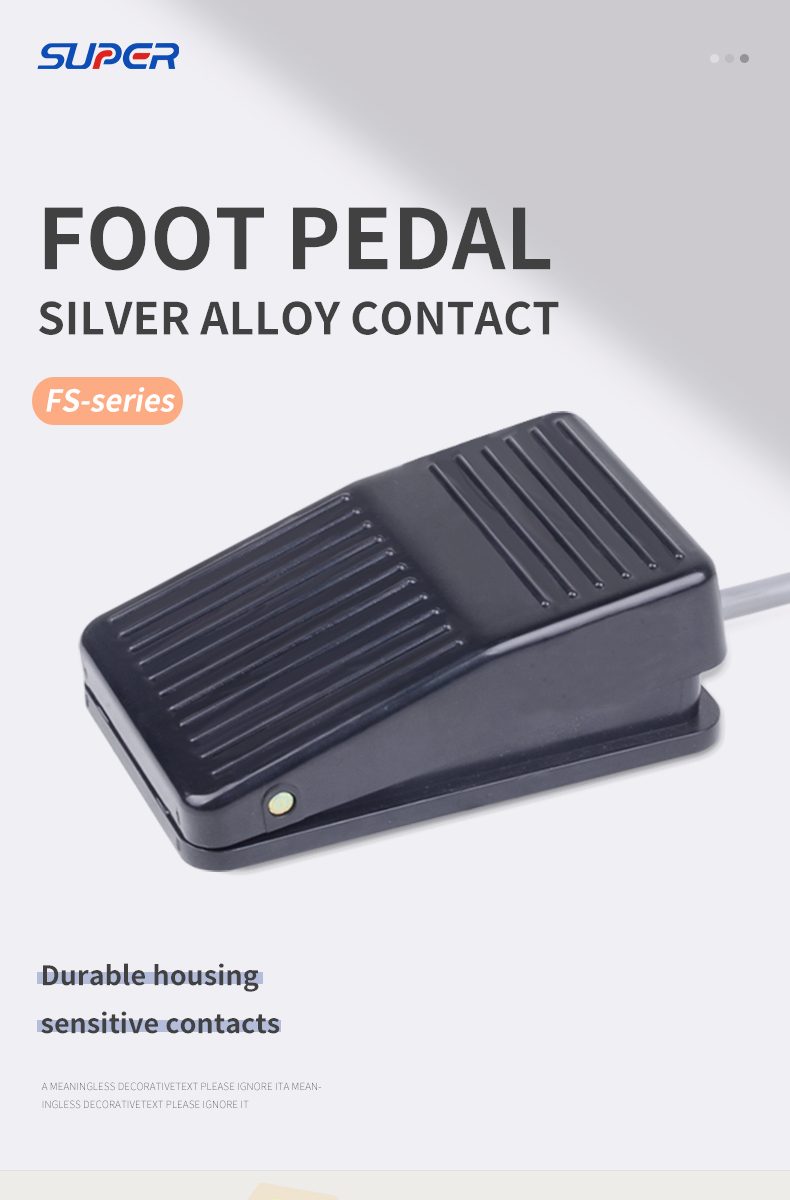

Industrial foot pedal foot contact and Industrial foot pedal wiring: Most industrial foot pedal use silver contact design, Industrial foot pedal with standard wire length of 1.5-2 meters (such as FS-6 series supporting six core wire).
4、 FS series foot switch and Industrial foot pedal key electrical parameters
Industrial foot pedal:
Industrial foot pedal load capacity: industrial foot pedal typical values are 10-25A/250-600V AC (e.g. FS-6 supports 10A/600V AC, FS-91 supports 25A/480V AC).
Heavy duty foot pedal IP65 protection level: industrial models reach IP65/NEMA 4 (such as FS-6 series), medical models are IPx8 (FS-9 series).
Heavy duty foot pedal IP65 lifespan indicator: mechanical lifespan of over 1 million cycles, electrical lifespan of 500000 cycles (such as FS-6 series).
