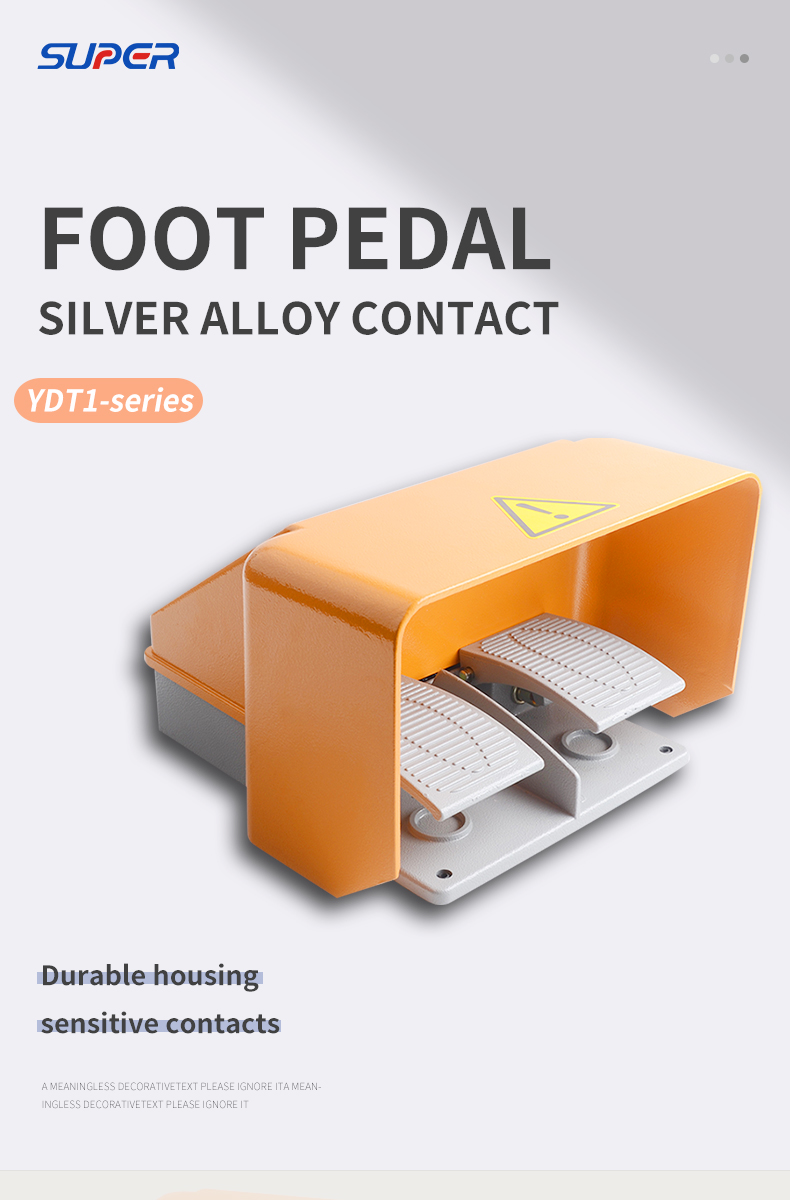

YDT1 Series Foot Switch

Double step reset foot switch basic specifications and Double step reset foot switch electrical parameters

‌

Double step reset foot switch rated load

Double step reset foot switch applicable circuit: AC 50Hz/60Hz, voltage AC 380V or DC 220V;

Double step reset foot switch rated current: 5A (general control load).

Compression spring automatic reset foot pedal environment adaptability

Compression spring automatic reset foot pedal working temperature: -30 ° C~+40 ° C;

Compression spring automatic reset foot pedal altitude limit: ≤ 2000m, humidity ≤ 85%;

Compression spring automatic reset foot pedal protection level: IP41 (dustproof and drip proof).

Model configuration of double step reset foot switch and mechanical design of double step reset foot switch

Double step reset foot switch differences in core models

Double step reset foot switch model Function Features

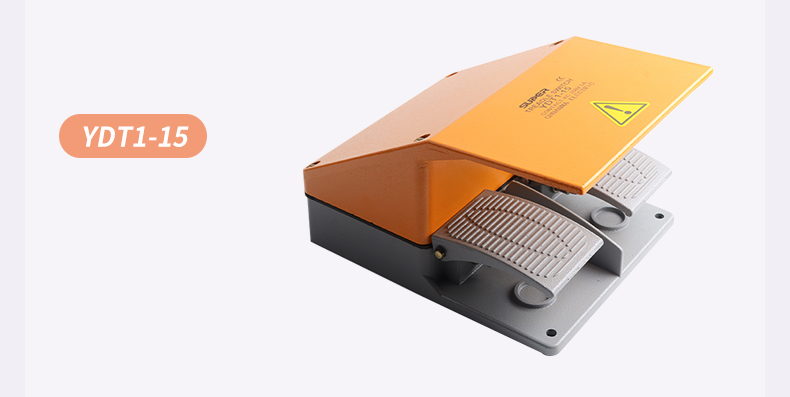

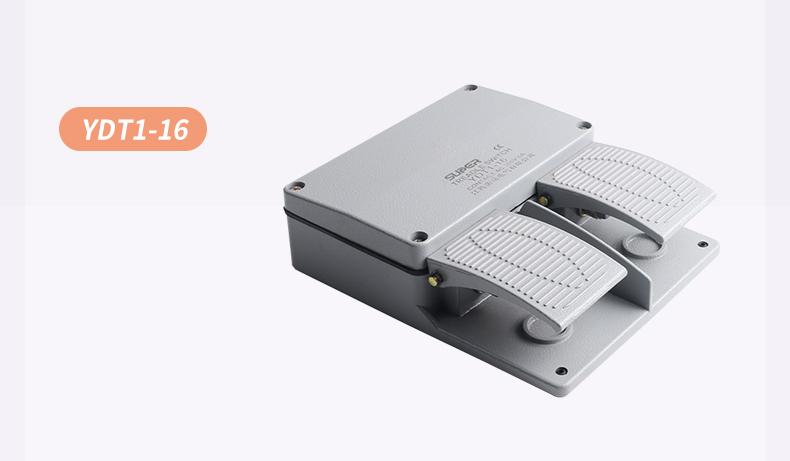

YDT1-14/15/16 dual step with protective cover, supporting independent up and down control

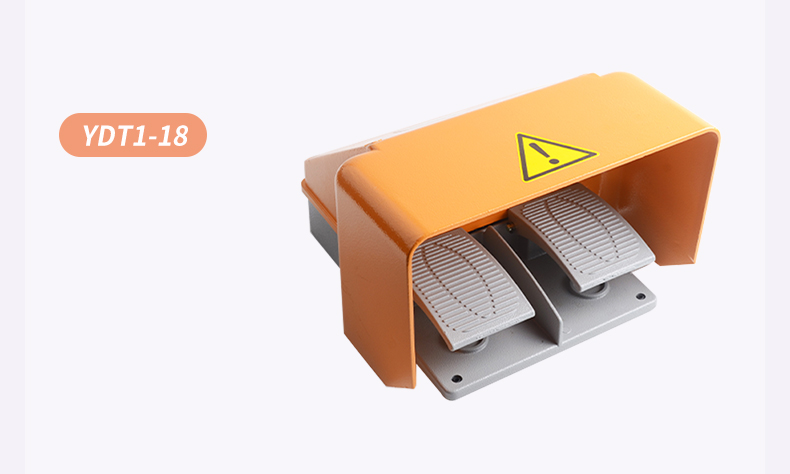

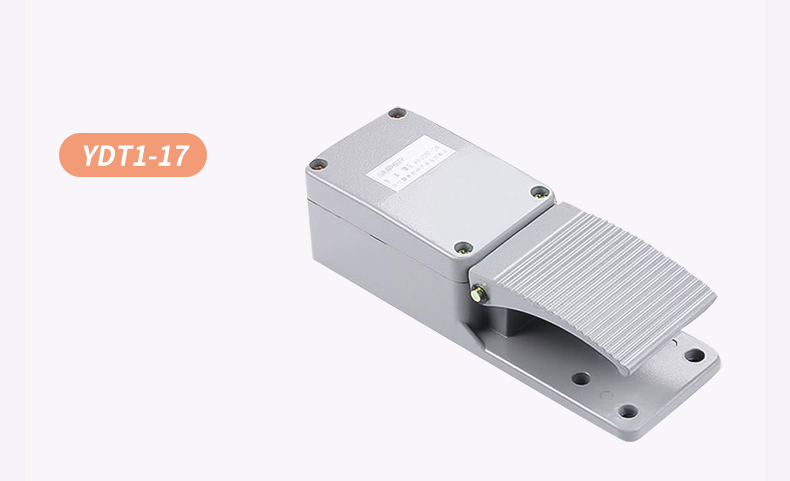

YDT1-17/18 self-locking function option, suitable for continuous operation scenarios

YDT120-101 bidirectional contact (reverse control), replacing the old LT1 series

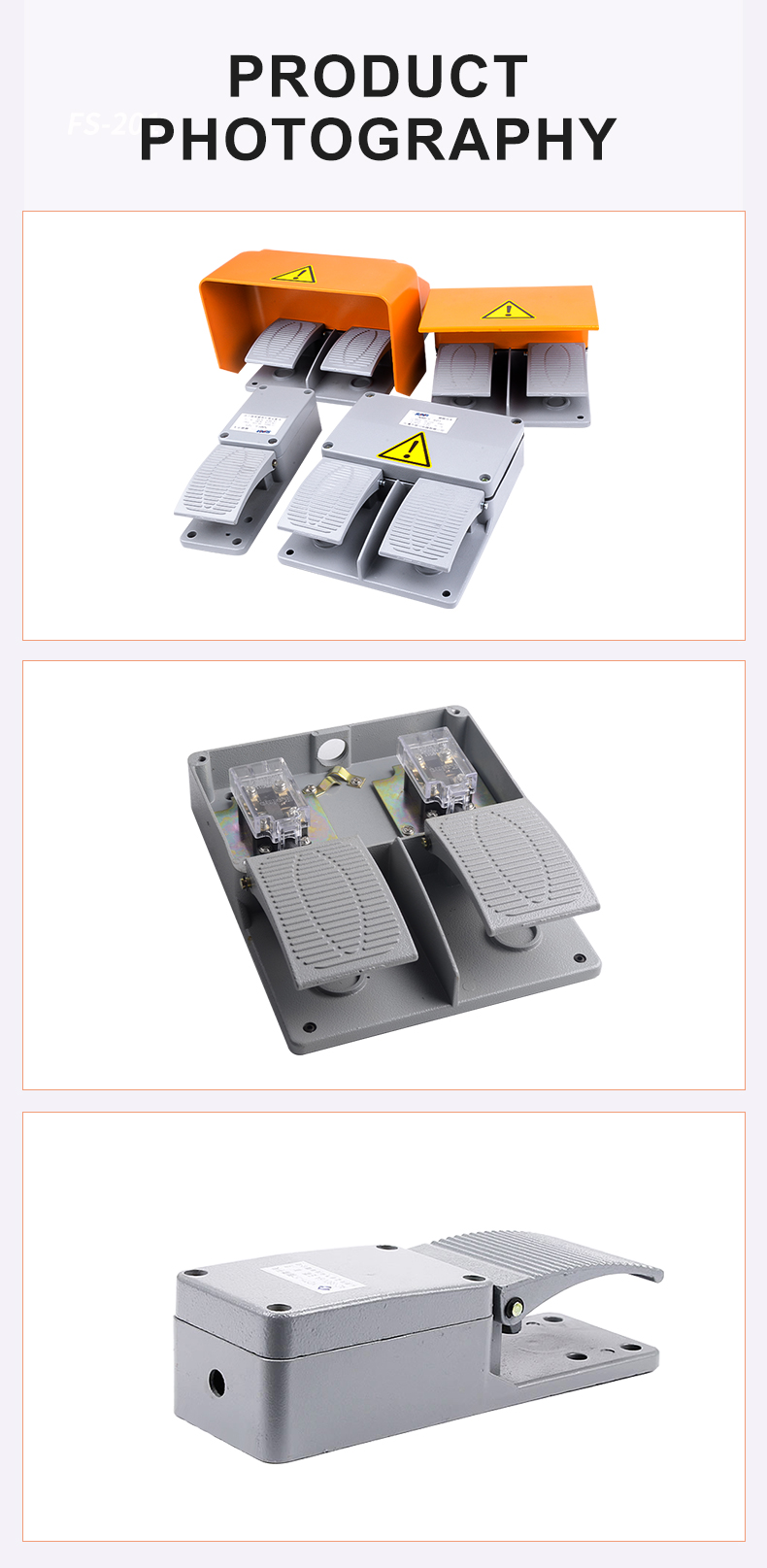

Structural characteristics of double step reset foot switch

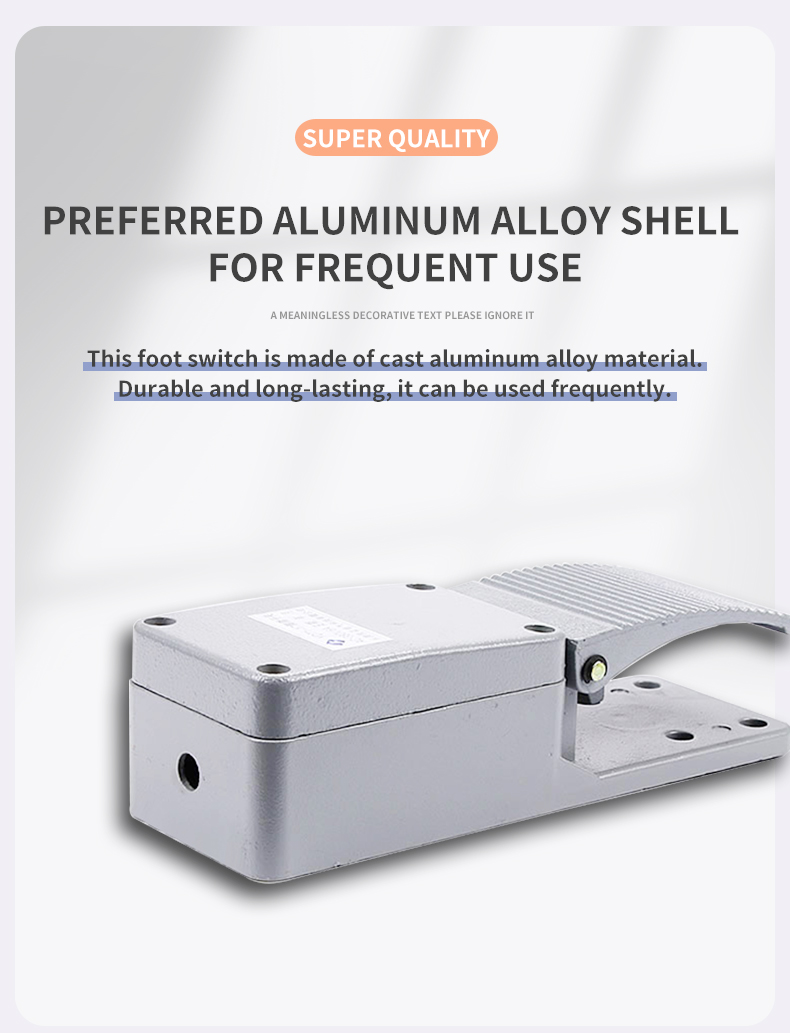

YDT1 foot switch material: cast aluminum alloy or cast iron shell (lightweight and corrosion-resistant);

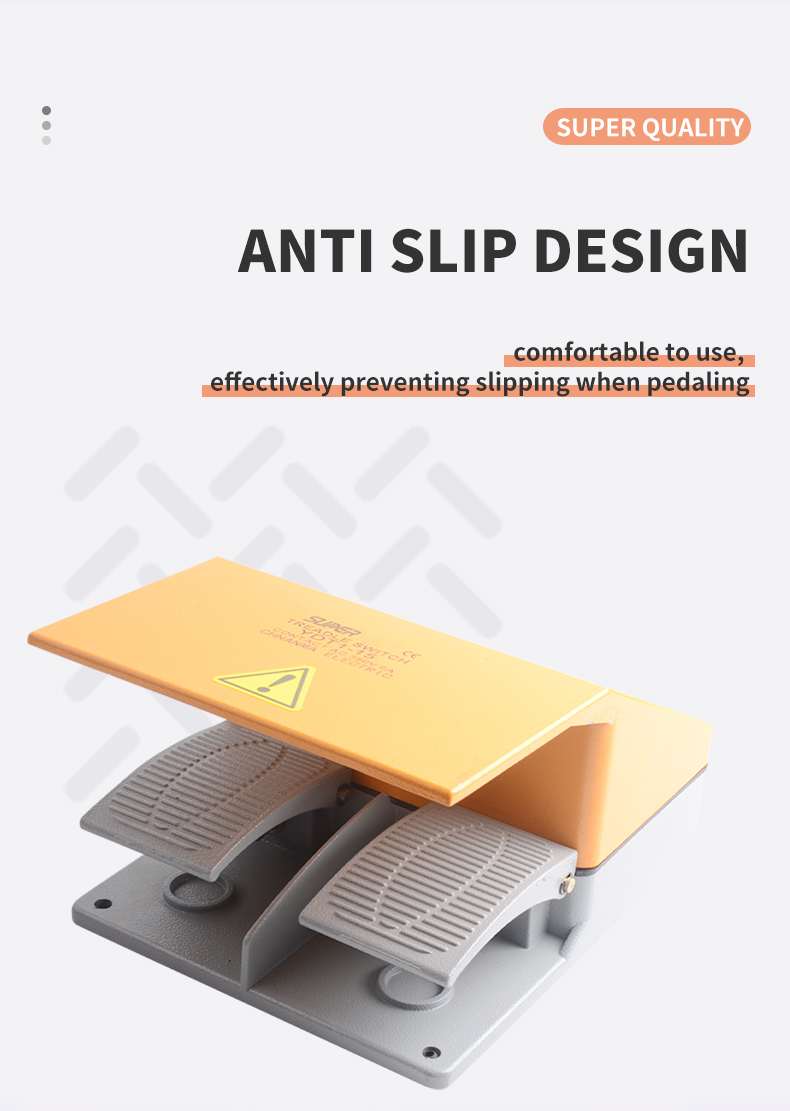

YDT1 foot switch protection design: top and side shields prevent accidental contact, and the pedal has anti slip texture;

YDT1 foot switch reset mechanism: The compression spring automatically resets, ensuring that the power is immediately cut off after operation.

Core application scenarios of double step reset foot switch

Industrial equipment:

Stamping machine, shearing machine (bidirectional control start stop/forward and reverse rotation);

Welding equipment, textile machinery (triggered by foot pedal signal).

Scenario where the compression spring automatically resets and the foot pedal is disabled:

Compression spring automatic reset foot pedal in medical equipment (requiring dedicated medical grade switches);

Compression spring automatic reset foot pedal in flammable and explosive environments (unless explosion-proof models are selected).

YDT1 foot switch safety and installation requirements

Mandatory regulation

YDT1 foot switch must be reliably grounded and wet hand operation is prohibited;

Power off the YDT1 foot switch during installation to avoid contact with conductive parts.

Key maintenance points for automatic reset foot pedal of compression spring

Regularly check the elasticity of the compression spring and the oxidation of the contact points;

YDT1 foot switch should be installed in environments with high humidity and strong corrosiveness.

Positioning of compression spring automatic reset foot pedal series and substitution relationship of compression spring automatic reset foot pedal series

YDT1 foot switch product positioning: the replacement product of LT1 series foot switch, which complies with the mechanical press standard JB3350-8313;

YDT1 foot switch compatible models: YDT1-200 and YDT1-101 are often mixed (with overlapping functions).
