V15 Series Micro Switch
Its core definition is: a switch device equipped with an external driving rod, which achieves fast switching action through small contact spacing (extremely small contact spacing) and quick action mechanism, that is, it can instantly switch the switch state when a specified stroke and force are applied. V-15 Micro Switch
This series is optimized for high reliability scenarios, supporting up to 22A current loads and withstanding 150 ° C high temperatures, with V-15 micro switches Widely used in household appliances, automation equipment, and industrial control systems
1、 V-15 Micro Switch Core technical parameters
V-15 Micro Switch's details of characteristic parameters
22A high current micro switch electrical performance rated voltage: 250V AC/DC;22A high current micro switch current capacity: 10A (Omron) 5/22A (Honeywell)

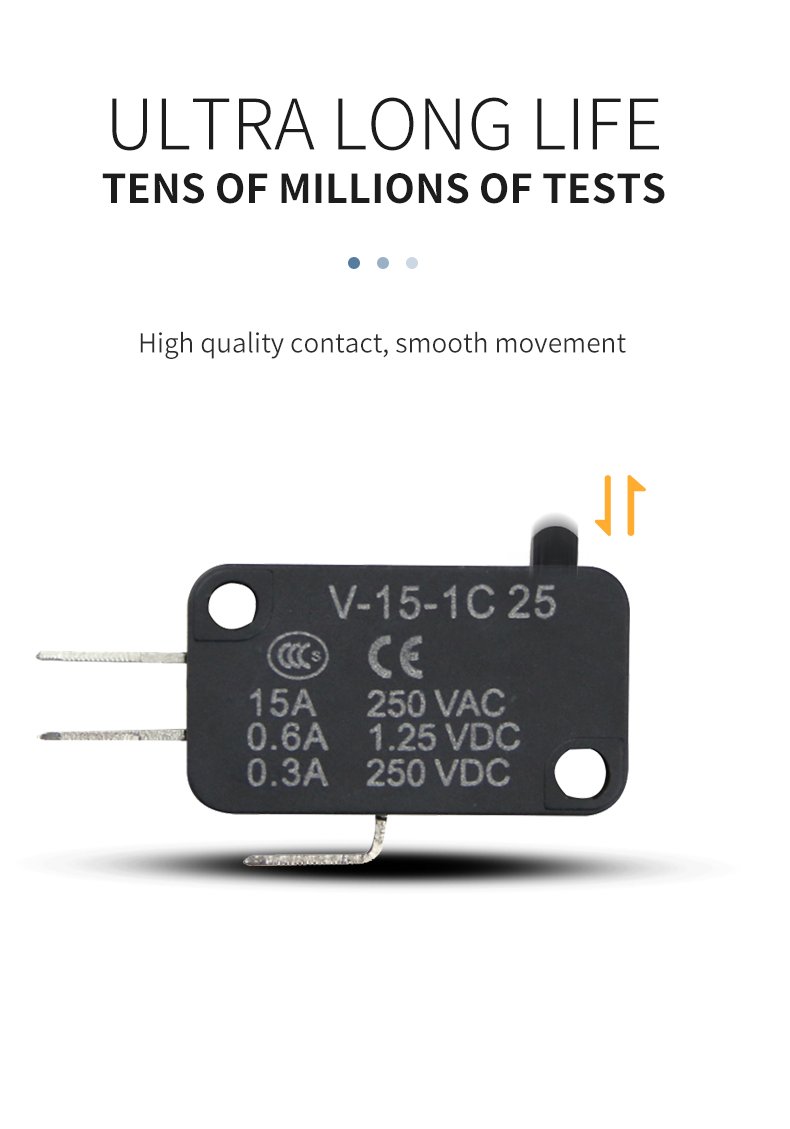

22A high current micro switch mechanical life standard type 1 million cycles | enhanced type 20 million cycles (Honeywell BZ series)

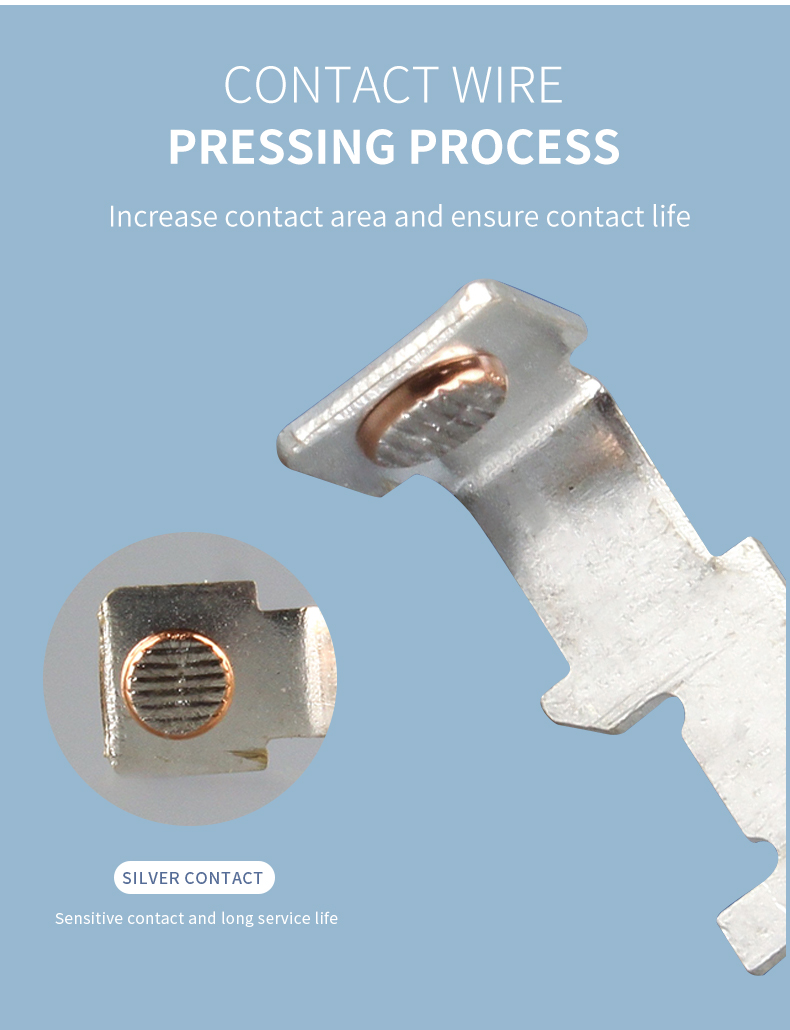

22A high current micro switch contact structure SPDT (single pole double throw) design, silver alloy/gold contacts are optional
22A high current micro switch environmental adaptability operating temperature: -65 ° C to+125 ° C (Honeywell HS series); IP64 protection (dustproof and waterproof)

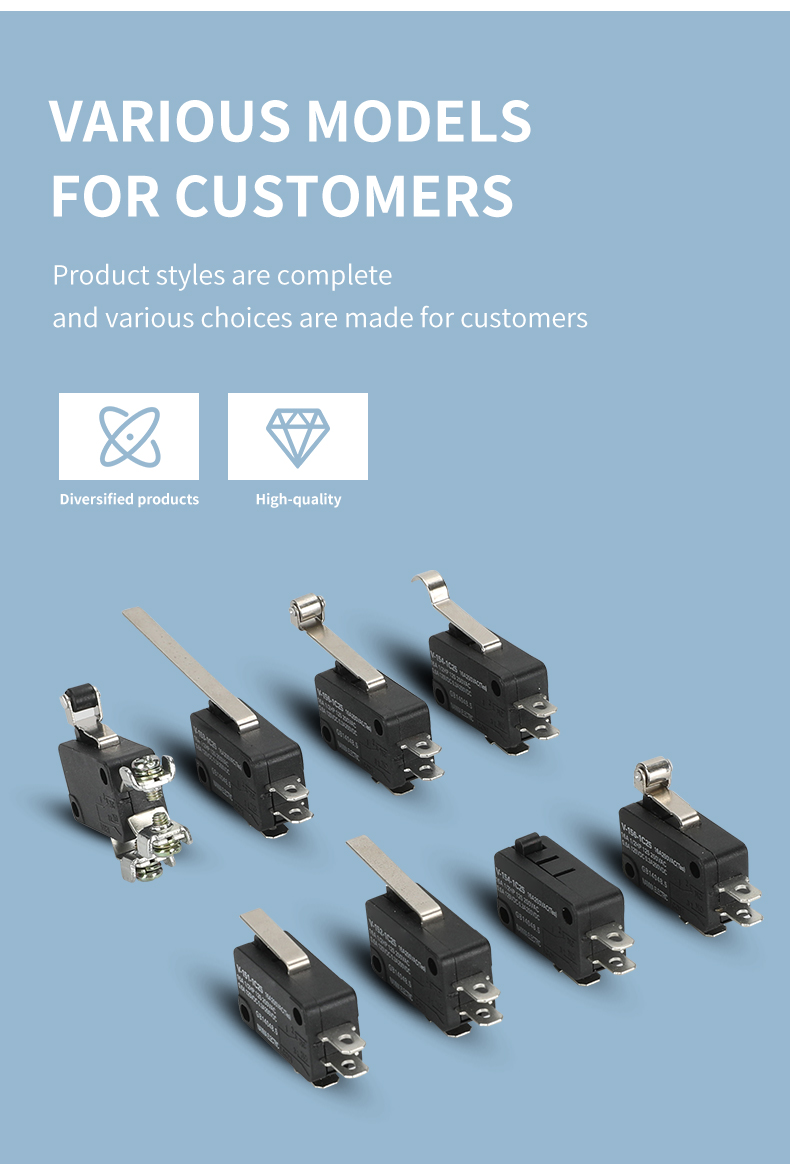

2、 V-15 Micro Switch Model differentiation configuration

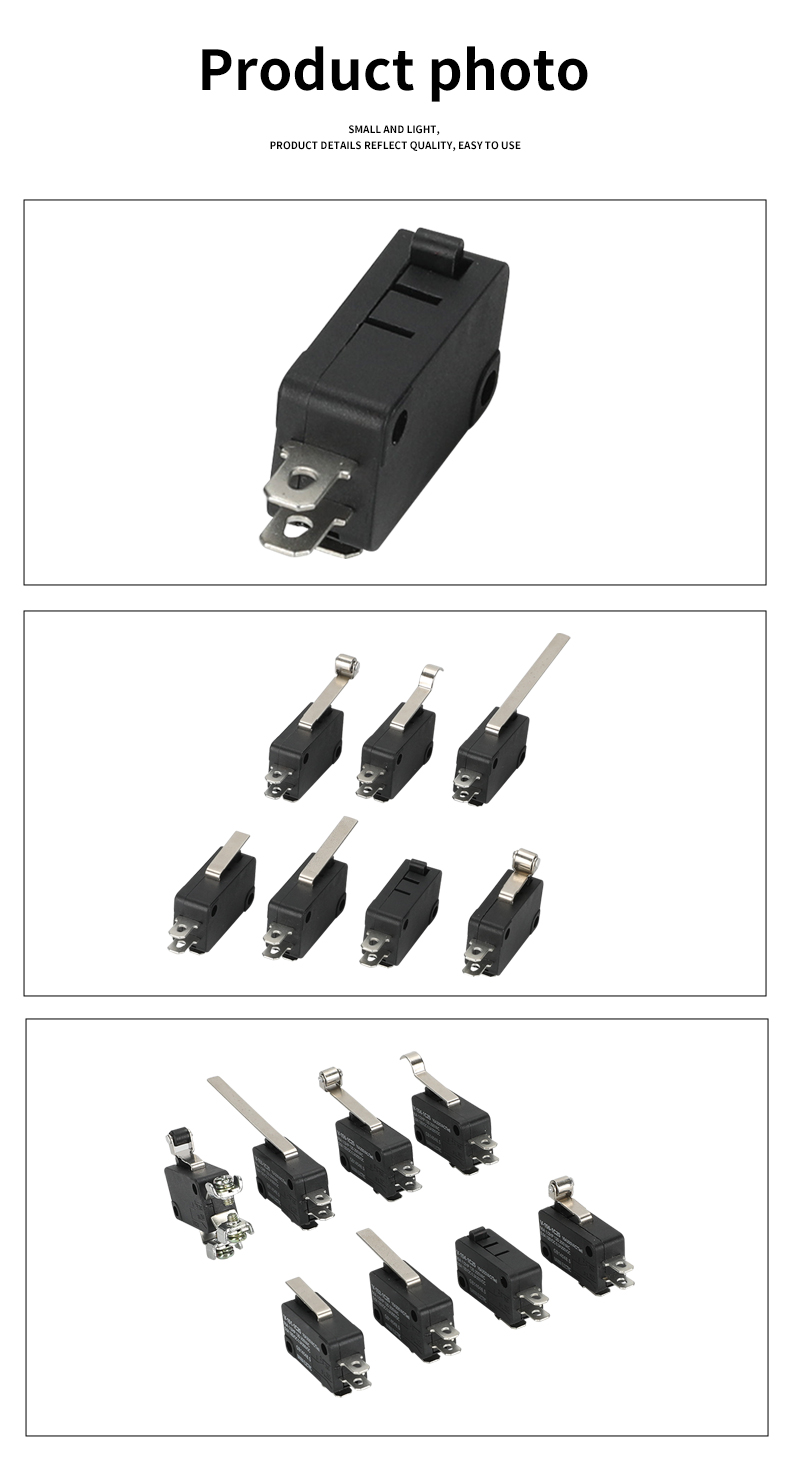

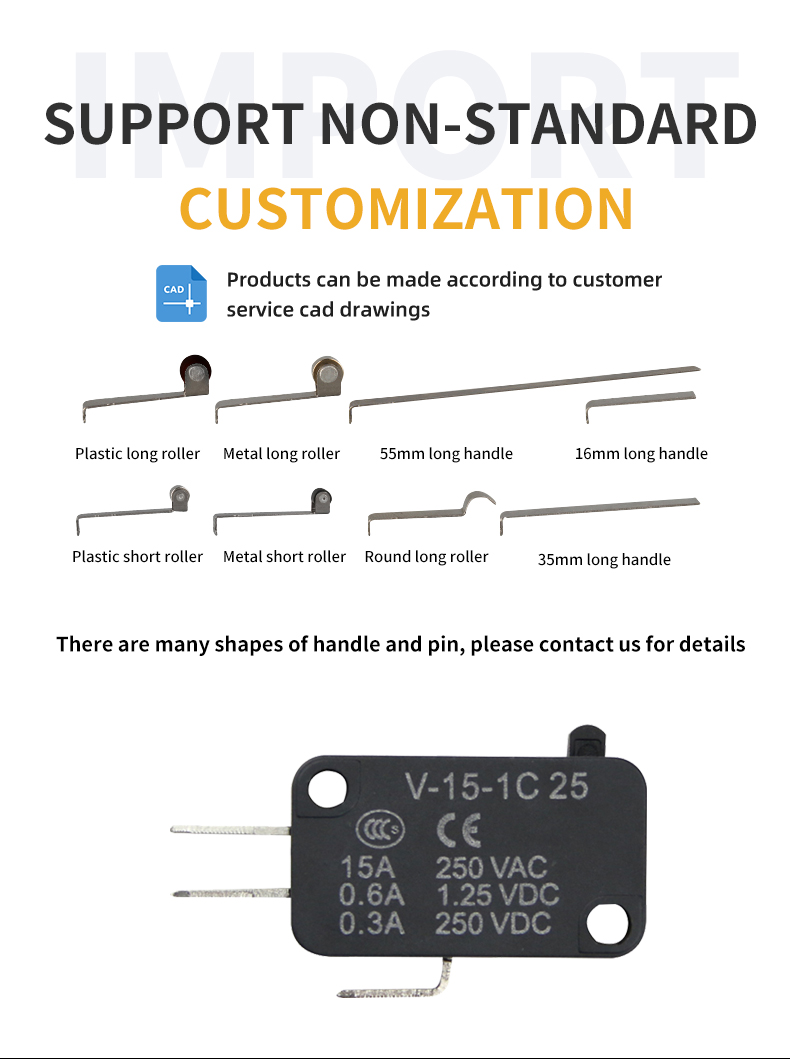

V-15 Micro Switch's Drive rod type
150 ℃ high temperature resistant micro switch

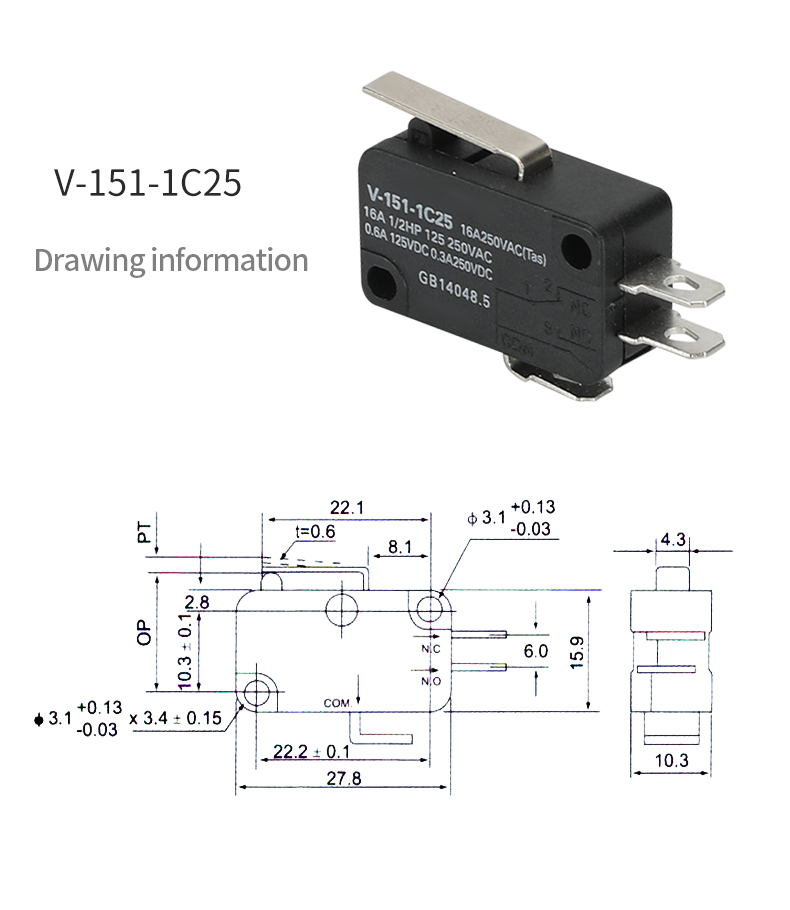

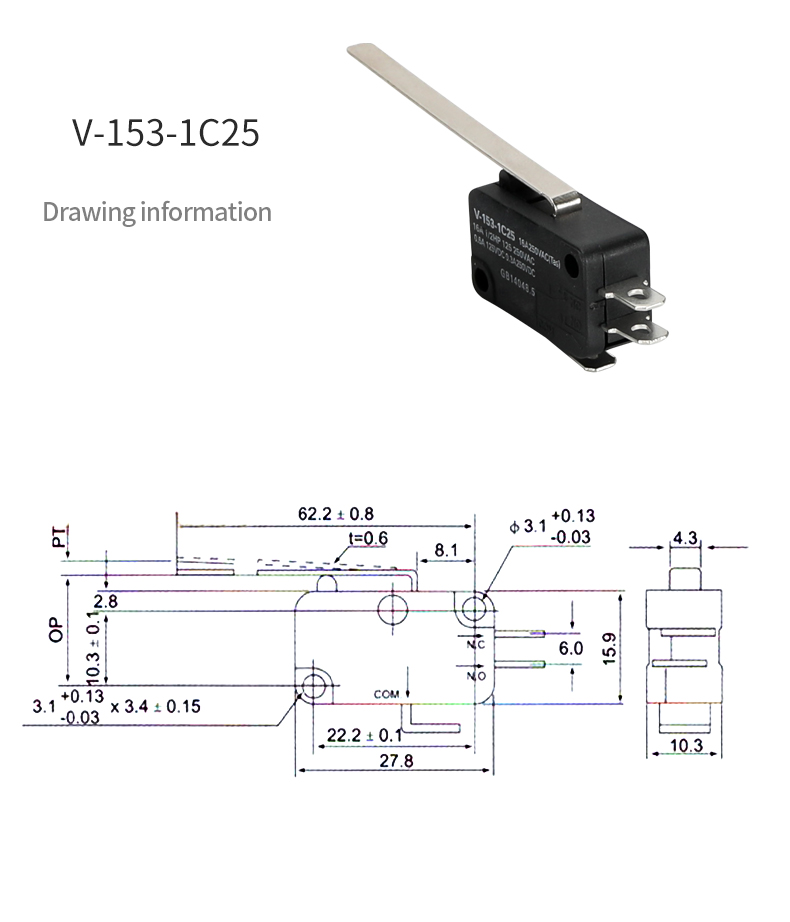

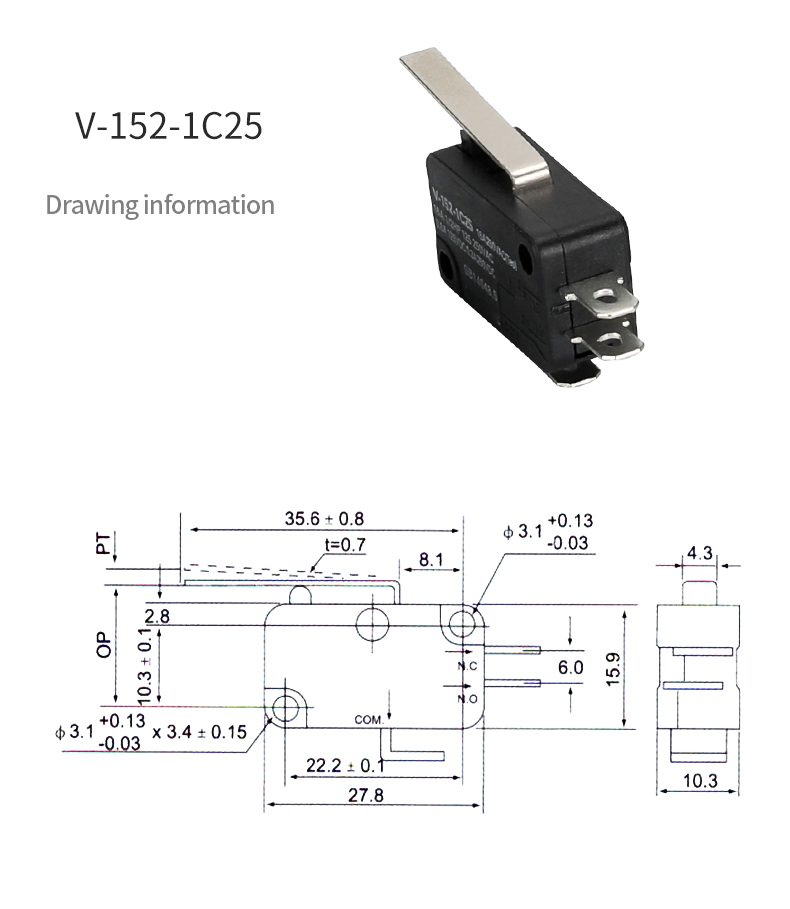

150 ℃ high temperature resistant micro switch Rigid straight handle: suitable for precise limit control (such as industrial equipment travel switches)
150 ℃ high temperature resistant micro switch

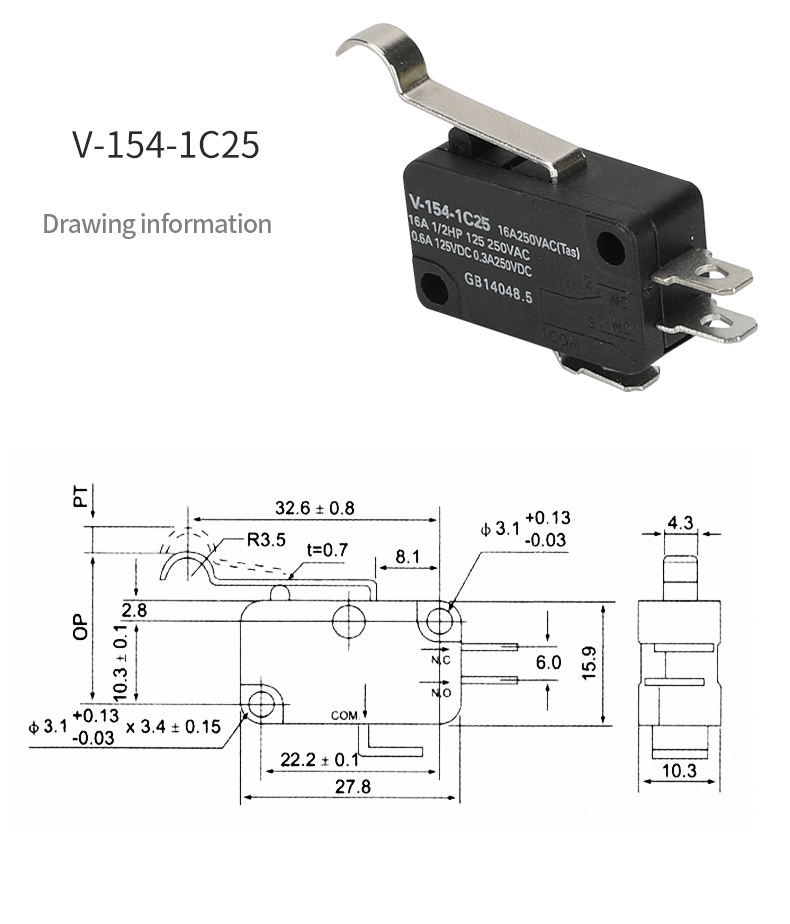

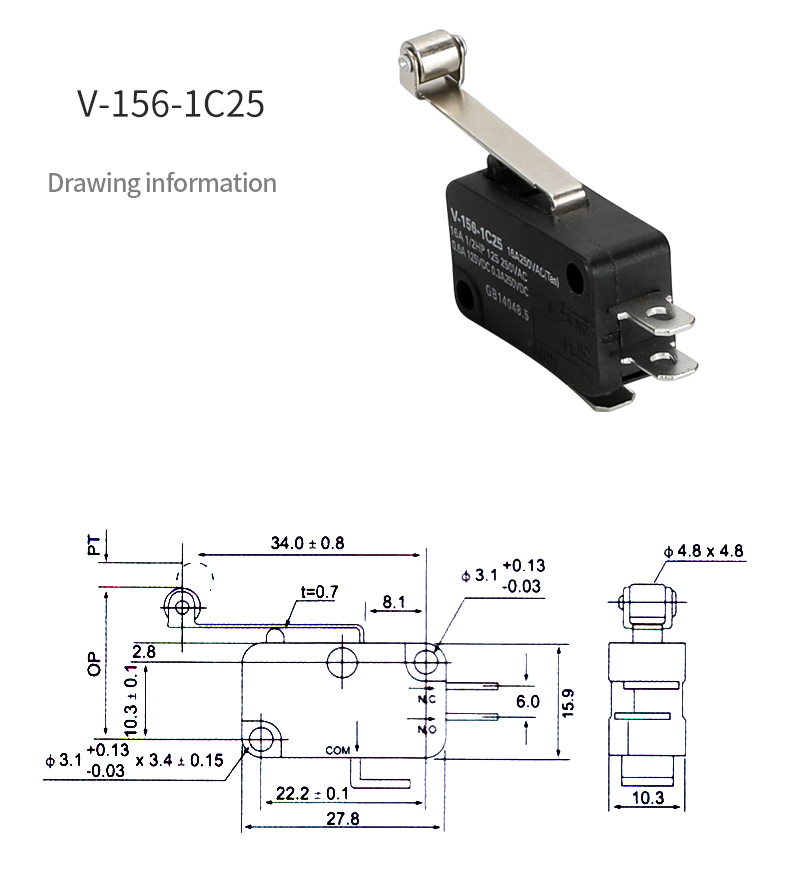

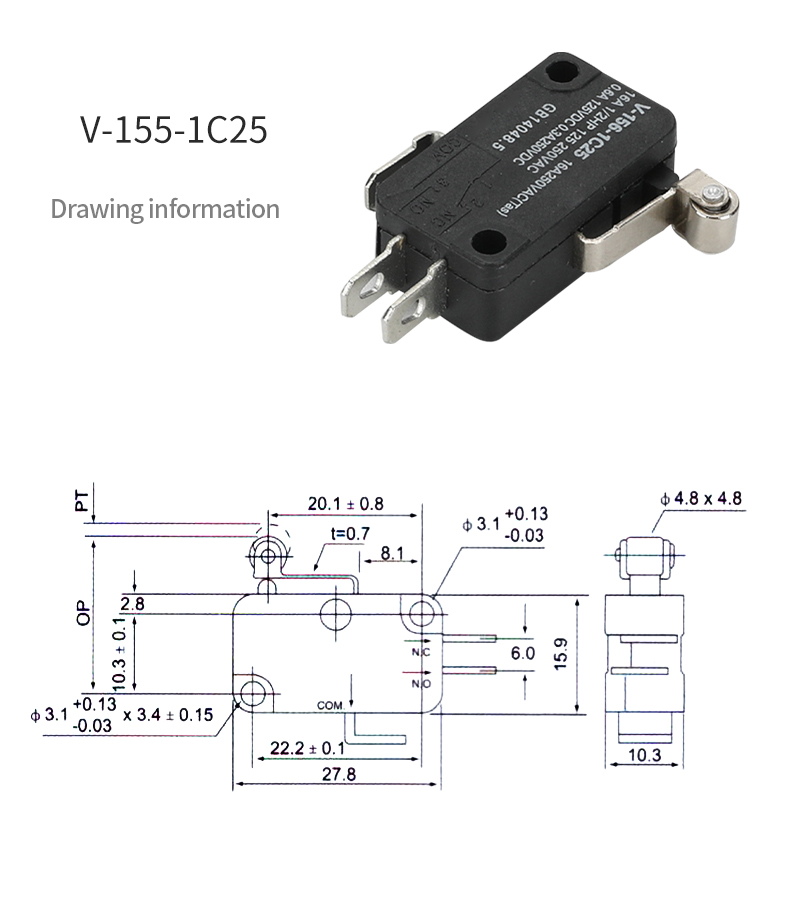

150 ℃ high temperature resistant micro switch Elastic swing rod: shock resistant design, suitable for vibration environments (such as automotive electronics)
Capable of withstanding 150 ℃ high temperature resistant micro switch standard
UL/CE/ENEC/CQC certification (universal type)
UKCA certification (Honeywell V15 series)
3、 V-15 Micro Switch Typical application scenarios
Home appliance field: washing machine door lock control, oven temperature protection (IP protection model)
Industrial automation: PLC equipment limit detection (with Siemens S7-1200 system)
Automotive Electronics: Battery Management System Emergency Stop Switch (High Temperature Resistant Model)
