17 Series Micro Switch
Its core design is based on small contact intervals and quick action mechanisms, Industrial limit micro switch
By receiving mechanical force triggering through external driving rods (such as levers, pulleys, or plungers), the circuit can be instantly turned on and off, Safety control micro switch
Mainly used for position detection and safety control of mechanical equipment.
TM-17 series mirco switch main models and TM-17 series mirco switch features
TM-17 series mirco switch Model, driver type, typical application scenarios

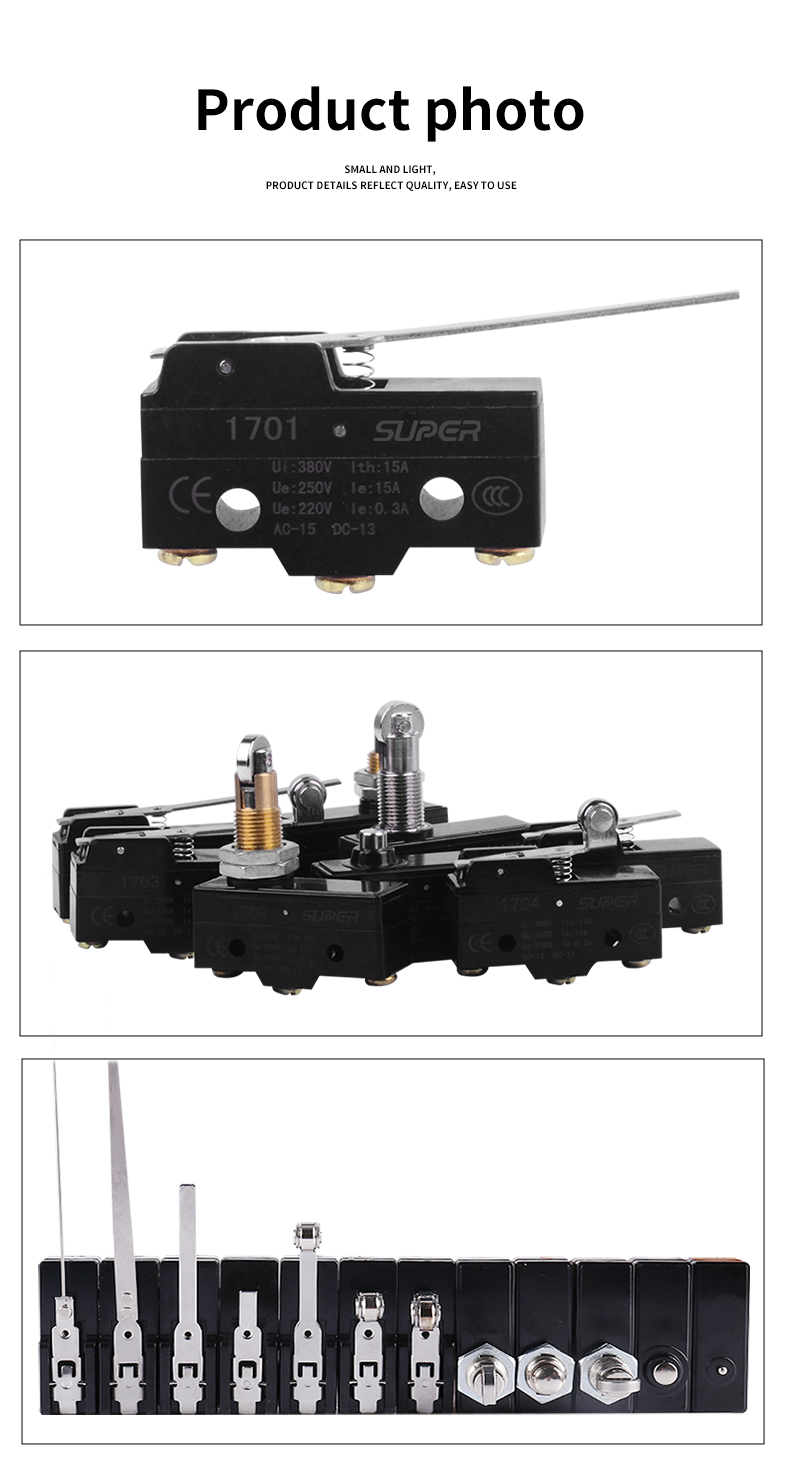

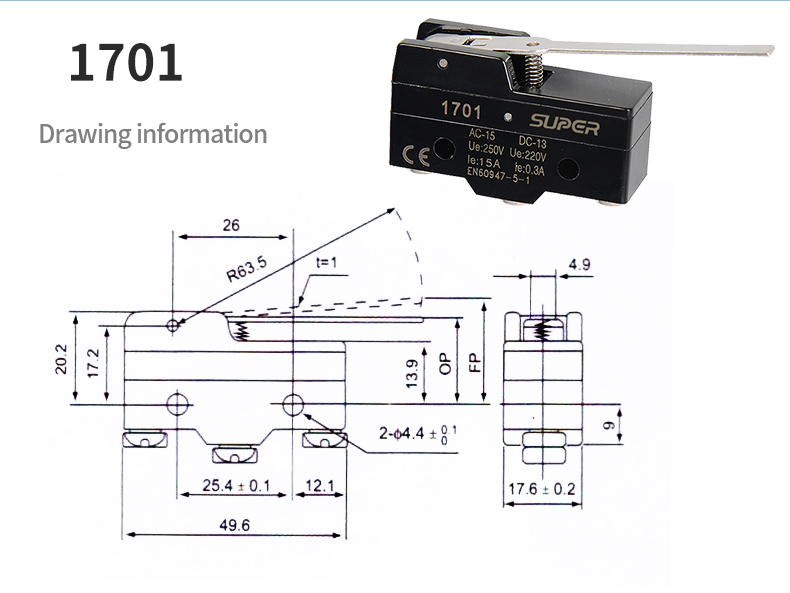

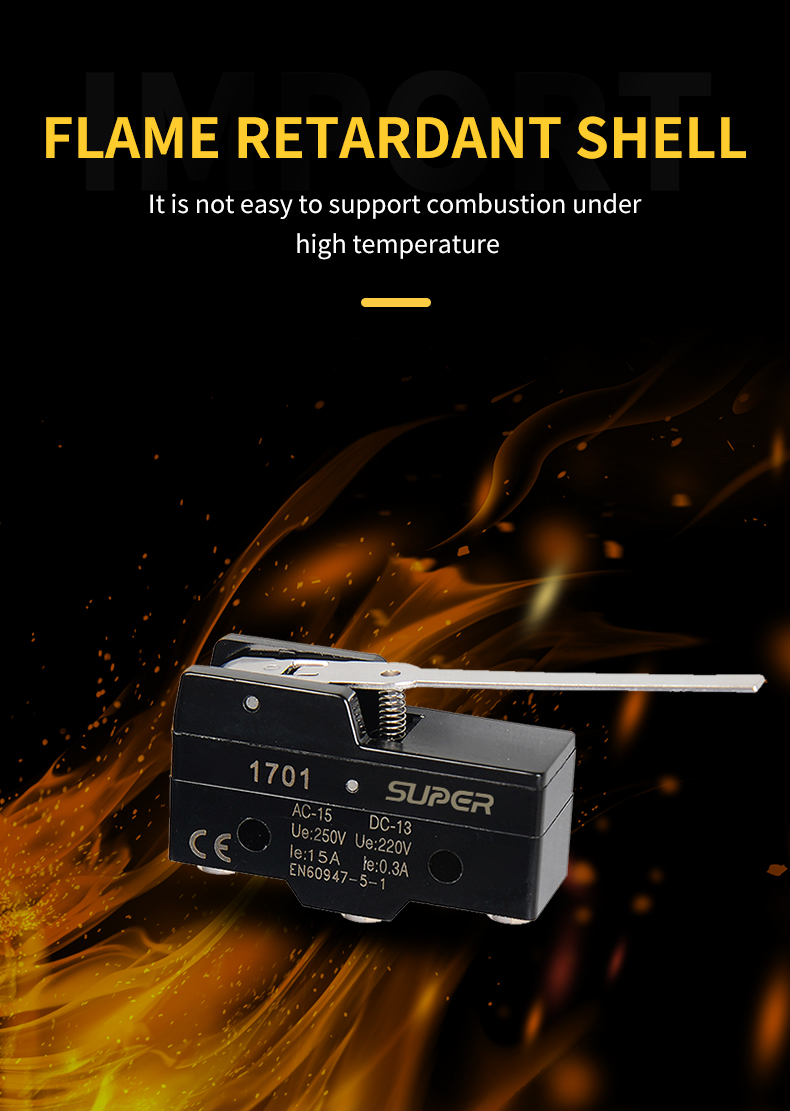

TM-1701 single point straight handle compact space limit (such as equipment cabin door)

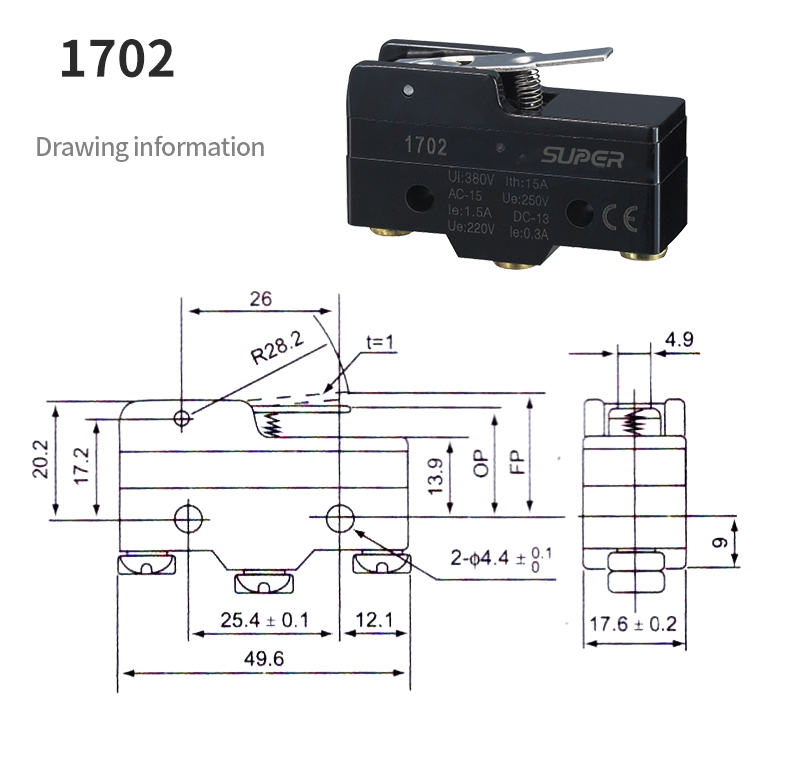

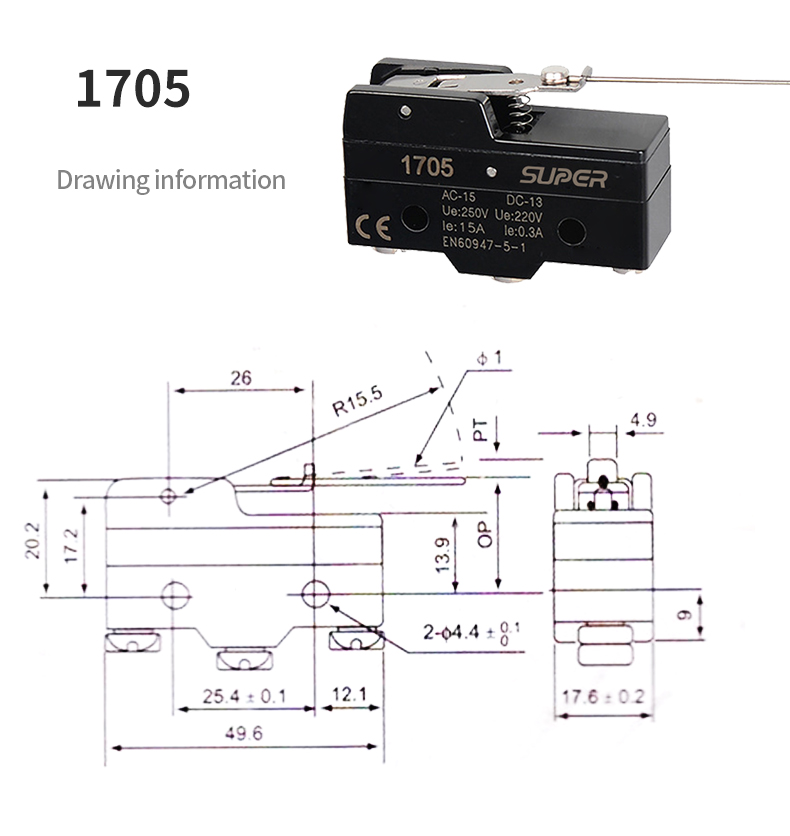

TM-1702 lever type (medium long handle) industrial machinery stroke control

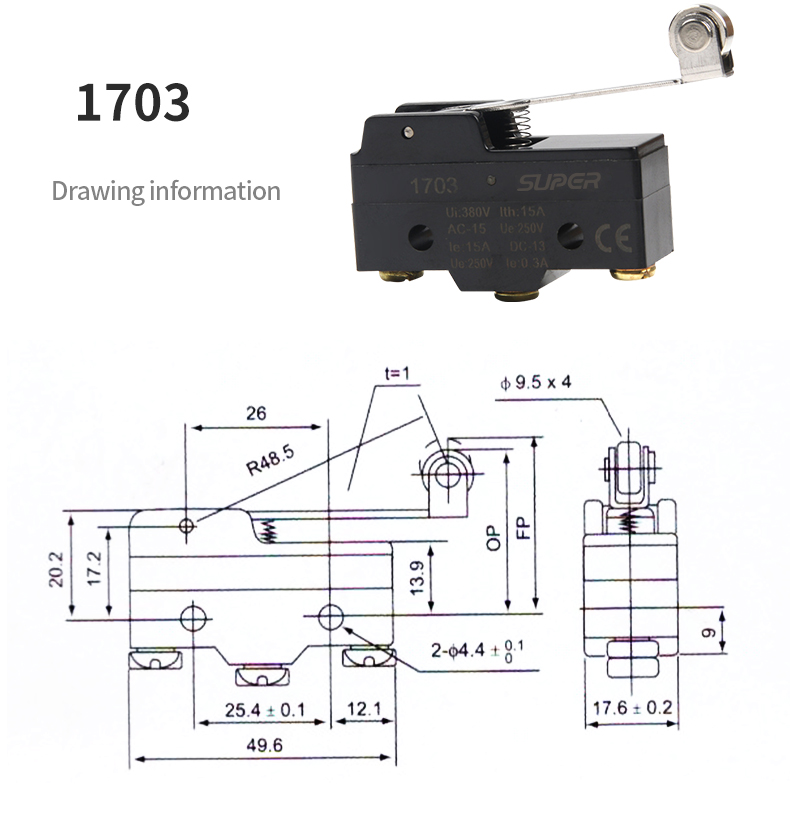

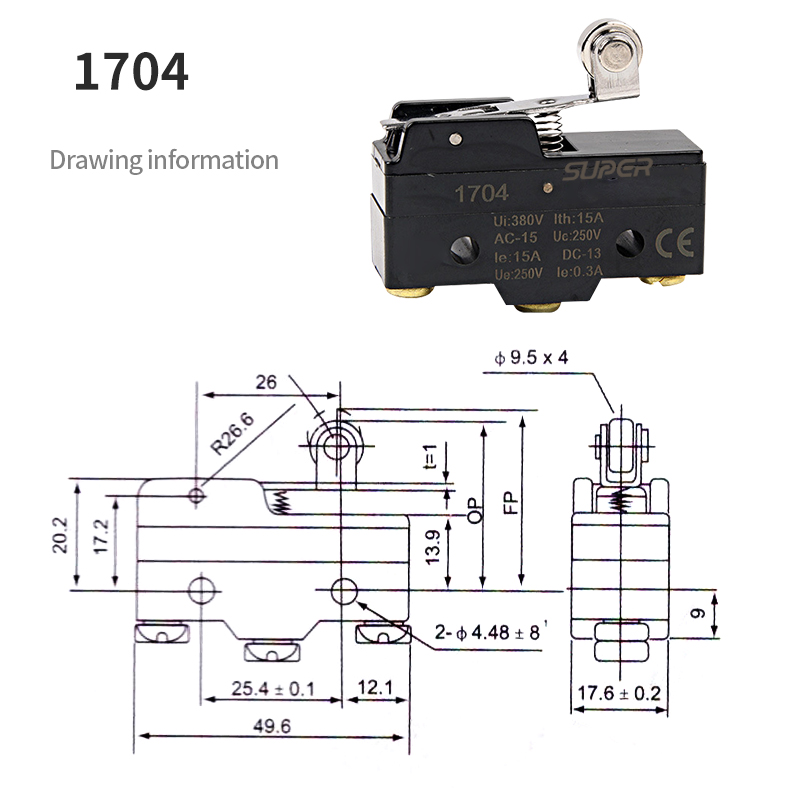

TM-1703 pulley lever linear motion sensor (triggered by conveyor belt)

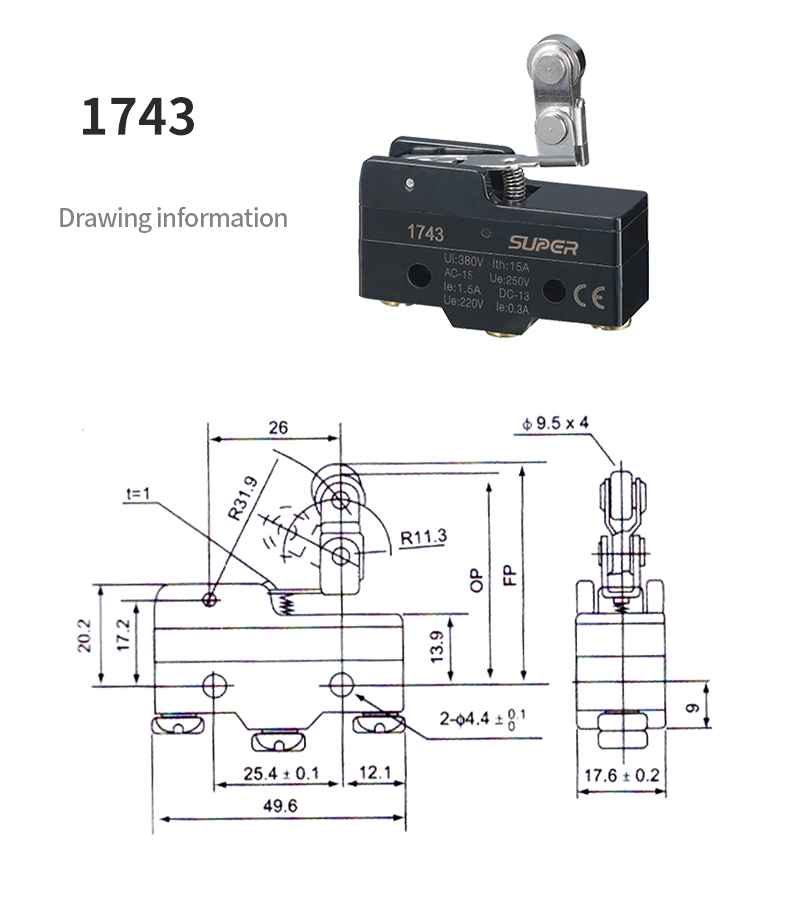

TM-1743 Reinforced Plug High Impact Environment (Stamping Equipment)
TM-17 series mirco switch,Industrial limit micro switch and Safety control micro switchstructural features
Industrial limit micro switch
Industrial limit micro switch Standardization of shell width: The 17mm wide shell covers the internal mechanism and provides basic protection (IP40);
Industrial limit micro switch
Industrial limit micro switch diversified driving mechanisms: including variants such as straight handle (TM-1701), lever (TM-1702), and pulley lever (TM-1703), Safety control micro switch
Adapt to different mechanical triggering requirements.
TM-17 series mirco switch and Safety control micro switch action principle
Industrial limit micro switch
Quick acting mechanism: Apply a small operating force (usually 0.5N~2.5N) to instantly switch the contact state, with a response time of ≤ 10ms;
Industrial limit micro switch
Safety control micro switch

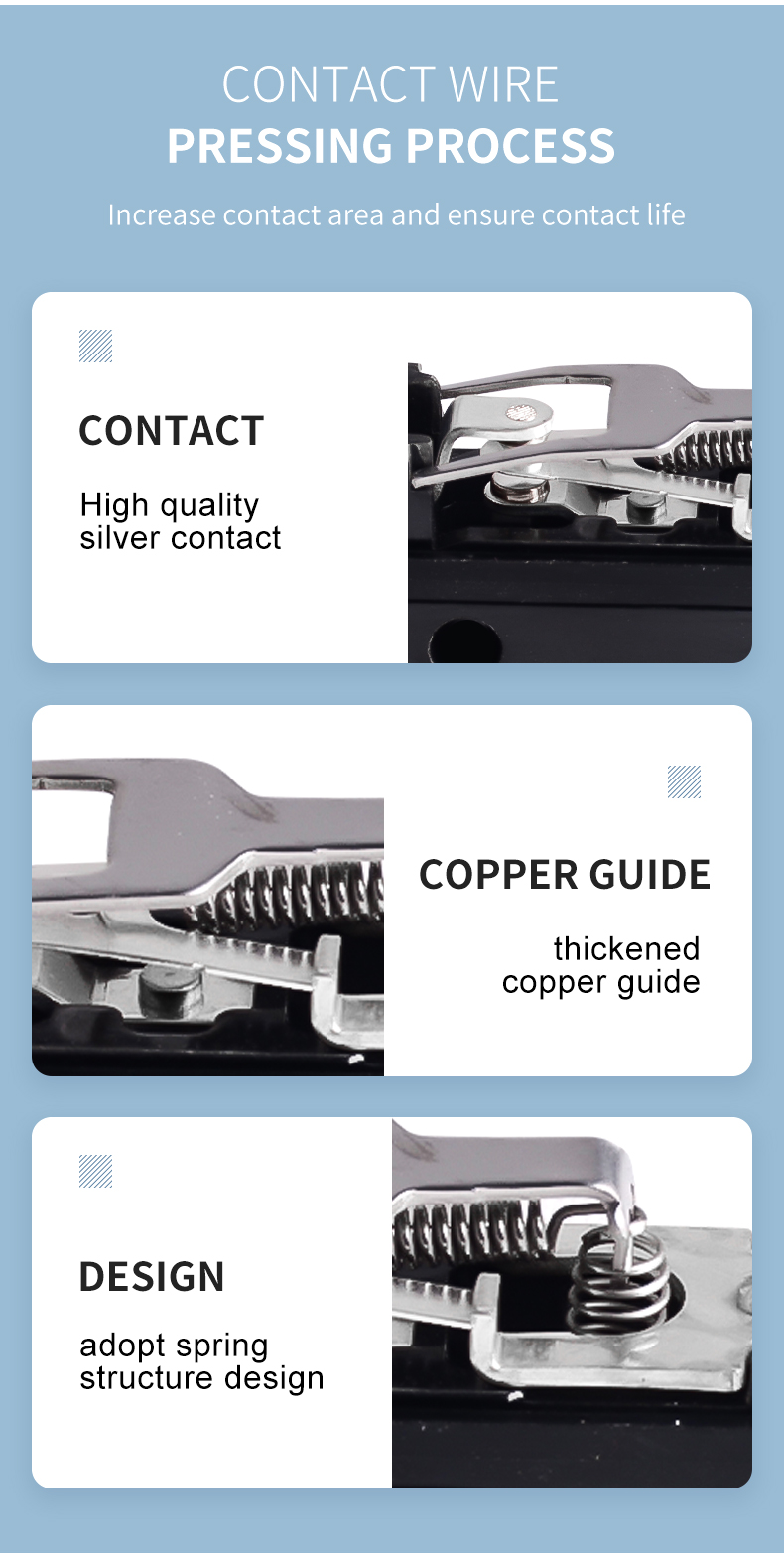

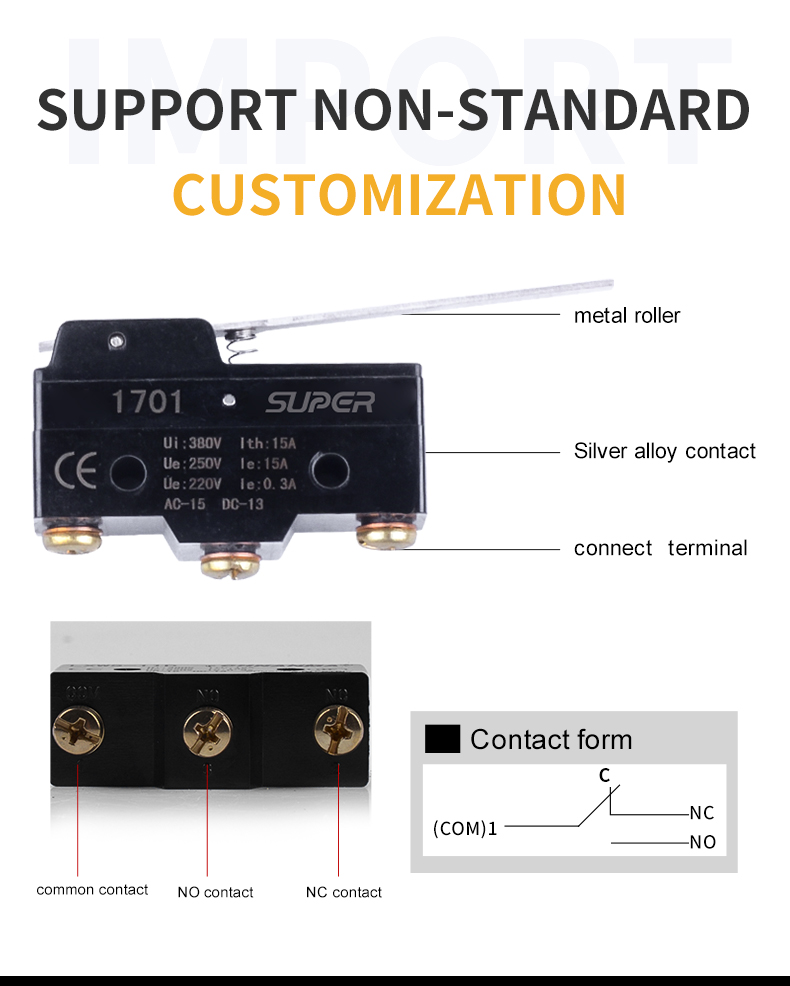

Safety control micro switch contact configuration: Safety control micro switch standard SPDT (single pole double throw) contact structure, safety control micro switch supporting bidirectional control of the circuit.
TM-17 series mirco switch function positioning
Industrial limit micro switch
Industrial limit control: specially designed for high-precision scenarios such as mechanical stroke detection and safety door lock monitoring (such as bending machines, conveyor belt triggering);
Industrial limit micro switch
Compatibility replacement: Safety control micro switch
Can replace traditional industrial switches such as Omron Z-15 series.

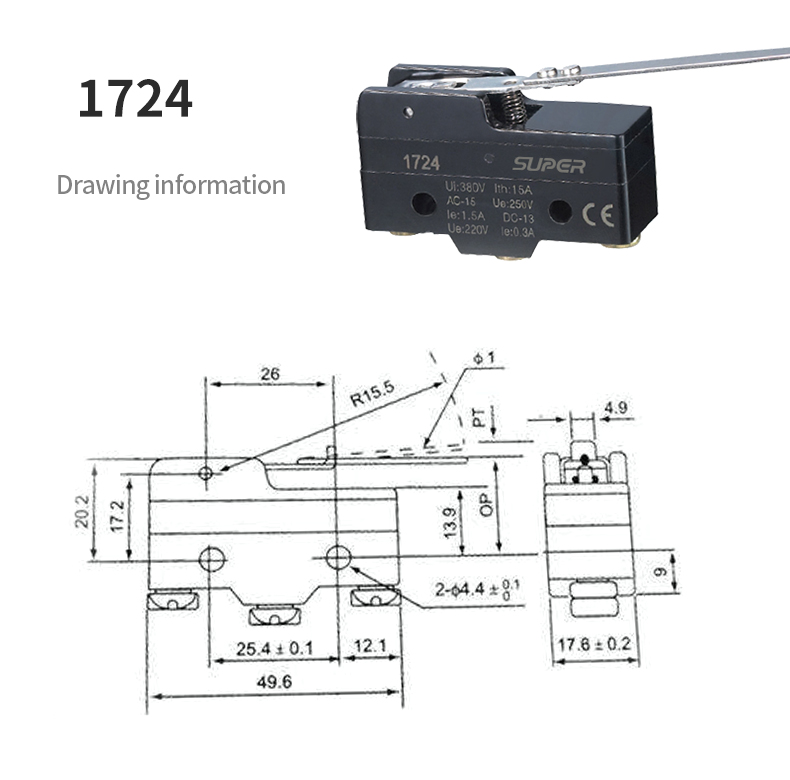

TM-17 series mirco switch basic technical parameters
TM-17 series mirco switch parameter item specification description

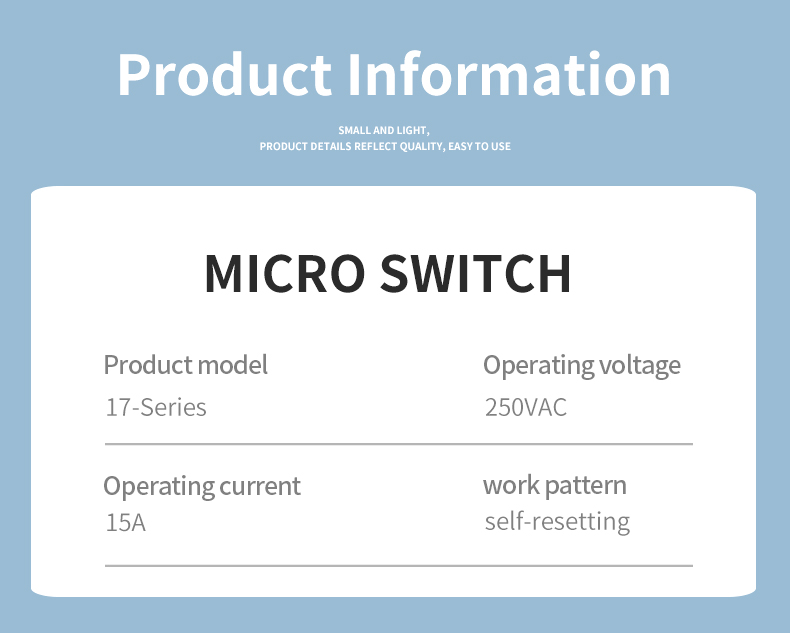

Electrical load 5A 250V AC (resistive load)

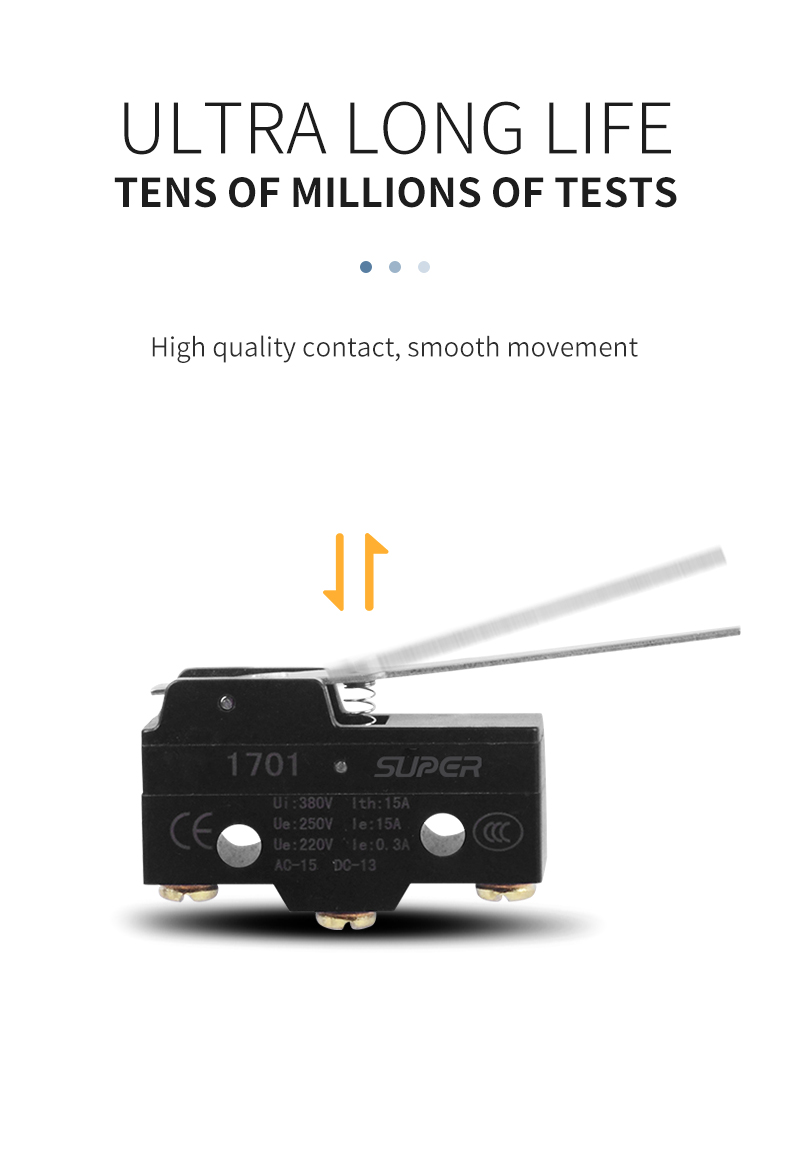

Electrical lifespan ≥ 1 million times (under rated current)
Mechanical lifespan ≥ 10 million times (no load operation)
Temperature range -25 ℃ to+85 ℃
Note: The contact material (silver alloy) and quick action technology are shared with the TM-13 series, with differences mainly reflected in size adaptability (17mm housing is suitable for larger installation space) and optimization of drive mechanism strength.
