13 Series Micro Switch
The 13 series is a type of ultra small micro switch, with the TM-13 micro switch designed specifically for industrial precision control. Its name "13" comes from the standardized housing width of 13mm and belongs to the category of low-voltage control components. The IP40 dustroof micro switch series uses a small mechanical force (usually<1N) to drive the internal quick action mechanism, achieving instantaneous circuit switching and suitable for high-frequency operation scenarios.
TM-13 micro switch detailed description:
TM-13 series roller micro switch main models and driver variants

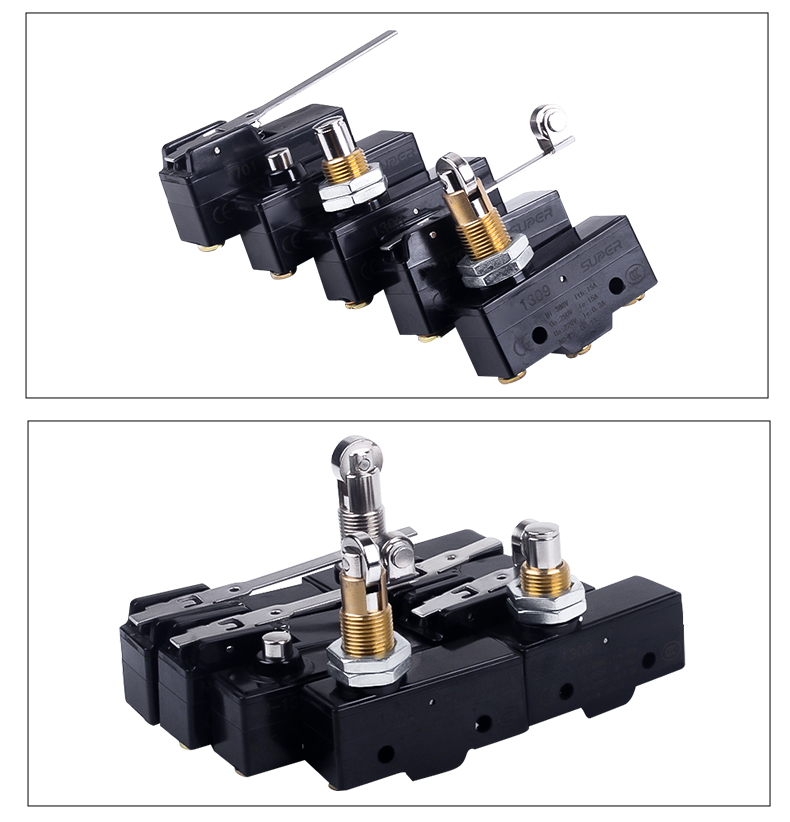

The 13 series includes multiple sub models, TM-13 series roller micro switch
Adapt to different mechanical requirements through differential driving mechanisms:
TM-13 micro switch basic model:

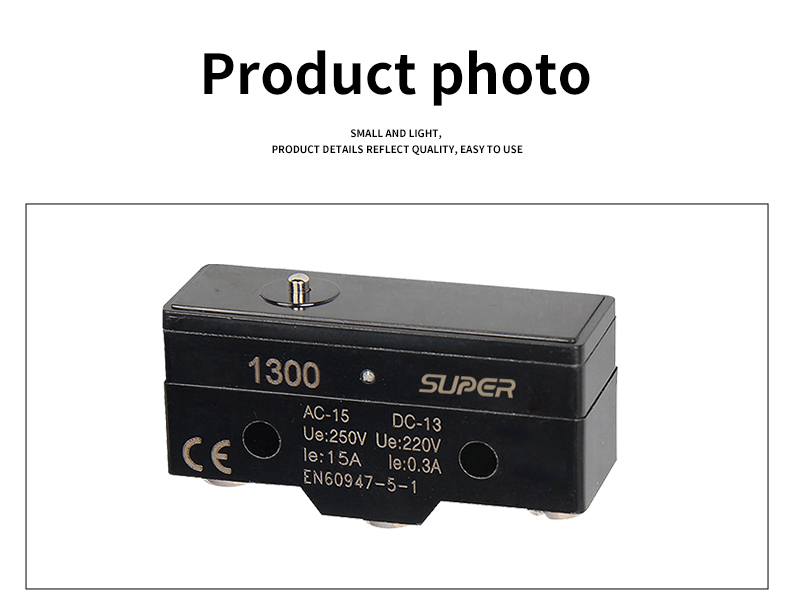

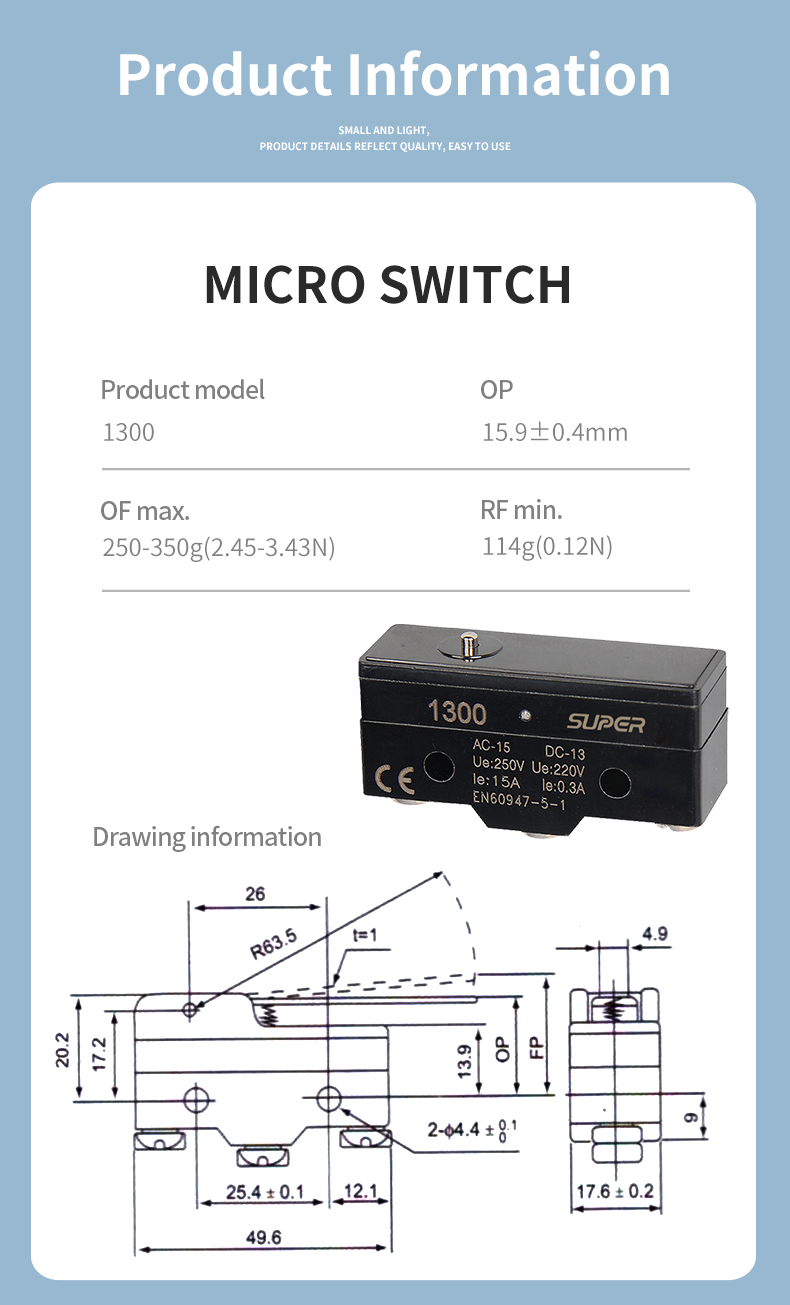

TM-13 micro switch 1300: Single point drive, standard universal type

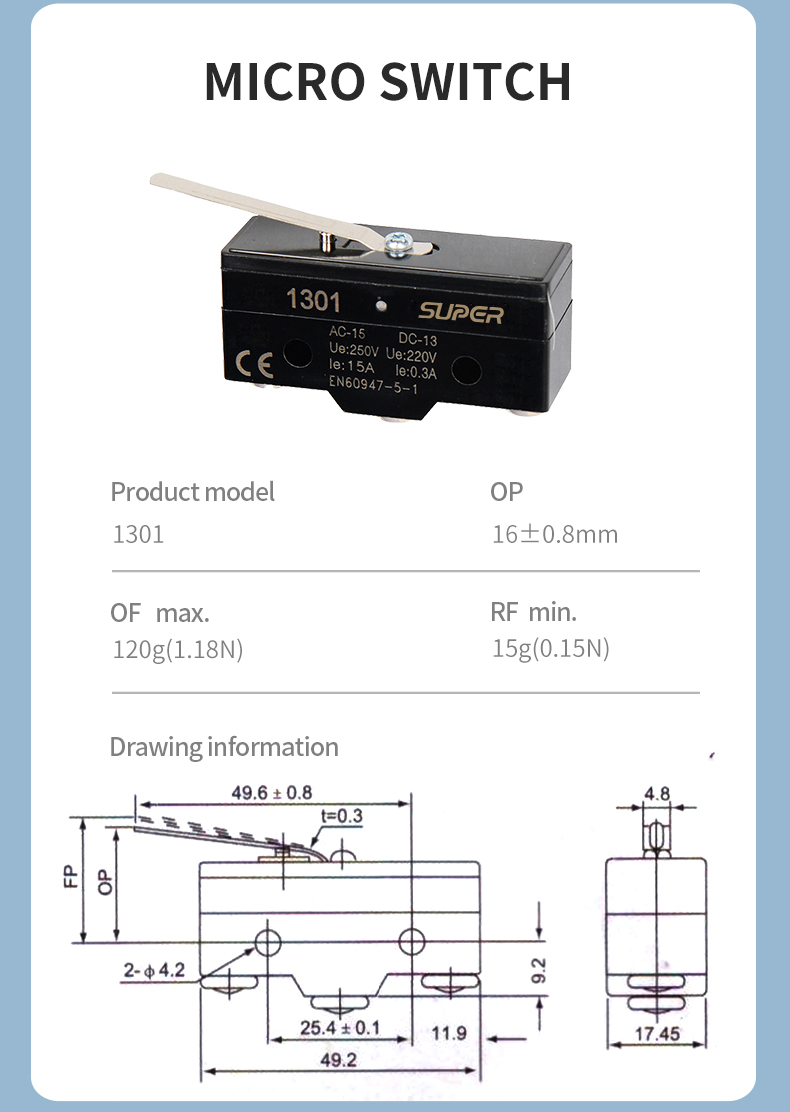

TM-13 micro switch 1301: Single point short handle design, suitable for compact space

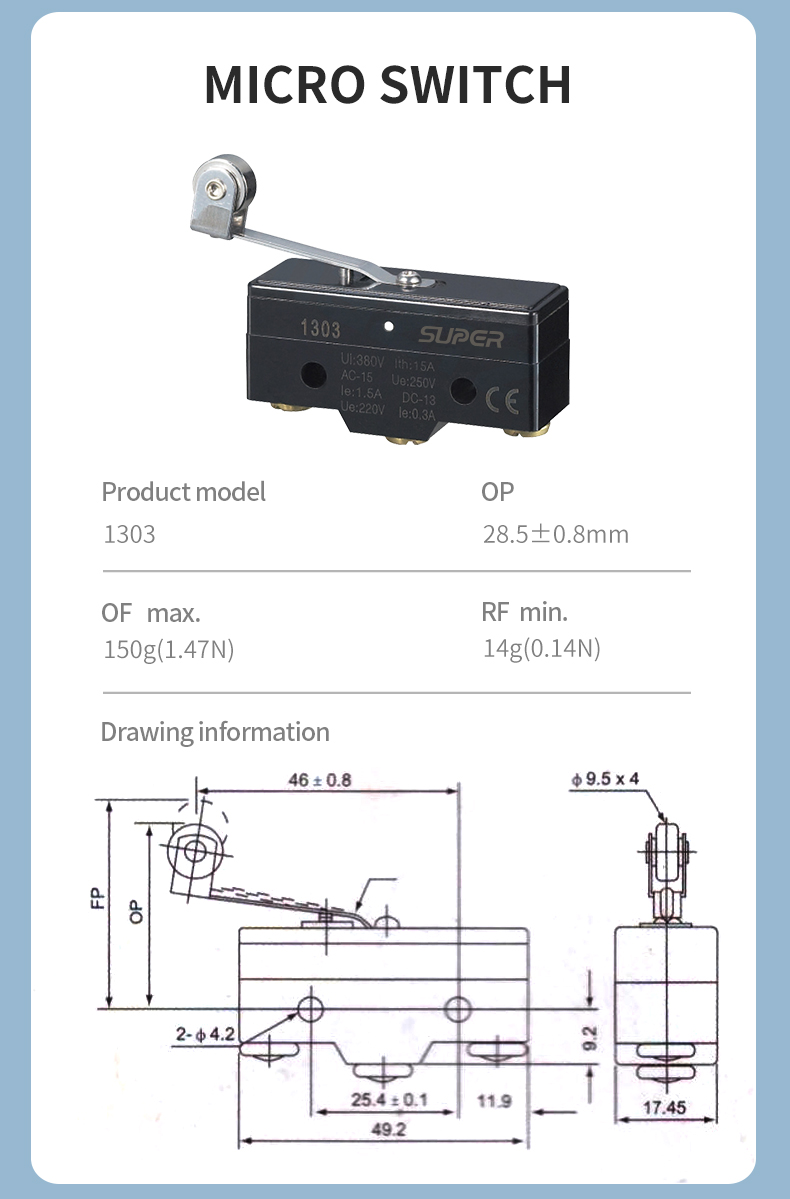

TM-13 micro switch 1303: Single point pulley type, supporting linear triggering
TM-13 micro switch special variant:

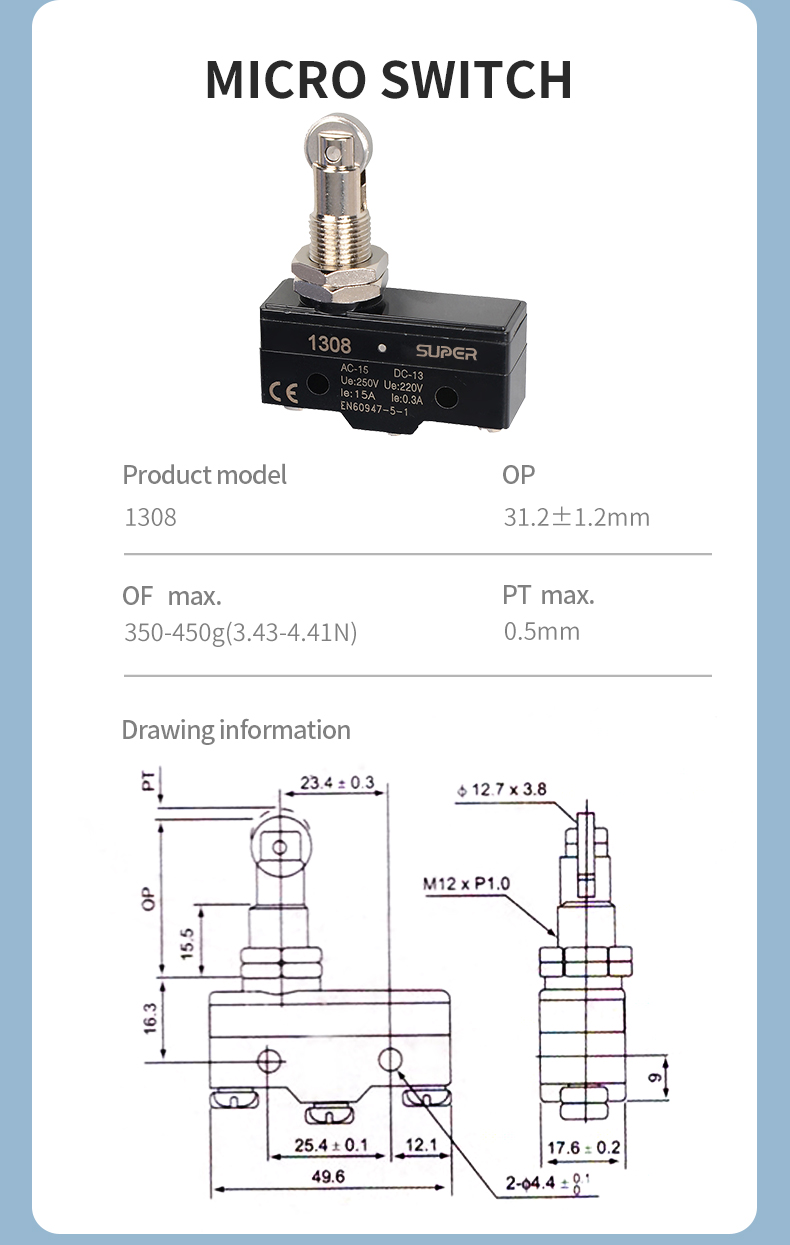

1308: 90 ° steering pulley type, suitable for multi-dimensional mechanical angle triggering (such as bending machine travel limit)

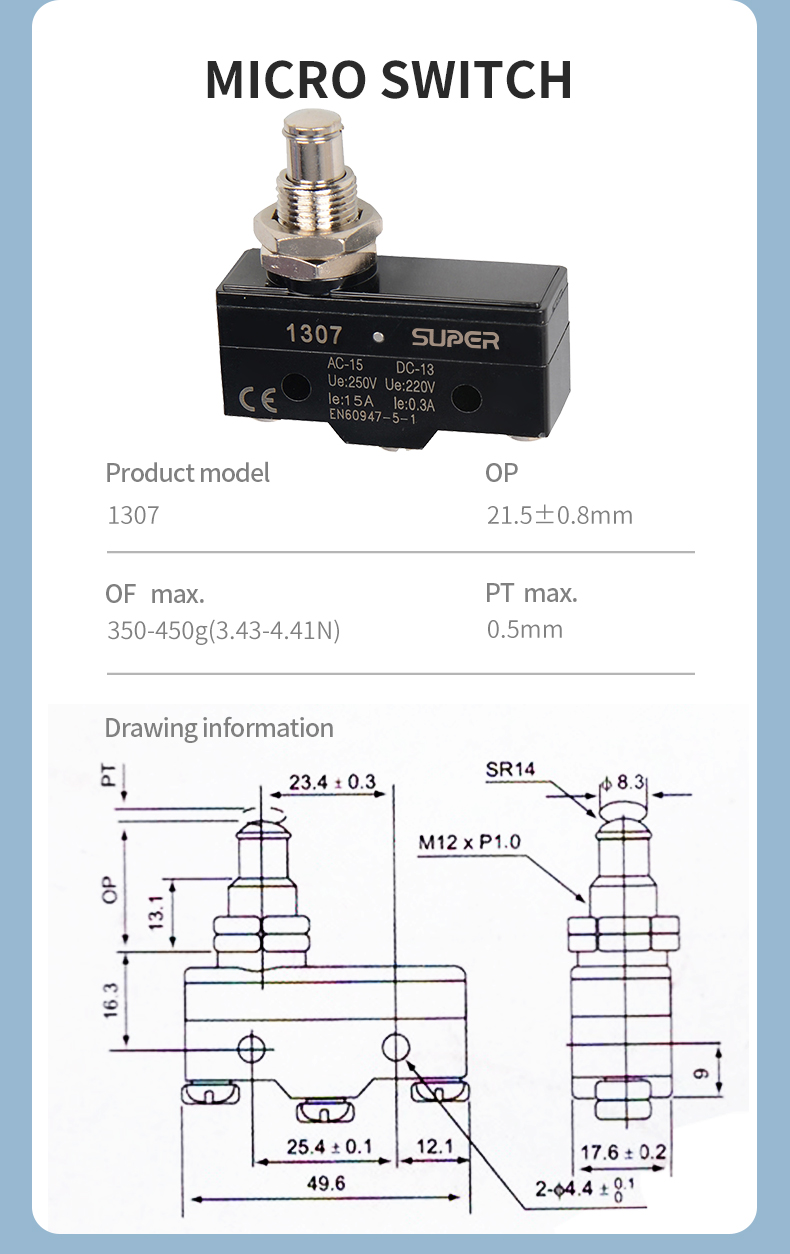

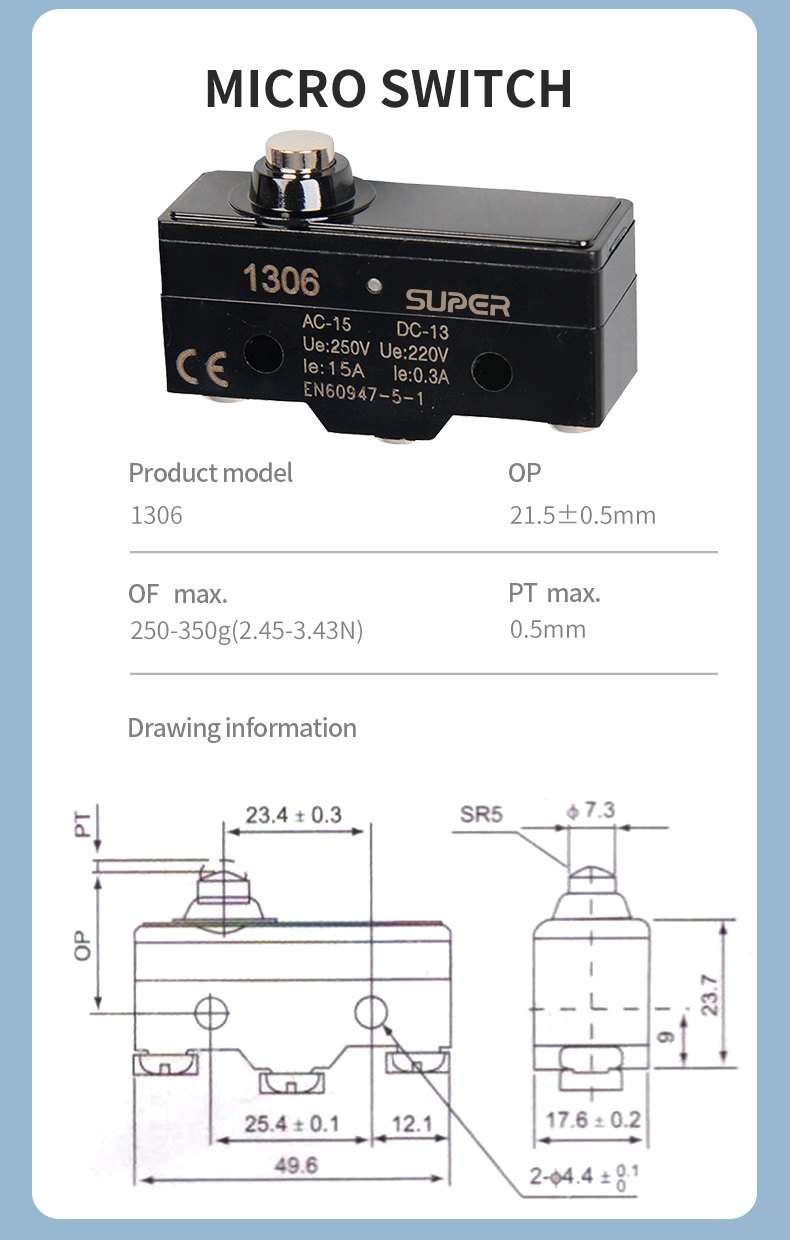

1306/TM-1309: plunger or lever type, enhancing impact resistance
IP40 dustroof micro switch Key characteristics and IP40 dustroof micro switch technical parameters
IP40 dustroof micro switch characteristic Description
TM-13 series roller micro switch
Action design with adjustable position, supporting high-precision operation (error<0.1mm), response time ≤ 10ms

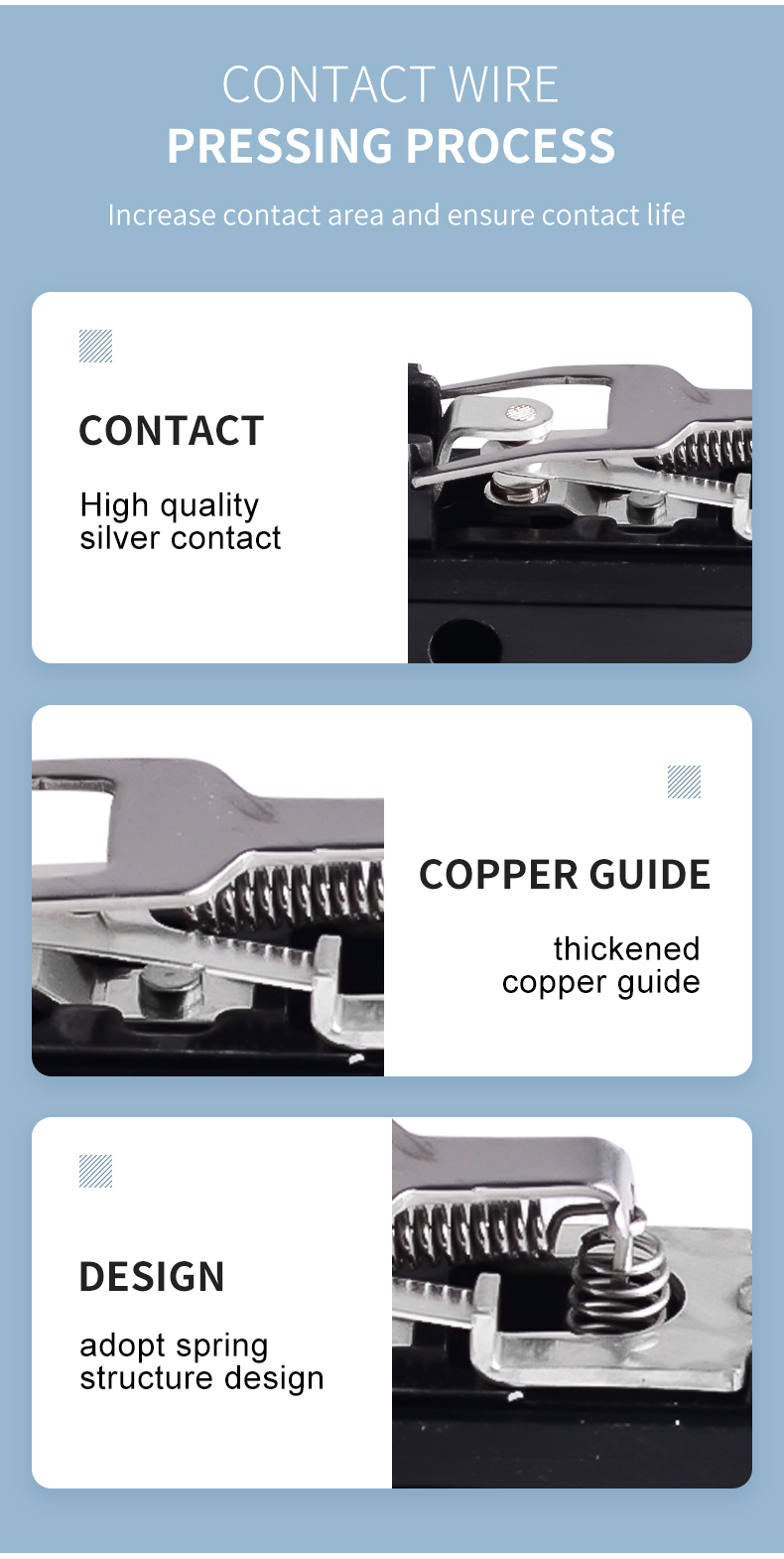

Contact and electrical performance silver alloy contact, rated current 5A (resistive load), supports SPDT (single pole double throw) configuration
TM-13 series roller micro switch

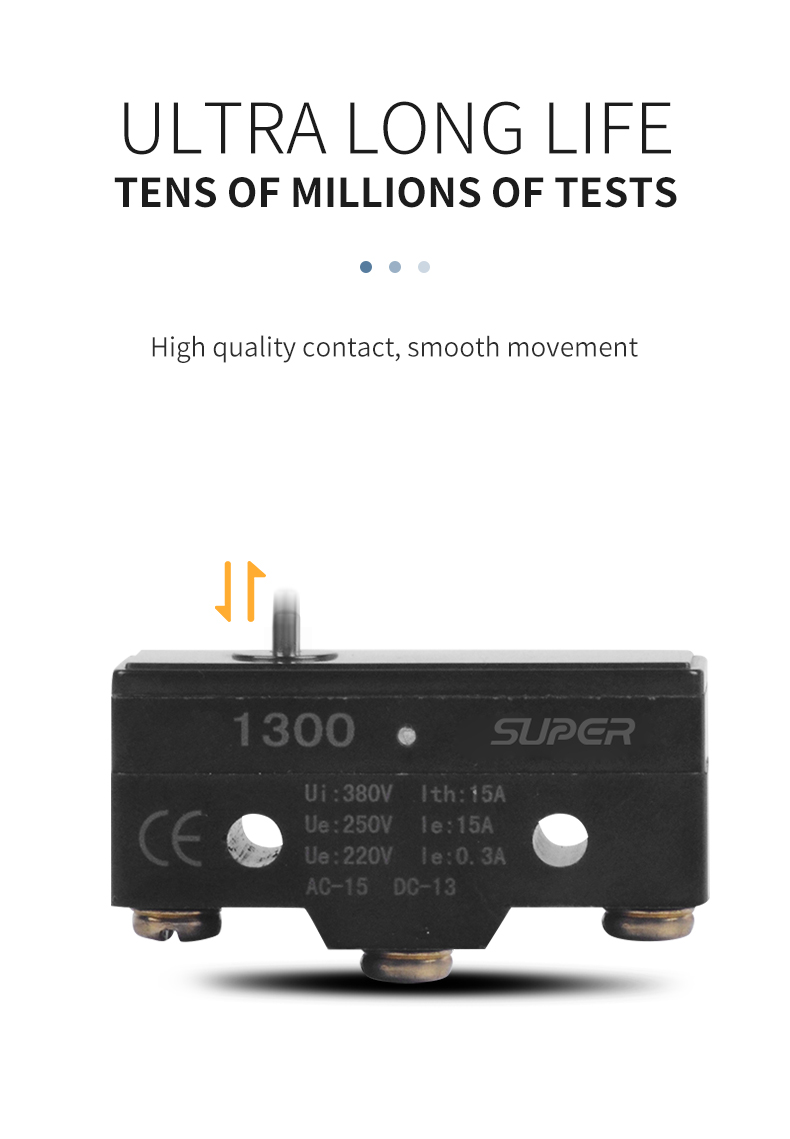

Durability: Electrical lifespan ≥ 1 million times (under rated load), mechanical lifespan ≥ 10 million times
TM-13 series roller micro switch
Environmental adaptability working temperature range -25 ℃~+85 ℃, protection level IP40 (basic dustproof)
IP40 dustroof micro switch Typical application scenarios
IP40 dustroof micro switch in industrial machinery control: punch press safety door lock, bending machine travel limit (using TM-1308 steering pulley to adapt to complex angles)
IP40 dustroof micro switch in automation equipment: sensor triggering, precision instrument reset (such as cash counting machines or dashboard buttons)
TM-13 series roller micro switch
Prohibited scenario: Strong corrosive environment or medical equipment (not certified)
