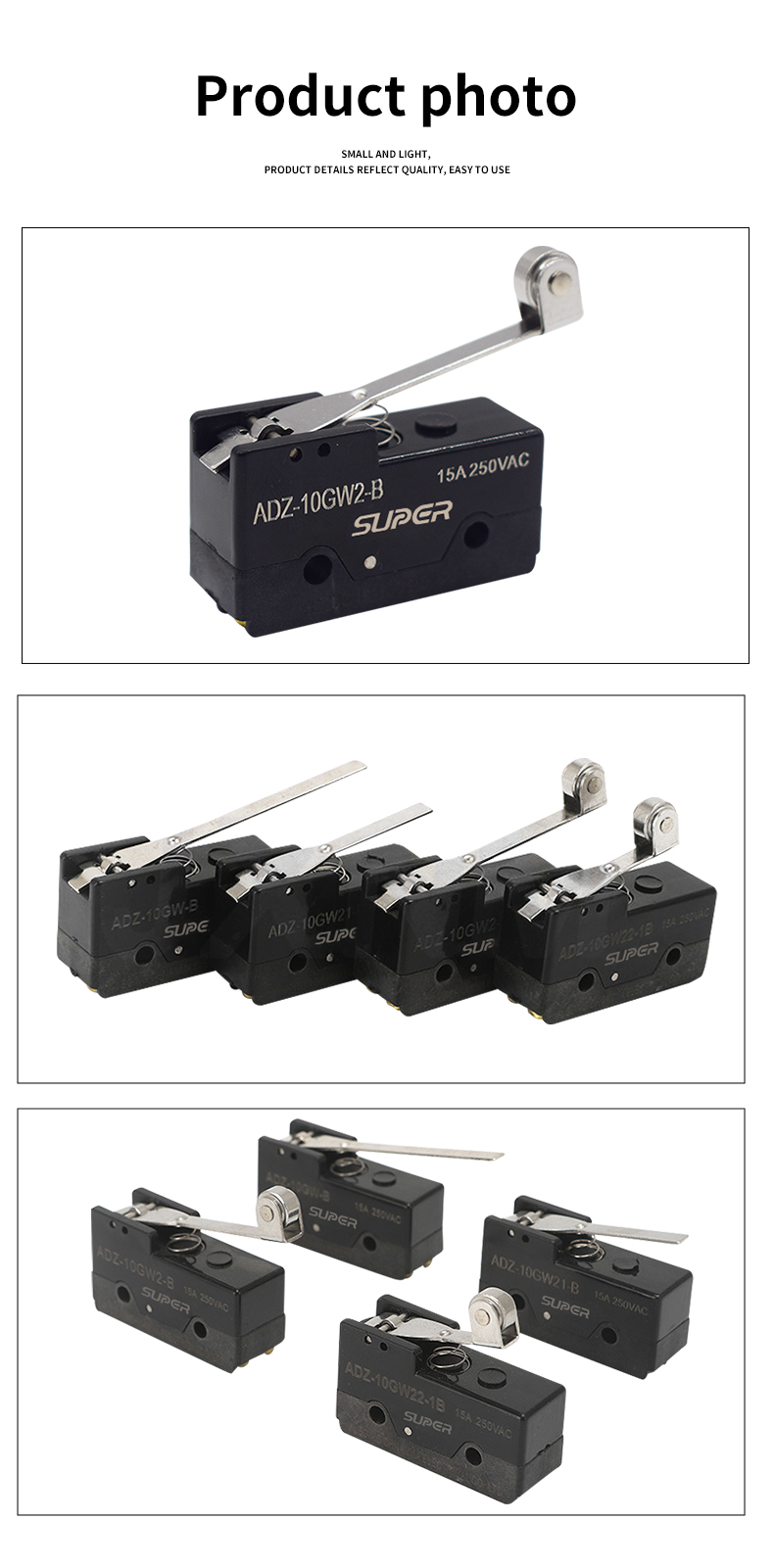

ADZ Series Micro Switch

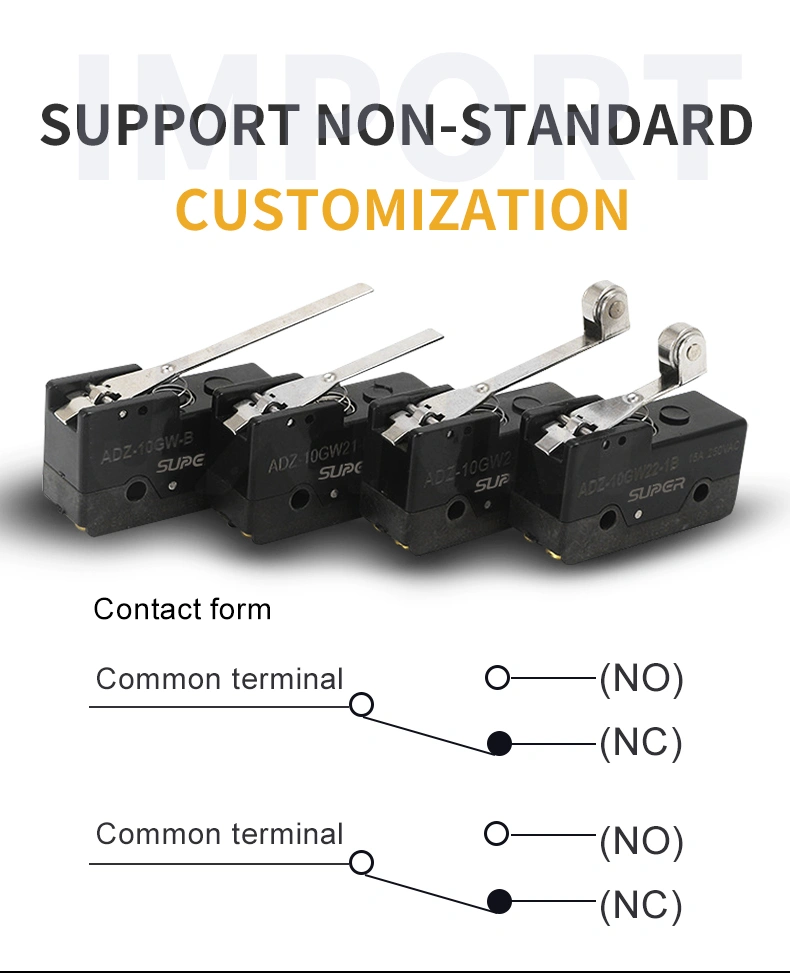

Equipped with two normally open (NO) and two normally closed (NC) contact configurations, it triggers the quick action mechanism through external transmission components (levers, rollers, etc.) to achieve redundant circuit control. ADZ double pole double throw switch
Its design conforms to the general definition of micro switches: with a small contact spacing (<1mm) and a fast acting mechanism, the ADZ double pole double throw switch can instantly switch circuit states with specified stroke and mechanical force.

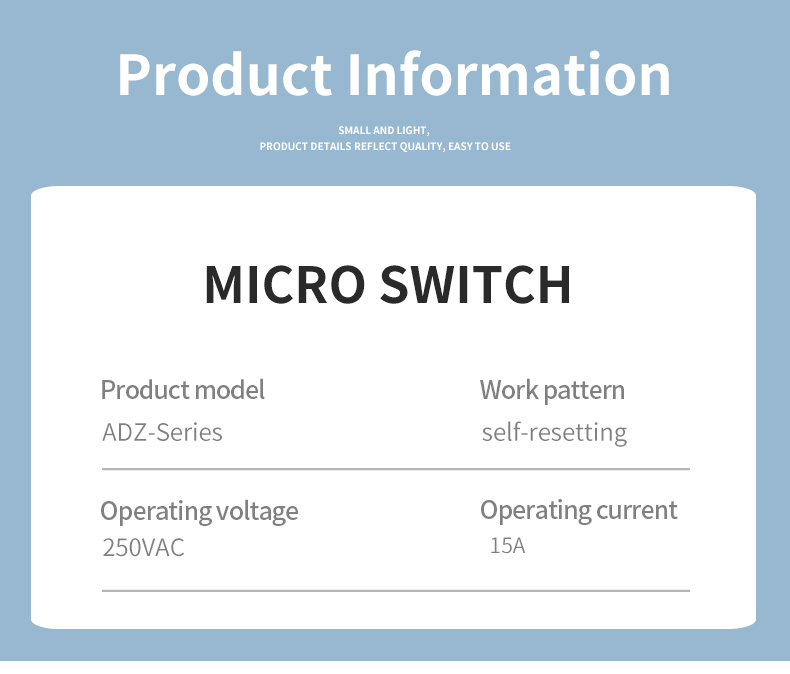

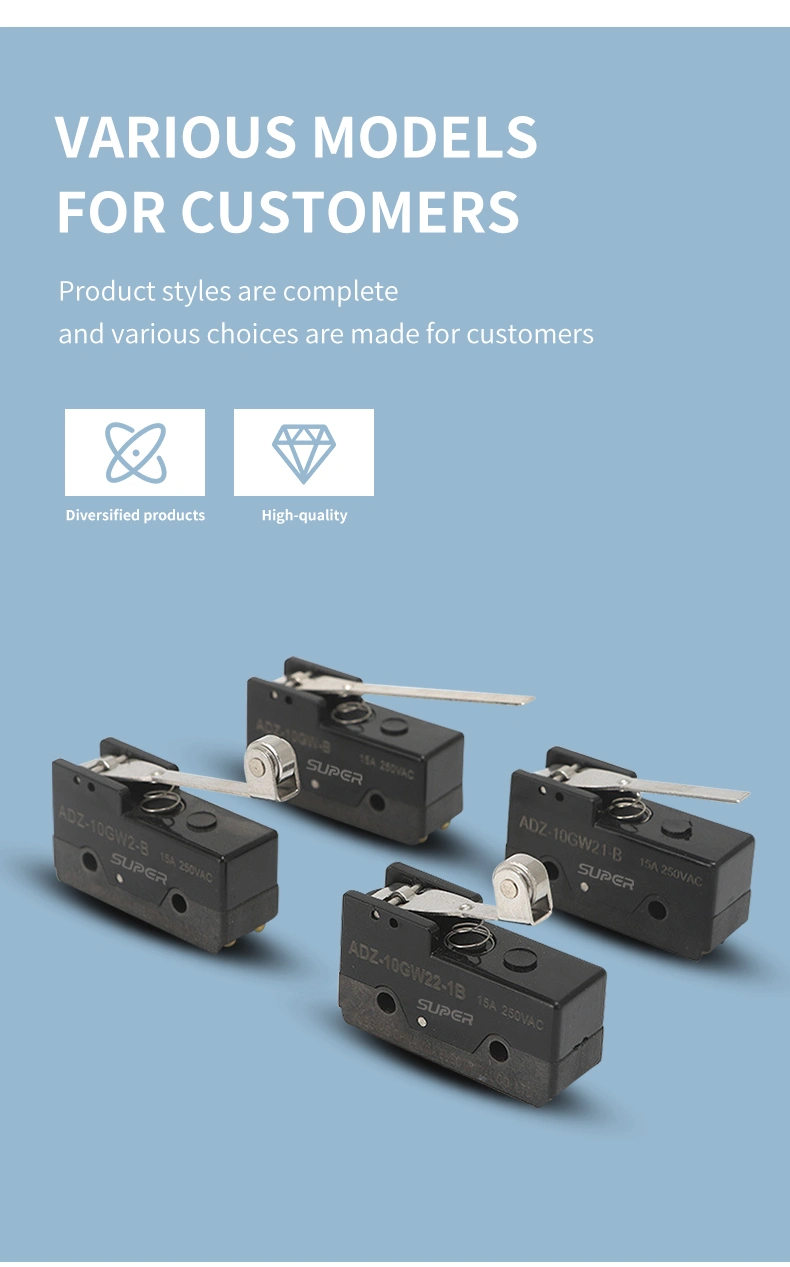

Core model of ADZ double pole double throw switch and parameters of ADZ double pole double throw switch
ADZ double pole double throw switch's Model Contact Structure Rated Load

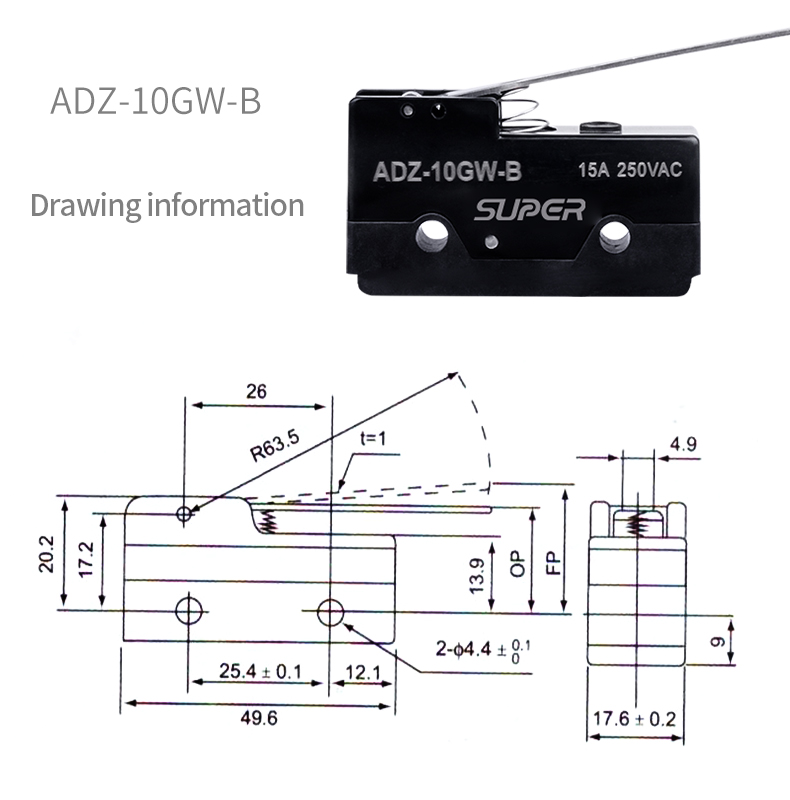

ADZ double pole double throw switch:ADZ-10GW-B DPDT 5A 250V AC

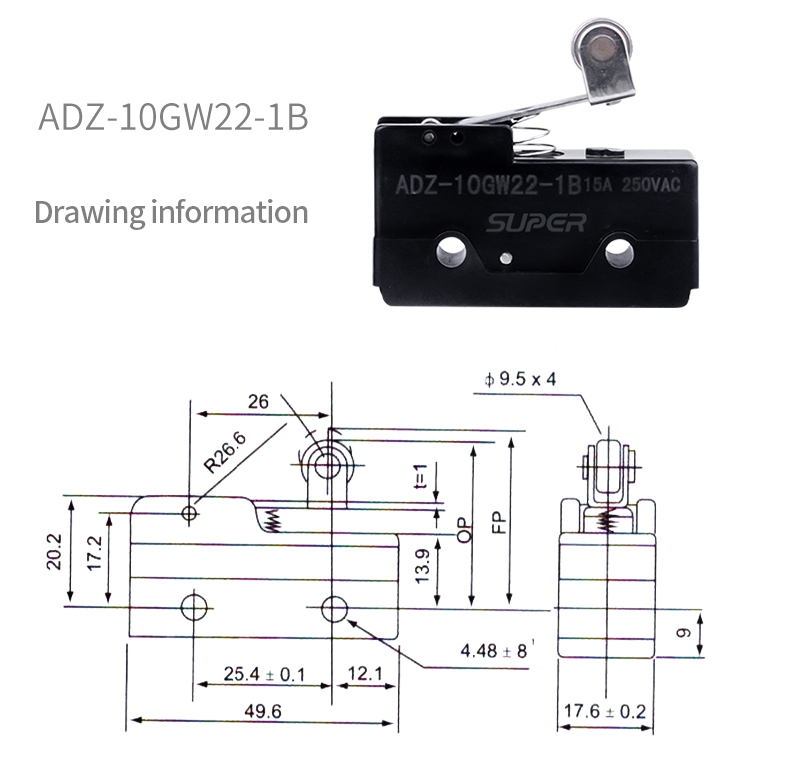

ADZ double pole double throw switch:ADZ-10GW22-1B DPDT 5A 250V AC
ADZ double pole double throw switch:ADZ-10GW21-B DPDT 5A 250V AC
Note: The entire ADZ double pole double throw switch's series supports IP40 basic protection, ADZ double pole double throw switch with a mechanical lifespan of ≥ 1 million cycles, and ADZ double pole double throw switch is suitable for temperatures ranging from -25 ℃ to 85 ℃.
Core design features of ADZ series DPDT switch
Design of Redundant Contact for ADZ Series DPDT Switch
ADZ Series DPDT switch structure: Two sets of independent contacts act synchronously,ADZ series DPDT switch supporting simultaneous control of two independent circuits to enhance the system's fault safety level;
Industrial safety door lock micro switch with high reliability: The dual contact configuration can avoid single point failure and industrial safety door lock micro switch is suitable for critical scenarios such as safety door locks and mechanical emergency stops.
ADZ series DPDT switch action characteristics

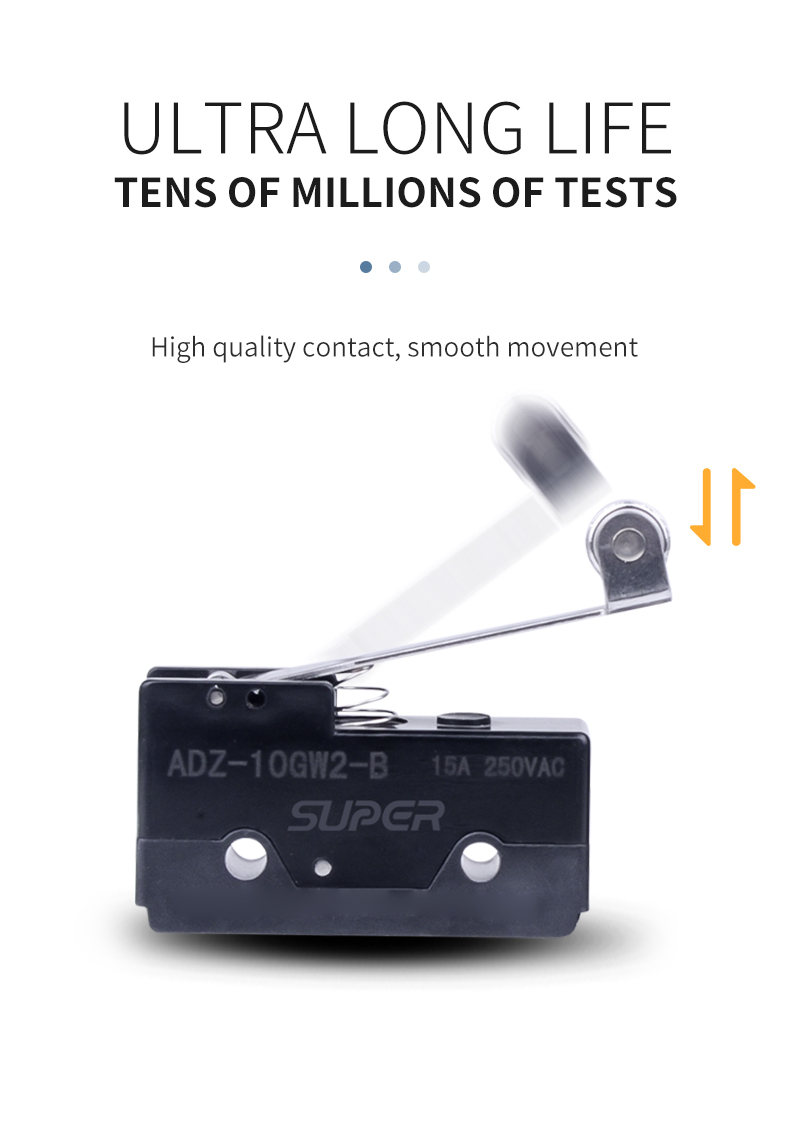

ADZ Series DPDT Switch's quick acting mechanism: Apply a small operating force (typical value 0.5N~2.5N) to trigger instantaneous on-off, with a response time of ≤ 10ms;
ADZ Series DPDT Switch's travel control: Precise matching of pre travel (PT) and over travel (OT) with mechanical triggering requirements.

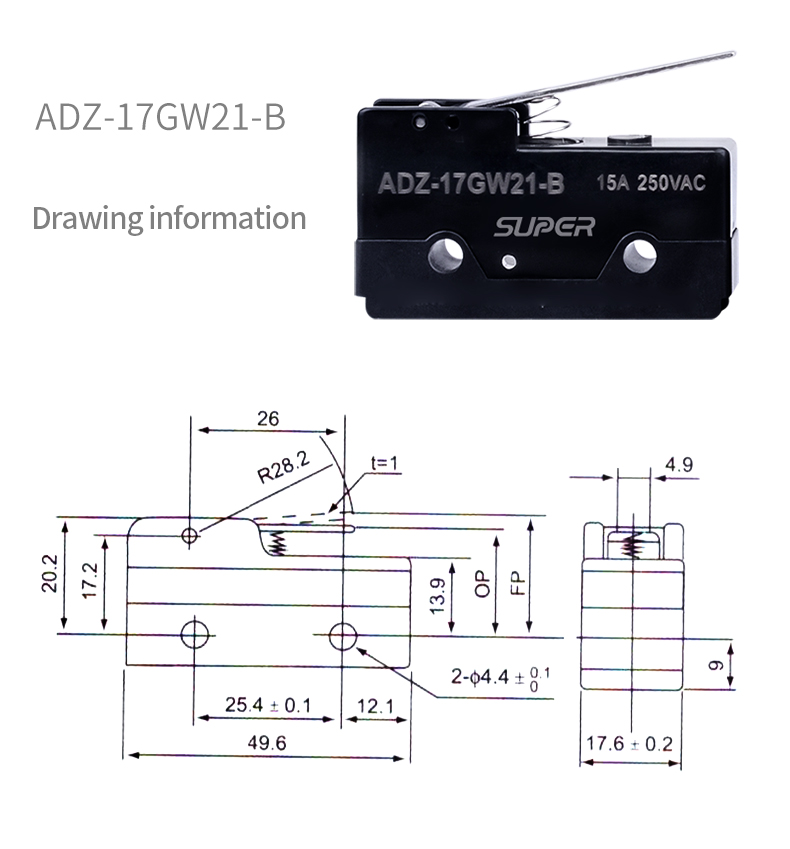

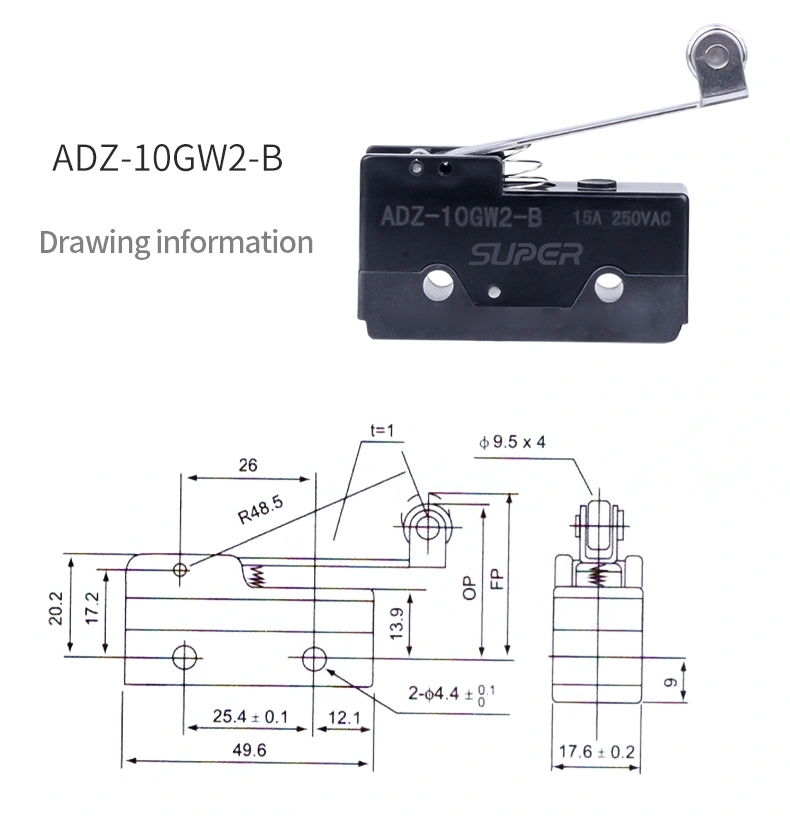

ADZ series DPDT switch physical specifications

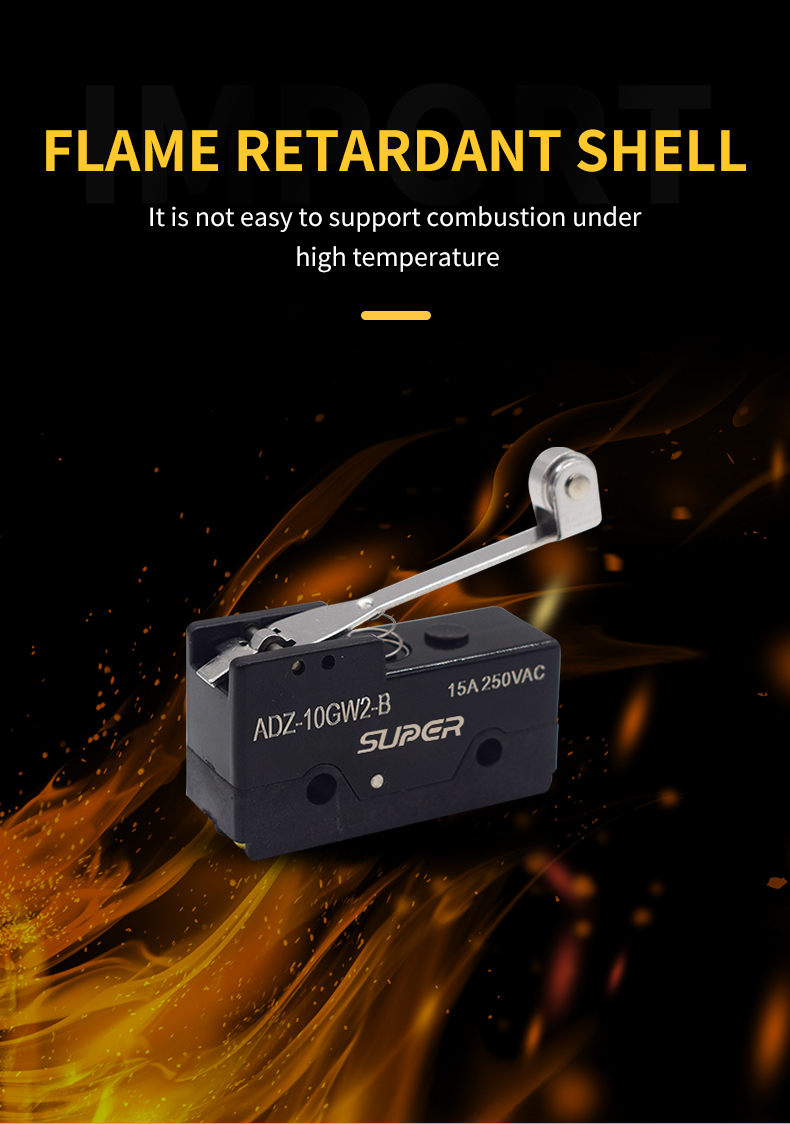

Industrial safety door lock micro switch protection level:industrial safety door lock micro switch basic IP40 protective shell, dust-proof and light splash proof;
Industrial safety door lock micro switch temperature adaptability: industrial safety door lock micro switch working temperature range -25 ℃~+85 ℃ 3.
Typical technical parameters of ADZ series DPDT switch
Parameter item specification description
Contact load 5A 250V AC (resistive load)
Electrical lifespan ≥ 1 million times (under rated current)
Mechanical lifespan ≥ 5 million times (no load operation)

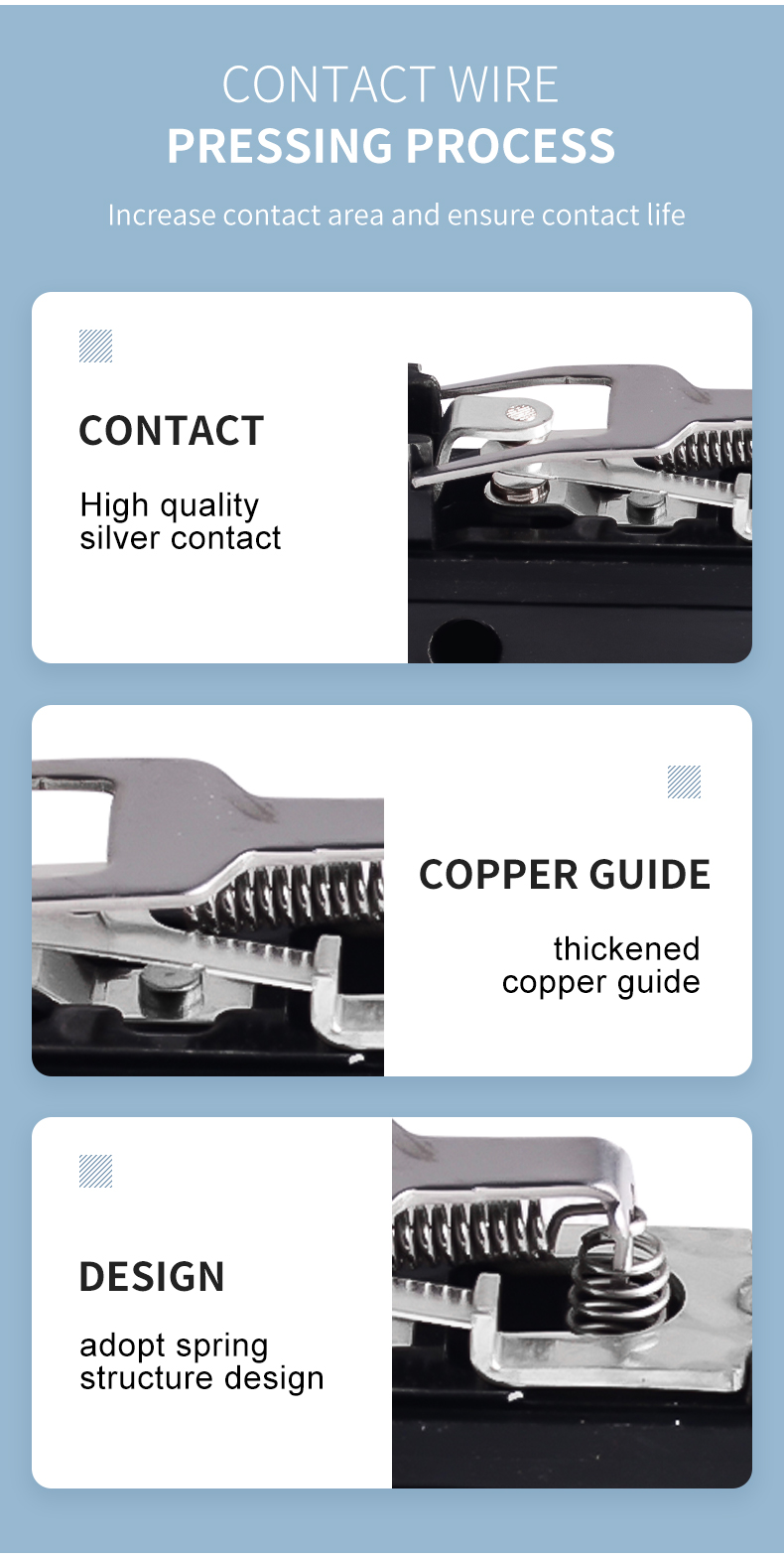

Contact material silver alloy (low contact resistance)
ADZ series DPDT switch and industrial safety door lock micro switch core application scenarios
Industrial safety control: mechanical equipment stroke limit (such as bending machine stroke endpoint detection);
Redundant circuit monitoring: industrial safety door lock micro switch safety door lock status feedback, industrial safety door lock micro switch elevator floor door locking verification;
Home appliance safety protection: gas stove flameout protection, washing machine cover switch.
