MS1 Series Micro Switch

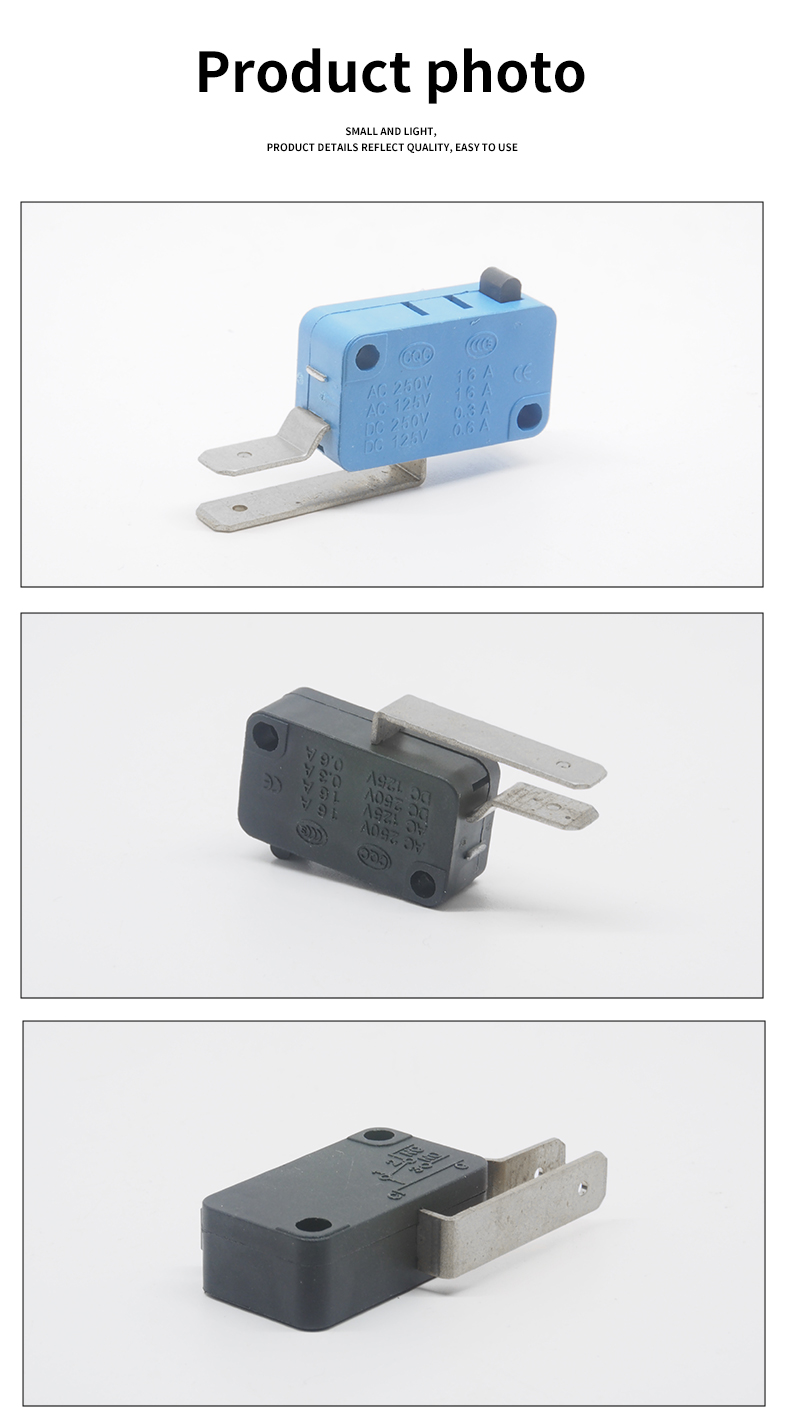

MS1-0 series waterproof micro switch and industrial equipment limit switch MS1 series Action mechanism
The MS1-0 series waterproof micro switch achieves instantaneous circuit switching through a small contact spacing (usually<1mm) and a quick action mechanism. After external mechanical force is applied to the driving rod, the MS1-0 series waterproof micro switch's internal spring is triggered to complete rapid switching.
The typical pressure range of MS1-0 series waterproof micro switch is 0.98N-2.94N, The action stroke of MS1-0 series waterproof micro switch is short (usually within 0.5mm-5mm).
Structural characteristics of MS1-0 series waterproof micro switch and industrial equipment limit switch MS1 series
The industrial equipment limit switch MS1 series's casing covers the drive rod and contact mechanism, and some models use resin fixed terminals to enhance drip resistance. Some variants of the industrial equipment limit switch MS1 series support IP67 sealing level (specific model needs to be confirmed).
Industrial equipment limit switch MS1 series technical parameters (based on the commonality of MS1 series)
Detailed Description of MS1-0 Series Waterproof Micro Switch and industrial equipment limit switch MS1 series Characteristics
Industrial equipment limit switch MS1 series
Electrical performance rated current: Low load type (typical value 0.1A-5A), supporting normally open (NO)/normally closed (NC) circuits
Industrial equipment limit switch MS1 series

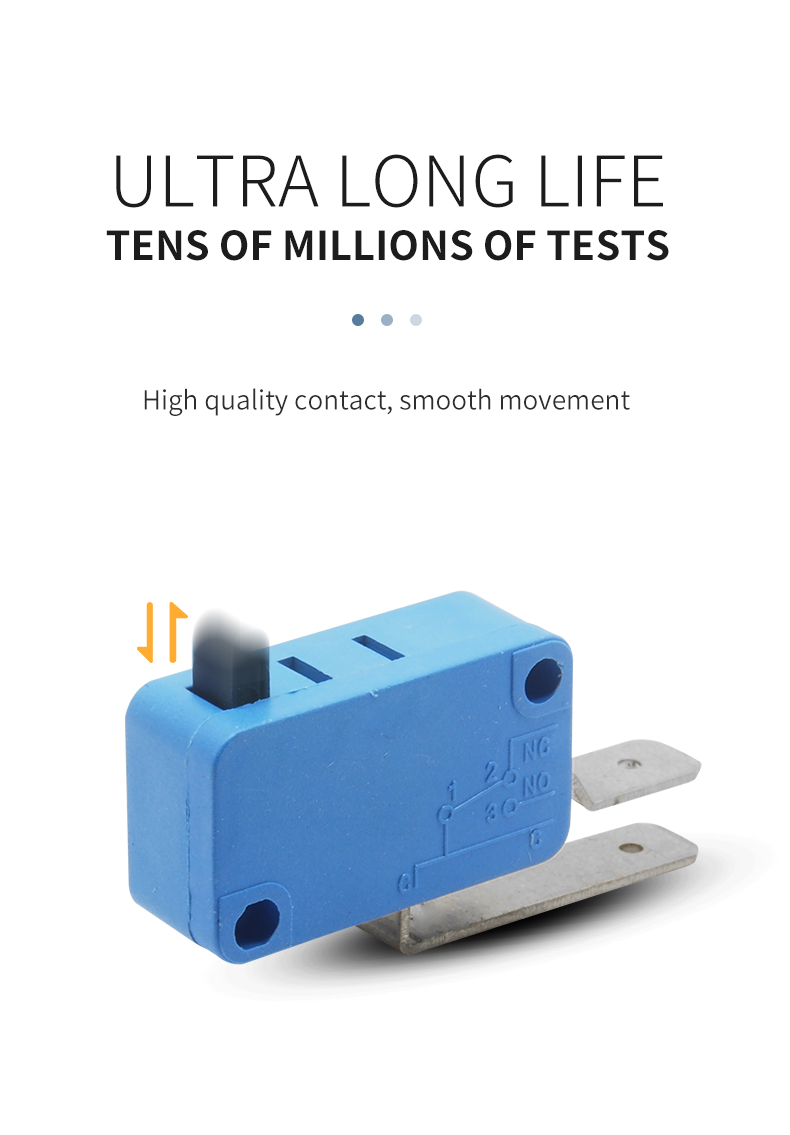

Mechanical lifespan standard model lifespan ≥ 100000 times, high-precision models can reach 500000 operating cycles
Industrial equipment limit switch MS1 series
The basic model of protective design has dust-proof capability, and the sealed variant has passed IP67 certification (suitable for humid environments)
Industrial equipment limit switch MS1 series

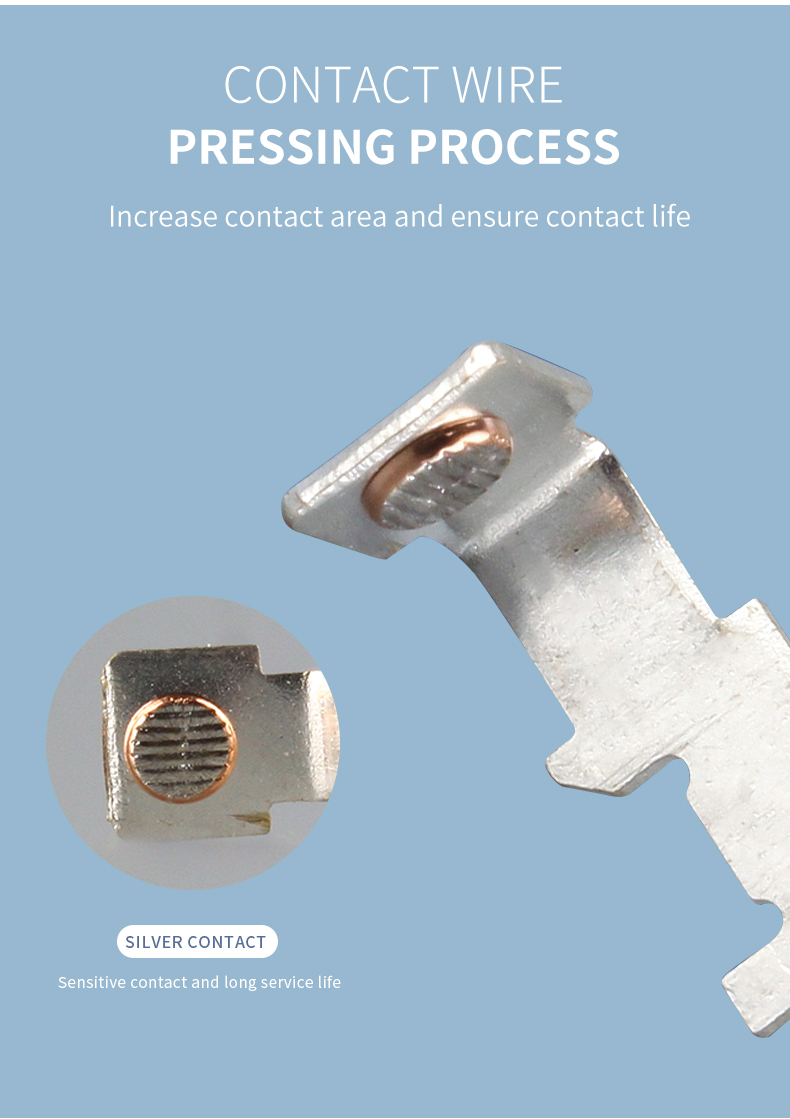

Silver alloy contact material ensures low contact resistance (<50m Ω) and reduces oxidation risk
MS1-0 series waterproof micro switch and MS1 micro switch for household appliances application scenarios
MS1 micro switch for household appliances
MS1 micro switch for household appliances in the field of household appliances: microwave oven door safety switch, rice cooker temperature control sensor, gas stove ignition control;
MS1 micro switch for household appliances
MS1 micro switch for household appliances in industrial control:MS1 micro switch for household appliances is used for low current signal detection (such as 0.1A level), MS1 micro switch for household appliances is used for equipment position limit sensing;
MS1 micro switch for household appliances
MS1 micro switch for household appliances in special environment:MS1 micro switch for household appliances Explosion proof models (such as SLS-MS1-EX) are suitable for hazardous areas containing flammable gases.
As a derivative model of the MS1 series, the current/voltage range of MS1-0 should be based on the manufacturer's documentation (such as the data sheet provided by Southeast Electronics);
If the MS1-0 series waterproof micro switch requires high-level protection, the IP67 sealed version should be clearly selected (not all MS1-0 models support it by default).
