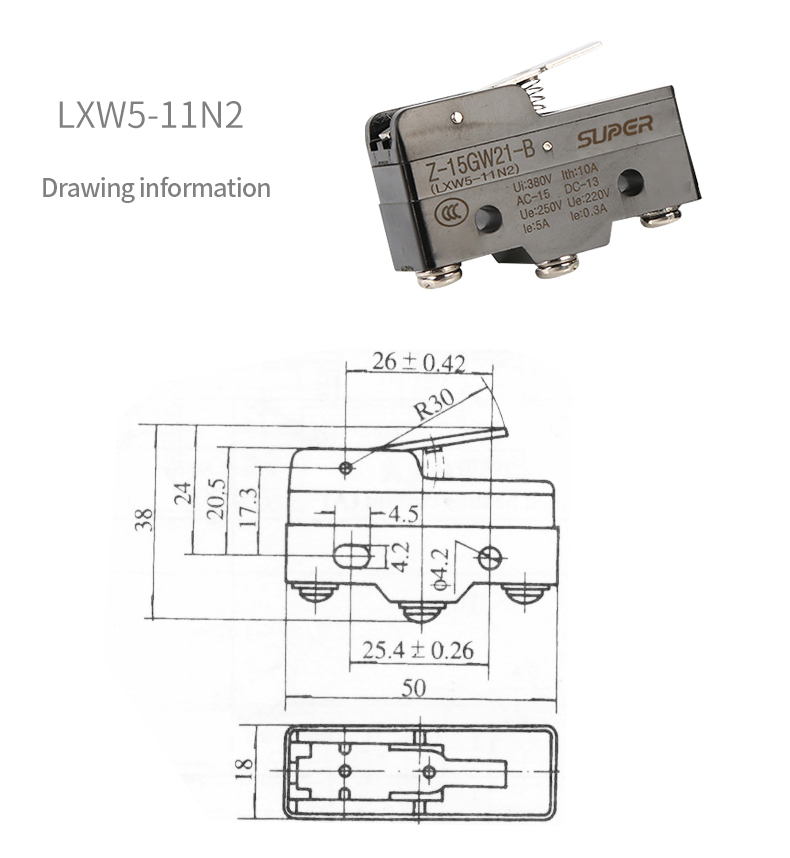

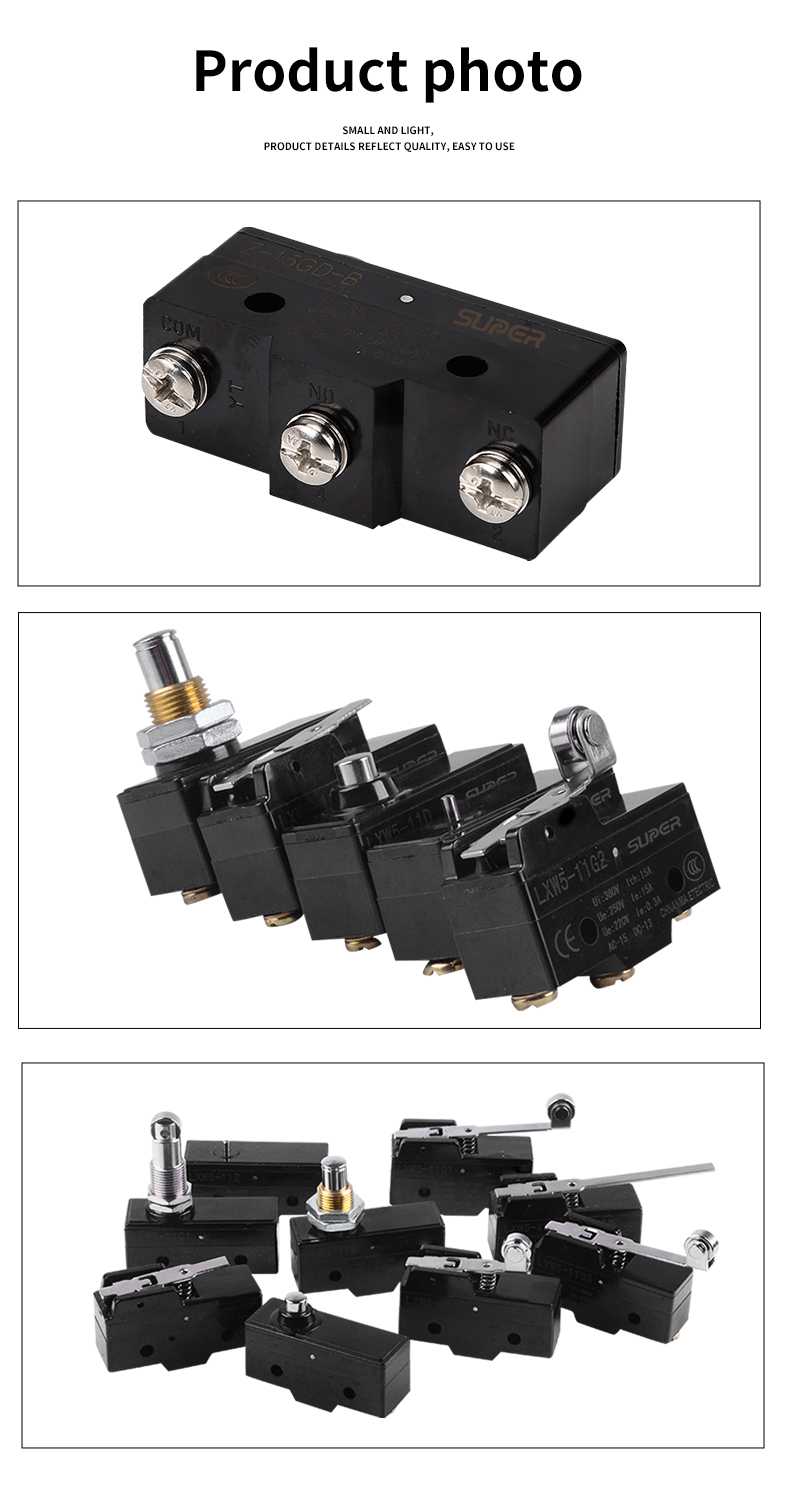

LXW5 Series Micro Switch

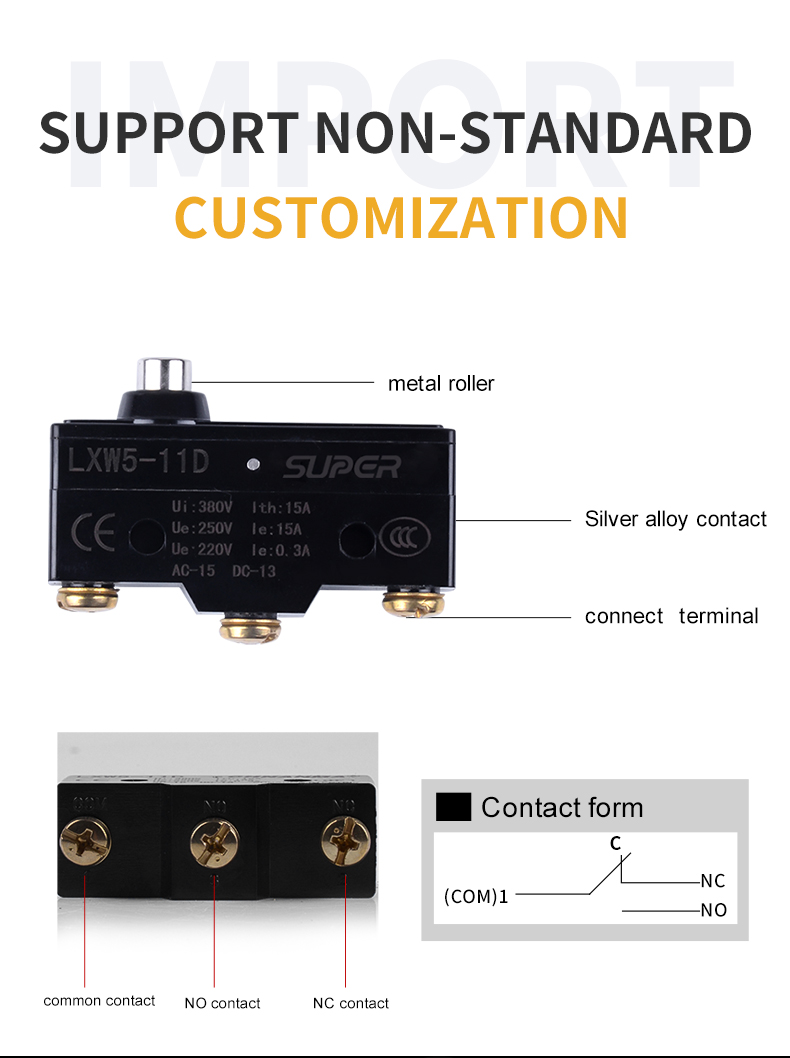

Instantaneous switching of normally closed (NC) and normally open (NO) contacts is achieved through external force operation.

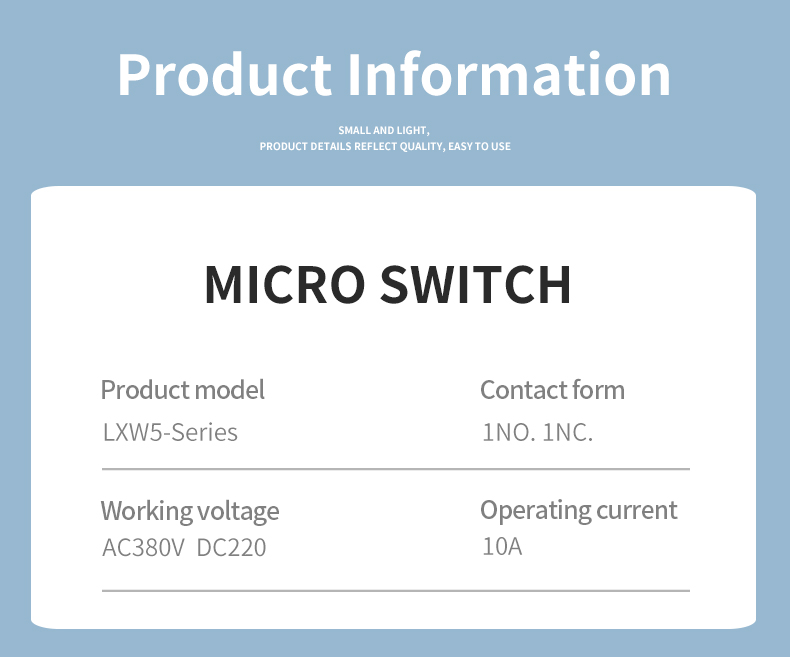

LXW5 micro switch electrical characteristics:
Some models of LXW5 micro switch (such as LXW5/L type) support higher loads, CE certified micro switch
LXW5 micro switch is suitable for scenarios with AC voltage up to 660V, rated control current up to 15A, or DC up to 220V, current up to 10A.
The rated voltage range of 3C certification covers models up to 36V, ensuring safety and compliance.
LXW5 micro switch and ODM water proof limit switch mechanical and environmental performance:
ODM water proof limit switch

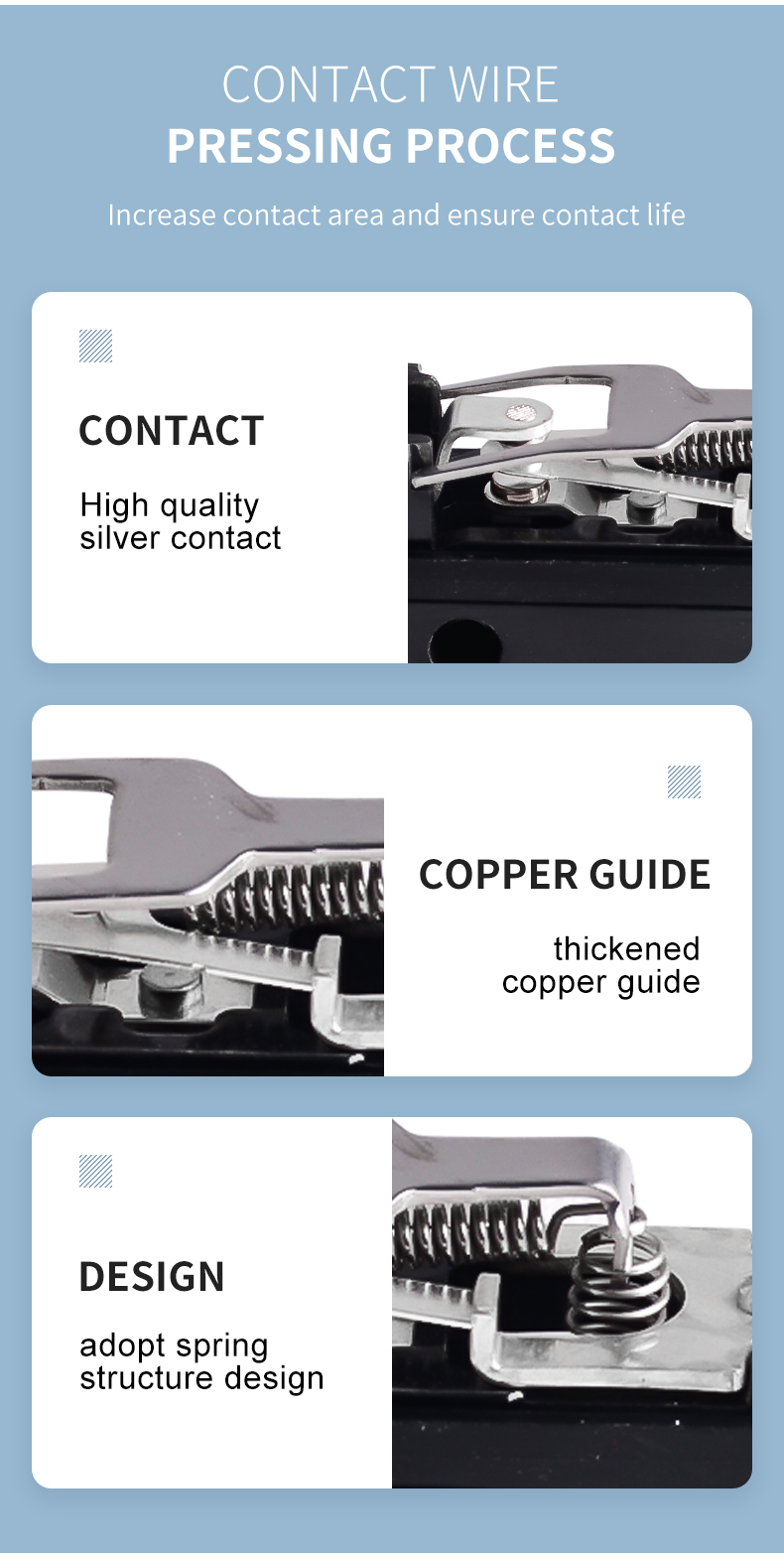

ODM water proof limit switch adopte a jumping elastic contact plate design,ODM water proof limit switch have low operating force and fast response.
ODM water proof limit switch
ODM water proof limit switch provide dust-proof and waterproof models, such as IP67 sealing rating, ODM water proof limit switch is suitable for harsh industrial environments.
ODM water proof limit switch
ODM water proof limit switch compliant with international standards GB/T 14048.5 and IEC 60947-5-1, some ODM water proof limit switch's models have passed RoHS certification and other certifications.

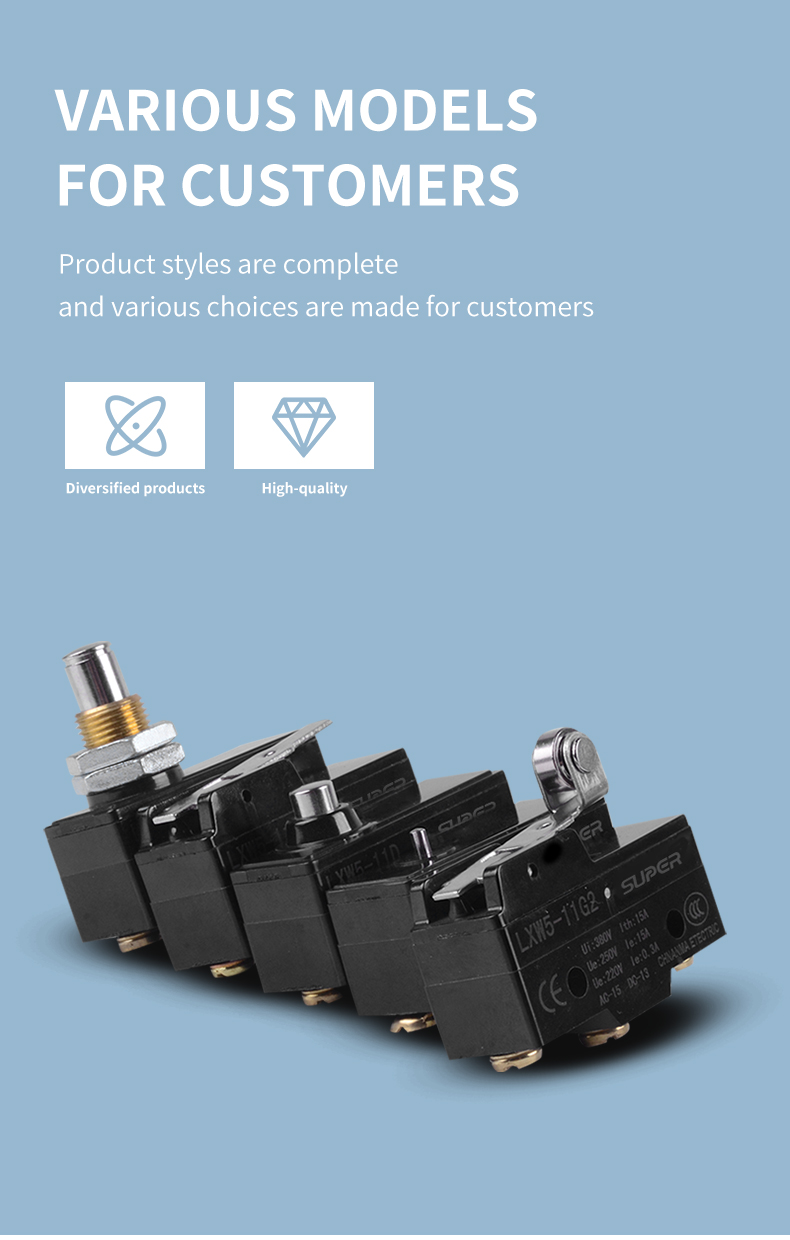

LXW5 micro switch core models and LXW5 micro switch variants
LXW5 micro switch model Key Features Application Remarks

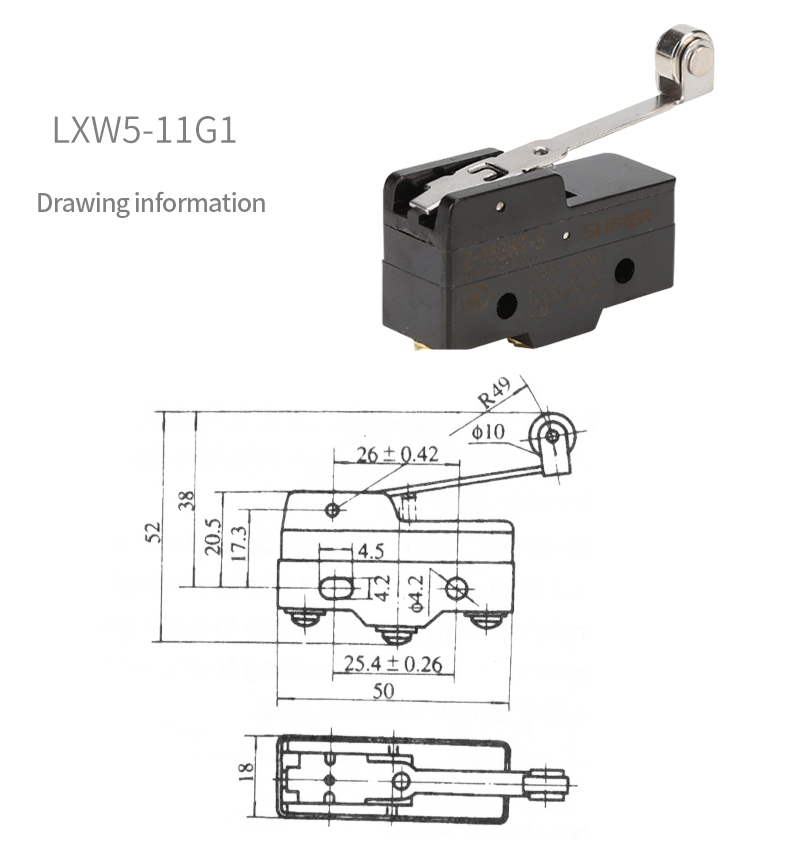

LXW5-11G1 common basic model, commonly used for stroke control
CE certified micro switch
CE certified micro switch is widely used for mechanical limit protection and supporting after-sales service system

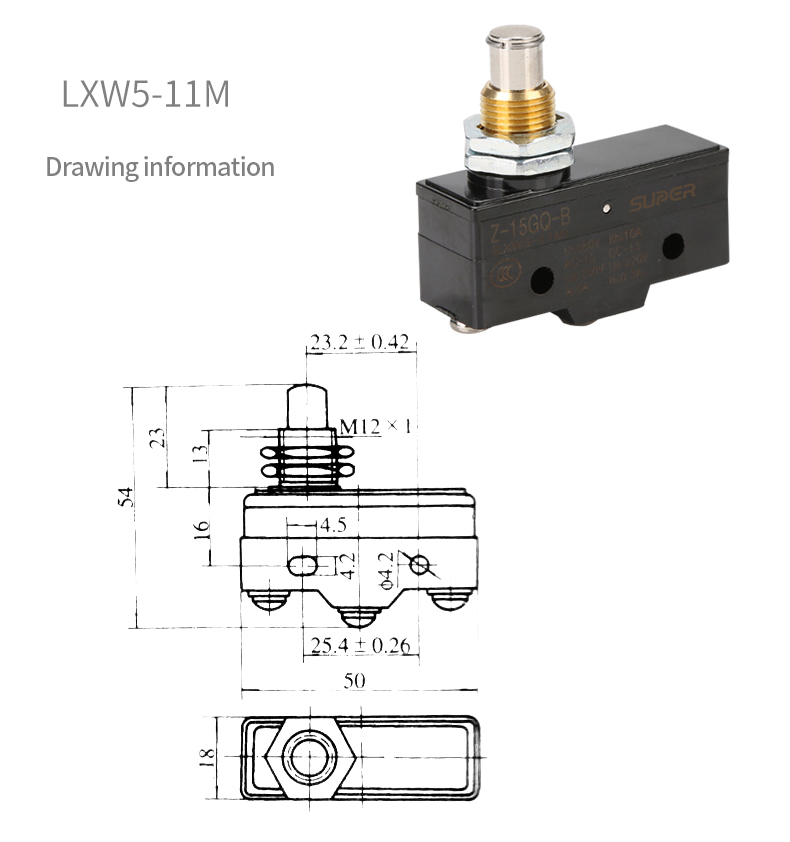

LXW5-11M/L high current design, supporting higher voltage (up to 660V) and current loads
CE certified micro switch
CE certified micro switch is suitable for high load scenarios of industrial automation equipment

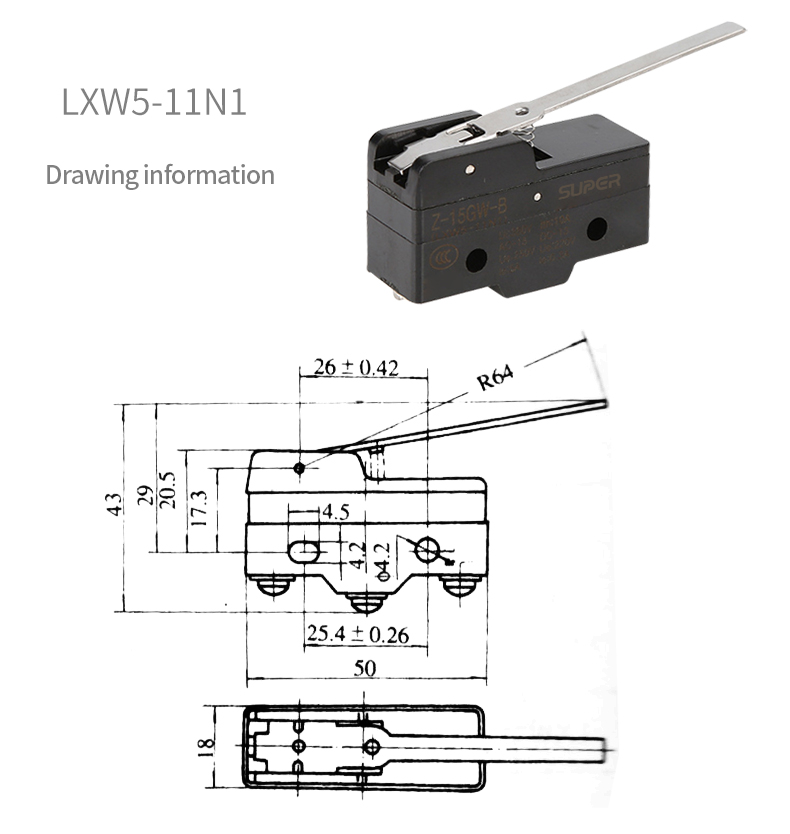

LXW5-11N1 rope switch special model, integrated emergency stop function, used for safely cutting off power supply
CE certified micro switch
CE certified micro switch is commonly used in logistics conveying systems and CE certified micro switch is commonly used in emergency control of mechanical equipment
LXW5 micro switch dustproof and waterproof series
CE certified micro switch
CE certified micro switch emphasize IP protection level (such as IP67), provide sealed design to resist environmental factors such as oil pollution and dust, suitable for outdoor or high pollution industrial environments
Main application scenarios of LXW5 micro switch
Industrial automation: used for stroke control and limit protection of CNC machine tools, conveyor belts, and robot joints, achieving precise start stop of equipment.
Automobiles and transportation equipment: integrated into car door locks, wipers, or power window systems, providing low-voltage control solutions.
Home appliances and consumer electronics: applied to microwave oven door safety switches, washing machine water level sensors, or coffee machine water pump control to ensure safe operation of equipment.
Emergency safety system: As a rope switch (such as LXW5-11N1), it can quickly cut off power on automated production lines or logistics conveyor belts to prevent accidents
