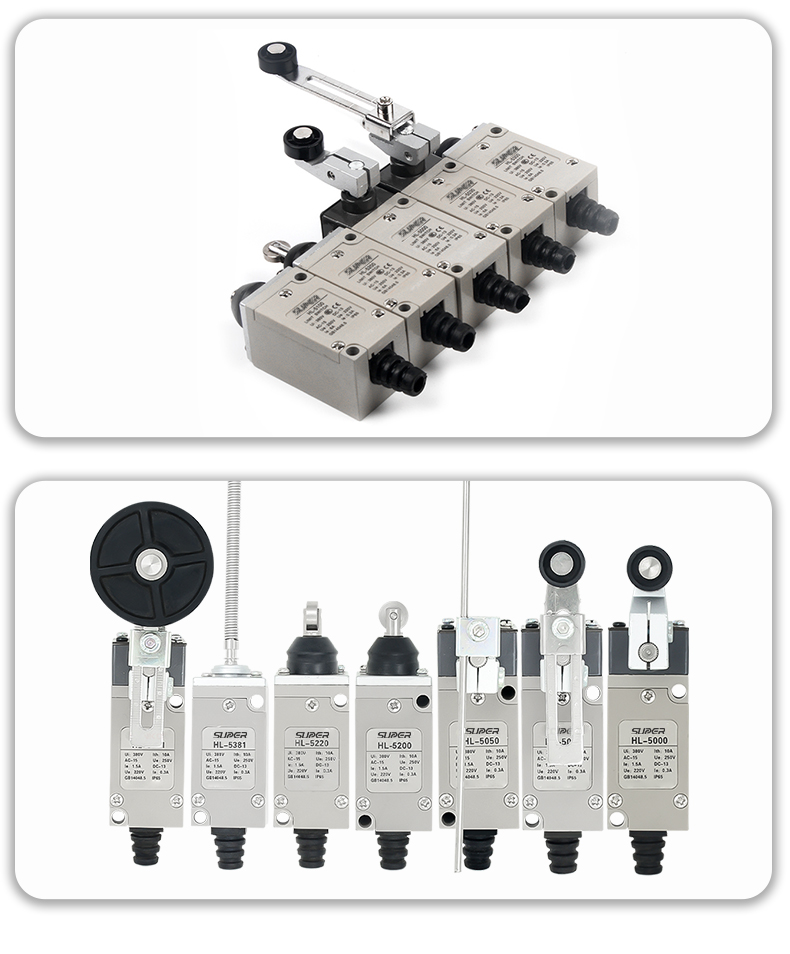

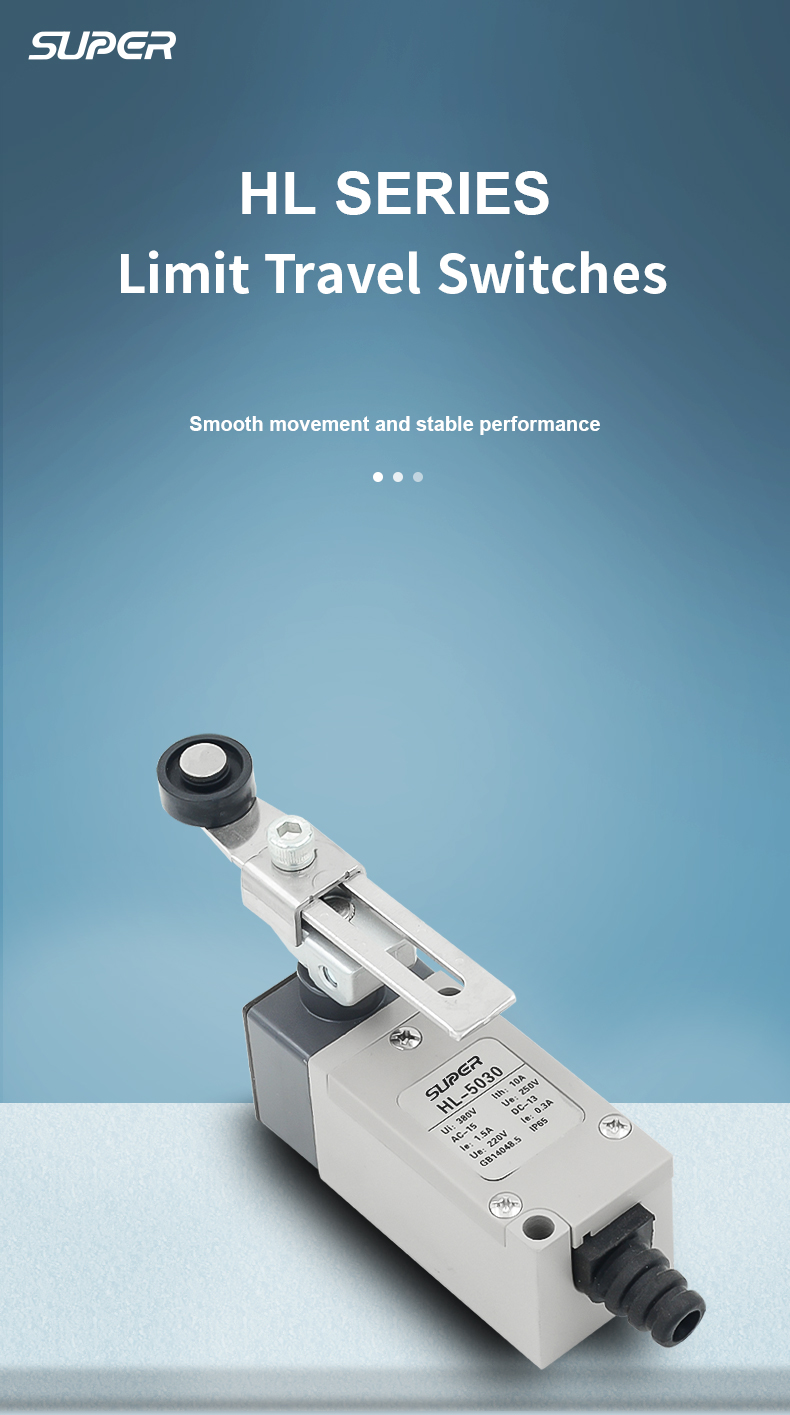

HL Series Travel Switch
HL travel switch is a professional control device developed based on industrial automation requirements, HL travel switch have multi model and multi scenario adaptation characteristics. The following is a summary of key information about High temperature resistant travel switch:
[1] Basic parameters of HL travel switch,High temperature resistant travel switch and technical characteristics of HL travel switch,High temperature resistant travel switch

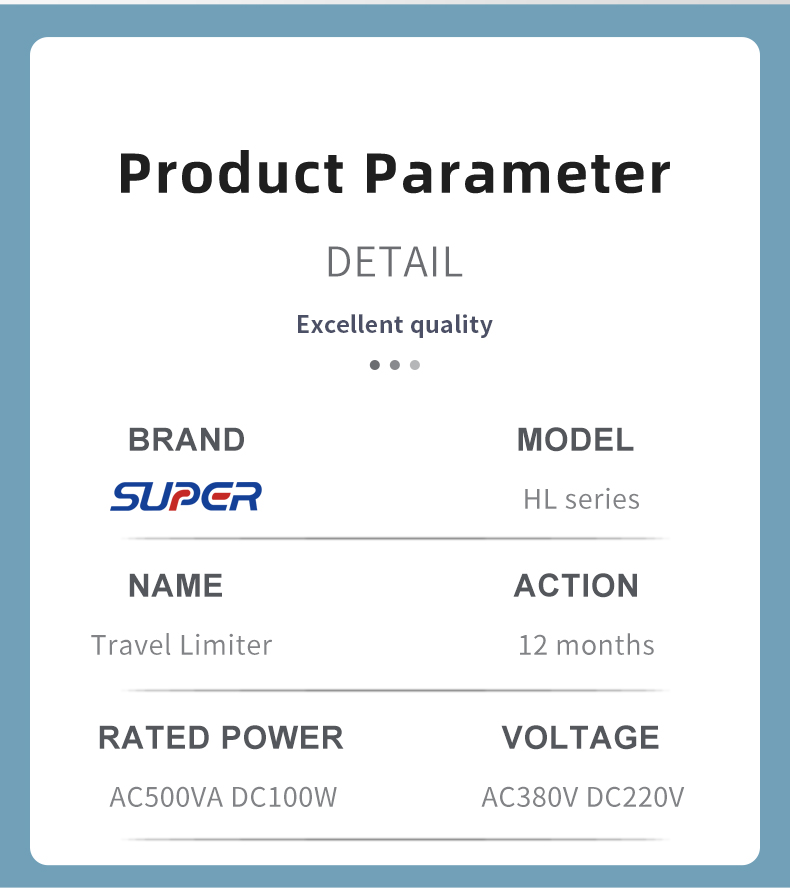

HL travel switch's rated parameters: Suitable for control circuits with AC 50Hz and rated voltage up to 380V (AC)/220V (DC), rated current 10A;

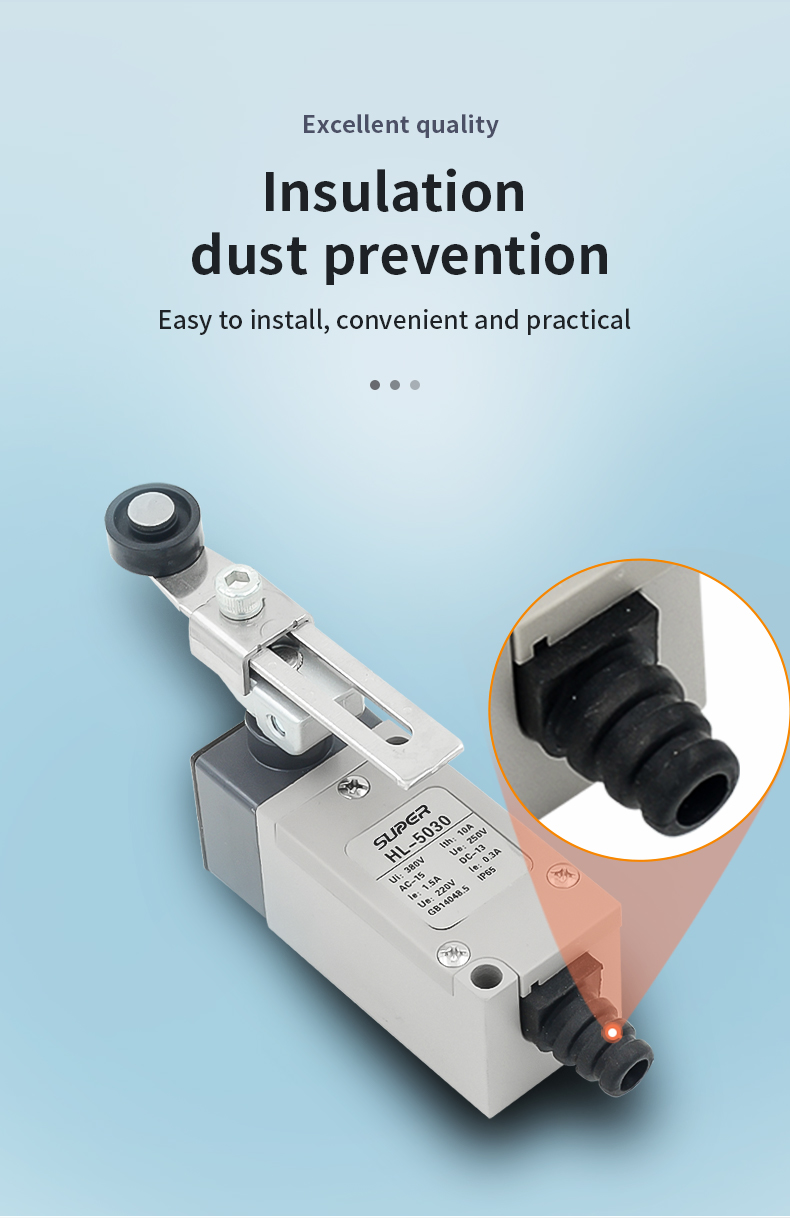

HL travel switch's protection level: IP65 protection design (dustproof, waterproof, oil proof structure), suitable for complex industrial environments;

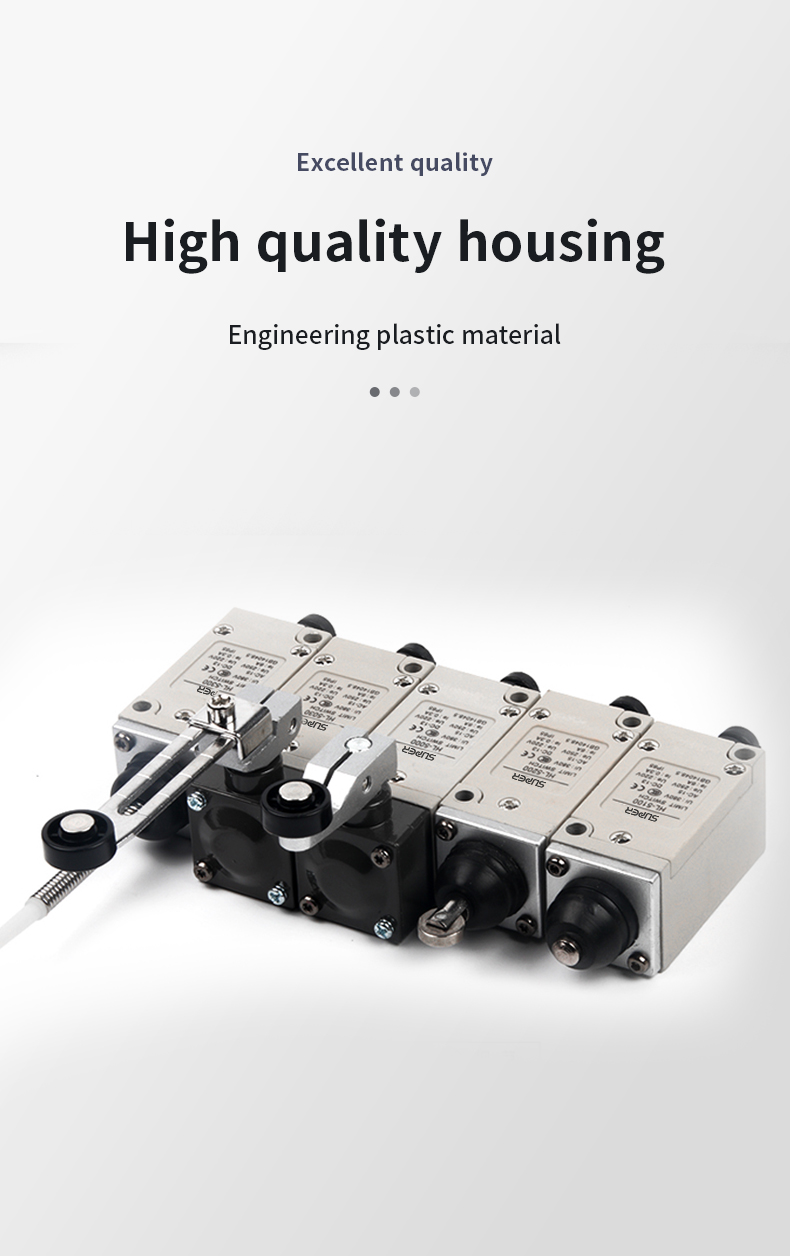

High temperature resistant travel switch's mechanical lifespan: Adopting a metal die-casting shell and compact design, the High temperature resistant travel switch has high mechanical strength and long service life;
High temperature resistant travel switch's certification standard: The High temperature resistant travel switch complies with the international standards GB/T 14048.5 and The High temperature resistant travel switch complies with the international standards IEC 60947-5-1.
[2] Classification and Characteristics of HL Travel Switch,HL-5200 Heavy Machinery Limit and High temperature resistant travel switch Models
HL travel switch,HL-5200 heavy machinery limit and High temperature resistant travel switch model Structure Characteristics Applicable Scenarios

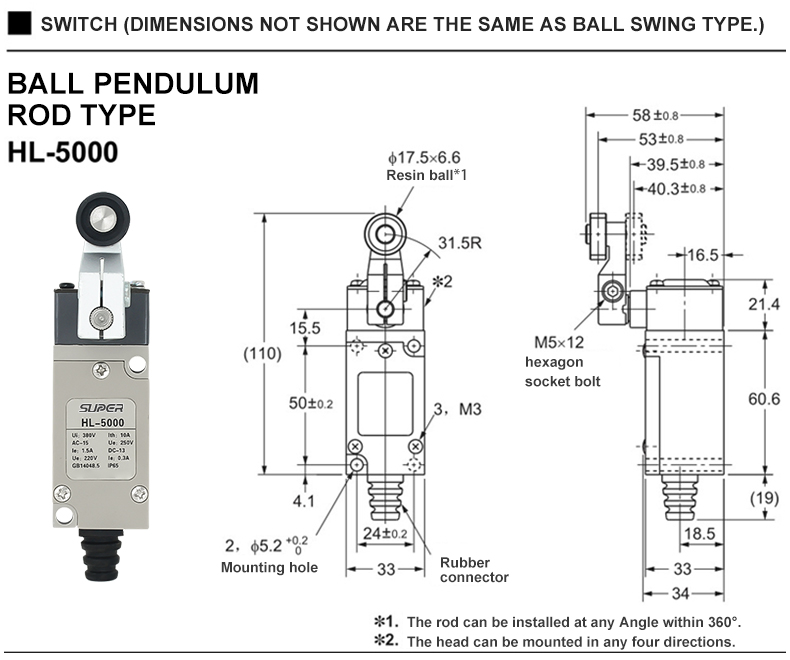

HL-5000 single arm design, basic model universal mechanical limit control

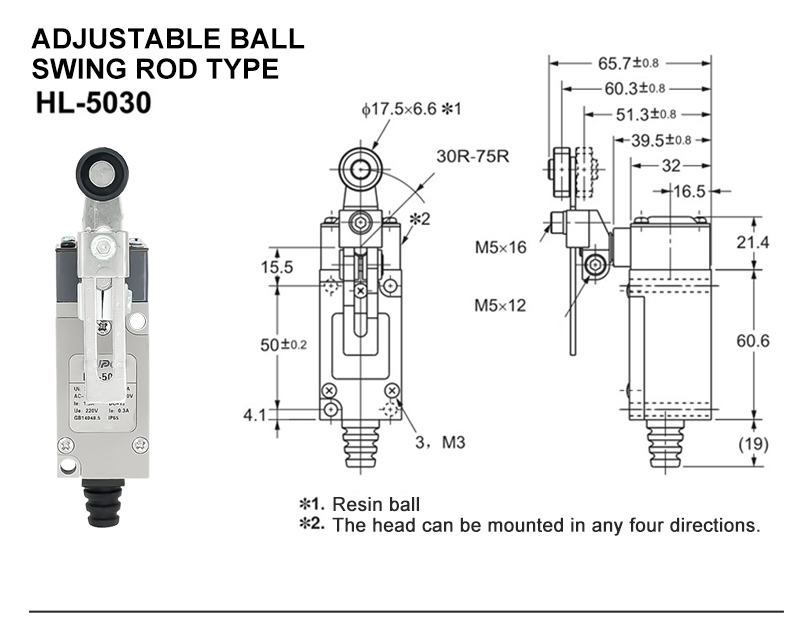

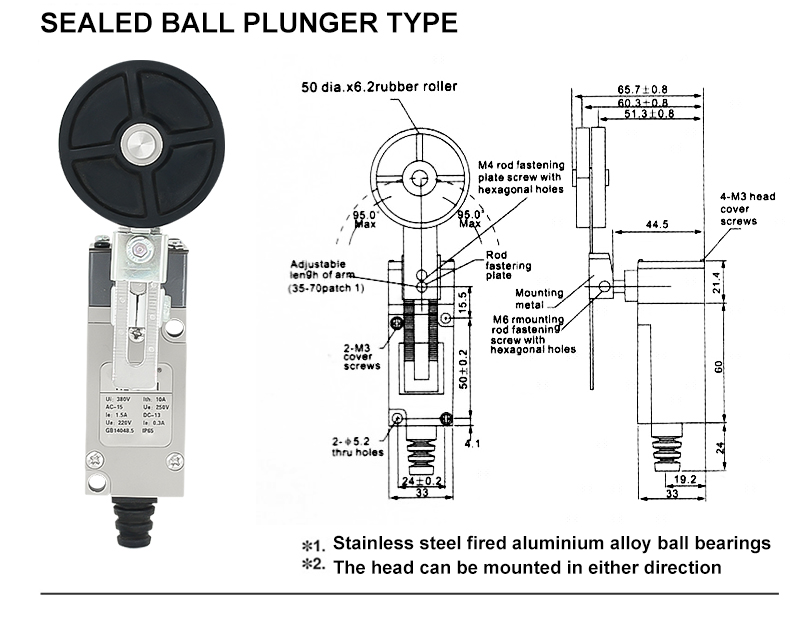

HL-5030 single arm adjustable, supporting non-standard customized precision equipment position feedback

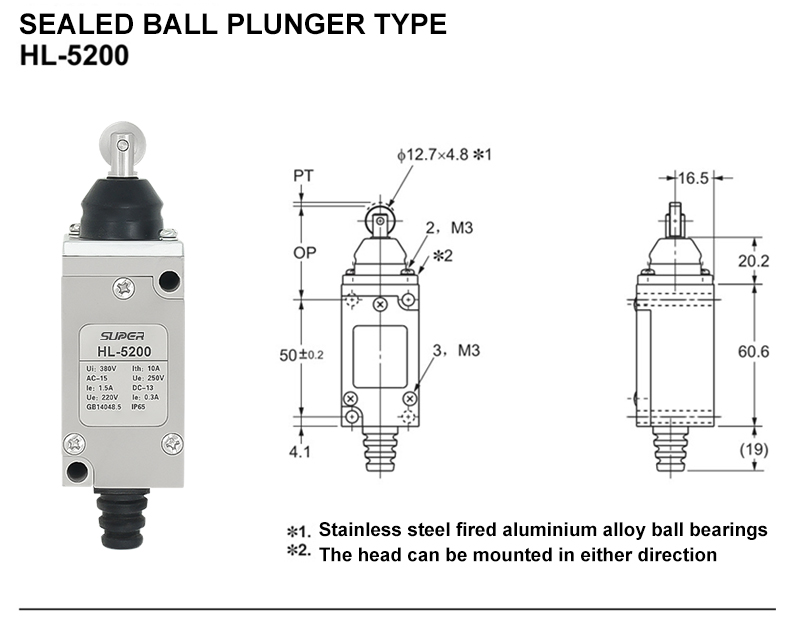

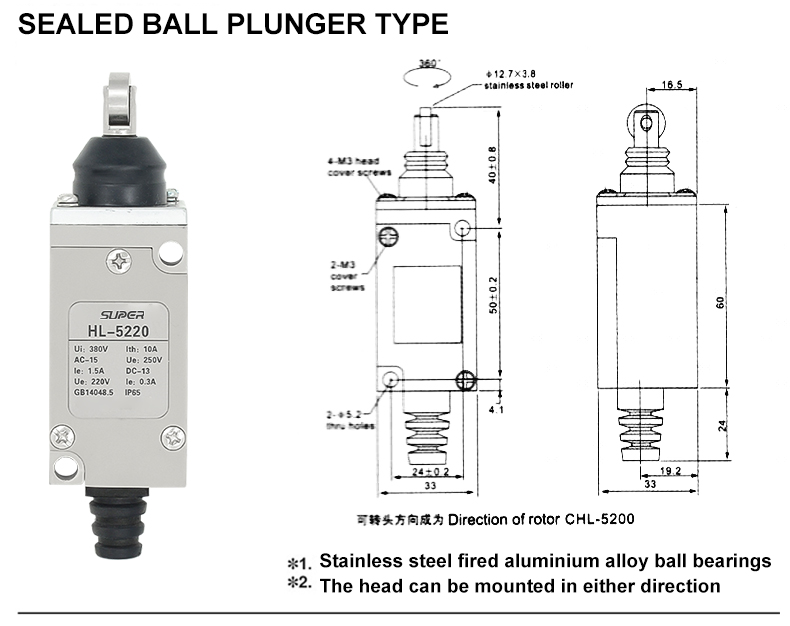

HL-5200 roller plunger type, equipped with plug-in wiring design (referring to American standards) HL-5200 heavy machinery limit mechanical limit protection
HL-5000/L high-temperature resistant version, high-temperature resistant travel switch can operate stably in metallurgical and casting high-temperature production lines at 550 ℃ environment
[3] Typical application areas of HL travel switch and HL-5200 Heavy Machinery Limit
Machine tool equipment: control the machining path and stroke limit;
Lifting machinery: achieving terminal safety protection and switching of movement direction;
Elevator control: adjust the speed of the car door switch and the up and down limit;
HL-5200 Heavy Machinery Limit Automation Production Line:HL-5200 Heavy Machinery Limit Integrated into the transmission system and HL-5200 Heavy Machinery Limit achieve precise position detection.
[4] HL travel switch and HL-5200 Heavy Machinery Limit selection suggestion

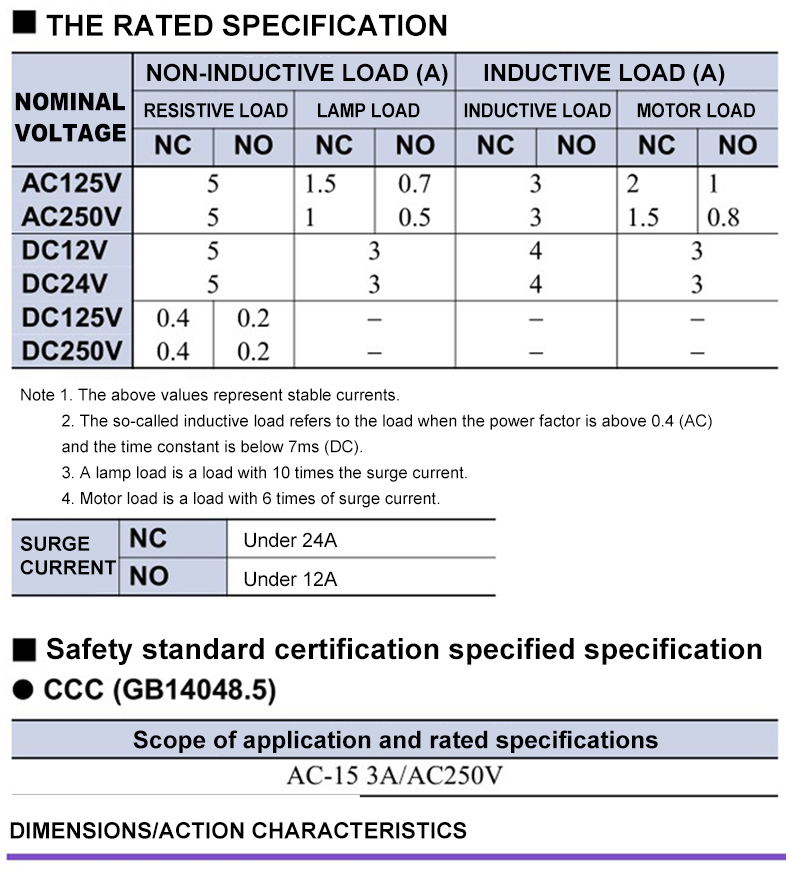

HL-5200 heavy machinery limit should prioritize load types (resistive/inductive/motor loads), installation space limitations for high temperature resistant travel switches, and environmental temperature (conventional/high-temperature scenarios). Refer to the manufacturer's manual to match contact parameters (such as 5A resistive load current and 1.5A inductive load current at AC250V)
