High Quality Double Speed Limit Switch

1、 DXZ-001 single speed standard /FCR-001 Italian GG brand replacement core functions and structure Mechanical stroke control

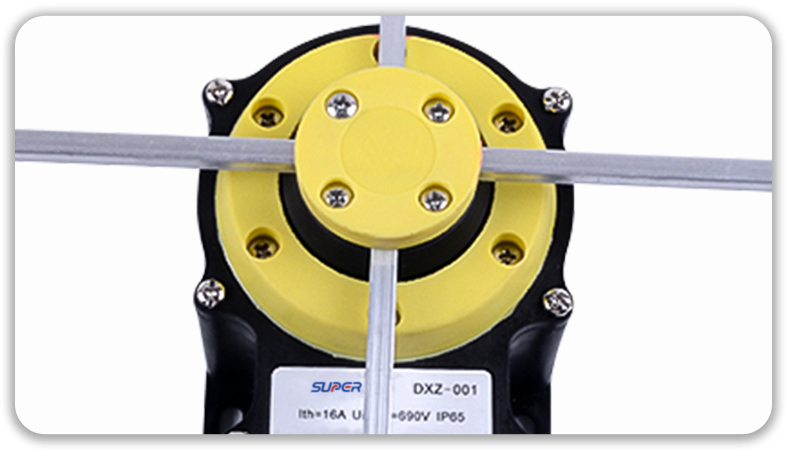

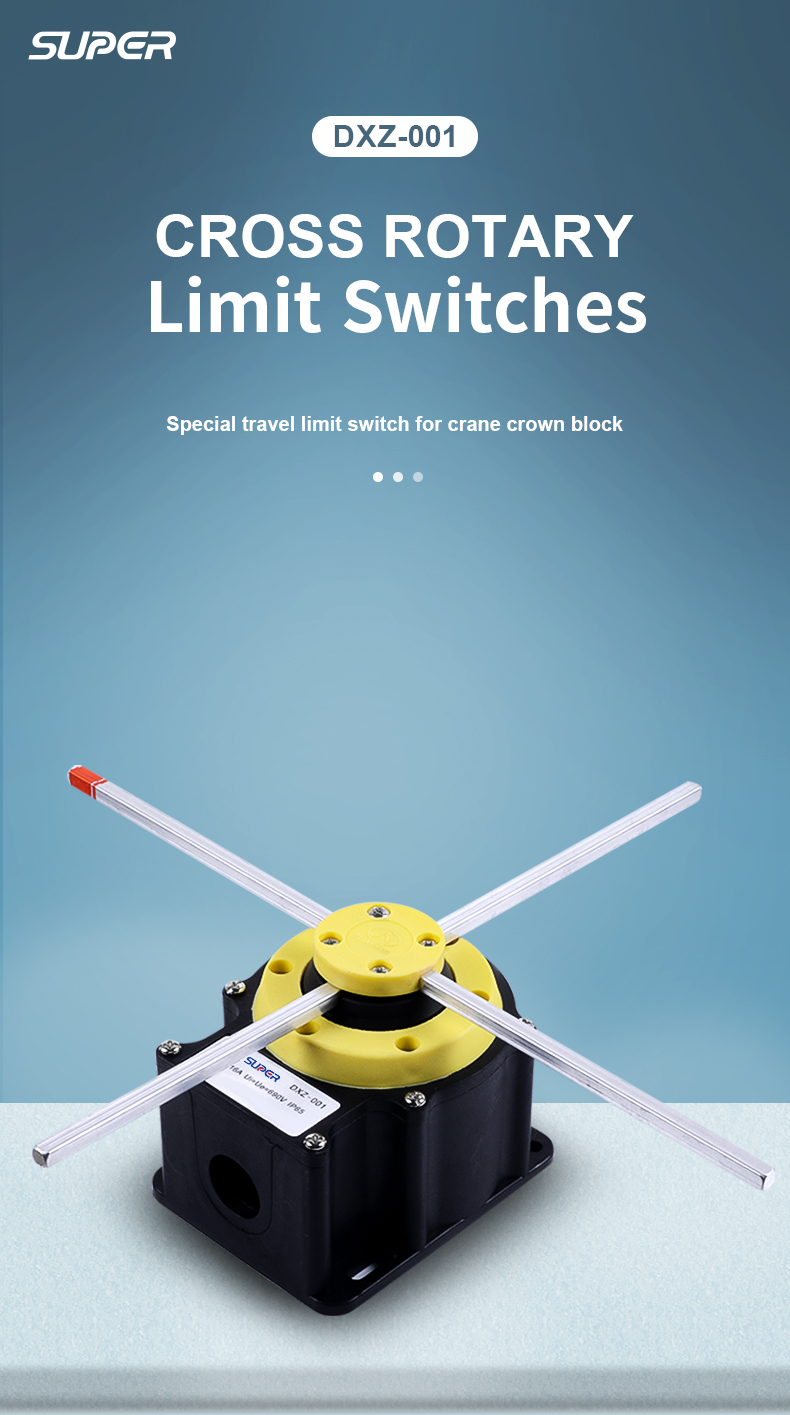

DXZ-001 single speed standard uses a rotary cam to trigger micro switches, accurately limiting the operating range of cranes, overhead cranes, and other equipment to prevent offside accidents.

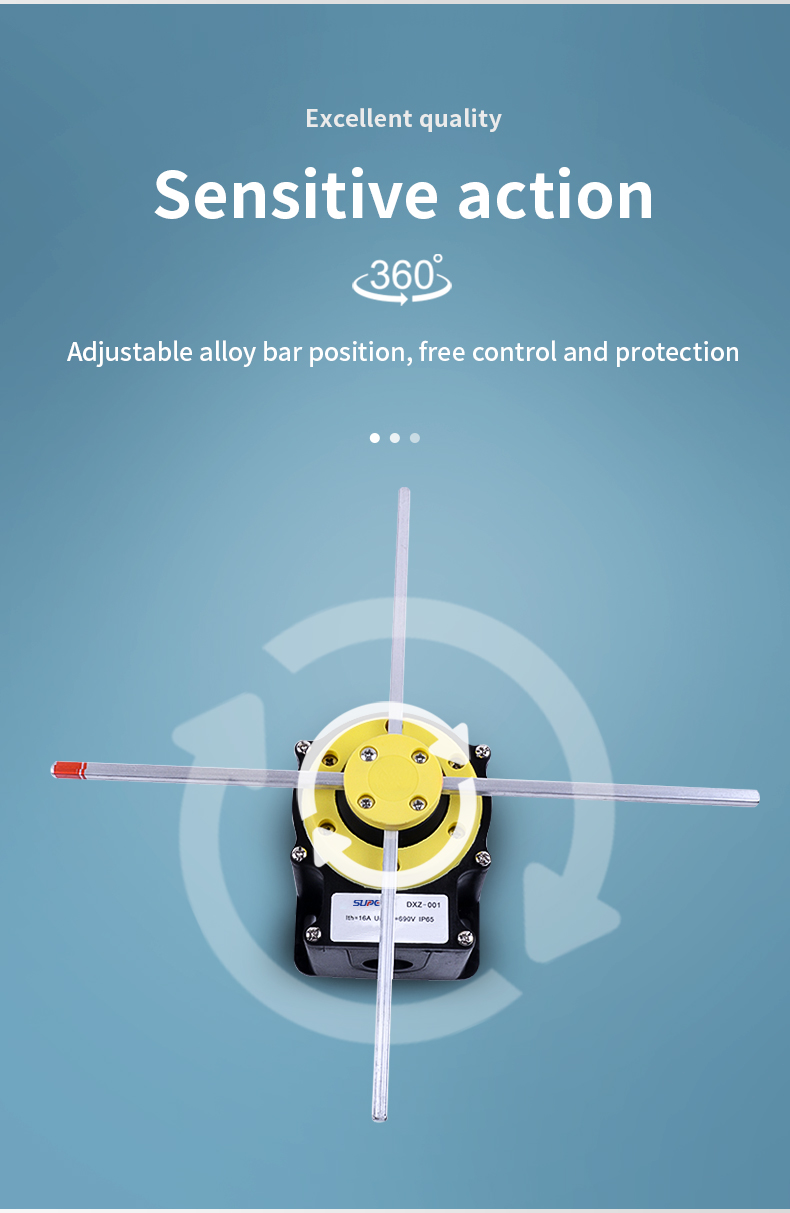

Single speed 90 ° /DXZ-001 single speed standard  rotation design

DXZ-001 single speed standard  is suitable for single speed motor control scenarios, with a rotation angle of 90 °, achieving bidirectional limit (such as up/down or left/right movement).

FCR-001 Italian GG brand replacement/single speed 90 ° limit switch  protection and durability

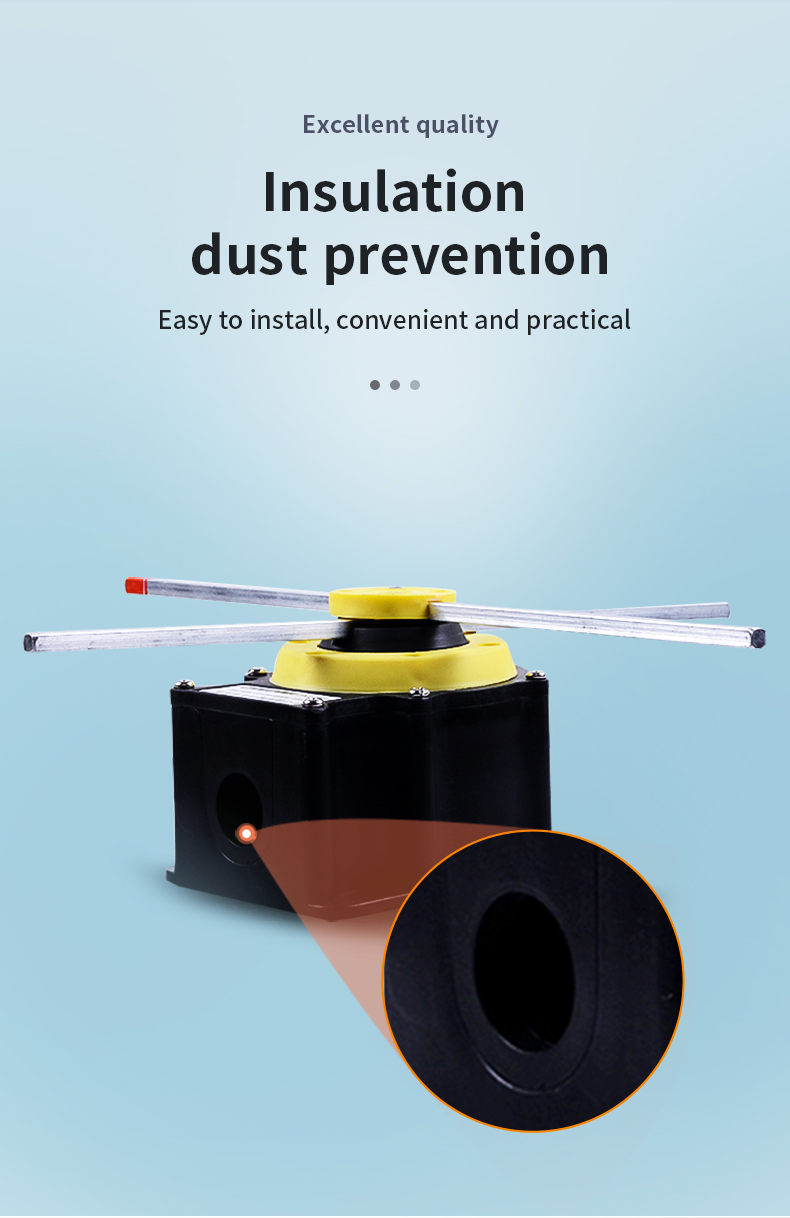

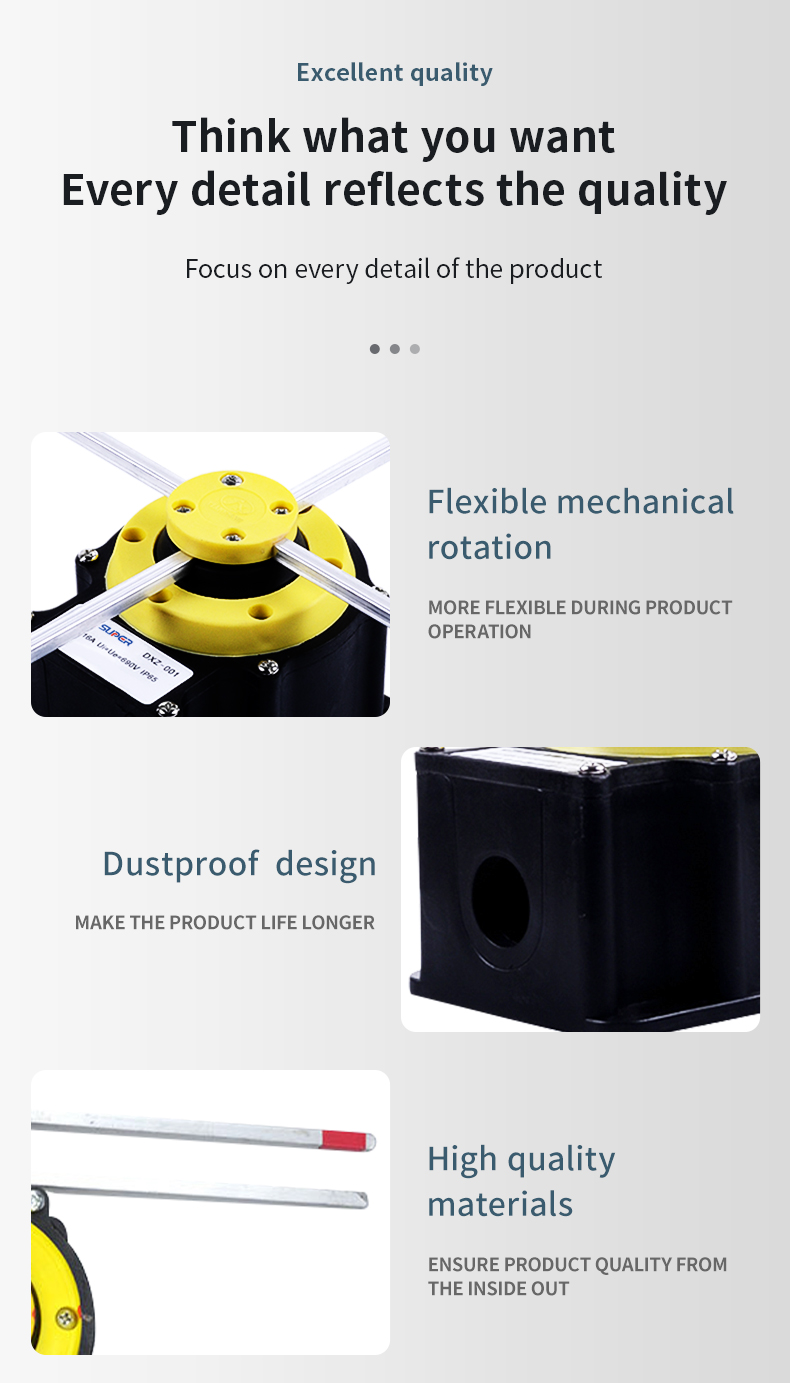

The DXZ-001 single speed standard shell protection level reaches IP65/IP67, dustproof and waterproof, suitable for industrial environments.

2.The key DXZ-001 single speed standard  components are made of high-strength hot-rolled steel (such as Q345B), which is wear-resistant and impact resistant.

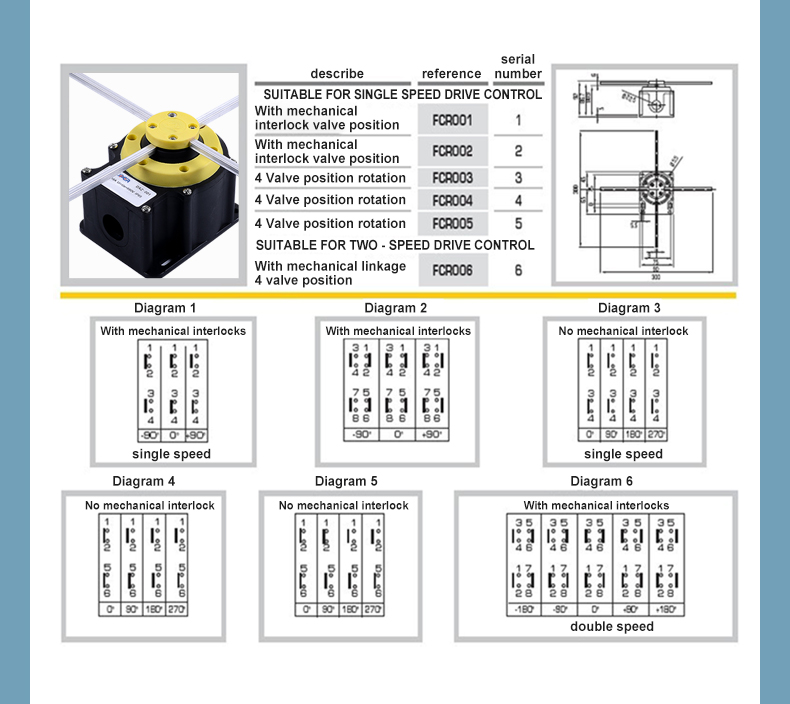

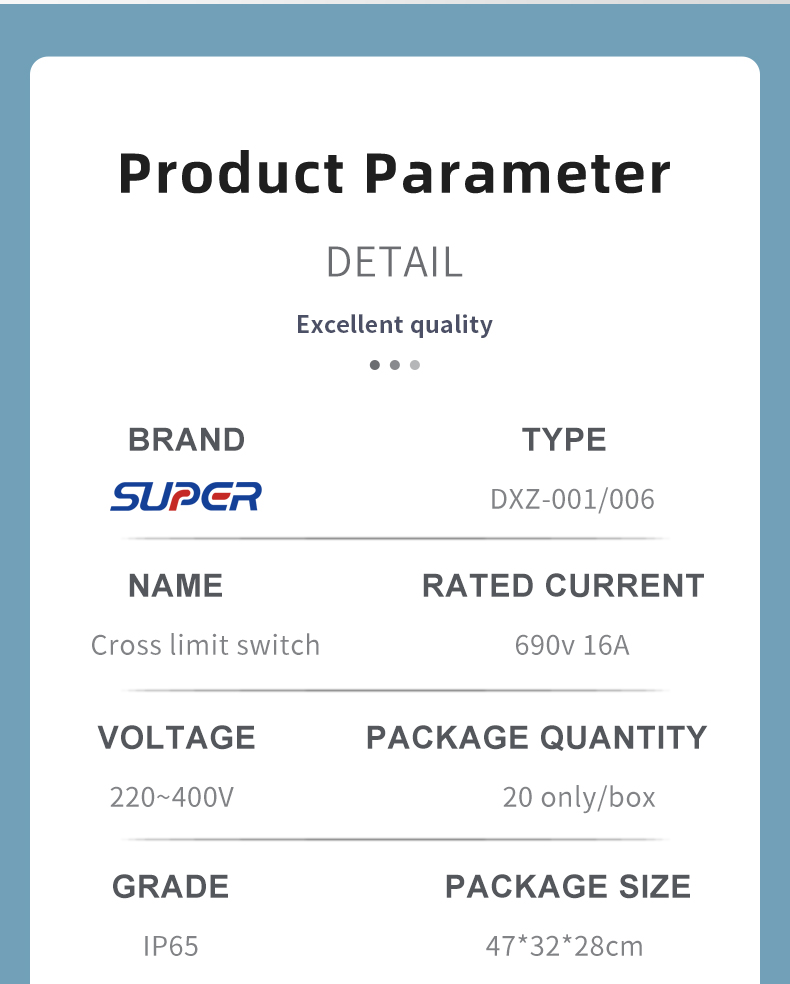

single speed 90 ° limit switch category parameter values

Model DXZ-001 (or DXZ001) DXZ-001 single speed standard

FCR-001 Italian GG brand replacement rated insulation voltage 690V

FCR-001 Italian GG brand replacement working voltage/current AC 240V/3A; DC 250V/0.27A

FCR-001 Italian GG brand replacement stipulates a heating current of 16A

FCR-001 Italian GG brand replacement uses categories AC-15 (AC load) and DC-13 (DC load)

FCR-001 Italian GG brand replacement is suitable for single speed motor equipment such as cranes, overhead cranes, and aerial vehicles

3、 Installation and maintenance of DXZ-001 single speed standard/FCR-001 Italian GG brand replacement

Calibration steps for single speed 90 ° limit switch:

After disassembling the cover of the single speed 90 ° limit switch, loosen the fixing nut and run the equipment without load to the limit point;

Adjust the cam angle of the single speed 90 ° limit switch to switch the micro switch contacts, and tighten the components after repeated verification.

Maintenance requirements for single speed 90 ° limit switch:

Regularly check the cam position deviation of the single speed 90 ° limit switch (vibration can easily cause loosening);

Single speed 90 ° limit switch to avoid overload use and ensure that the contacts are free of carbonization and dust accumulation.
