Indicator Light
24V LED indicator light is an electronic component that reflects the status of a circuit or device through visual signals. The IP65 industrial signal lamp is used to indicate the power on status (powered/off), device operating status (running/stopped/faulty), and position status (closed/open). The core function of the 24V LED indicator light is to provide real-time status feedback for operators, making it easy to quickly identify abnormalities or perform operations.

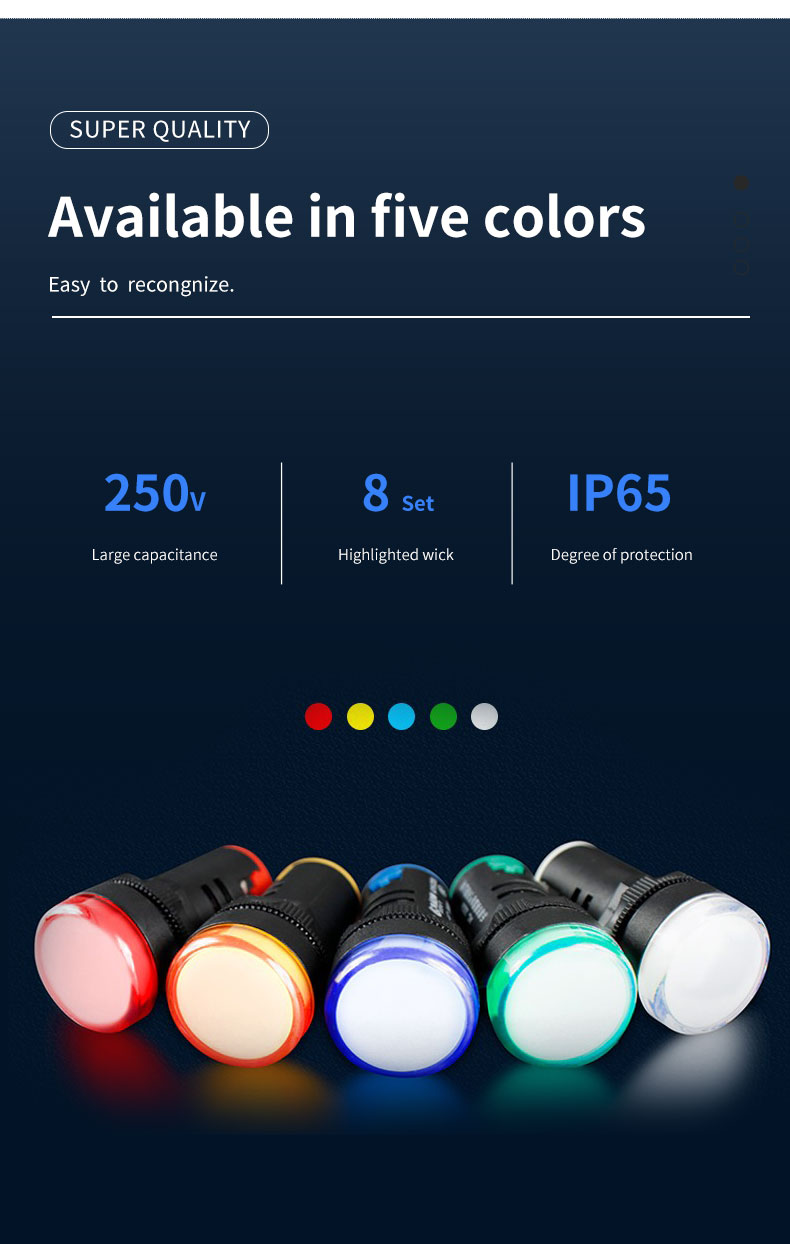

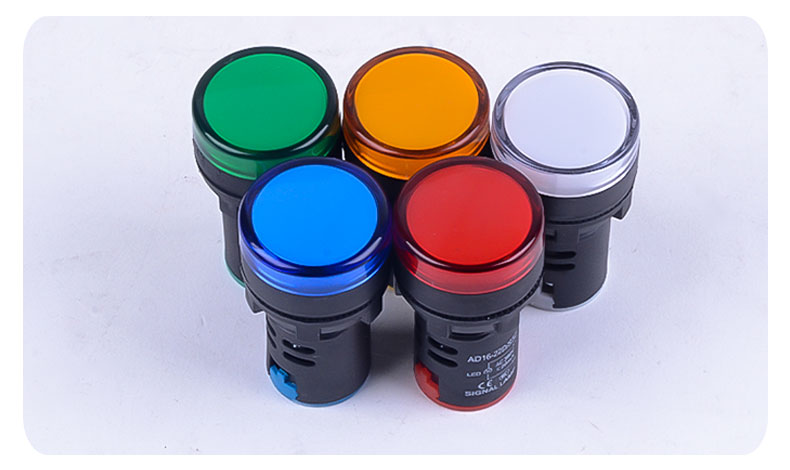

1、 24V LED indicator light/Φ 22mm panel mount light color coding specification
The color of IP65 industrial signal lamp follows the international standard, and different colors of IP65 industrial signal lamp correspond to specific meanings.
24V LED indicator light/IP65 industrial signal lamp Color Meaning Application Scenarios
Red emergency stop, malfunction, dangerous state equipment emergency stop alarm, circuit abnormality.
Green normal operation, safe status, equipment operation indication for startup preparation, power on.
Yellow warning, standby, critical reminder of status parameters to be noted, and preparatory operation.
Blue mandatory instructions or special information prompt operation instructions (such as mandatory instructions).
White refers to a general power indicator with no specific meaning for power on or normal operation, as well as a neutral state.
2、 Technical characteristics of 24V LED indicator light

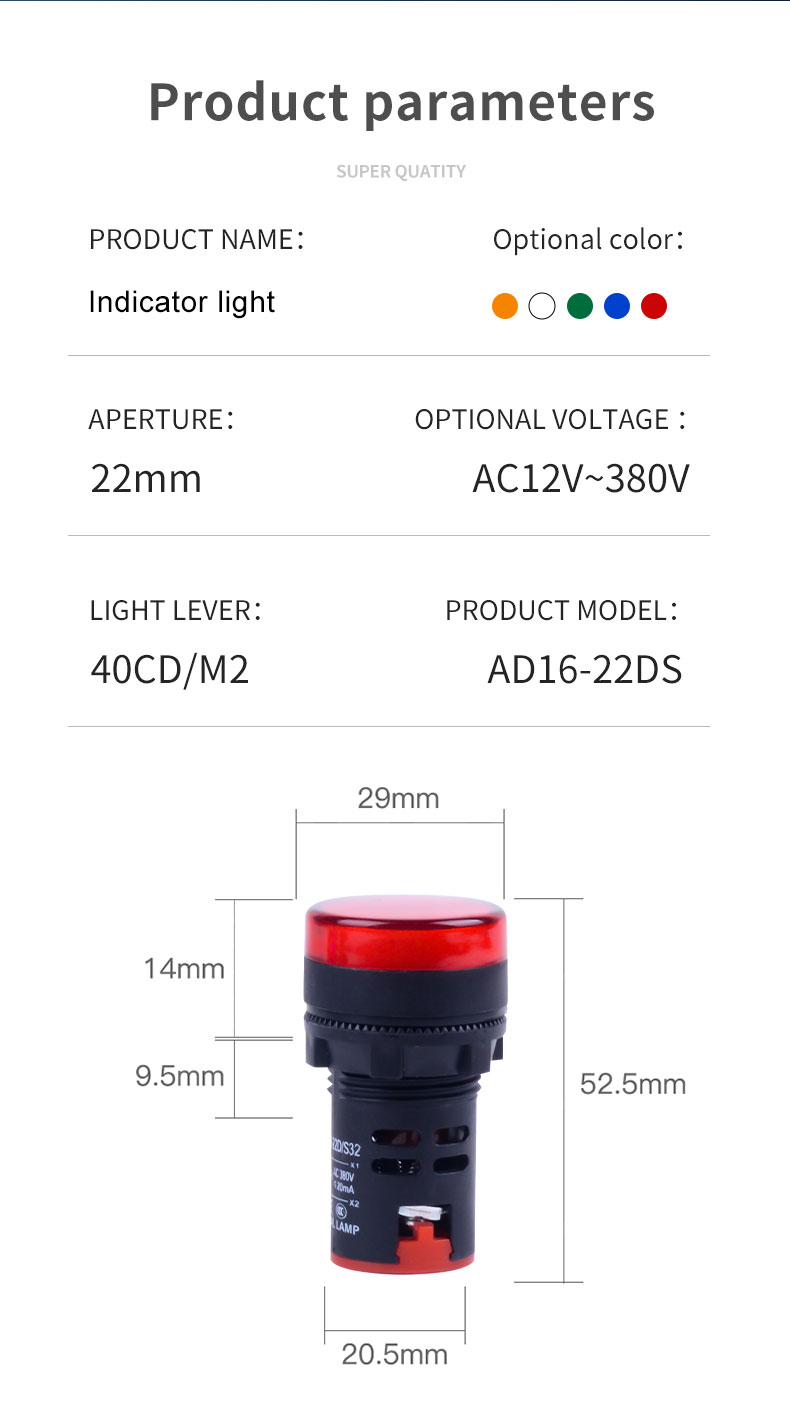

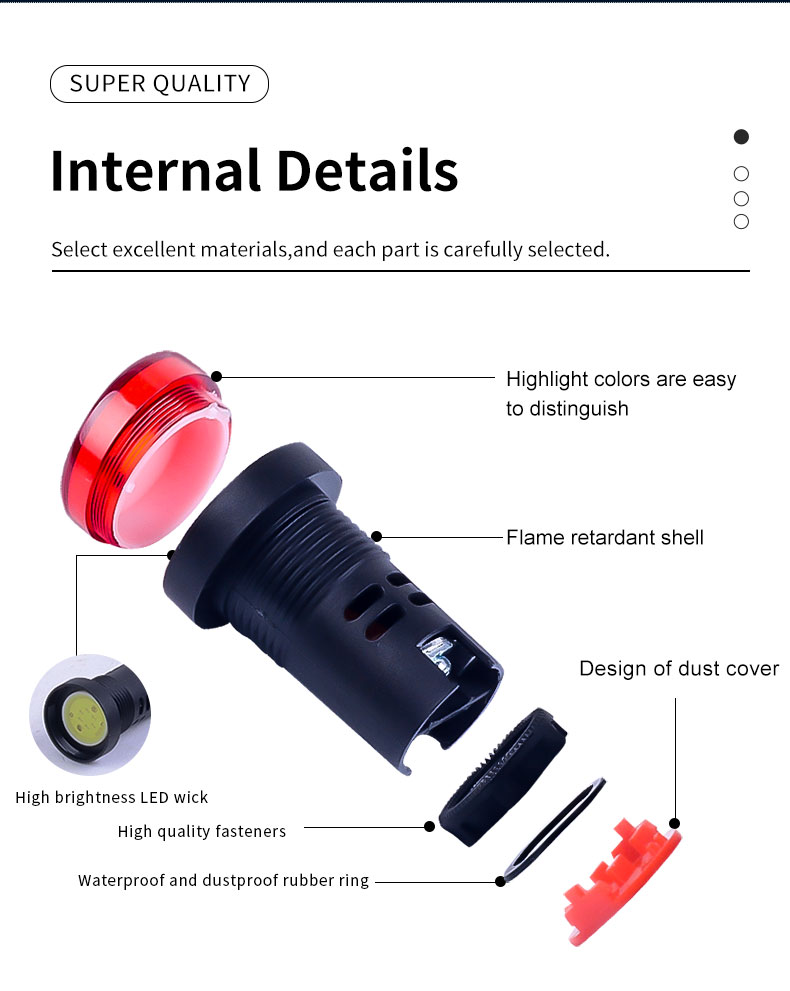

IP65 industrial signal lamp /Φ 22mm panel mount light structure design
Material of the Φ 22mm panel mount light lampshade: high-strength polycarbonate (impact resistant);
The protection level of the Φ 22mm panel mount light is industrial grade and often reaches IP65 (dustproof and waterproof).
24V LED indicator light /IP65 industrial signal lampelectrical characteristics
IP65 industrial signal lamp with built-in high resistance resistors or capacitors, suitable for a wide voltage range (AC 24-380V/DC 24-2220V);
Some models of the Φ 22mm panel mount light support flashing mode to enhance warning effects (such as rapid flashing of emergency meters).
3、 Application Scenarios of Φ 22mm Panel Mount Light
24V LED indicator light Industrial control: power cabinet operation/fault indication (red/green lights), production line equipment start stop monitoring;
24V LED indicator light Civilian equipment: home appliance switch status prompt (such as socket power on indication);
24V LED indicator light /IP65 industrial signal lamp Security system: Fire equipment main and backup power status, communication failure alarm.
Note: The Φ 22mm panel mount light needs to balance high brightness and wide viewing angle in industrial environments to ensure visibility in complex environments; The color and flashing pattern design must strictly match safety standards to avoid misjudgment.
